Frigidaire FEB27T7F Manual de usuario

FEB27T7FC.tif CPLEB30T9FCA.eps BUFEB27T6FCA.eps BLFEB27T6FCA.eps

DFEB27S7FCA.eps 318046121.eps

Product No. FEB27T7FCA

37054783F60S1

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046121

Owner's Guide 318200943

Installation Instructions 318201514

Service Data Sheet 318047306

Timer Guide 318200137

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995471058

06/07/27

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T7F

Publication No: 5995471058 FEB27T7FCA

07/06 2

CONTROL PANEL

FEB27T7FCA Publication No: 5995471058

# Functional Parts 3 07/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 318271536 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316443801 Control, electronic, ES610W2, dual oven

77 316247900 Spacer, power board, (2)

77A 316114100 Spacer, (2)

97 316443902 Board, relay, dual oven

* 318231751 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

* 5303311306 Screw, 8-18 x 0.375, (3)

Publication No: 5995471058 FEB27T7FCA

07/06 4

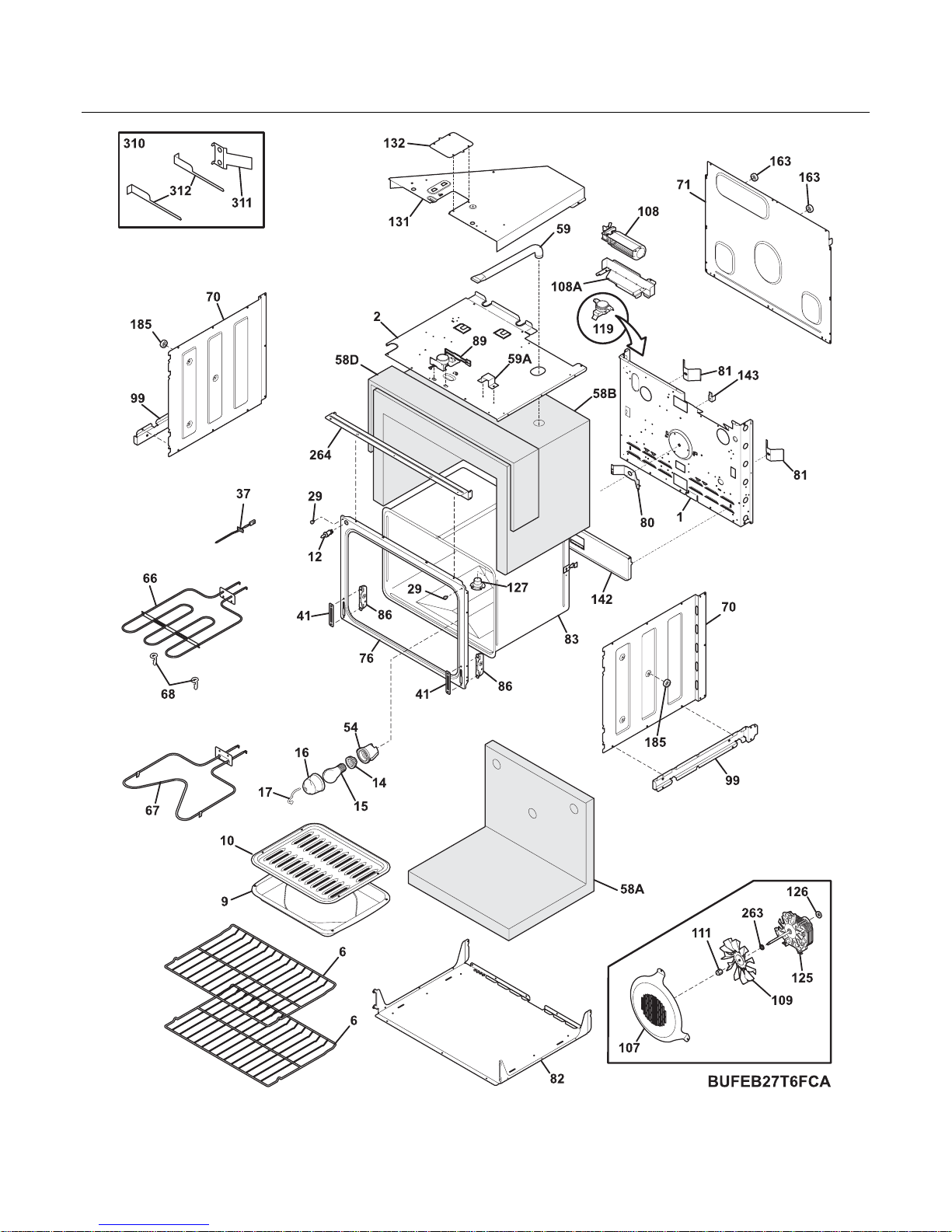

UPPER OVEN

FEB27T7FCA Publication No: 5995471058

# Functional Parts 5 07/06

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259212 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

71* 318340200 Bracket, insul. panel

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

99 318252800 Support, side

* 5303300265 Screw, 8-18 X 1/2, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 318142100 Washer, motor, RH, convection

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

263 316136500 Washer, flat

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995471058 FEB27T7FCA

07/06 6

LOWER OVEN

FEB27T7FCA Publication No: 5995471058

# Functional Parts 7 07/06

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259212 Back, main

2 318258910 Shield, insulation, upper

6 318345209 Rack, oven, (3)

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

71* 318340200 Bracket, insul. panel

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

90 318259812 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 318142100 Washer, motor, RH, convection

127 318317100 Adapter Assembly, vent tube, w/converter

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

263 316136500 Washer, flat

264 318257811 Trim, oven, black, front

* # 318078543 Box & wires assy

* 318231747 Harness, wiring, main

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995471058 FEB27T7FCA

07/06 8

DOORS

FEB27T7FCA Publication No: 5995471058

# Functional Parts 9 07/06

* Non-Illustrated Parts

DOORS

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318285057 Insulation, oven door

7A 318285061 Insulation, (2)

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5303325980 Screw, 10-32 x 0.437

12 318053135 Seal, oven door

13 318272106 Door Assy, glass, stainless steel, upper door, w/tape & foil

17 318264700 Spacer, glass, (2)

23 318024722 Hinge, door, (2)

24 318260311 Trim, door, black, lower

39 318219801 Handle, door/drawer, stainless

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995471058 FEB27T7FCA

07/06 10

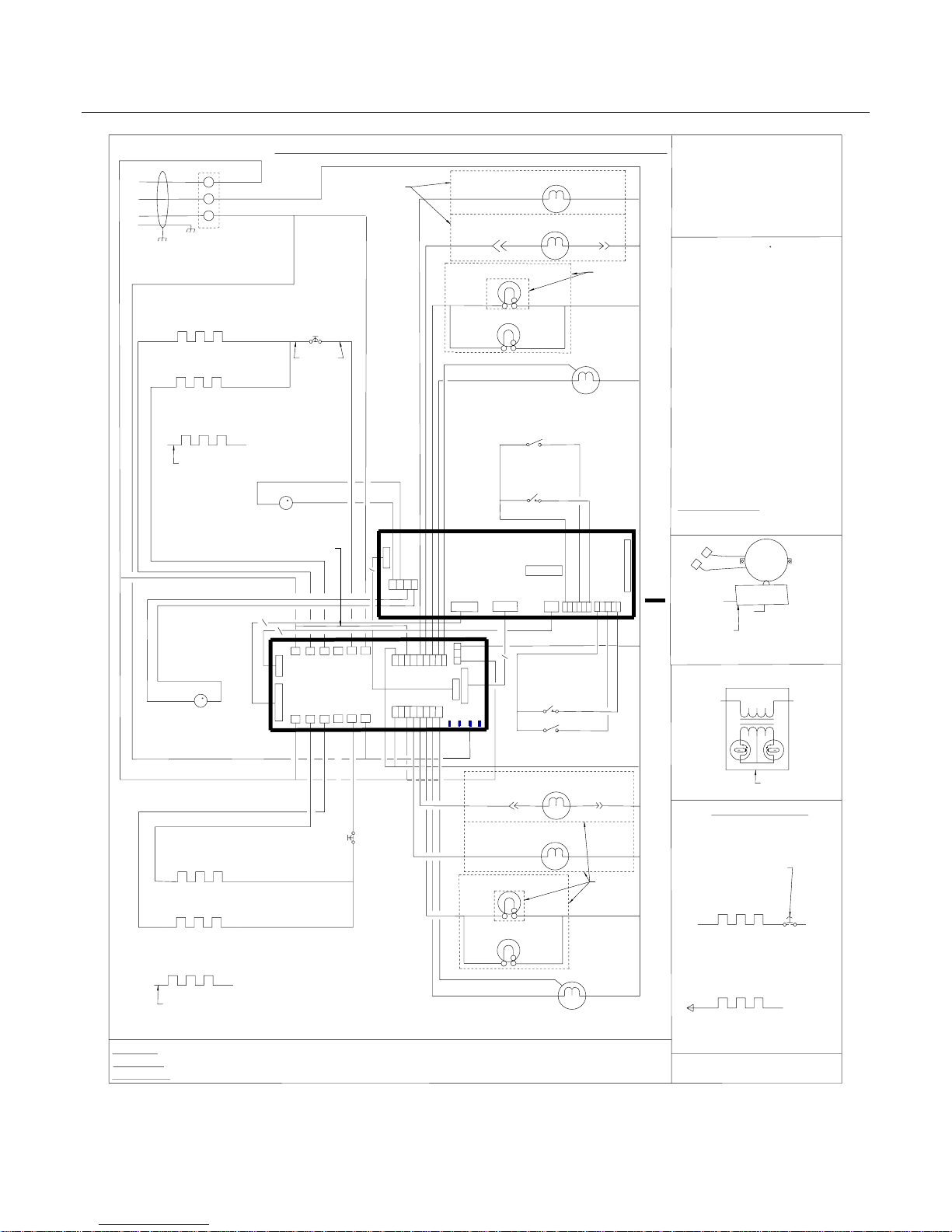

WIRING DIAGRAM

COLOR CODE/CODIGOS DE COLOR/CODE

DE COULEUR

G.-GREEN/VERDE/VERT

W.-WHITE/BLANCO/BLANC

R.-RED/ROJO/ROUGE

O.-ORANGE/NARANJA/ORANGE

Y.-YELLOW/AMARILLO/JAUNE

BR.-BROWN/MORENO/BRUN

BL.-BLUE/AZUL/BLEU

BK.-BLACK/NEGRO/NOIR

318046121 REV:B

CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.

ATENCION:CORTAR EL CORIENTE ANTES DE REALIZAR ELMANTENIMIENTO DEL ELECTRODOMESTICO.

ATTENTION:COUPEZ L`ALIMENTATION AVANT D`EFFECTUER LA REPARATION.

TERMINAL BLOCK

BLOQUE DE CONEXION

BLOC DE CONNECTION

BK-7

OR/O/OU

(BK-8)*

W-5

ELECTRONIC OVEN CONTROL/CONTROL

DE HORNO ELECTRONICO/

COMMANDE FOUR ELECTRONIQUE

ES 610/615

DLB IN

DLB OUT

CONV.

BAKE

BROIL

BROIL ELEMENT/

ELEMENTO DE

ASADO/ELEMENT

GRIL

BL-6 OR/O/OU (BL-8)*

BAKE ELEMENT/ELEMENTO

DE HORNO/ELEMENT

CUISSON

Y-6

V-14

LATCH MOTOR/MOTOR DE

CERROJO/MOTEUR VERROU

BK-5

BR-5

DOOR SWITCH/INTERRUPTOR DE

PUERTA/INTERRUPTEUR DE PORTE

SW.A

SEE LEGEND/

VER LEYENDA/

VOIR LEGENDE

THERMAL CIRCUIT BREAKER

INTERRUPTOR DE CIRCUITO

TERMICO

DISJONCTEUR THERMIQUE

TEMPERATURE PROBE/

SONDA DETEMPERATURA/

SONDE THERMIQUE

BK-14

W-5

BK-14

R/W-7 OR/O/OU (R/W-8)*

OVEN CIRCUIT // CIRCUITO DE HORNO // CIRCUIT DU FOUR

BR-5

COOLING FAN/VENTILADOR DE ENFRIAMIENTO/

VENTILATEUR REFROIDISSEMENT

BK-5

R-5

W-5

OVEN LAMP/LUZ DE HORNO/

LAMPE DE FOUR

W-5

HIGH SPEED/ALTA VELOCIDAD/HAUTE VITESSE

R-6

OR/O/OU

(R-7)*

CODE GAUGE TEMP. C CSA UL

CODIGO MEDIDA

CODE CALIBRE

1 18 125 CL1251 3173

2 16 125 CL1251 3173

3 14 125 CL1251 3173

4 12 125 CL1251 3173

5 18 150 EXL-150 3321

6 16 150 EXL-150 3321

7 14 150 EXL-150 3321

8 12 150 EXL-150 3321

9 10 150 EXL-150 3321

10 18 200 SEW-1 3122

11 16 200 SEW-1 3122

12 12 250 3252

13 16 250 3252

14 20 150 EXL-150 3321

15 8 150 EXL-150 3321

16 8 60

17 10 60

18 10 200 SEW-1 3122

19 20 125 CL1251 3173

20 20 200 SEW-1 3122

21 22 125 CL-1251 3173

22 22 150 EXL-150 3321

23 18 200 3573

12v 12v

120v

HALOGEN/HALOGENO/

HALOGENE

SW.A

LATCH MOTOR

MOTOR DE CERROJO

MOTEUR VERROU

W-5

UPPER OVEN

1J2

DLB IN

DLB OUT

CONV.

BAKE

BROIL

L1L1

LOWER OVEN J4

P10

OVEN LAMP/LUZ DE HORNO/

LAMPE DE FOUR

CONVECTION FAN/VENTILADOR DE CONVECCION/

CONVECTION VENTILATEUR

BK-5 BK-5

BK-14

V-14

TEMPERATURE PROBE/

SONDA DETEMPERATURA/

SONDE THERMIQUE

DOOR SWITCH/INTERRUPTOR DE

PUERTA/INTERRUPTEUR DE PORTE

SW.A

SEE LEGEND/

VER LEYENDA/

VOIR LEGENDE

BK-14

LATCH MOTOR/MOTOR DE

CERROJO/MOTEUR VERROU

BK-5

BR-5

BK-5

R-5

W-5

OVEN LAMP/LUZ DE HORNO/

LAMPE DE FOUR

W-5

OVEN LAMP/LUZ DE HORNO/

LAMPE DE FOUR

CONVECTION FAN/VENTILADOR DE CONVECCION/

CONVECTION VENTILATEUR

BK-5 BK-5

BROIL ELEMENT/

ELEMENTO DE

ASADO/ELEMENT

GRIL

BAKE ELEMENT/ELEMENTO

DE HORNO/ELEMENT

CUISSON

THERMAL CIRCUIT BREAKER/

INTERRUPTOR DE CIRCUITO

TERMICO/

DISJONCTEUR THERMIQUE

CONVECTION ELEMENT/

ELEMENTO DE CONVECCION/

ELEMENT CONVECTION

V-14

OPTION

OPCION

OPTION

OPCION

OPTION

OPCION

OPTION

UPPER OVEN/HORNO SUPERIOR/FOUR SUPERIEUR

LOWER OVEN /HORNO INFERIOR/FOUR INFERIEUR

EXAMPLE/EJEMPLO/EXAMPLE: (R-8)*

* WHEN USING 4000 W. BROIL ELEMENT

* CUANDO SE USA 4000 W. ELEMENTO DE ASADO

* QUAND UTILISE AVEC 4000 W. ELEMENT GRILLAGE

Y-6

BL-6 OR/O/OU (BL-8)*

BL-6

OR/O/OU

(BL-7)*

R-6

OR/O/OU

(R-7)*

LOW SPEED/BAJA VELOCIDAD/BASSE VITESSE

HIGH SPEED/ALTA VELOCIDAD/HAUTE VITESSE

LOW SPEED/BAJA VELOCIDAD/BASSE VITESSE

BK-14

R-7

OR/O/OU

(R-8)*

W-5

BK-8

W-6

R-8

G-8

GND

OUTSIDE

EXTERIOR

EXTERIEUR

INTSIDE

INTERIOR

INTERIEUR

AUX.

Y-6

BL-6

OR/O/OU

(BL-8)*

BK-5

OPTION

OPCION

OPTION

AUX.

RELAY

RELE

RELAIS

TMR

DLB OUT

REL

THERMAL CIRCUIT BREAKER/

INTERRUPTOR DE CIRCUITO

TERMICO/

DISJONCTEUR THERMIQUE

LEGEND/LEYENDA/LEGENDE

CONVECTION ELEMENT/ELEMENTO DE

CONVECCION/ELEMENT CONVECTION

O-6 O-6

CONVECTION ELEMENT/

ELEMENTO DE CONVECCION/

ELEMENT CONVECTION

2500 W.

350 W.

O-6

SEE LEGEND

VER LEYENDA

VOIR LEGENDE

SEE LEGEND

VER LEYENDA

VOIR LEGENDE

REL BD

COOLING FAN/VENTILADOR DE ENFRIAMIENTO/

VENTILATEUR REFROIDISSEMENT

BK/W-5

BK-5 W-5

W-5

BK-5

LOW

UPR

R-6

OR/O/OU

(R-8)*

R-6

OR/O/OU

(R-8)*

R/W-5

BK-5

Tabla de contenidos

Otros manuales de Horno de Frigidaire

Frigidaire

Frigidaire GLES388ASB Control Manual de uso y mantenimiento

Frigidaire

Frigidaire FRIGIDAIRE FEB24S2A Manual de usuario

Frigidaire

Frigidaire FEB798CC Manual de usuario

Frigidaire

Frigidaire Gallery FGEW3045K Manual de usuario

Frigidaire

Frigidaire FEB30S5DBB Manual de instrucciones

Frigidaire

Frigidaire FEB30S6DBB Manual de instrucciones

Frigidaire

Frigidaire FGB24S5DC - 24 Inch Single Gas Wall Oven Manual de usuario

Frigidaire

Frigidaire FGB504CHSB Guía de inicio rápido

Frigidaire

Frigidaire FEB798WC Manual de usuario

Frigidaire

Frigidaire GCWD2767AF Manual del propietario

Frigidaire

Frigidaire CGEB27Z7HS3 Manual de usuario

Frigidaire

Frigidaire CGEW3065KBB Manual del propietario

Frigidaire

Frigidaire FGB24L2ECD Manual de usuario

Frigidaire

Frigidaire FGB557CES Manual de usuario

Frigidaire

Frigidaire FEB30T6D Manual de usuario

Frigidaire

Frigidaire FNGE90JGRS Manual de usuario

Frigidaire

Frigidaire Oven Guía del usuario

Frigidaire

Frigidaire FEB30S5DB - 30 Inch Single Electric Wall... Guía de inicio rápido

Frigidaire

Frigidaire FEB24S2ABC Manual de usuario

Frigidaire

Frigidaire FEB702CESG Manual de usuario

Frigidaire

Frigidaire PGLEF385EC8 Guide Manual de usuario

Frigidaire

Frigidaire FGB24T3ASA Manual de usuario

Frigidaire

Frigidaire FEB24S5AB Instrucciones de instalación

Frigidaire

Frigidaire FGB557CESD Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

DeLonghi

DeLonghi XA660 Manual
