Product No. FEB27T5DBE FEB27T5DSE

37054741E4065 37054741E4015

Series 27" double 27" double

Color black white

Market North America North America

Wiring Diagram 318046123 318046123

Owner's Guide 318205115 318205115

Installation Instructions 316201514 316201514

Service Data Sheet 318047309 318047309

Timer Guide 318200129 318200129

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995492419

07/06/07

(EN/SERVICE/BJH)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T5D

Publication No: 5995492419 FEB27T5D

06/07 2

CONTROL PANEL

FEB27T5D Publication No: 5995492419

# Functional Parts 3 06/07

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB27T5D (FEB27T5DBE)

BFEB27T5D (FEB27T5DSE)

POS. NO PART NO. DESCRIPTION

2A 318257301 A B Shield, oven top

2B 318260101 A B Cover, box

19 318342808 - B Control Panel Assembly, glass, white, w/touch pad

19 318342809 A - Control Panel Assembly, glass, black, w/touch pad

20 # 316443830 A B Control, electronic, ES610W1, dual oven

97 316443913 A B Board, relay, dual oven

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995492419 FEB27T5D

06/07 4

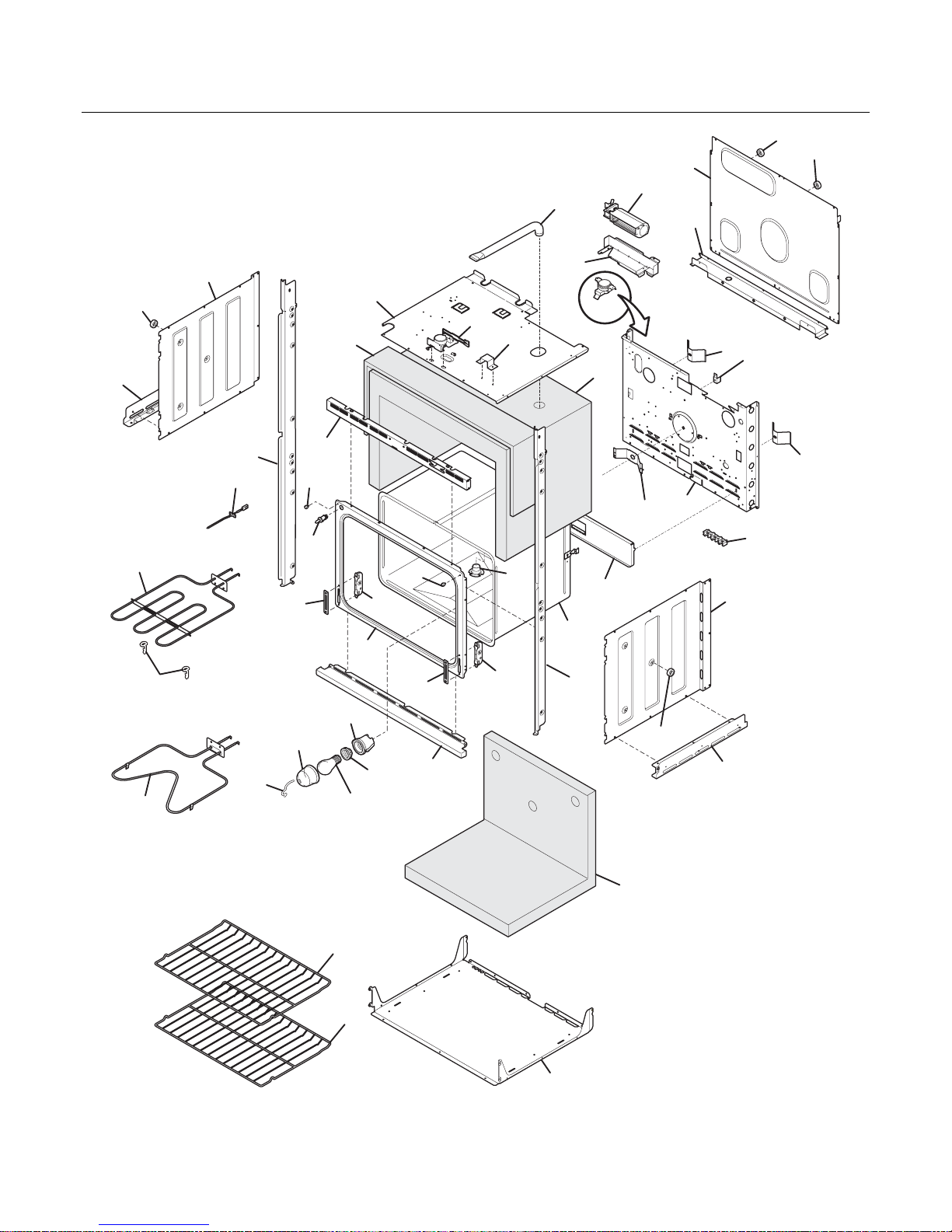

UPPER OVEN

FEB27T5D Publication No: 5995492419

# Functional Parts 5 06/07

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T5D (FEB27T5DBE)

BFEB27T5D (FEB27T5DSE)

POS. NO PART NO. DESCRIPTION

1 318259212 A B Back, main

2 318258910 A B Shield, insulation, upper

6 318262602 A B Rack, oven, (2)

9 5303317977 A B Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 A B Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 A B Switch, oven light, door frame

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318285060 A B Insulation, rear & bottom, oven wrapper

58B 318285059 A B Insulation, top & sides, oven wrapper

58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

66 # 318255601 A B Element, broil, 3400W

67 # 318255103 A B Element, bake, 2300W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260001 A B Panel, rear box

76 318056222 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258710 A B Shield, insulation, lower

83 318261502 A B Liner, oven assy

86 318342400 A B Receptacle, hinge

89 # 318261211 A B Motor, latch assy

* # 318231750 A B Harness, wiring, main, latch

* # 318199744 A B Wiring Harness, latch, BAS

* # 318199746 A B Wiring Harness, latch, NO BAS

99 318252800 A B Support, side

* 5303300265 A B Screw, 8-18 X 1/2, (2)

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318004900 A B Switch, thermal

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272900 A B Box, vent

132 318003000 A B Plate, shield

142 318123910 A B Deflector

143 318172904 A B Support, wire

163 318014111 A B Spacer

185 318014700 A B Spacer, oven shield, (4)

264 318257711 A B Trim, oven, black, front

Publication No: 5995492419 FEB27T5D

06/07 6

UPPER OVEN

FEB27T5D Publication No: 5995492419

# Functional Parts 7 06/07

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T5D (FEB27T5DBE)

BFEB27T5D (FEB27T5DSE)

POS. NO PART NO. DESCRIPTION

310 5304440067 A B Cabinet Mounting Kit

311 318246010 A B Bracket, cabinet mtg, (2)

311* 5304438005 A B Screw, 6 x 1, black

312 318246702 A B Tool, cabinet bracket, RH

312 318246703 A B Tool, cabinet bracket, LH

* 5303211311 A B Screw, 8 x 0.500

* 5303323277 A B Screw, 8-18 X 13/32

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995492419 FEB27T5D

06/07 8

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB27T5DCC

185

59A

58D

FEB27T5D Publication No: 5995492419

# Functional Parts 9 06/07

* Non-Illustrated Parts

LOWER OVEN

Model Index: AFEB27T5D (FEB27T5DBE)

BFEB27T5D (FEB27T5DSE)

POS. NO PART NO. DESCRIPTION

1 318259212 A B Back, main

2 318258910 A B Shield, insulation, upper

6 318345209 A B Rack, oven, (3)

12 316445501 A B Switch, oven light, door frame

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 318903604 A - Trim, side filler, black, RH

56 318903602 - B Trim, side filler, white, RH

56A 318903605 A - Trim, side filler, black, LH

56A 318903603 - B Trim, side filler, white, LH

58A 318285060 A B Insulation, rear & bottom, oven wrapper

58B 318285059 A B Insulation, top & sides, oven wrapper

58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

62 316056000 A B Terminal Block

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

66 # 318255601 A B Element, broil, 3400W

67 # 318255103 A B Element, bake, 2300W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260001 A B Panel, rear box

71* 318340201 A B Bracket, insul. panel

76 318056222 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258710 A B Shield, insulation, lower

83 318261502 A B Liner, oven assy

86 318342400 A B Receptacle, hinge

87 318260601 A B Bracket, cable mtg.

89 # 318261211 A B Motor, latch assy

* # 318231750 A B Harness, wiring, main, latch

* # 318199744 A B Wiring Harness, latch, BAS

* # 318199746 A B Wiring Harness, latch, NO BAS

90 318259711 A - Trim, oven front, black, bottom

90 318259710 - B Trim, oven front, white, bottom

99 318256200 A B Bracket, side, bottom, (2)

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318004900 A B Switch, thermal

Publication No: 5995492419 FEB27T5D

06/07 10

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB27T5DCC

185

59A

58D
