Frigidaire FFU20FG6AW1 Manual de usuario

FREEZER

Model numbers:

FFU20FG6AW1

FACTORY PARTS CATALOG

FREEZER

WIR DIA - 216857700 OWNER’S GUIDE - 216802800

SERVICE DATA SHEET - 216857700

ENERGY GUIDE - 216795504

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU20FG6AW1 FFU20FG6AW 134A white 115

MARKET

North America

Publication No.

5995370102

020416

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

04/02 2

Publication No FFU20FG6AW1

5995370102

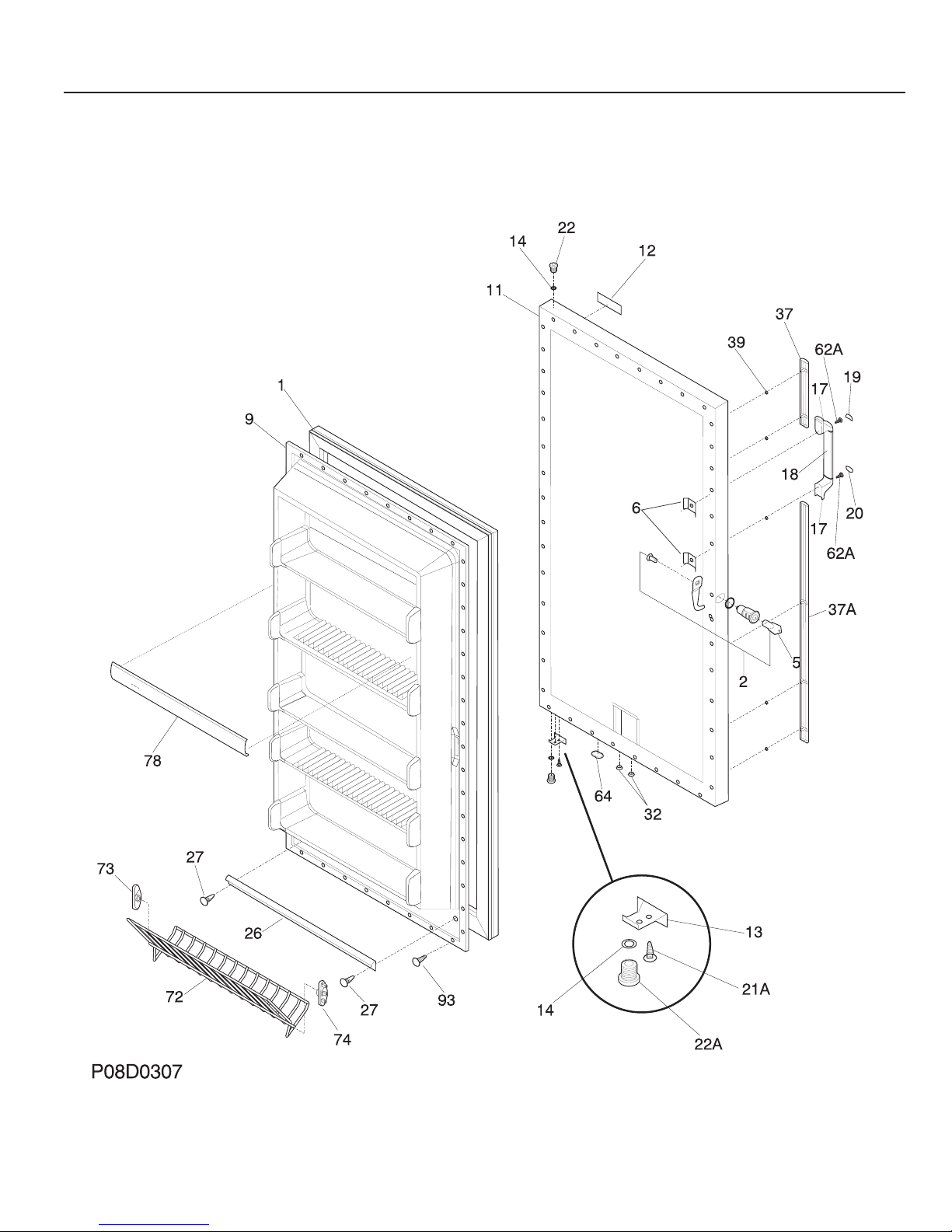

DOOR

# = Fast-moving Parts 3 04/02

* = Non-Illustrated Parts

FFU20FG6AW1 Publication No.

5995370102

DOOR

POS. NO PART NO DESCRIPTION

1 216522312 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216528103 Panel-inner door,white

11 5303925472 Panel-door,white

12 240449701 Nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

17 216087400 End Cap,white ,(2)

18 216518000 Handle,center

19 216208900 Insert,handle top

20 216209001 Insert,handle bottom

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 5303925197 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

32 5309950074 Valve-breather

37 216211200 Trim-handle,upper

37A 216087600 Trim-handle,bottom

39 131168200 Screw,8-18 x 0.31 ,12

62A 131420300 Screw,cr truss head ,8-18AB x 0.750

64 216403700 Plug-button,door base

72 216514100 Shelf,tilt out ,wire

73 216513900 End Cap,tiltout ,LH

74 216514000 End Cap,tiltout ,RH

78 216806100 Rack-door,CONTOUR ,(5)

93 5303161215 Screw

04/02 4

Publication No FFU20FG6AW1

5995370102

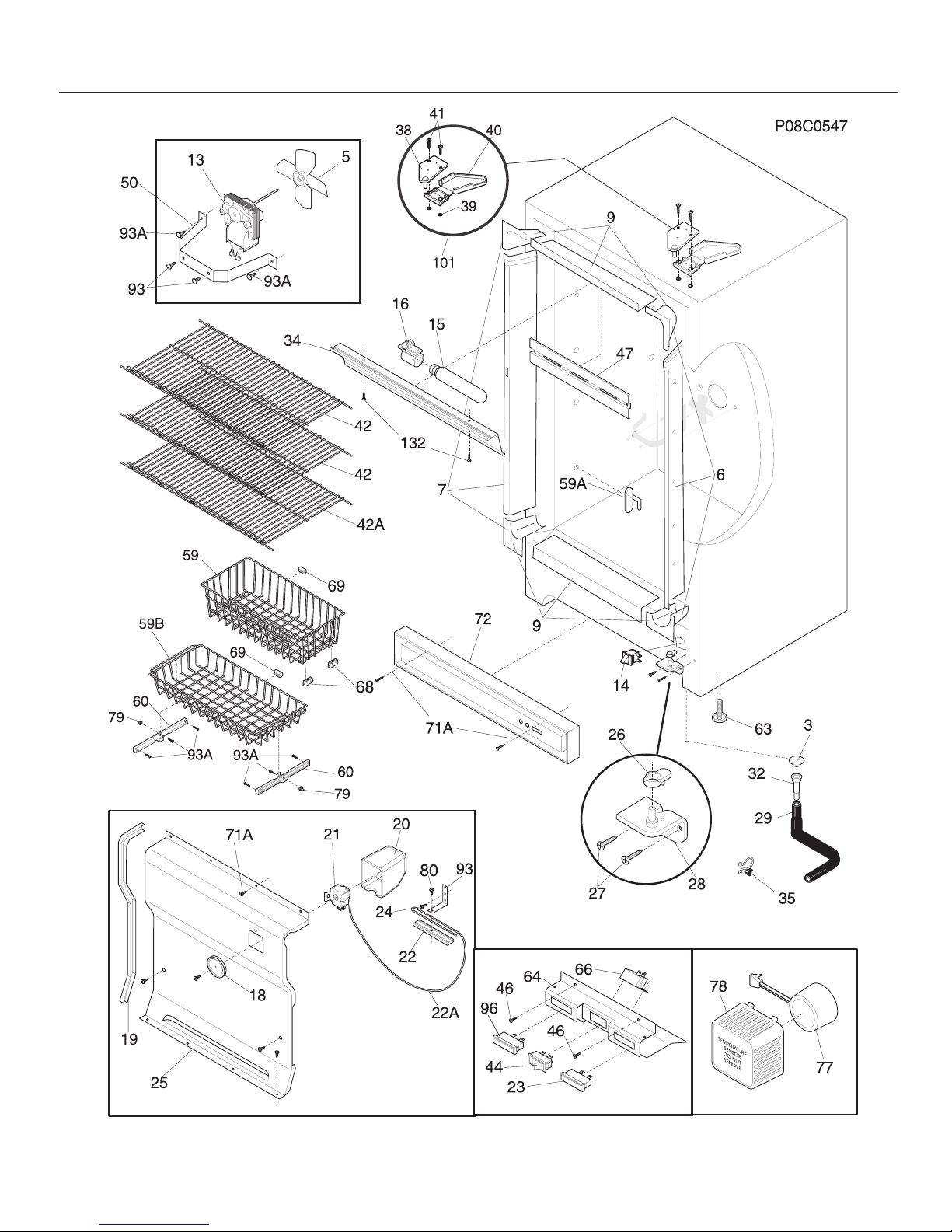

CABINET

# = Fast-moving Parts 5 04/02

* = Non-Illustrated Parts

FFU20FG6AW1 Publication No.

5995370102

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

13 216822500 Motor-fan

14 216822900 Light/Lamp,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Light/Lamp,indicator

18 216707200 Knob-control cold

19 216204901 Gasket-cover evap

20 216230300 Cover,temp control

21 216715200 Control-temperature

22 216823500 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 5308002706 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737200 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816200 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge-upper

39 5303294372 Nut-insert,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42 216458500 Shelf,wire ,16.69x26.88 ,white ,(3)

42A 216546000 Shelf-fixed w/frame,white

44 216823300 Switch-rocker

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

47 216661600 Baffle-plate

50 216394000 Bracket-motor mtg fan

59 216139400 Basket

59A 216486500 Stop-basket

59B 216826500 Basket

60 5303212693 Slide-basket

63 216396900 Foot-adjustable

64 08016369 Bracket

66 # 216713700 Buzzer,alarm

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 216347500 Screw,quadrex

72 216591118 Grille/Kickplate,32"

77 # 5303313631 Sensor Assy

78 3205349 Housing-sensor

79 3017666 Nut-insert

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

96 08016772 Light-signal,red

101 216835200 Kit-top hinge

132 5303283898 Screw,6-20AB x 3/8

* 216802800 Owners guide

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

CABINET

04/02 6

Publication No FFU20FG6AW1

5995370102

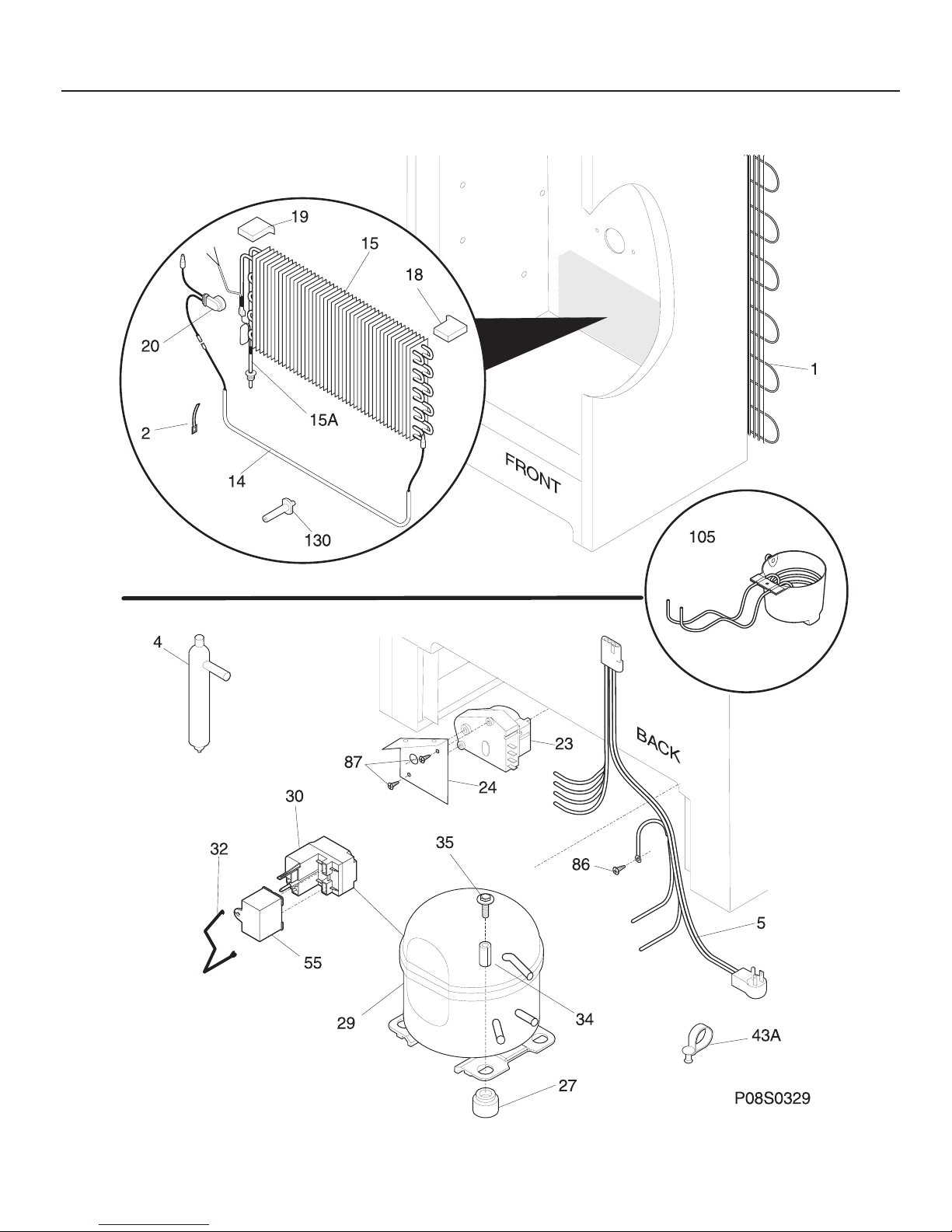

SYSTEM

FFU20FG6AW1 Publication No.

5995370102

# = Fast-moving Parts 7 04/02

* = Non-Illustrated Parts

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216790500 Harness,electrical

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216783200 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 # 216788600 Compressor,w/o electricals

30 # 216649303 Controller

32 218740800 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

105 216854000 Cup-drain

130 216486800 Support-evaporator

* 5303298960 Spacer-tube,.75"
