Frigidaire FFU1423D Manual de usuario

Product No. FFU1423DW0

Series 134A

Color white

Volts 115

Wiring Diagram 216903500

Owner's Guide 216960000

Market North America

Energy Guide 216794907

P08F0062.eps P08D0368.eps P08C0738.eps P08S0350.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995414223

04/08/03

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU1423DW

Publication No: 5995414223 FFU1423DW0

08/04 2

DOOR

P08D0368

21A

22A

93 37A

37A

FFU1423DW0 Publication No: 5995414223

# Functional Parts 3 08/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522306 Gasket, door seal, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216527615 Panel-inner door, frzr

11 216557836 Panel-outer door, white

12A 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 218762701 Handle-door, white

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 5303925197 Bearing, hinge, top

22A 216503200 Bearing, hinge, bottom

26 216524300 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216951601 Rack-door, (5)

32 5309950074 Valve, breather, door base

37A 215870619 Trim-handle, 2.47", white, w/chrome band

37A* 218676001 Band-decorative, chrome, handle trim

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995414223 FFU1423DW0

08/04 4

CABINET

59A

P08C0738

132

FFU1423DW0 Publication No: 5995414223

# Functional Parts 5 08/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216502600 Plug, drain, interior

6 216603400 Breaker Kit w/corners, 22.13" long, top or bottom

7 216603800 Breaker Kit w/corners, incl lock catch

9 216604300 Breaker Kit w/corners, 45.13" long, no lock slot

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

20 216707300 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp, cap tube, cold control

24 5300052943 Screw-clamp, truss hd cr, control

26 216503300 Ramp, door closer

28 216247400 Hinge, bottom

29 216313502 Hose-drain

32 5308005500 Drain

34 216816201 Shield-light

35 216273000 Clip, drain hose

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216954400 Screw, 12-24 x.700 hwh, hinge mtg.

59 216605700 Basket

59A 216486500 Stop-basket

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket, (4)

69 5305878546 Bumper-basket, (2)

72 216946900 Grille/Kickplate

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

132 5303283898 Screw, 6-20AB x 3/8

* 09948773 Insulation, drain tube

* 5303305324 Paint, touch-up, white

* 216794907 Energy Guide

Publication No: 5995414223 FFU1423DW0

08/04 6

SYSTEM

FFU1423DW0 Publication No: 5995414223

# Functional Parts 7 08/04

* Non-Illustrated Parts

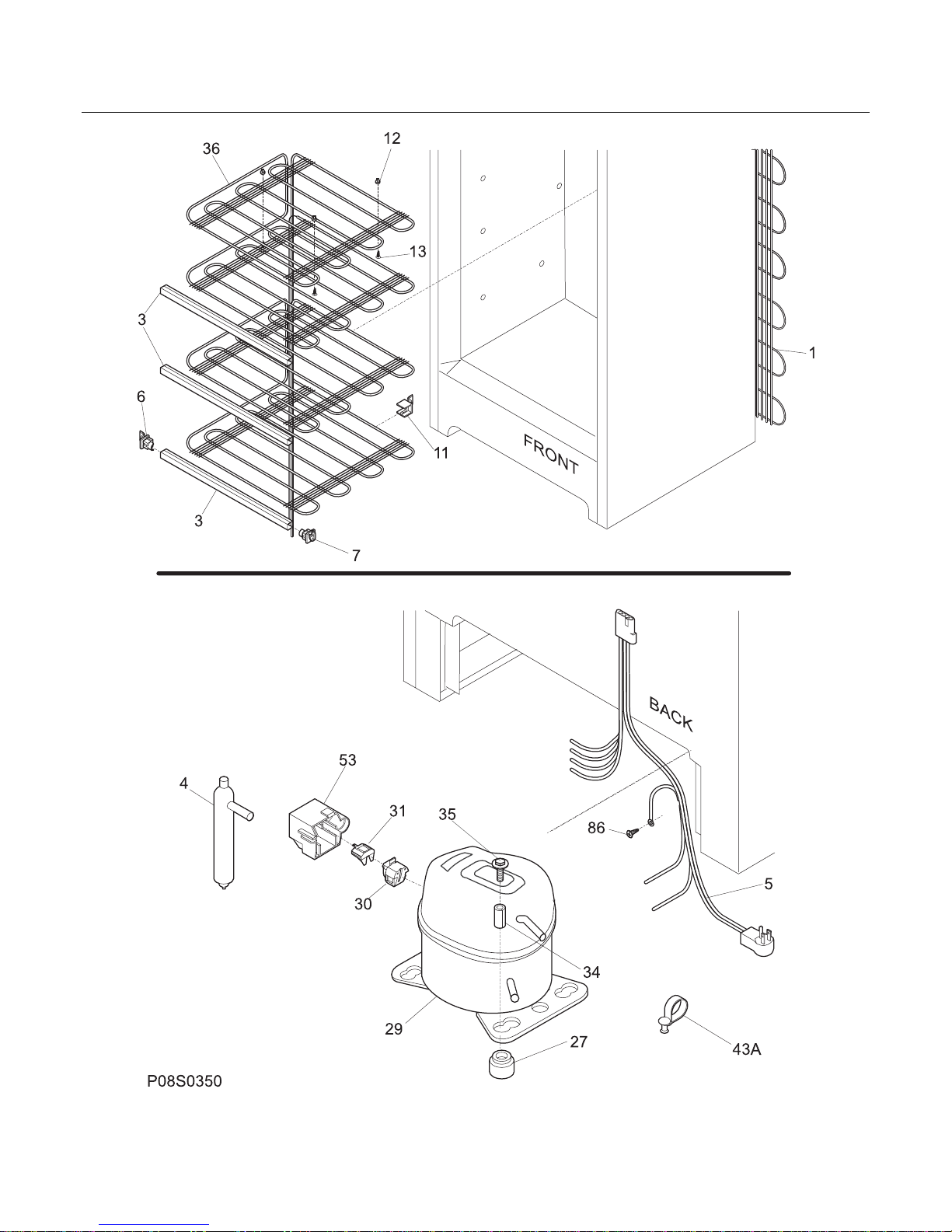

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300123788 Condenser

3 216847804 Trim-shelf, white, evaporator, (3)

4 216634500 Drier-filter

5 # 216943100 Harness-main

6 3091418 Support-shelf, front LH

7 08037928 Support-shelf, front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw, hex sems, 8-18AB x 1.00, evap

27 5308002681 Grommet, compressor

29 # 216888100 Compressor, w/o electricals

30 216596800 Starter, relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor, (3)

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor, (3)

36 # 216940000 Evaporator, tubing assy, white

43A 216629700 Clip

53 216347800 Cover terminal, cover-comp term

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 216502500 Sleeve, suction line
