Frigidaire FGQ221CA Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR

FGQ221CAS0 FGQ221CA White

Publication No.

5995368858

020322

ENG/SERVICE/JAM

361

GAS - DRYER

Model No.

FGQ221CA

FACTORY PARTS CATALOG

GAS DRYER

FRIGIDAIRE - CANADA

WIRING DIAGRAM - # 134055500

OWNER’S GUIDE - # 131679000

OPERATING INSTRUCTIONS - # 131929400

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA ONTARIO

CANADA L5T1K6

TEL (905)565-9200

03/2002 2

Publication No. FGQ221CAS0

5995368858

CABINET/DRUM

# = Functional Part 3 03/2002

* = Non-Illustrated Part

FGQ221CAS0 Publication No.

5995368858

POS. NO PART NO DESCRIPTION

2 131168200 Screw, 8-18 x 0.31

5 5303281019 Ball

6 5303281020 Clip-ball

9 131793201 Panel-access

11 131363200 Cover-term block

12 131825900 Bearing-drum support

13 131724300 Bracket-bearing

14 131205400 Screw-bracket, 10-16B x 1.375,

cr/sq drive

15 # 131600500 Asmy-heater

18 131477000 Screw-shaft & baffle, comb ph ab spcl,

10-16 x .375

20 131469100 Bracket-hinge

21 131427804 Asmy-FS drum-gas-galv

25 5303015671 Screw, 8-18 x .375

29 131382300 Screw-vane, quadrex head, 10-14 x 1.00,

special

30 5303201200 Vane

31 5303281129 Cord-electric power

32 131777700 Asmy-shaft (ballhitch)

33 # 5308015399 Thermostat-safety

34 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

37 131952100 Duct-heat

42 131301100 Screw-ground cab, hex washer head,

10-32T x 0.375, serrated head

44 131527400 Foot-cabinet

64 131704600 Clip

* # 5303281153 Rear Bearing Kit, includes #5, 6,

12, 13, 14, 18, 32

* 5303307893 Lubricant, high temp

* 5303937141 Kit-stacking-dryer/washer

CABINET/DRUM

03/2002 4

Publication No. FGQ221CAS0

5995368858

FRONT PANEL/LINT FILTER

# = Functional Part 5 03/2002

* = Non-Illustrated Part

FGQ221CAS0 Publication No.

5995368858

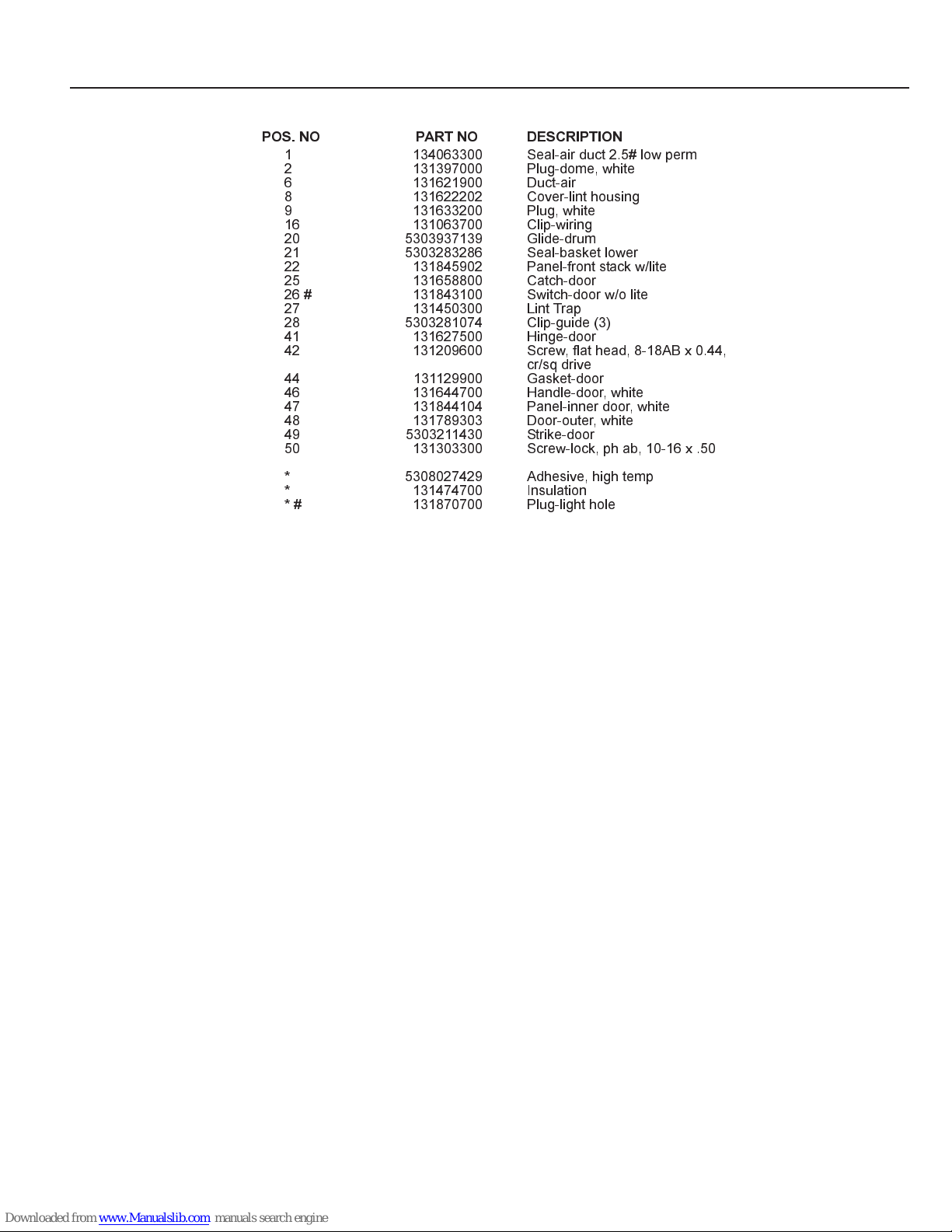

FRONT PANEL/LINT FILTER

POS. NO PART NO DESCRIPTION

1 134063300 Seal-air duct 2.5# low perm

2 131397000 Plug-dome, white

6 131621900 Duct-air

8 131622202 Cover-lint housing

9 131633200 Plug, white

16 131063700 Clip-wiring

20 5303937139 Glide-drum

21 5303283286 Seal-basket lower

22 131845902 Panel-front stack w/lite

25 131658800 Catch-door

26 # 131843100 Switch-door w/o lite

27 131450300 Lint Trap

28 5303281074 Clip-guide (3)

41 131627500 Hinge-door

42 131209600 Screw, flat head, 8-18AB x 0.44,

cr/sq drive

44 131129900 Gasket-door

46 131644700 Handle-door, white

47 131844104 Panel-inner door, white

48 131789303 Door-outer, white

49 5303211430 Strike-door

50 131303300 Screw-lock, ph ab, 10-16 x .50

* 5308027429 Adhesive, high temp

* 131474700 Insulation

* # 131870700 Plug-light hole

03/2002 6

Publication No. FGQ221CAS0

5995368858

CONTROLS/TOP PANEL

# = Functional Part 7 03/2002

* = Non-Illustrated Part

FGQ221CAS0 Publication No.

5995368858

CONTROLS/TOP PANEL

POS. NO PART NO DESCRIPTION

1 # 5303297139 Timer-dryer

4 131965300 Knob-rot-dryer wht/drk gray

7 3205821 Clip-top panel to front panel

10 # 131447800 Switch-start

15 # 131243200 Switch-2pos temp/bzr/xtra rins

16 134034300 Screw

17 134064501 Brkt-cont mtg-stack dryer

21 131873500 Asmy-knob/ind wht/drk gray FT1

23 # 134055400 Harness WSJ gas cont

25 5303015671 Screw, 8-18 x .375

29 131666941 Asmy-cons frame/tape/trim

38 # 5303286537 Buzzer

53 134086812 Panel-top white

* # 134006600 Harn-main gas stack,*

03/2002 8

Publication No. FGQ221CAS0

5995368858

MOTOR

# = Functional Part 9 03/2002

* = Non-Illustrated Part

FGQ221CAS0 Publication No.

5995368858

MOTOR

POS. NO PART NO DESCRIPTION

4 131435200 Lock-fan housing

7 131451600 Tube-exhaust

10 131775600 Asmy-blwr hsg/cov/wheel

11 131749800 Spacer-idler

15 # 131298400 Thermostat-control

20 131017900 Screw-spacer, hex head, 1/4-20T x 1.25,

thread cutting

22 131601000 Spring-idler

23 # 131863000 Asmy-idler arm

25 # 5303283471 Belt-dryer

27 131419800 Clamp-motor

28 # 131560100 Motor-main, w/pulley

34 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

46 131601100 Bracket-motor

47 131633300 Seal-exhaust tube

48 131168200 Screw, 8-18 x 0.31

52 131303100 Screw, hwhd ab, 10-16 x .625

* 131456800 Tube Assy, exhaust

03/2002 10

Publication No. FGQ221CAS0

5995368858

BURNER
