Frigidaire PLDB998A Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR

PLDB998AC0 PLDB998A 24" Built-in stainless

MARKET

North America

Publication No.

5995359543

011010

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

PLDB998A

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154396101

OWNER’S GUIDE # - 154399901

INSTALLATION INSTRUCTIONS # - 154373601

10/01 2

Publication No. PLDB998AC0

5995359543

CONTROL PANEL

# = Fast Moving Part 3 10/01

* = Non-Illustrated Part

PLDB998AC0 Publication No.

5995359543

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154370303 Panel,control ,black

2 154403203 Insert,control panel ,black

3 # 154362809 Control

3* 154200401 Screw,6-10 x 3/8 ,pan plask

4 154287901 Cover,control

18 154399803 Nameplate Assy,black

20 154228301 Duct,dynamic

25 154229201 Seal,chamber

26 154303901 Gasket,vent

27 154226701 Actuator,wax

28 154226901 Valve,vent

29 154226403 Gasket,valve

30 154226802 Blower,crossflow

31 154228101 Chamber,vapor

34 # 154369701 Keypad,12pad

35 154393501 Board,display

* 154391601 Harness,wiring

* 154227501 Thermister

* 154283901 Screw,#8-10 ,3/8 phillips

10/01 4

Publication No. PLDB998AC0

5995359543

DOOR

# = Fast Moving Part 5 10/01

* = Non-Illustrated Part

PLDB998AC0 Publication No.

5995359543

POS. NO PART NO DESCRIPTION

1 154365701 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154400601 Pin,arm assy

5 154079601 Nut,arm assy ,(4)

7 154299002 Door,inner assy

7A 154226601 Grate,liner

9 154230102 Dispenser,det/rinse aid ,w/ level ind.

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 # 154211202 Latch assy

20 154359009 Door,stainless

20* 154253201 Insulation,door

22 154388801 Cap,Rinse aid

41 154401801 Handle,towel bar ,stainless steal

41* 154222201 Screw,shoulder

49 154297602 Gasket,door ,bottom

50 154211401 Support,door hinge

51 154320301 Clamp,drip loop ,wire

* 154213801 Cleaner,stainless steel

* 154200601 Screw,#10-16 x 3/8

DOOR

10/01 6

Publication No. PLDB998AC0

5995359543

TUB

# = Fast Moving Part 7 10/01

* = Non-Illustrated Part

PLDB998AC0 Publication No.

5995359543

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike,door

3 # 154211801 Gasket,tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333901 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154225602 Hose,drain

25 # 154209701 Float

28 # 154225501 Switch,float

28A 154386601 Bracket,float switch

28A* 154333301 Screw,bracket mtg ,ph truss head

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154238304 Insulation,tub

* 154360201 Insulation,blanket ,back

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 5300807270 Screw,(2) ,countertop mtg.

TUB

10/01 8

Publication No. PLDB998AC0

5995359543

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

PLDB998AC0 Publication No.

5995359543

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154245501 Cover,volute

13 154246801 Gasket,sump

14 154365901 Housing,sump

16 154246502 Retainer,sump

24 154250801 Spray arm,lower

24A 154313601 Spray arm,center

24A* 154252001 Nut,spray arm ,center

32 154406601 Tube,delivery

32A 154406401 Gasket,delivery tube

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp,hose ,(2)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket,motor ,drain

61 154406501 Nozzle,3rd level ,spray arm

62 154294101 Support,spray arm ,lower

63 154252201 Base,soil director

64 154252301 Filter,soil director

65 154283004 Filter Assy

66 154252701 Trap,glass

70 # 154395402 Motor assembly,circulation ,w/o o’rings

71 154366101 Sensor,turbidity

71* 154376001 O-ring,turbidity

* 154338601 Clamp-P,nylon

* 154200601 Screw,#10-16 x 3/8

MOTOR & PUMP

10/01 10

Publication No. PLDB998AC0

5995359543

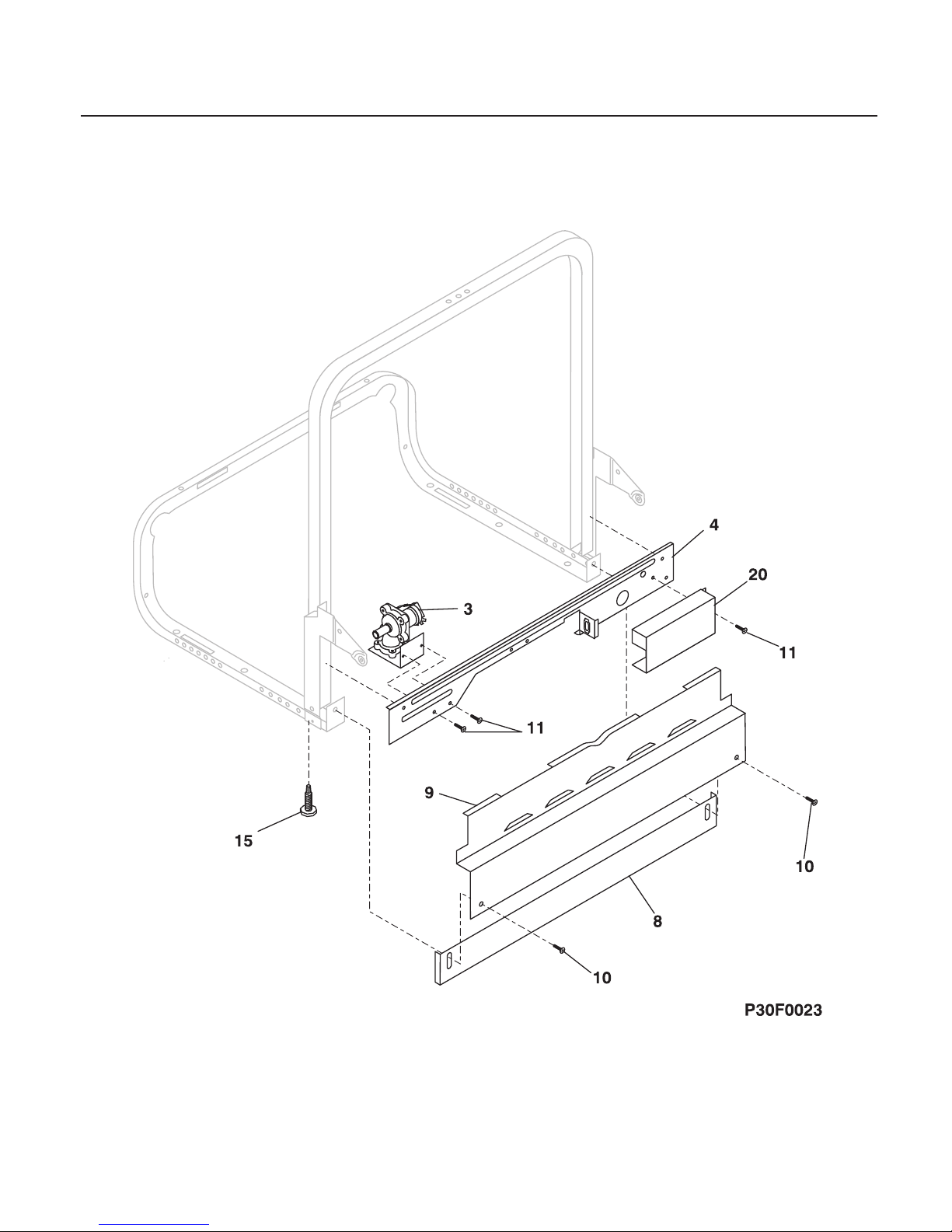

FRAME
