Frigidaire GLDB958A Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR

GLDB958AB0 GLDB958A GALLERY black

GLDB958AQ0 GLDB958A GALLERY bisque

GLDB958AS0 GLDB958A GALLERY white

MARKET

North America

Publication No.

5995358784

010910

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

GLDB958A

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154396101

OWNER’S GUIDE # - 154399901

INSTALLATION INSTRUCTIONS # - 154373601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

09/01 2

Publication No. GLDB958A

5995358784

CONTROL PANEL

# = Fast Moving Part 3 09/01

* = Non-Illustrated Part

GLDB958A Publication No.

5995358784

CONTROL PANEL

A = GLDB958A (GLDB958AS0)

B = GLDB958A (GLDB958AB0)

C = GLDB958A (GLDB958AQ0)

POS. NO PART NO DESCRIPTION

1 154370301 A - - Panel,control ,white

1 154370303 - B - Panel,control ,black

1 154370304 - - C Panel,control ,bisque

2 154403201 A - - Insert,control panel ,white

2 154403203 - B - Insert,control panel ,black

2 154403204 - - C Insert,control panel ,bisque

3 # 154362809 A B C Control

3* 154200401 A B C Screw,6-10 x 3/8 ,pan plask

4 154287901 A B C Cover-control

18 154399801 A - - Nameplate Assy,white

18 154399803 - B - Nameplate Assy,black

18 154399804 - - C Nameplate Assy,bisque

20 154228301 A B C Duct,dynamic

25 154229201 A B C Seal,chamber

26 154303901 A B C Gasket,vent

27 154226701 A B C Actuator,wax

28 154226901 A B C Valve,vent

29 154226403 A B C Gasket,valve

30 154226802 A B C Blower,crossflow

31 154228101 A B C Chamber,vapor

34 # 154369701 A B C Keypad,12pad

35 154393501 A B C Board,display

* 154391601 A B C Harness,wiring

* 154227501 A B C Thermister

* 154283901 A B C Screw,#8-10 ,3/8 phillips

09/01 4

Publication No. GLDB958A

5995358784

DOOR

# = Fast Moving Part 5 09/01

* = Non-Illustrated Part

GLDB958A Publication No.

5995358784

A = GLDB958A (GLDB958AS0)

B = GLDB958A (GLDB958AB0)

C = GLDB958A (GLDB958AQ0)

POS. NO PART NO DESCRIPTION

1 154365701 A B C Spring,door ,(2)

1A 154325201 A B C Linkage,door spring ,(2)

2 154093301 A B C Screw,arm assy ,(4)

3 154325304 A B C Arm Assy,LH

3A 154325303 A B C Arm Assy,RH

* 154400601 A B C Pin,arm assy

5 154079601 A B C Nut,arm assy ,(4)

7 154299002 A B C Door,inner assy

7A 154226601 A B C Grate,liner

9 154230102 A B C Dispenser,det/rinse aid ,w/ level ind.

9* 154294701 A B C Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B C Screw,latch mtg ,(2)

12 # 154361201 A - - Latch assy,white

12 # 154361203 - B - Latch assy,black

12 # 154361204 - - C Latch assy,bisque

20 154359001 A - - Door,white

20 154359003 - B - Door,black

20 154359005 - - C Door,bisque

20* 154253201 A B C • Insulation,door

22 154388801 A B C Cap,Rinse aid

49 154297602 A B C Gasket,door ,bottom

50 154211401 A B C Support,door hinge

51 154320301 A B C Clamp,drip loop ,wire

DOOR

09/01 6

Publication No. GLDB958A

5995358784

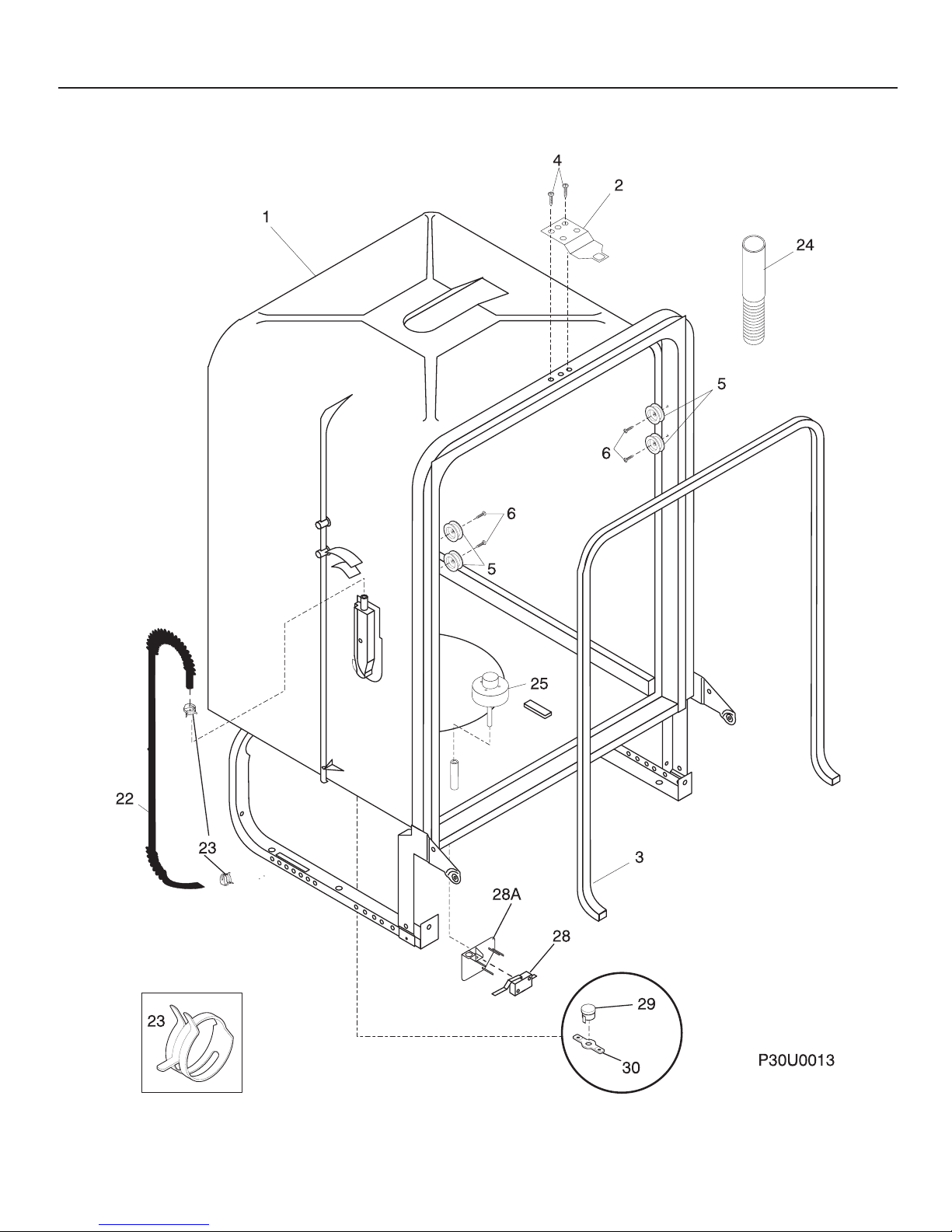

TUB

# = Fast Moving Part 7 09/01

* = Non-Illustrated Part

GLDB958A Publication No.

5995358784

A = GLDB958A (GLDB958AS0)

B = GLDB958A (GLDB958AB0)

C = GLDB958A (GLDB958AQ0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C Tub assy,w/frame parts

2 154211601 A B C Strike,door

3 # 154211801 A B C Gasket,tub

4 154200602 A B C Screw,10-16 x 3/8 ,hex

5 154333901 A B C Roller,tub

6 5303943103 A B C Screw,w/washer ,(8)

22 154239801 A B C Tubing,water inlet

23 5303318539 A B C Clamp,tubing ,(2)

24 # 154225602 A B C Hose,drain

25 # 154209701 A B C Float

28 # 154225501 A B C Switch,float

28A 154386601 A B C Bracket,float switch

28A* 154333301 A B C Screw,bracket mtg ,ph truss head

29 # 154290204 A B C Thermostat,re-settable

30 154241101 A B C Retainer,thermostat

30* 154297701 A B C Screw,retainer-thermo

* 154238304 A B C Insulation,tub

* 154360201 A B C Insulation,blanket ,back

* 154041001 A B C Screw,plask #1 ,10-10 x 9/16

* 5300807270 A B C Screw,(2) ,countertop mtg.

TUB

09/01 8

Publication No. GLDB958A

5995358784

MOTOR & PUMP

# = Fast Moving Part 9 09/01

* = Non-Illustrated Part

GLDB958A Publication No.

5995358784

A = GLDB958A (GLDB958AS0)

B = GLDB958A (GLDB958AB0)

C = GLDB958A (GLDB958AQ0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut,heater ,(2)

1* 154289801 A B C Shield,heater terminal

2 154359701 A B C Bracket,heater ,(2)

10 154245501 A B C Cover,volute

13 154246801 A B C Gasket,sump

14 154365901 A B C Housing,sump

16 154246502 A B C Retainer,sump

24 154250801 A B C Spray arm,lower

24A 154313601 A B C Spray arm,center

24A* 154252001 A B C Nut,spray arm ,center

32 154251701 A B C Tube,delivery

32A 154358901 A B C Gasket,delivery tube

40 154348401 A B C Clamp,red ,pump

40 154348501 A B C Clamp,silver ,pump

40* 154106801 A B C Clamp,hose ,(2)

54 154234401 A B C Hose,connector

55 154362301 A B C Bracket,motor ,askoll

55* 5303316032 A B C Screw,truss ss ,8 .625

58 154246402 A B C Check ball

59 154246901 A B C O-ring,rear

59A 154247001 A B C O-ring,front

60 154247502 A B C Drain Pump Assy

60* 154234501 A B C Bracket,motor ,drain

61 154359601 A B C Nozzle,3rd level ,spray arm

62 154294101 A B C Support,spray arm ,lower

63 154252201 A B C Base,soil director

64 154252301 A B C Filter,soil director

65 154283004 A B C Filter Assy

66 154252701 A B C Trap,glass

70 # 154395402 A B C Motor assembly,circulation ,w/o o’rings

71 154366101 A B C Sensor,turbidity

71* 154376001 A B C O-ring,turbidity

* 154338601 A B C Clamp-P,nylon

* 154200601 A B C Screw,#10-16 x 3/8

MOTOR & PUMP

09/01 10

Publication No. GLDB958A

5995358784

FRAME
