Frigidaire FDBC56BA Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FDBC56BAB0 FDBC56BA black North America

FDBC56BAS0 FDBC56BA white North America

24" Built In

DISHWASHER

Model No.

FDBC56BA

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154396201

OWNER’S GUIDE # - 154393301

INSTALLATION INSTRUCTIONS # - 154373601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995360392

011024

-EN/SERVICE /MLR

821

10/01 2

Publication No. FDBC56BABO/S0

5995360392

CONTROL PANEL

# = Fast Moving Part 3 10/01

* = Non-Illustrated Part

FDBC56BABO/S0 Publication No.

5995360392

CONTROL PANEL

A = FDBC56BAS (FDBC56BAS0)

B = FDBC56BAB (FDBC56BAB0)

POS. NO PART NO DESCRIPTION

1 154368204 A - Panel,control ,white

1 154368206 - B Panel,control ,black

2 154409801 A - Insert,control panel

2 154409803 - B Insert,control panel

3 # 154409001 A B Timer

3* 154095701 A B Screw,thread rolling ,(2) ,timer

3* 154131203 A B Shield,timer

8 # 154368601 A B Switch,selector ,6 button

8* 154248601 A B Shield,switch

8* 5303318719 A B Screw,mtg.

13 154239504 A - Knob,timer ,white

13 154239509 - B Knob,timer ,black

20 154345101 A B Vapor Chamber Assy,w/ vent gasket

25 154229201 A B Seal,chamber

27 154226701 A B Actuator,wax

28 154226901 A B Valve,vent

29 154226403 A B Gasket,valve

* # 154395701 A B Harness-wiring

* 154283901 A B Screw,#8-10 ,3/8 phillips

10/01 4

Publication No. FDBC56BABO/S0

5995360392

DOOR

# = Fast Moving Part 5 10/01

* = Non-Illustrated Part

FDBC56BABO/S0 Publication No.

5995360392

A = FDBC56BAS (FDBC56BAS0)

B = FDBC56BAB (FDBC56BAB0)

POS. NO PART NO DESCRIPTION

1 154365701 A B Spring,door ,(2)

1A 154325201 A B Linkage,door spring ,(2)

2 154093301 A B Screw,arm assy ,(4)

3 154325304 A B Arm Assy,LH

3A 154325303 A B Arm Assy,RH

* 154400601 A B Pin,arm assy

5 154079601 A B Nut,arm assy ,(4)

7 154299002 A B Door,inner assy

7A 154226601 A B Grate,liner

9 154230101 A B Dispenser,det/rinse aid ,includes #22

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B Screw,latch mtg ,(2)

12 # 154361201 A - Latch assy,white

12 # 154361203 - B Latch assy,black

20 154359105 A - Door,white

20 154359107 - B Door,black

22 154388801 A B Cap,Rinse aid

49 154297602 A B Gasket,door ,bottom

50 154211401 A B Support,door hinge

51 154320301 A B Clamp,drip loop ,wire

* 154227807 A B Thermostat,temp hotrinse

* # 154227808 A B Thermostat,temp boost

DOOR

10/01 6

Publication No. FDBC56BABO/S0

5995360392

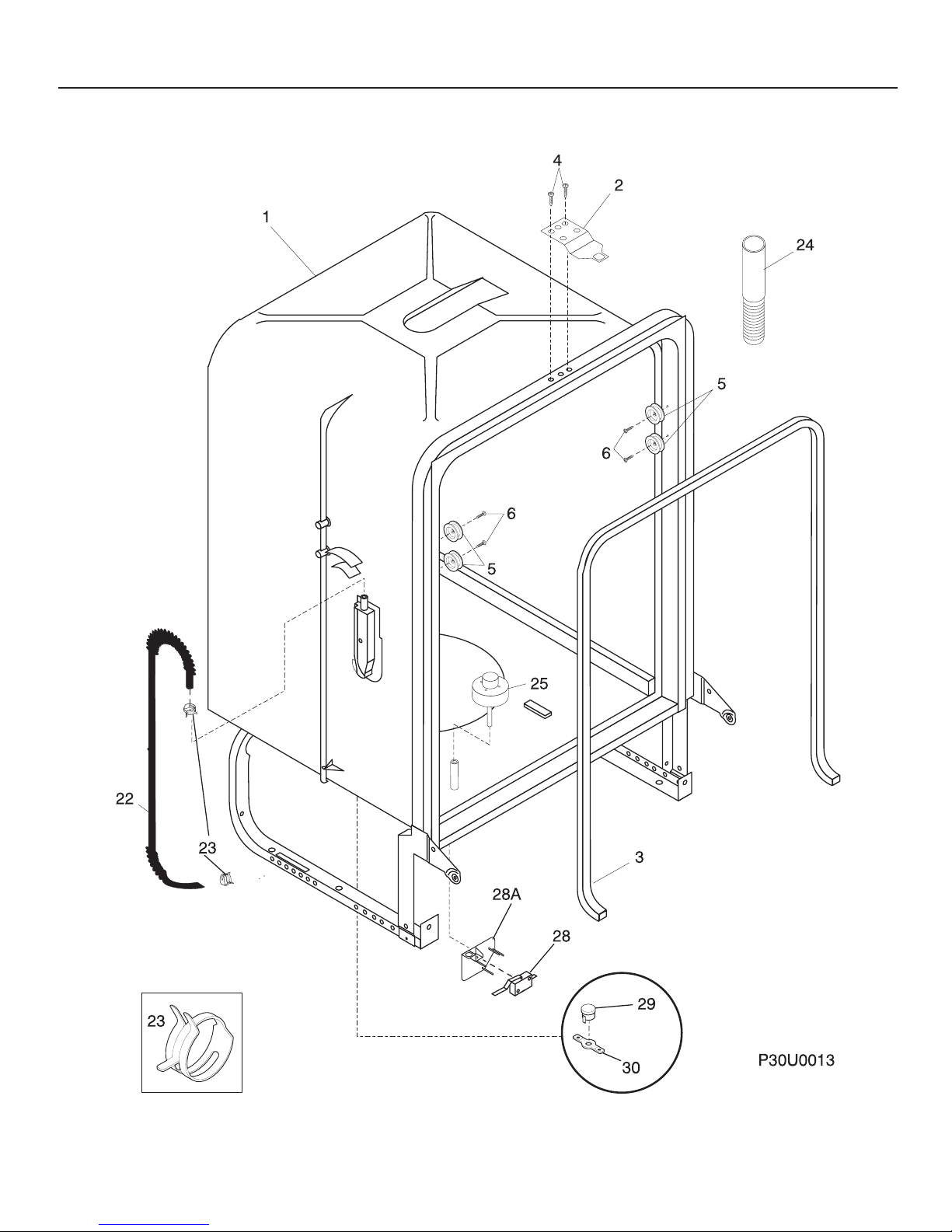

TUB

# = Fast Moving Part 7 10/01

* = Non-Illustrated Part

FDBC56BABO/S0 Publication No.

5995360392

A = FDBC56BAS (FDBC56BAS0)

B = FDBC56BAB (FDBC56BAB0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike,door

3 # 154211801 A B Gasket,tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154333901 A B Roller,tub

6 5303943103 A B Screw,w/washer ,(8)

22 154239801 A B Tubing,water inlet

23 5303318539 A B Clamp,tubing ,(2)

24 # 154225602 A B Hose,drain

25 # 154209701 A B Float

28 # 154225501 A B Switch,float

28A 154386601 A B Bracket,float switch

28A* 154333301 A B Screw,bracket mtg ,ph truss head

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer,thermostat

30* 154297701 A B Screw,retainer-thermo

* 154238304 A B Insulation,tub

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

* 154200701 A B Screw-#10-32 x 3/8

* 5300807270 A B Screw,(2) ,countertop mtg.

* 154200601 A B Screw,#10-16 x 3/8

TUB

10/01 8

Publication No. FDBC56BABO/S0

5995360392

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

FDBC56BABO/S0 Publication No.

5995360392

A = FDBC56BAS (FDBC56BAS0)

B = FDBC56BAB (FDBC56BAB0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut,heater ,(2)

1* 154289801 A B Shield,heater terminal

2 154359701 A B Bracket,heater ,(2)

10 154245501 A B Cover,volute

13 154246801 A B Gasket,sump

14 154365902 A B Housing,sump

16 154246502 A B Retainer,sump

24 154250801 A B Spray arm,lower

24A 154313601 A B Spray arm,center

24A* 154252001 A B Nut,spray arm ,center

32 154406601 A B Tube,delivery

32A 154406401 A B Gasket,delivery tube

40 154348401 A B Clamp,red ,pump

40 154348501 A B Clamp,silver ,pump

40* 154106801 A B Clamp,hose ,(2)

54 154234401 A B Hose,connector

55 154362301 A B Bracket,motor ,askoll

55* 5303316032 A B Screw,truss ss ,8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247502 A B Drain Pump Assy

60* 154234501 A B Bracket,motor ,drain

61 154406501 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support,spray arm ,lower

63 154252201 A B Base,soil director

64 154252301 A B Filter,soil director

65 154252401 A B Filter-polypro

66 154252701 A B Trap,glass

70 # 154395402 A B Motor assembly,circulation ,w/o o’rings

* 154338601 A B Clamp-P,nylon

* 154200601 A B Screw,#10-16 x 3/8

MOTOR & PUMP

10/01 10

Publication No. FDBC56BABO/S0

5995360392

FRAME
