Frigidaire FDB700BF Manual de usuario

P30L0053.eps P30C0138.eps P30B0041.eps P30U0024.eps P30M0041.eps P30F0022.eps

P30R0111.eps

Product No. FDB700BFB1 FDB700BFC1 FDB700BFQ1 FDB700BFS1

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154660101 154660101 154660101 154660101

Owner's Guide Spanish 154660103 154660103 154660103 154660103

Owner's Guide French 154660102 154660102 154660102 154660102

Service Data Sheet 154457601 154457601 154457601 154457601

Energy Guide 154678503 154678503 154678503 154678503

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995514832

08/05/20

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB700BF

Publication No: 5995514832 FDB700BF

05/08 2

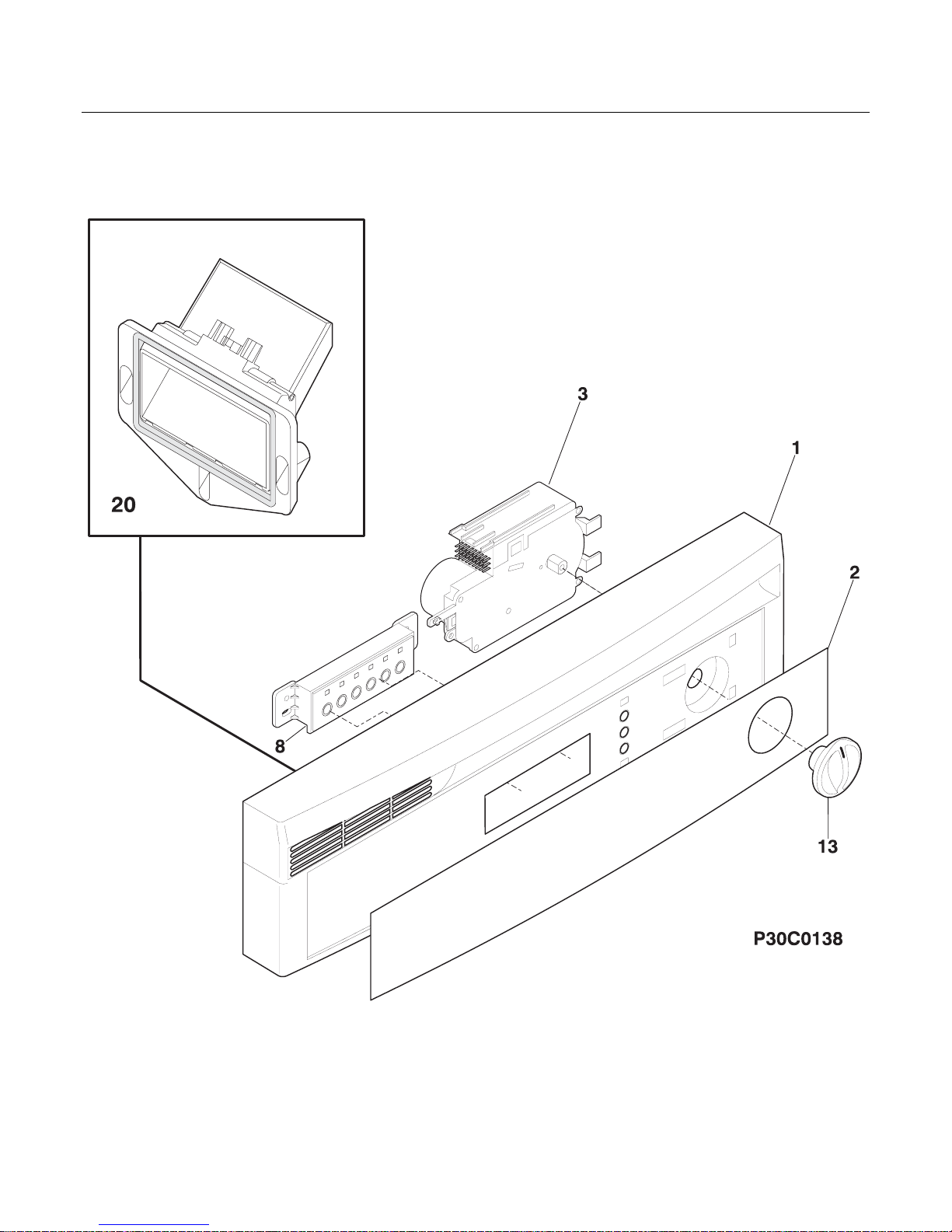

CONTROL PANEL

FDB700BF Publication No: 5995514832

# Functional Parts 3 05/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB700BF (FDB700BFB1)

BFDB700BF (FDB700BFC1)

CFDB700BF (FDB700BFQ1)

DFDB700BF (FDB700BFS1)

POS. NO PART NO. DESCRIPTION

1 154685203 A B - - Panel, control, black

1 154685204 - - C - Panel, control, bisque

1 154685201 - - - D Panel, control, white

2 154458203 A B - - Insert, control panel, black

2 154458204 - - C - Insert, control panel, bisque

2 154458201 - - - D Insert, control panel, white

3 # 154412901 A B C D Timer

3* 154095701 A B C D Screw, thread rolling, (2), timer

3* 154131203 A B C D Shield, timer

8 # 154470001 A B C D Switch, selector, 6 button

8* 154248601 A B C D Shield,switch

8* 5303318719 A B C D Screw, mtg.

13 154426903 A B - - Knob, timer, black

13 154426904 - - C - Knob, timer, bisque

13 154426901 - - - D Knob, timer, white

20 154433001 A B C D Vent assy, static dry

20* 154436201 A B C D Screw, dry duct, (3)

* # 154646201 A B C D Harness, wiring, main

* 154678503 A B C D Energyguide label

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995514832 FDB700BF

05/08 4

DOOR

FDB700BF Publication No: 5995514832

# Functional Parts 5 05/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB700BF (FDB700BFB1)

BFDB700BF (FDB700BFC1)

CFDB700BF (FDB700BFQ1)

DFDB700BF (FDB700BFS1)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154597501 A B C D ArmAssy, LH

3A 154596102 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154574401 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154537303 A B - - Latch assy, black

12 # 154537304 - - C - Latch assy, bisque

12 # 154537301 - - - D Latch assy, white

20 154359107 A - - - Door, black

20 154533901 - B - - Door, stainless

20 154359110 - - C - Door, bisque

20 154359105 - - - D Door, white

20* 5304428306 A B C D Screw, door mtg., (2)

22 154388801 A B C D Cap, Rinse aid

49 154588201 A B C D Gasket, door wiper

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* # 154227805 A B C D Thermostat, temp assure

* # 154227808 A B C D Thermostat, temp boost, hi temp wash

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995514832 FDB700BF

05/08 6

TUB

FDB700BF Publication No: 5995514832

# Functional Parts 7 05/08

* Non-Illustrated Parts

TUB

Model Index: AFDB700BF (FDB700BFB1)

BFDB700BF (FDB700BFC1)

CFDB700BF (FDB700BFQ1)

DFDB700BF (FDB700BFS1)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C D Tub assy, w/frame parts

2 154662601 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154577401 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154606701 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154685101 A B C D Gasket, tub, corner, (2)

* 154641601 A B C D Insulation,blanket

* 5300807270 A B C D Screw, (2), countertop mtg.

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995514832 FDB700BF

05/08 8

MOTOR & PUMP

FDB700BF Publication No: 5995514832

# Functional Parts 9 05/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB700BF (FDB700BFB1)

BFDB700BF (FDB700BFC1)

CFDB700BF (FDB700BFQ1)

DFDB700BF (FDB700BFS1)

POS. NO PART NO. DESCRIPTION

1 154247601 A B C D Heater

1* 154106202 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154479601 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154365902 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154568001 A B C D Spray arm, white, lower, w/heat shield

24A 154313601 A B C D Spray arm, center

24A* 154252001 A B C D Nut, spray arm, center

32 154406601 A B C D Tube, delivery

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, hose, red, push spring, (3)

40 154348502 A B C D Clamp, red, hose

40* 154106801 A B C D Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B C D Clamp, hose, 1.5" open, worm gear, (5)

54 154234401 A B C D Hose, connector

55 154595901 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625, (7)

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 # 154640201 A B C D Drain Pump Assy

60* 154426201 A B C D Bracket, motor, drain

60* 154581501 A B C D Screw, drain motor, (3)

61 154606801 A B C D Nozzle, 3rd level, spray arm

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154648101 A B C D Motor & Pump Assy, johnson

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995514832 FDB700BF

05/08 10

FRAME
