Frigidaire FDB2810LD Manual de usuario

P30L0060.eps P30C0144.eps P30B0036.eps P30U0021.eps P30M0036.eps P30F0022.eps

P30R0075.eps

Product No. FDB2810LDB0 FDB2810LDC0 FDB2810LDQ0 FDB2810LDS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide 154522101 154522101 154522101 154522101

Service Data Sheet 154495501 154495501 154495501 154495501

Energy Guide 154494102 154494102 154494102 154494102

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995417788

04/10/04

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB2810LD

Publication No: 5995417788 FDB2810LD

10/04 2

CONTROL PANEL

FDB2810LD Publication No: 5995417788

# Functional Parts 3 10/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB2810LD (FDB2810LDB0)

BFDB2810LD (FDB2810LDC0)

CFDB2810LD (FDB2810LDQ0)

DFDB2810LD (FDB2810LDS0)

POS. NO PART NO. DESCRIPTION

1 # 154486103 A B - - Panel, control, black

1 # 154486104 - - C - Panel, control, bisque

1 # 154486101 - - - D Panel, control, white

2 154521803 A B - - Insert, control panel, black, w/switch memb.

2 154521804 - - C - Insert, control panel, bisque, w/switch memb.

2 154521801 - - - D Insert, control panel, white, w/switch memb.

3 154520901 A B C D Board, control

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154460601 A B C D Cover, control

4* 154478901 A B C D Gasket, cover

8 154474801 A B C D Board, segment display

8* 5303318719 A B C D Screw, mtg.

8A 154486201 A B C D Shield, tactile switch

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

28 154474401 A B C D Adapter, vent

* 154496001 A B C D Harness, wiring, main

* 154494102 A B C D Energy guide label

Publication No: 5995417788 FDB2810LD

10/04 4

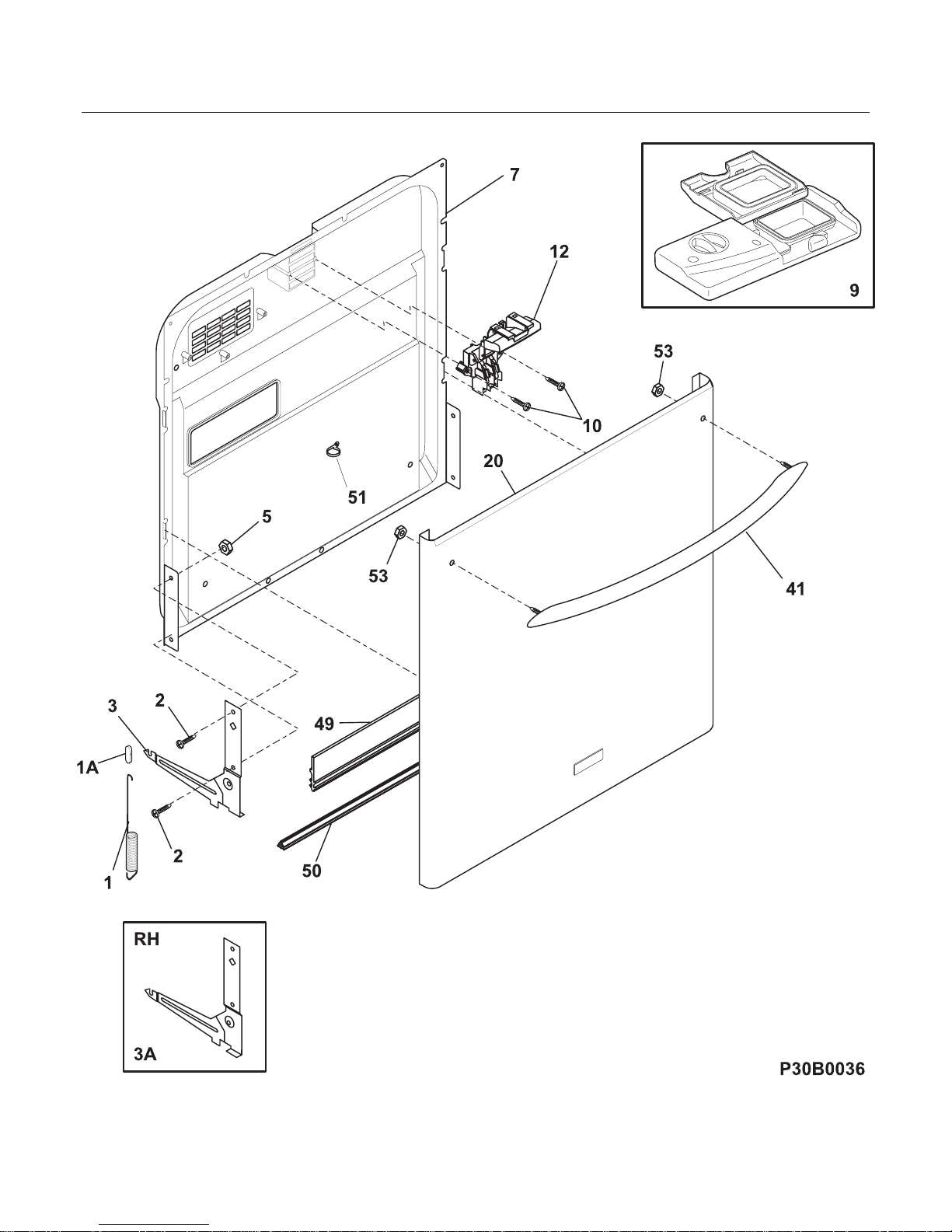

DOOR

FDB2810LD Publication No: 5995417788

# Functional Parts 5 10/04

* Non-Illustrated Parts

DOOR

Model Index: AFDB2810LD (FDB2810LDB0)

BFDB2810LD (FDB2810LDC0)

CFDB2810LD (FDB2810LDQ0)

DFDB2810LD (FDB2810LDS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154325302 A B C D Arm Assy, LH

3A 154325301 A B C D Arm Assy, RH

* 154400601 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154452704 A B C D Dispenser, det/rinse aid, w/reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 154529403 A B - - Latch assy, black

12 154529404 - - C - Latchassy,bisque

12 154529401 - - - D Latch assy, white

20 154436803 A - - - Door Assy, black, outer

20 154481102 - B - - Door, stainless

20 154436804 - - C - Door Assy, bisque, outer

20 154436801 - - - D Door Assy, white, outer

20* 154253201 A B C D Insulation, door

20* 5304428306 A B C D Screw, door mtg., (2)

41 154470405 - B - - Towelbar assy, stainless

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

53 154425001 - B - - Nut, Keps, (2), handle mtg.

* 316279700 - B - - Cleaner, stainless steel

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995417788 FDB2810LD

10/04 6

TUB

FDB2810LD Publication No: 5995417788

# Functional Parts 7 10/04

* Non-Illustrated Parts

TUB

Model Index: AFDB2810LD (FDB2810LDB0)

BFDB2810LD (FDB2810LDC0)

CFDB2810LD (FDB2810LDQ0)

DFDB2810LD (FDB2810LDS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154211801 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154411003 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154447301 A B C D Insulation, tub back

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995417788 FDB2810LD

10/04 8

MOTOR & PUMP

FDB2810LD Publication No: 5995417788

# Functional Parts 9 10/04

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB2810LD (FDB2810LDB0)

BFDB2810LD (FDB2810LDC0)

CFDB2810LD (FDB2810LDQ0)

DFDB2810LD (FDB2810LDS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461902 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154467702 A B C D Spray arm, grey, lower

24A 154468502 A B C D Spray arm, grey, center

24B 154478201 A B C D Spray arm, 3rd level

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, (2)

40* 154380601 A B C D Clamp, hose, (1)

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor, askoll

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 5303318719 A B C D Screw, mtg.

61 154463402 A B C D Grommet, delivery tube

62 154294102 A B C D Support, spray arm, grey, lower

63 154252201 A B C D Base, soil director

64 154252302 A B C D Filter, soil director, grey

65 154283005 A B C D Filter Assy, grey

66 154252702 A B C D Trap, glass, grey

70 # 154483001 A B C D Motor & Pump Assy, variable speed

71 # 154473901 A B C D Sensor, turbidity

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995417788 FDB2810LD

10/04 10

FRAME
