Frigidaire FDB2510LC Manual de usuario

Product No. FDB2510LCC0

Series Built-in 24"

Color stainless

Owner's Guide 154482801

Service Data Sheet 154476701

Energy Guide 154485218

Installation Instructions 154427301

Market North America

P30L0060.eps P30C0144.eps P30B0035.eps P30U0018.eps P30M0035.eps P30F0022.eps

P30R0068.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995401352

04/01/13

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB2510LC

Publication No: 5995401352 FDB2510LCC0

01/04 2

CONTROL PANEL

FDB2510LCC0 Publication No: 5995401352

# Functional Parts 3 01/04

* Non-Ilustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 154486103 Panel, control, black

2 154483503 Insert, control panel, stainless, w/switch memb.

3 # 154470605 Control, w/display

3* 154200401 Screw, 6-10 x 3/8, pan plask

4 154460601 Cover, control

4* 154478901 Gasket, cover

8 154474801 Board, segment display

8A 154486201 Shield, tactile switch

20 154423601 Vent assy, activedry, w/actuator

20* 154436201 Screw, dry duct, (3)

27 154433501 Actuator, active dry vent

28 154474401 Adapter, vent

* # 154470501 Wiring Harness

* 154485218 Energy Guide

Publication No: 5995401352 FDB2510LCC0

01/04 4

DOOR

P30B0035

FDB2510LCC0 Publication No: 5995401352

# Functional Parts 5 01/04

* Non-Ilustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154325304 Arm Assy, LH

3A 154325303 Arm Assy, RH

* 154400601 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154299004 Door, inner assy

9 154230104 Dispenser, det/rinse aid, includes #22

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 # 154475103 Latch assy, black

20 154481101 Door, stainless

20* 154253201 Insulation, door

20* 5304428306 Screw, door mtg., (2)

22 154388801 Cap, Rinse aid

49 154297603 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995401352 FDB2510LCC0

01/04 6

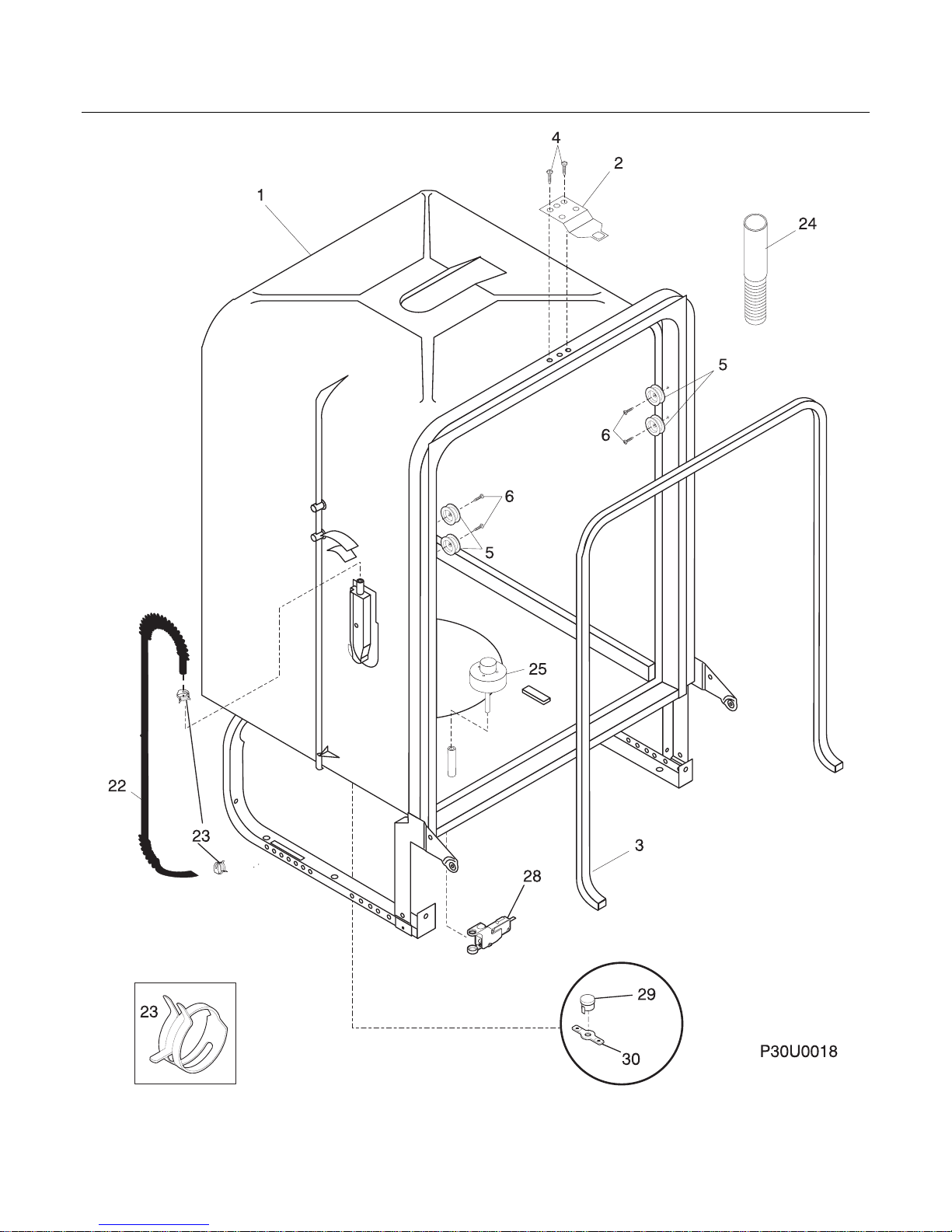

TUB

FDB2510LCC0 Publication No: 5995401352

# Functional Parts 7 01/04

* Non-Ilustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154209301 Tub assy, w/frame parts

2 154429101 Strike, door

3 # 154211801 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154239801 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154411003 Hose, drain

25 # 154209701 Float

28 154408701 Switch assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154447102 Insulation, blanket

* 154447301 Insulation, tub back

* 154041001 Screw, plask #1, 10-10 x 9/16

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995401352 FDB2510LCC0

01/04 8

MOTOR & PUMP

FDB2510LCC0 Publication No: 5995401352

# Functional Parts 9 01/04

* Non-Ilustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154359701 Bracket, heater, (2)

10 154245501 Cover, volute

13 154246801 Gasket, sump

14 154365901 Housing, sump

16 154246502 Retainer, sump

24 154414101 Spray arm, lower, w/heat shield

24A 154313601 Spray arm, center

24A* 154252001 Nut, spray arm, center

32 154406601 Tube, delivery

32A 154406401 Gasket, delivery tube

40 154348401 Clamp, red, pump

40 154348501 Clamp, silver, pump

40* 154106801 Clamp, hose, (2)

40* 154380601 Clamp, hose, (1)

54 154234401 Hose, connector

55 154362301 Bracket, motor, askoll

55* 5303316032 Screw, truss ss, 8 .625

58 154246402 Check ball

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 154474101 Drain Pump Assy

60* 154426201 Bracket, motor, drain

61 154406501 Nozzle, 3rd level, spray arm

62 154294101 Support, spray arm, lower

63 154252201 Base, soil director

64 154252301 Filter, soil director

65 154283004 Filter Assy

66 154252701 Trap, glass

70 # 154395403 Motor assembly, circulation, w/o o'rings

71 # 154473901 Sensor, turbidity

71* 154376001 O-ring, turbidity

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995401352 FDB2510LCC0

01/04 10

FRAME
