Frigidaire FDB125RH Manual de usuario
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FDB125RHB2 FDB125RH 24" Built-in black
FDB125RHD2 FDB125RH 24" Built-in almond
FDB125RHS2 FDB125RH 24" Built-in white
FDB125RHU0 FDB125RH 24" Built-in bisque
MARKET
North America
Publication No.
5995352605
010418
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
FDB125RH
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154395901
OWNER’S GUIDE # - 154395101
INSTALLATION INSTRUCTIONS # - 154373601
P.O. Box 212378, Augusta, GA 30917
04/01 2
Publication No. FDB125RH
5995352605
CONTROL PANEL
# = Fast Moving Part 3 04/01
* = Non-Illustrated Part
FDB125RH Publication No.
5995352605
CONTROL PANEL
A = FDB125RH (FDB125RHS2)
B = FDB125RH (FDB125RHB2)
C = FDB125RH (FDB125RHD2)
D = FDB125RH (FDB125RHU0)
POS. NO PART NO DESCRIPTION
1 154398101 A - - - Panel-control,white
1 154398103 - B C D Panel-control,black
2 154400701 A - - - Insert-control pnl,white
2 154400703 - B C D Insert-control pnl,black
3 # 154393901 A B C D Timer
3* 5303318719 A B C D Screw,mtg.
8 # 154240401 A - - - Switch-selector,rocker ,white
8 # 154240403 - B C D Switch-selector,rocker ,black
13 154338301 A - - - Knob-timer,white
13 154338303 - B C D Knob-timer,black
20 154345102 A B C D Vapor Chamber Assy,w/ vent gasket
25 154229201 A B C D Seal-chamber
* # 154394501 A B C D Wiring Harness
* 154283901 A B C D Screw,#8-10 ,3/8 phillips
04/01 4
Publication No. FDB125RH
5995352605

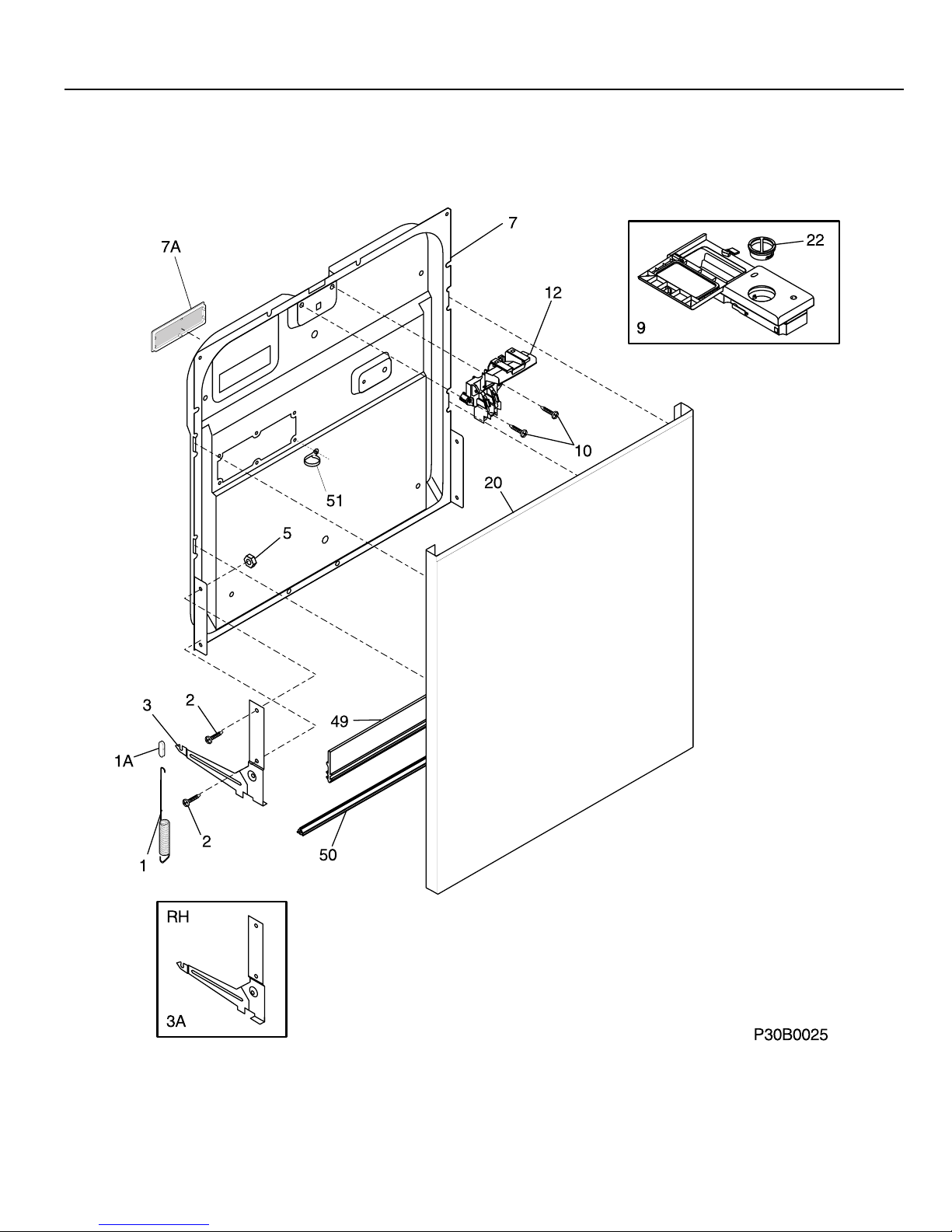

DOOR
# = Fast Moving Part 5 04/01
* = Non-Illustrated Part
FDB125RH Publication No.
5995352605
A = FDB125RH (FDB125RHS2)
B = FDB125RH (FDB125RHB2)
C = FDB125RH (FDB125RHD2)
D = FDB125RH (FDB125RHU0)
POS. NO PART NO DESCRIPTION
1 154345902 A B C D Spring-door,(2)
1A 154325201 A B C D Spring linkage,(2)
2 154093301 A B C D Screw-arm assy,(4)
3 154325304 A B C D Arm Assy,LH
3A 154325303 A B C D Arm Assy,RH
* 154211501 A B C D Pin-arm
5 154079601 A B C D Nut-arm assy,(4)
7 154299002 A B C D Door-inner assy
7A 154332701 A B C D Grate-liner
9 154230101 A B C D Dispenser-det/rinse aid,includes #22
9* 154294701 A B C D Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B C D Screw-latch mtg,(2)
12 # 154361201 A - - - Latch assy,white
12 # 154361203 - B C D Latch assy,black
20 154359105 A - - - Door,white
20 154359107 - B - - Door,black
20 154359106 - - C - Door,almond
20 154359110 ---D Door,bisque
22 154388801 A B C D Cap-rinse aid
49 154297602 A B C D Gasket-door,bottom
50 154211401 A B C D Support-door hinge
51 154320301 A B C D Clamp-wire,drip loop
* 154200601 A B C D Screw-#10-16 x 3/8
DOOR
04/01 6
Publication No. FDB125RH
5995352605
TUB
# = Fast Moving Part 7 04/01
* = Non-Illustrated Part
FDB125RH Publication No.
5995352605
A = FDB125RH (FDB125RHS2)
B = FDB125RH (FDB125RHB2)
C = FDB125RH (FDB125RHD2)
D = FDB125RH (FDB125RHU0)
POS. NO PART NO DESCRIPTION
1 # 154209204 A B C D Tub,plastic
2 154211601 A B C D Strike-door
3 # 154211801 A B C D Gasket-tub
4 154200602 A B C D Screw,10-16 x 3/8 ,hex
5 154333901 A B C D Roller-tub
6 5303943103 A B C D Screw w/washer,(8)
22 154239801 A B C D Tubing-water inlet
23 5303318539 A B C D Clamp-tubing,(2)
24 # 154225602 A B C D Hose-drain
25 # 154209701 A B C D Float
28 # 154225501 A B C D Switch-float
28A 154386601 A B C D Bracket-float switch
28A* 154333301 A B C D Screw,bracket mtg ,ph truss head
29 # 154290204 A B C D Thermostat,re-settable
30 154241101 A B C D Retainer-thermostat
30* 154297701 A B C D Screw,retainer-thermo
* 154238304 A B C D Insulation,tub
* 154041001 A B C D Screw,plask #1 ,10-10 x 9/16
* 5300807270 A B C D Screw,(2) ,countertop mtg.
TUB
04/01 8
Publication No. FDB125RH
5995352605
MOTOR & PUMP
# = Fast Moving Part 9 04/01
* = Non-Illustrated Part
FDB125RH Publication No.
5995352605
A = FDB125RH (FDB125RHS2)
B = FDB125RH (FDB125RHB2)
C = FDB125RH (FDB125RHD2)
D = FDB125RH (FDB125RHU0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B C D Heater
1* 154106201 A B C D Nut-heater,(2)
1* 154289801 A B C D Shield-heater terminal
2 154359701 A B C D Bracket-heater,(2)
10 154335301 A B C D Cover-volute
13 154246801 A B C D Gasket-sump
14 154365903 A B C D Housing-sump
16 154246502 A B C D Retainer,sump
24 154335802 A B C D Spray arm-lower,w/tower
24A 154335201 A B C D Nut-arm support,arm support
40 154348401 A B C D Clamp,red ,pump
40 154348501 A B C D Clamp,silver ,pump
40* 154106801 A B C D Clamp-hose,(2)
54 154234401 A B C D Hose-connector
55 154362301 A B C D Bracket-motor
55* 5303316032 A B C D Screw,truss ss ,8 .625
59 154246901 A B C D O-ring,rear
59A 154247001 A B C D O-ring,front
60 154247502 A B C D Drain Pump Assy
60* 154234501 A B C D Bracket-motor,drain
63 154252201 A B C D Base-soil director
64 154332602 A B C D Filter-soil director
65 154252401 A B C D Filter-polypro
70 # 154395402 A B C D Motor assembly,circulation ,w/o o’rings
* 154338601 A B C D Clamp-P,nylon
* 154200601 A B C D Screw-#10-16 x 3/8
MOTOR & PUMP
04/01 10
Publication No. FDB125RH
5995352605
FRAME
