Frigidaire GLGC30S8K Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. SERIES COLOR

GLGC30S8KBA GLGC30S8K 3775622271061 Gallery black

GLGC30S8KSA GLGC30S8K 3775623271011 Gallery white

MARKET

North America

Publication No.

5995369849

020410

-EN/SERVICE /ECL

377

GAS

COOKTOP

Model No.

GLGC30S8K

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318047105

OWNER’S GUIDE - # 318200663

INSTALLATION INSTRUCTIONS - # 318201450

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

04/02 2

Publication No. GLGC30S8K

5995369849

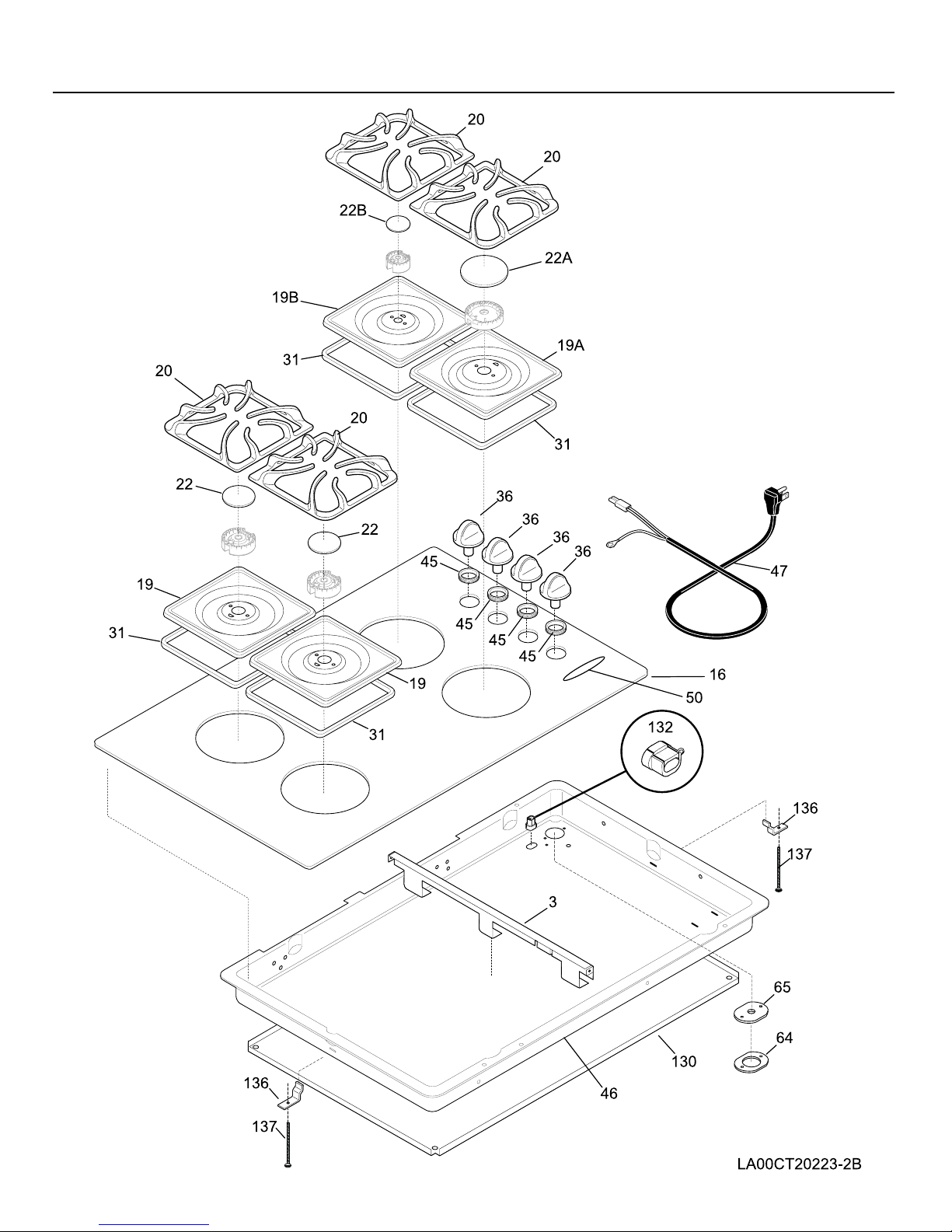

COOK TOP

# = Functional Parts 3 04/02

* = Non-Illustrated Parts

GLGC30S8K Publication No.

5995369849

COOK TOP

A = GLGC30S8K (GLGC30S8KSA)

B = GLGC30S8K (GLGC30S8KBA)

POS. NO PART NO DESCRIPTION

3 318171400 A B Support

16 318218600 A - Main Top,glass ,white ,w/ nameplate

16 318218601 - B Main Top,glass ,black ,w/ nameplate

19 318168116 A - Pan,burner ,white ,medium

19 318168114 - B Pan,burner ,black ,medium

19A 318168126 A - Pan,burner ,white ,large

19A 318168124 - B Pan,burner ,black ,large

19B 318168106 A - Pan,burner ,white ,small

19B 318168104 - B Pan,burner ,black ,small

20 318120104 A - Grate,grey ,(4)

20 318120103 - B Grate,black ,(4)

22 318076411 A - Cap,burner ,grey ,medium LF & LR

22 318076410 - B Cap,burner ,black ,medium LF & LR

22A 318076421 A - Cap,burner ,grey ,large RF

22A 318076420 - B Cap,burner ,black ,large RF

22B 318076401 A - Cap,burner ,grey ,small RR

22B 318076400 - B Cap,burner ,black ,small RR

31 318053901 A B Gasket,burner pan

36 318215510 A - Knob,control ,white

36 318215511 - B Knob,control ,black

45 318146220 A B Bushing

46 5303307897 A B Burner Box

47 # 5303303991 A B Cord,electric power

50 318218500 A - Nameplate,white ,Gallery

50 318218501 - B Nameplate,black ,Gallery

64 5303304033 A B Bracket,retainer

65 5303304032 A B Seal,rubber

130 318160302 A B Shield,insulation

132 3201437 A B Strain relief

136 5303935029 A B Support

137 5303323138 A B Screw,10-24x1/2

* 5303211311 A B Screw,8 x 0.500

* 5303311532 A B Screw,6-32 x 1/4" ,back

* 5303323140 A B Screw,ground ,10-32 x 0.375

* 5304403558 A B Screw,10-16 x 0.250

04/02 4

Publication No. GLGC30S8K

5995369849

BURNER

# = Functional Parts 5 04/02

* = Non-Illustrated Parts

GLGC30S8K Publication No.

5995369849

BURNER

A = GLGC30S8K (GLGC30S8KSA)

B = GLGC30S8K (GLGC30S8KBA)

POS. NO PART NO DESCRIPTION

1 318177005 A B Manifold Pipe

2 # 318087314 A B Valve,burner ,1200 BTU

2A # 318087315 A B Valve,burner ,1800 BTU

2B # 318087313 A B Valve,burner ,675 BTU

3 # 318163400 A B Switch,ignitor

4 # 318167703 A B Tube,burner ,RF

5 # 318167700 A B Tube,burner ,LF

6 # 318167702 A B Tube,burner ,RR

7 # 318167701 A B Tube,burner ,LR

8 # 316135701 A B Module,spark

10 # 318148001 A B Burner,top ,9100 BTU ,medium LF & LR

10A# 318148002 A B Burner,top ,13000 BTU ,large RF

10B# 318148000 A B Burner,top ,5000 BTU ,small RR

14 # 5308007974 A B Regulator,pressure

35 318146300 A B Bushing

72 316134300 A B Screw,10-24 ,valve mounting

73 318024201 A B Bracket,spark module

74 # 318148700 A B Ignitor,top burner

75 318148800 A B Clip,electrode

76 # 318167801 A B Tube,mixing ,medium & large

76A# 318167800 A B Tube,mixing ,small

77 318112010 A B Bracket,burner mtg ,medium & large

77A 318112000 A B Bracket,burner mtg ,small

77B 318180900 A B Bracket,burner tube

* # 318127407 A B LP Conversion Kit

* 5303211311 A B Screw,8 x 0.500

04/02 6

Publication No. GLGC30S8K

5995369849

WIRING DIAGRAM
