Frigidaire GLEC36S8C Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

GLEC36S8CBA GLEC36S8C 3805642373461 black North America

GLEC36S8CQA GLEC36S8C 3805644373441 bisque North America

GLEC36S8CSA GLEC36S8C 3805643373411 white North America

Publication No.

5995383634

030107

-EN/SERVICE /ECL

377

ELECTRIC

COOKTOP

Model No.

GLEC36S8C

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046802

OWNER’S GUIDE - # 318200612

INSTALLATION INSTRUCTIONS - # 318201410

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

01/03 2

Publication No. GLEC36S8C

5995383634

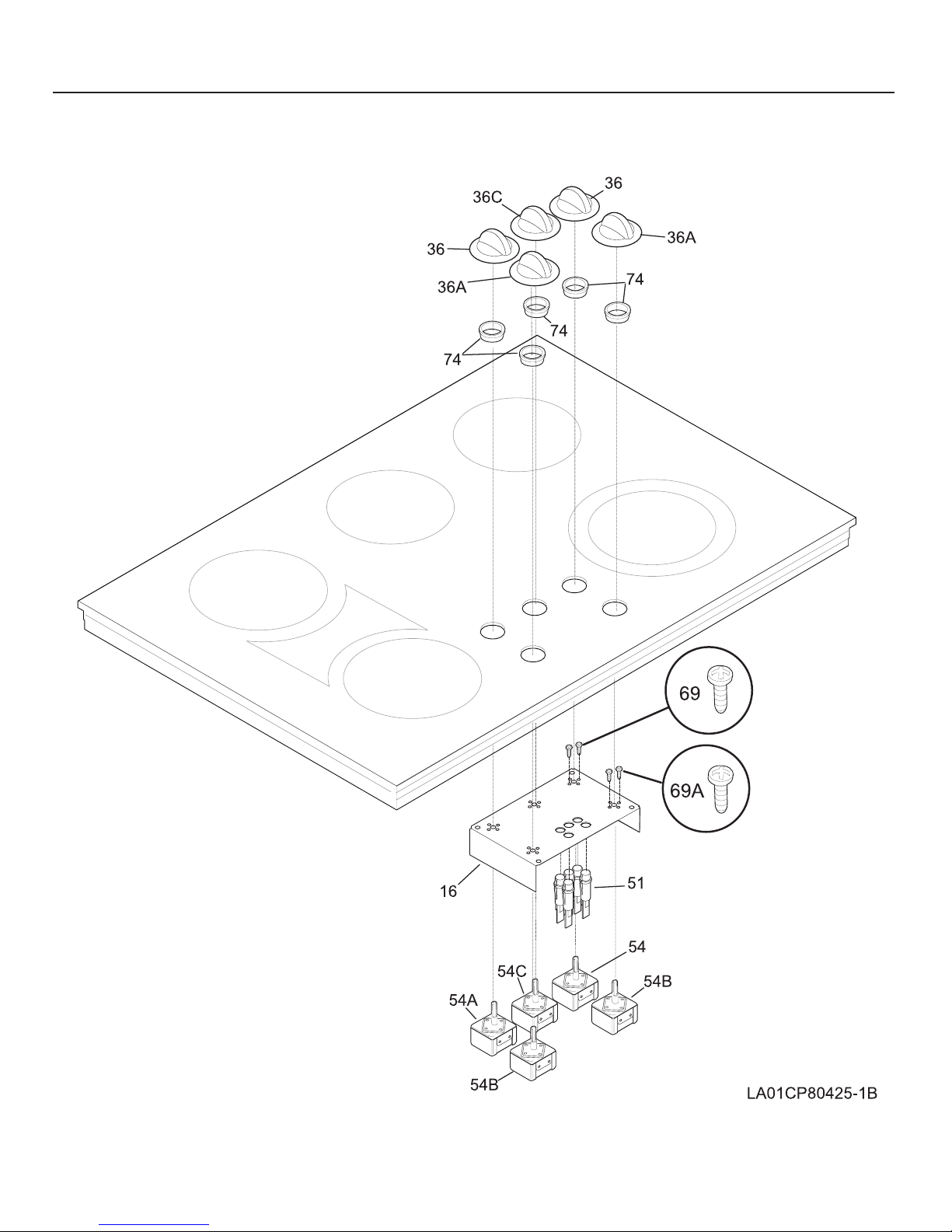

CONTROL PANEL

# = Functional Parts 3 01/03

* = Non-Illustrated Parts

GLEC36S8C Publication No.

5995383634

CONTROL PANEL

A = GLEC36S8C (GLEC36S8CSA)

B = GLEC36S8C (GLEC36S8CBA)

C = GLEC36S8C (GLEC36S8CQA)

POS. NO PART NO DESCRIPTION

16 318096320 A B C Box,instrument mtg

36 318196633 A - - Knob,control ,white

36 318196634 - B - Knob,control ,black

36 318196635 - - C Knob,control ,bisque

36A 318196630 A - - Knob,dual control ,white

36A 318196631 - B - Knob,dual control ,black

36A 318196632 - - C Knob,dual control ,bisque

36C 318196636 A - - Knob,warmer ,white

36C 318196637 - B - Knob,warmer ,black

36C 318196638 - - C Knob,warmer ,bisque

51 # 318044820 A - C Light,indicator ,red

51 # 318044822 - B - Light,indicator ,clear

54 # 318220011 A B C Switch,surface unit ,small

54A# 318220013 A B C Switch,surface unit ,large

54B# 318191000 A B C Switch,infinite ,dual

54C# 318078801 A B C Switch,element ,6" ,warmer

69 5303323134 A B C Screw,switch mtg. ,8-32 x 0.188

69A 5303305528 A B C Screw,8-32 x 1/4

74 5303321205 A B C Bushing

* 5303300265 A B C Screw,8-18 x 0.500 ,chrome

* 5303323140 A B C Screw,ground ,10-32 x 0.375

01/03 4

Publication No. GLEC36S8C

5995383634

MAINTOP / SURFACE UNITS

# = Functional Parts 5 01/03

* = Non-Illustrated Parts

GLEC36S8C Publication No.

5995383634

MAINTOP / SURFACE UNITS

A = GLEC36S8C (GLEC36S8CSA)

B = GLEC36S8C (GLEC36S8CBA)

C = GLEC36S8C (GLEC36S8CQA)

POS. NO PART NO DESCRIPTION

15 # 318198810 A B C Element,surface ,6" ,1200 W

15A# 318177900 A B C Element,bridge

15B# 316224300 A B C Element,dual ,9"/6" ,surface ,2100W/700W,radiant

15C# 316098202 A B C Element,warmer zone ,100W

16 318079374 A - - Main Top Assy,glass/steel ,enamel ,white

16 318079373 - B - Main Top Assy,glass/steel ,enamel ,black

16 318079375 - - C Main Top Assy,glass/steel ,enamel ,bisque

20 318121902 A B C Bracket,retainer

23 5303297401 A B C Panel,Service

46 318077227 A B C Burner Box

52 318122006 A B C Spring,element mtg ,small

52A 318122008 A B C Spring,element mtg

52B 318122010 A B C Spring,element mtg ,1000W/2500W

52C 318122004 A B C Spring,element mtg ,700W & 2100W

159 318125122 A B C Deflector

162 318125210 A B C Deflector

163 318014110 A B C Spacer

164 318125302 A B C Plate,connection

170 318124910 A B C Screen,thermal

* # 318078514 A B C Box & wires assy

* 08016432 A B C Screw,truss head ,8-18 x 0.375

* 5303300265 A B C Screw,8-18 x 0.500 ,chrome

* 5303323129 A B C Screw,8 X 0.750

* 5303323140 A B C Screw,ground ,10-32 x 0.375

01/03 6

Publication No. GLEC36S8C

5995383634

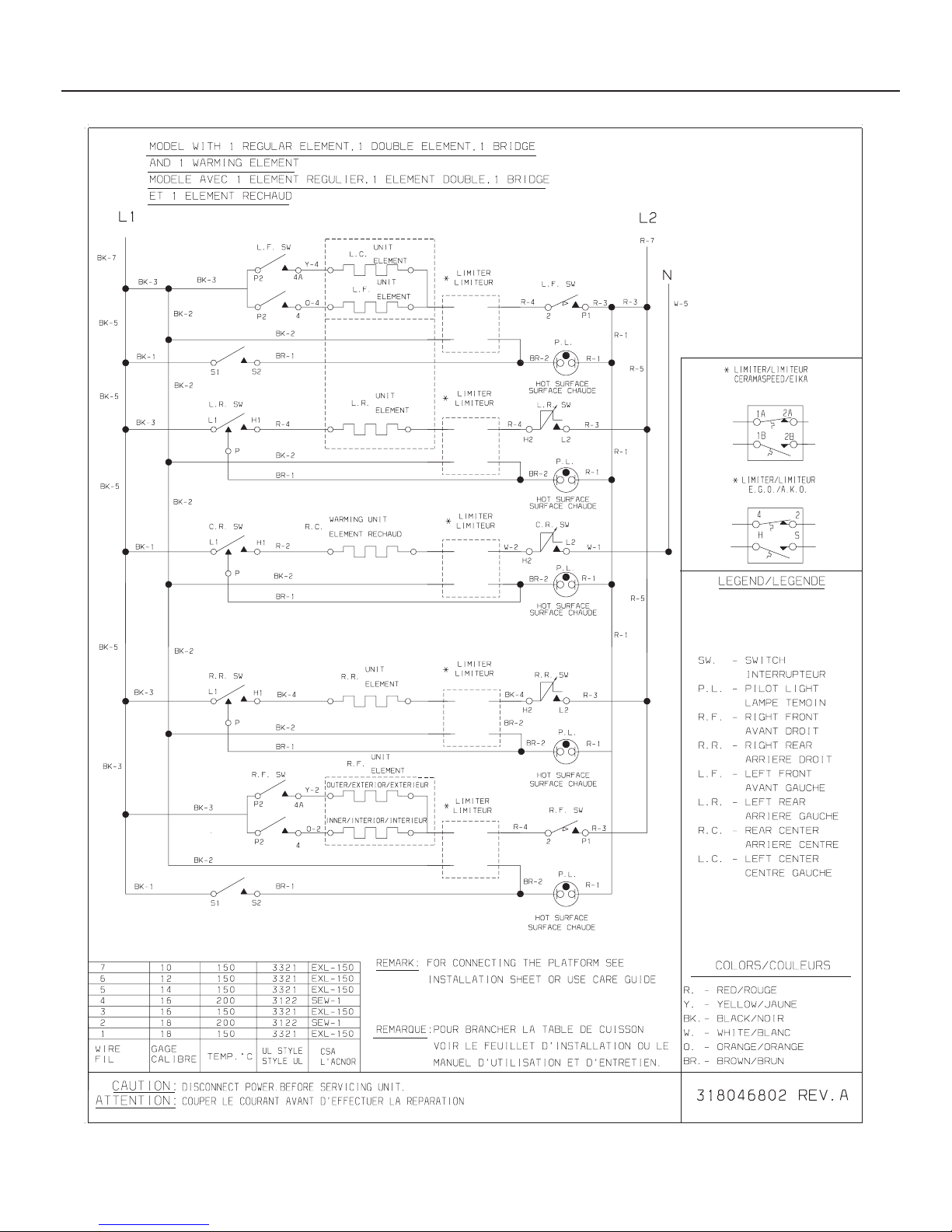

WIRING DIAGRAM
