Frigidaire FGC6X9XE Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC6X9XESD 3775642376014 WHITE U.S.A.

FGC6X9XEBD 3775642376064 BLACK U.S.A.

GAS COOKTOP

Model No.

FGC6X9XE

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047100

OWNER’S GUIDE # - 318068128

INSTALLATION INSTR. # - 318063913

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995317822

990204

-EN/SERVICE

377

Publication No. FGC6X9XE

5995317822

02/99 2

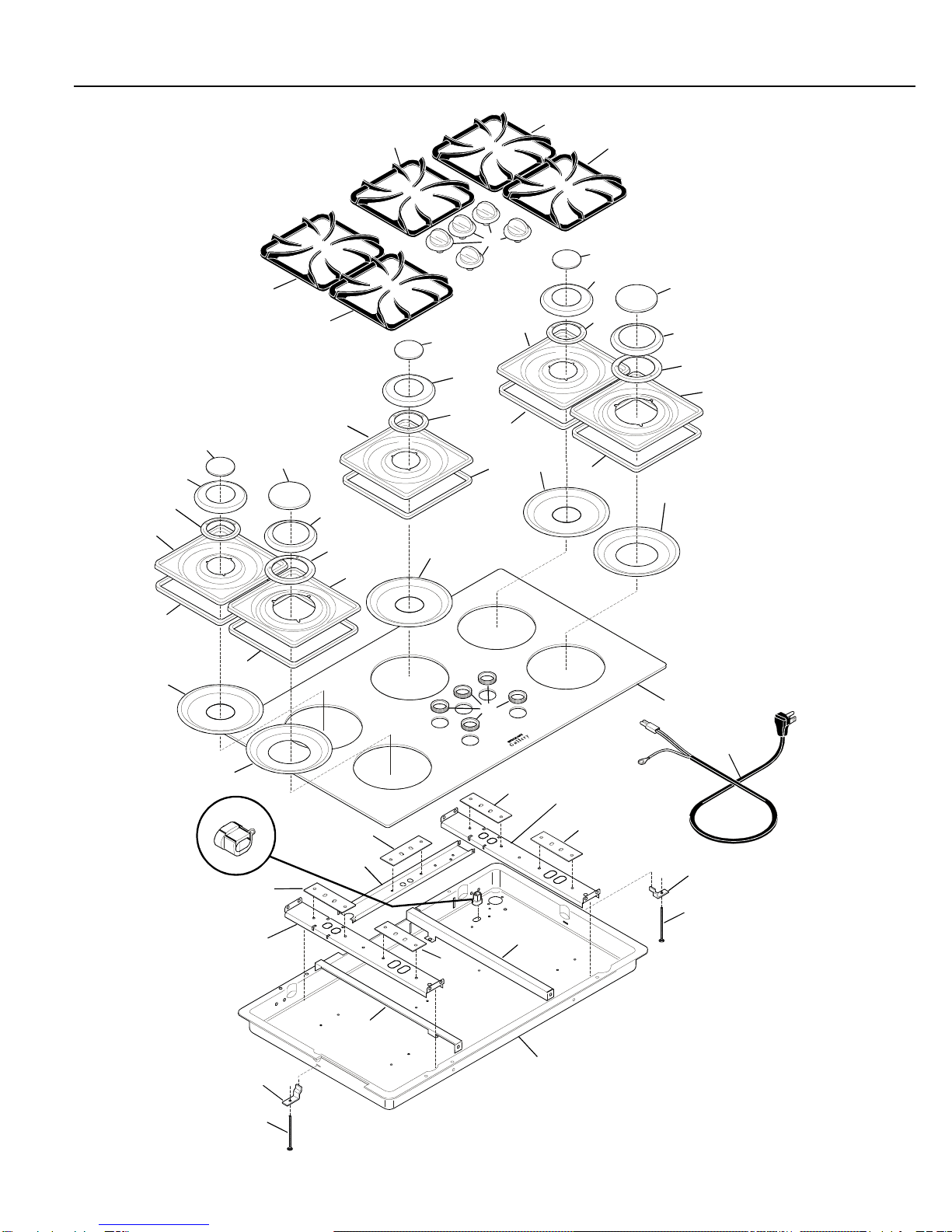

COOKTOP

132

LA9922T03

22A

21A

19A

19 61A

73A

21A

22A

19A

61A

31 73A

45 16

136

101

106

101

136

137

FGC6X9XE Publication No.

59953178224

# = Functional Part 302/99

* = Non-Illustrated Part

COOKTOP

A=FGC6X9XE (FGC6X9XESD)

B=FGC6X9XE (FGC6X9XEBD)

POS. NO PART NO DESCRIPTION

3318043300 A B Support main top

16 318079600 AGlass cooktop assy white

16 318079601 BGlass cooktop assy black

19 318066903 APan-burner grey

19 318066901 BPan-burner black

19A 318066913 APan-burner large grey

19A 318066911 BPan-burner large black

20 318120106 AGrate grey

20 318120105 BGrate black

21 316098508 ACap-burner small grey

21 316098501 BCap-burner small black

21A 316098509 ACap-burner large grey

21A 316098505 BCap-burner large blackr

22 318050500 ATrim ring small grey

22 5303209009 BTrim ring small black

22A 318050600 ATrim ring large grey

22A 316011304 BTrim ring large black

31 318053900 A B Gasket vent

33 318072000 A B Bracket burner mtg

43 318016503 AKnob-control white

43 318016504 BKnob-control black

45 318146200 A B Bushing

46 318077000 A B Burner Box

47 5303303991 A B Cord-electric power

61 318083900 A B Trim ring (stainless)

61A 318083901 A B Trim ring (sainless)

73 318057100 A B Deflector

73A 318057101 A B Deflector

101 318162300 A B Bracket-burner

106 318162301 A B Bracket-burnert

132 3201437 A B Bushing-snap

136 5303935029 A B Fixation support

137 5303323138 A B Screw, 10-24 X 2 ½

*318052123 A B Wire harness

*5303211311 A B Screw, #8 X ½

*5303307980 A B Screw, 8-32 X 7/16

*5303323429 A B Screw, 8-32 X 5/8

FGC6X9XE Publication No.

5995317822

02/99 4

BURNER

11 45

10A

572

222

24 10B

10B

10A

44A

44/44B

11 45

10/10B

LA9922B04

FGC6X9XE Publication No.

5995317822

# = Functional Part 502/99

* = Non-Illustrated Part

BURNER

A=FGC6X9XE (FGC6X9XESD)

B=FGC6X9XE (FGC6X9XEBD)

POS. NO PART NO DESCRIPTION

1 318177200 A B Manifold Pipe

2 # 5303935042 A B Valve-top burner

2A 318087020 A B Valve-top burner

3 # 316032002 A B Switch-ignitor

4 # 5303305456 A B Tube-burner

5 # 318054601 A B Tube-burner

6318054600 A B Tube-burner

8 # 318079000 A B Spark Module

10 # 318055011 A B Burner Assy-top (9100 BTU)

10A 318055100 A B Burner Ass-top (11000 BTU)

10B 318055010 A B Burner Assy-top (6000 BTU)

11 316011200 A B Ignitor-top burner

13 318054500 A B Tube connector manifold

14 # 5308007974 A B Regulator-pressure

24 318054000 A B Elbow fiting

35 5303307978 A B Bushing-insulation

37 5303320671 A B Screw metric M3 X 5/8

44 318088700 A B Orifice (9100 BTU)

44A 318088702 A B Orifice (11000 BTU)

44B 318088701 A B Orifice (6000 BTU)

45 316011100 A B Screw-ignitor mtg

47# 318127401 A B LP Conversion Kit

62 318077500 A B Cover spark module

72 5303323141 A B Screw valve 1/4-20 X 5/16

* 08011955 A B Screw 10-24 X 3/8

*5303211311 A B Screw, #8 X ½

*5303311174 A B Screw, 10-24 X 3/8

FGC6X9XE Publication No.

5995317822

02/99 6

WIRING DIAGRAM

TOP BURNER IGNITER

BOUGIE D’ALLUMAGE-BRULEUR

SURFACE DE CUISSON
