Frigidaire FGC26C3A Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FGC26C3AUB FGC26C3A 3775411141042 black/bisque North America

FGC26C3AWB FGC26C3A 3775411141012 black/white North America

Publication No.

5995365920

020214

-EN/SERVICE /ECL

377

GAS

COOKTOP

Model No.

FGC26C3A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318047105

OWNER’S GUIDE - # 318200658

INSTALLATION INSTRUCTIONS - # 318201452

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

02/02 2

Publication No. FGC26C3A

5995365920

COOK TOP

# = Functional Parts 3 02/02

* = Non-Illustrated Parts

FGC26C3A Publication No.

5995365920

COOK TOP

A = FGC26C3A (FGC26C3AWB)

B = FGC26C3A (FGC26C3AUB)

POS. NO PART NO DESCRIPTION

3 5303305547 A B Channel,top stiffener

16 318159105 A - Panel,main top ,white

16 318159107 - B Panel,main top ,bisque

17 3016817 A B Rod,maintop support

18 318074310 A B Hinge,maintop ,(2)

19 318067300 A B Pan,burner ,(4)

20 316040807 A B Grate,black ,(4)

23 318021400 A B Panel,control

43 318196144 A B Knob,control ,black

45A 3201437 A B Strain relief

46 318077303 A B Burner Box

47 # 5303311311 A B Cord,electric power

74 318101508 A B Plate,control ,LF

75 318101509 A B Plate,control ,RF

76 318101510 A B Plate,control ,LR

77 318101511 A B Plate,control ,RR

78 318075802 A B Nameplate,Frigidaire

97 5303300265 A B Screw,8-18 x 0.500 ,chrome

98 5303326255 A B Screw grommet

99 5303324192 A B Self nut

100 5303325982 A B Nut,Keps ,10-32

183 5304410665 A B Screw,10-32 x 5/8

* 5303311532 A B Screw,6-32 x 1/4" ,back

02/02 4

Publication No. FGC26C3A

5995365920

BURNER

# = Functional Parts 5 02/02

* = Non-Illustrated Parts

FGC26C3A Publication No.

5995365920

BURNER

A = FGC26C3A (FGC26C3AWB)

B = FGC26C3A (FGC26C3AUB)

POS. NO PART NO DESCRIPTION

1 318177402 A B Manifold

2 # 318087012 A B Valve,top burner

2* 5303323141 A B Screw,valve mtg ,1/4-20 x 5/16

3 # 316032001 A B Switch,ignitor ,(4)

8 # 316135700 A B Module,spark

8* 318024201 A B Bracket,spark module

9 5303311307 A B Nut,angle ,4-20

10 # 318176300 A B Burner Assy,front

10A# 318176301 A B Burner Assy,back

11 # 318148502 A B Ignitor,top burner

11A# 318148503 A B Ignitor,top burner

12 3016993 A B Retainer,ignitor

14 # 5308007974 A B Regulator,pressure

33 5303294764 A B Channel,burner support

35 318146300 A B Bushing

66 5303294765 A B Angle,manifold pipe ,mtg

84 5303294763 A B Bracket,support

* 08016432 A B Screw,truss head ,8-18 x 0.375

* 5303311306 A B Screw,8-18 x 0.375

02/02 6

Publication No. FGC26C3A

5995365920

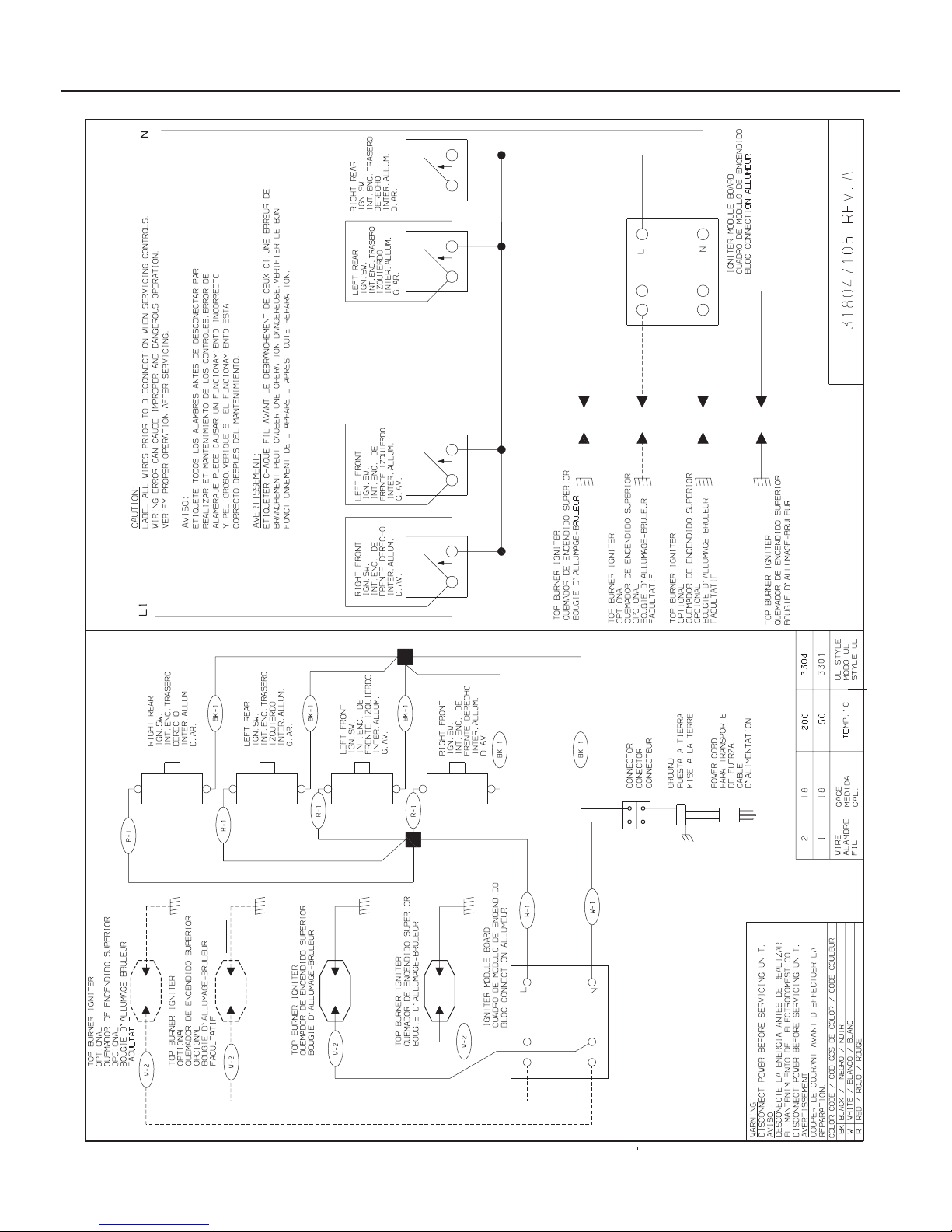

WIRING DIAGRAM
