Frigidaire FAS254J2A2 Manual de usuario

PRODUCT NO. BASE MODEL MARKET BTU-COOLING

FAS254J2A2 FAS254J2A USA 25000BTU

Publication No.

5995348744

010122

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS254J2A2

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAS254J2A2

5995348744

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAS254J2A2 Publication No.

5995348744

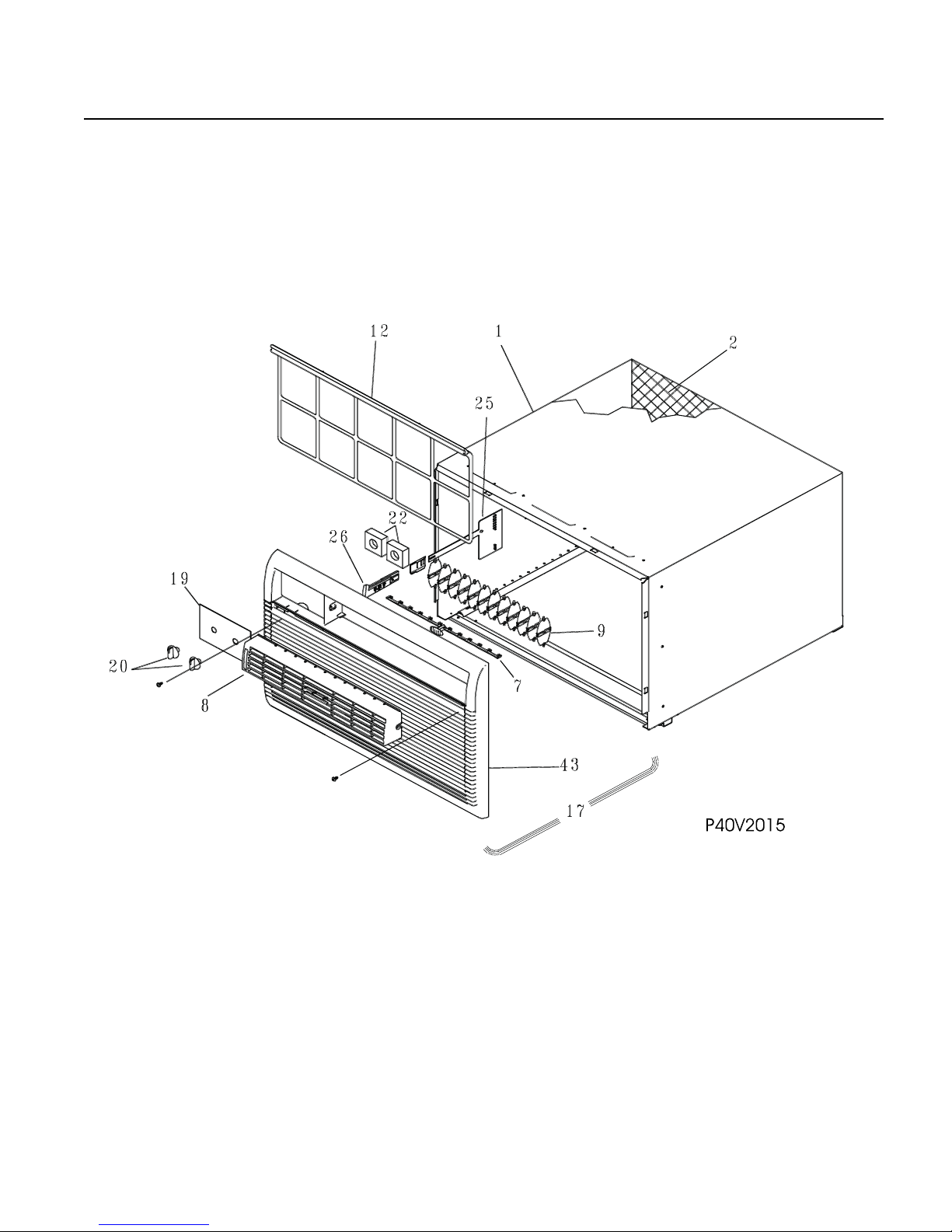

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309630804 Louver,horizontal

8* 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309633506 Dial-plate

20 309307013 Knob-control

21 5303212504 Seal-sleeve/chassis,bottom

22 5303001775 Spacer,plate

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26* 309330202 Detent-vent

26* 309330206 Detent Assy-vent,with adhesive

43 309630904 Panel,cabinet front

08/01 4

Publication No. FAS254J2A2

5995348744 CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAS254J2A2 Publication No.

5995348744

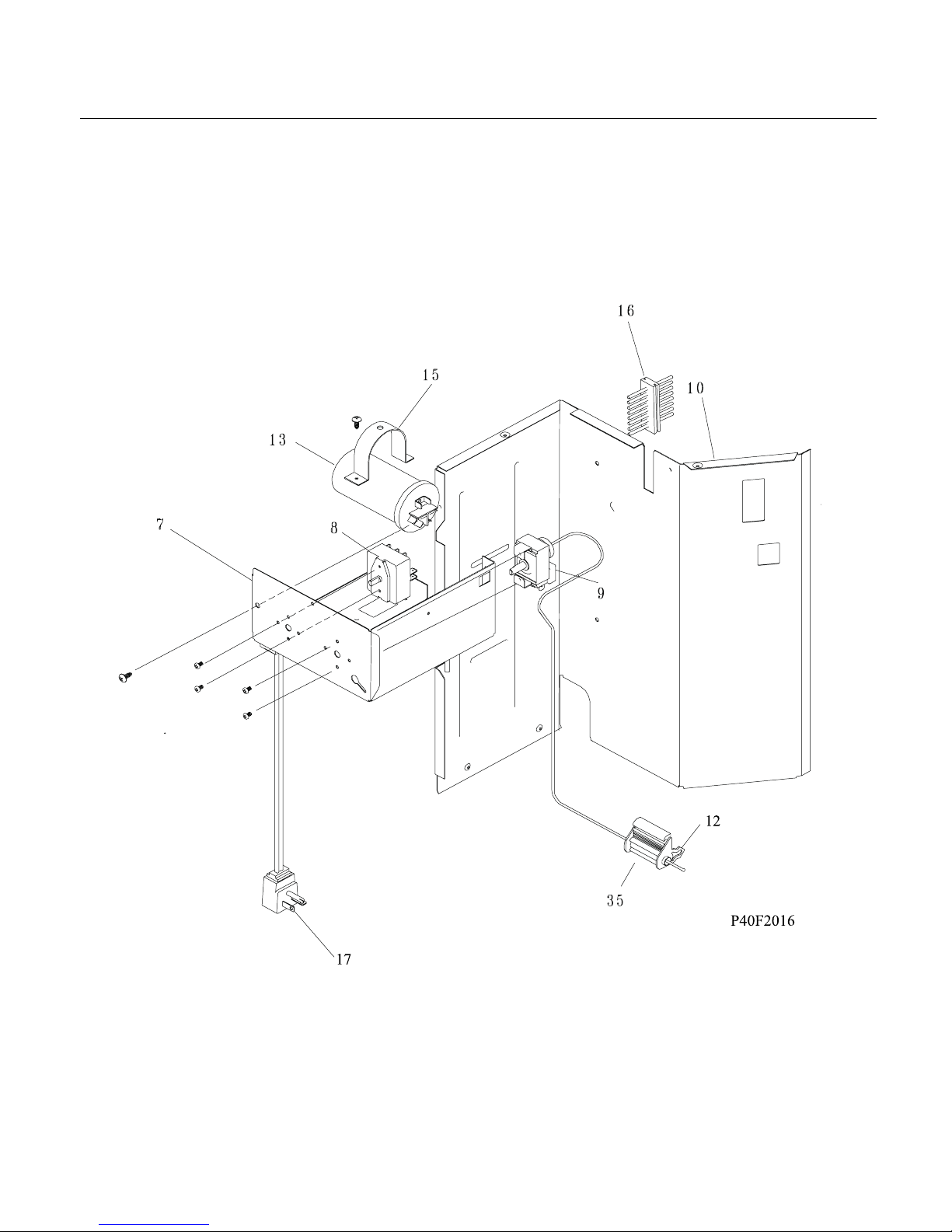

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630401 Control Box

8 # 5304410883 Switch-selector,7 position

9 # 5304410884 Control-temperature

9* 309331801 Clip-control bulb,(2)

10 309623601 Bulkhead,control system

13 # 5303316594 Capacitor,370 V ,7.5x35 mfd

15 5303303077 Strap-capacitor

16 # 5304408753 Harness-wiring

17# 309343114 Service-cord,type’D’12AWG

18 5303007754 Screw,6-32 x 0.188

35 3200761 Spacer-control bulb

38 5308009156 Screw,10-16AB x 0.500 , motor drive

08/01 6

Publication No. FAS254J2A2

5995348744

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAS254J2A2 Publication No.

5995348744

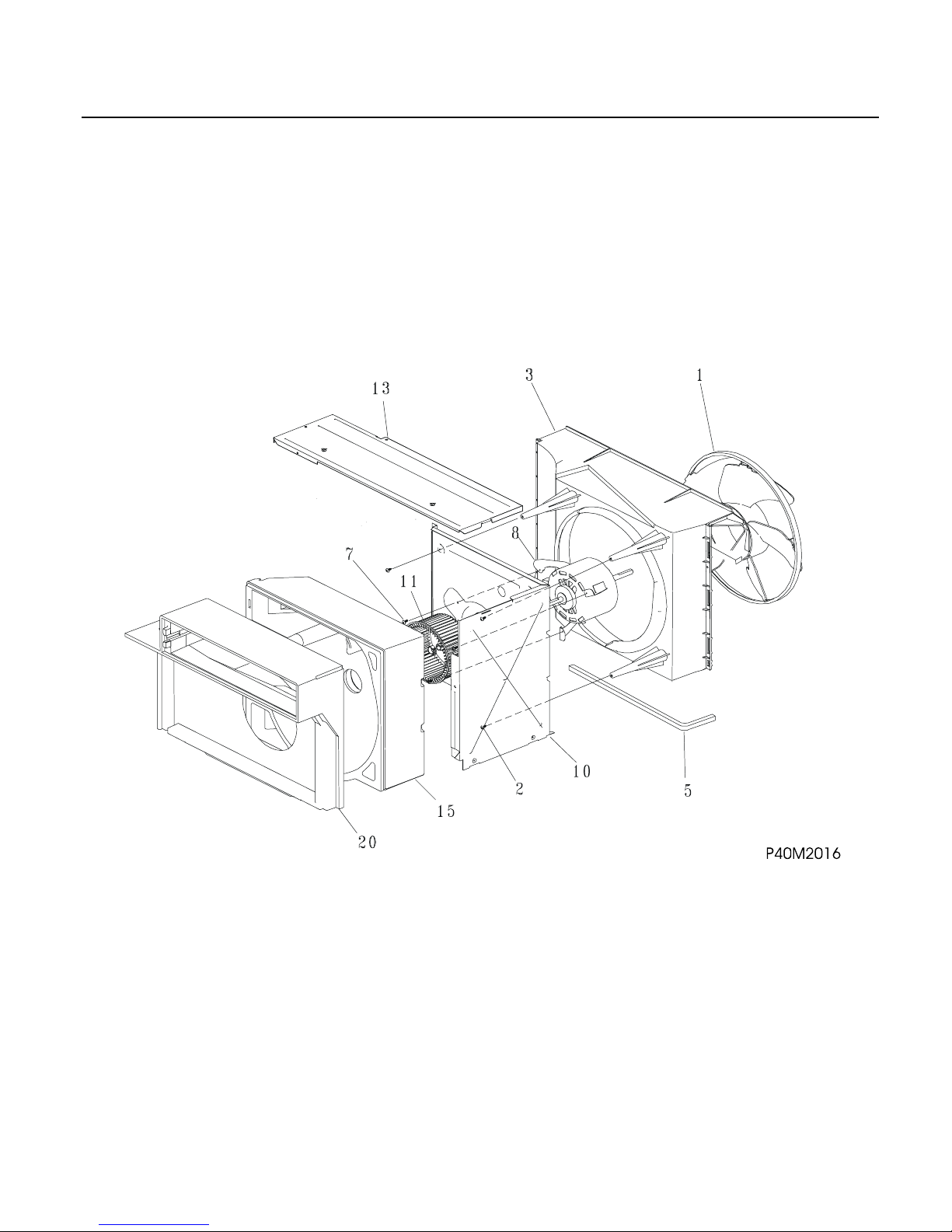

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303321440 Fan blade & clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309623201 Shroud-condenser,one piece

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8# 309630604 Motor-fan,YSK 250B-6

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630301 Cover-blower wheel,top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

21 5303212504 Seal-sleeve/chassis,bottom

08/01 8

Publication No. FAS254J2A2

5995348744

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAS254J2A2 Publication No.

5995348744

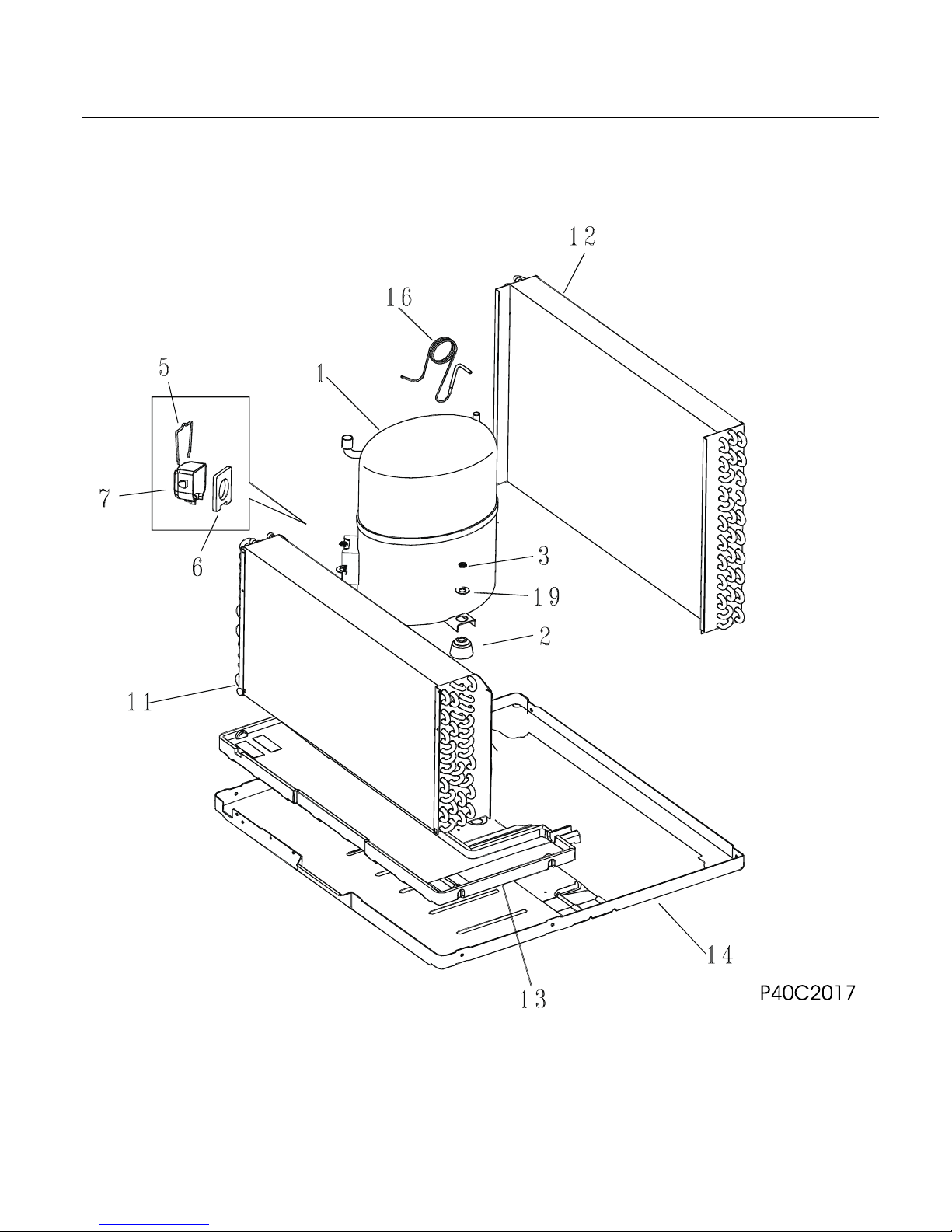

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304408299 Compressor

2 5303286606 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

5 5303002069 Wire-Bale,terminal cover

6 5303002068 Gasket,terminal cover

7 5303002067 Cover,compr terminal

11 # 309634201 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray-evaporator

14 309632906 Base stud ASSY

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

08/01 10

Publication No. FAS254J2A2

5995348744

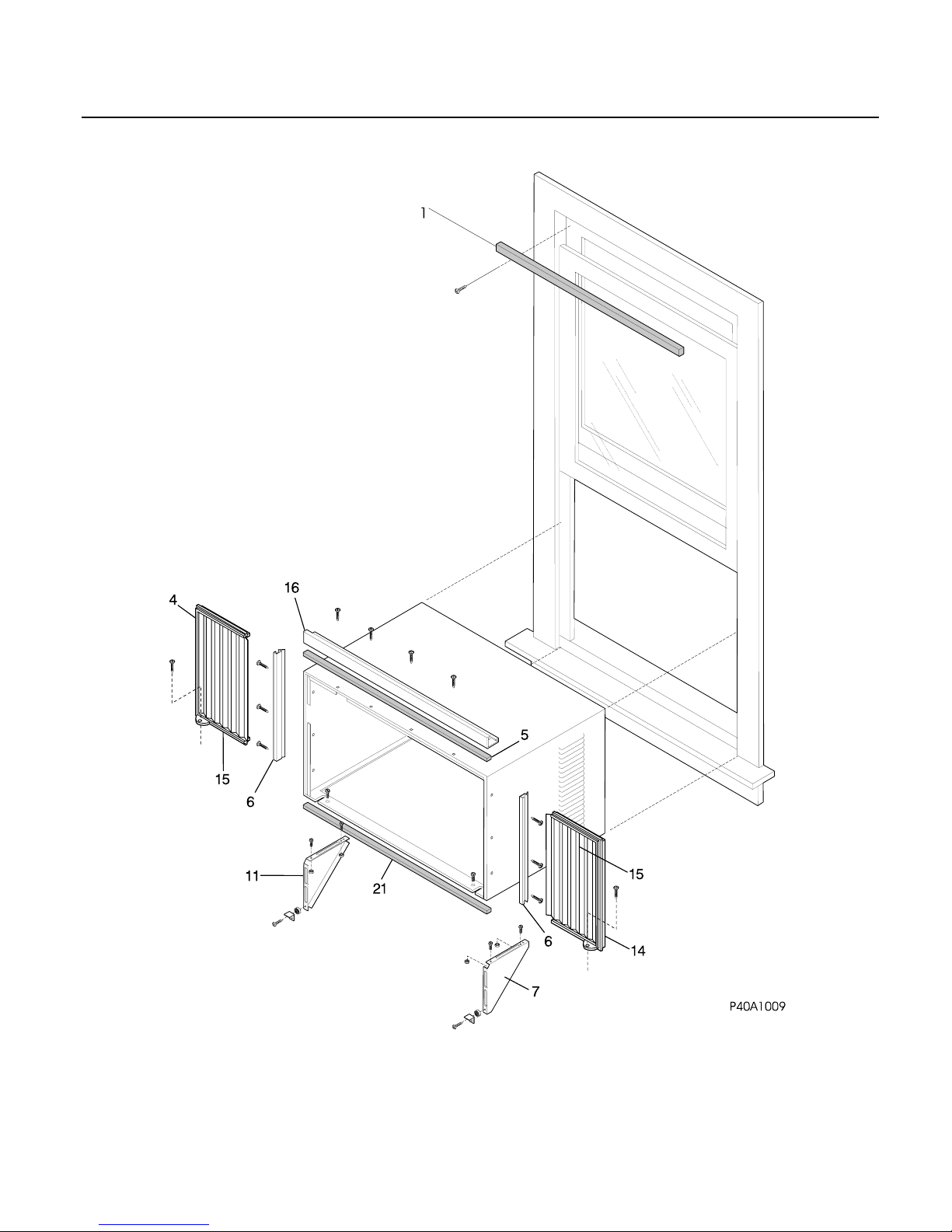

WINDOW MOUNTING PARTS
