Frigidaire FAS154K1A Manual de usuario

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAS154K1A1 FAS154K1A USA 15000BTU

Publication No.

5995348546

010117

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS154K1A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAS154K1A

5995348546

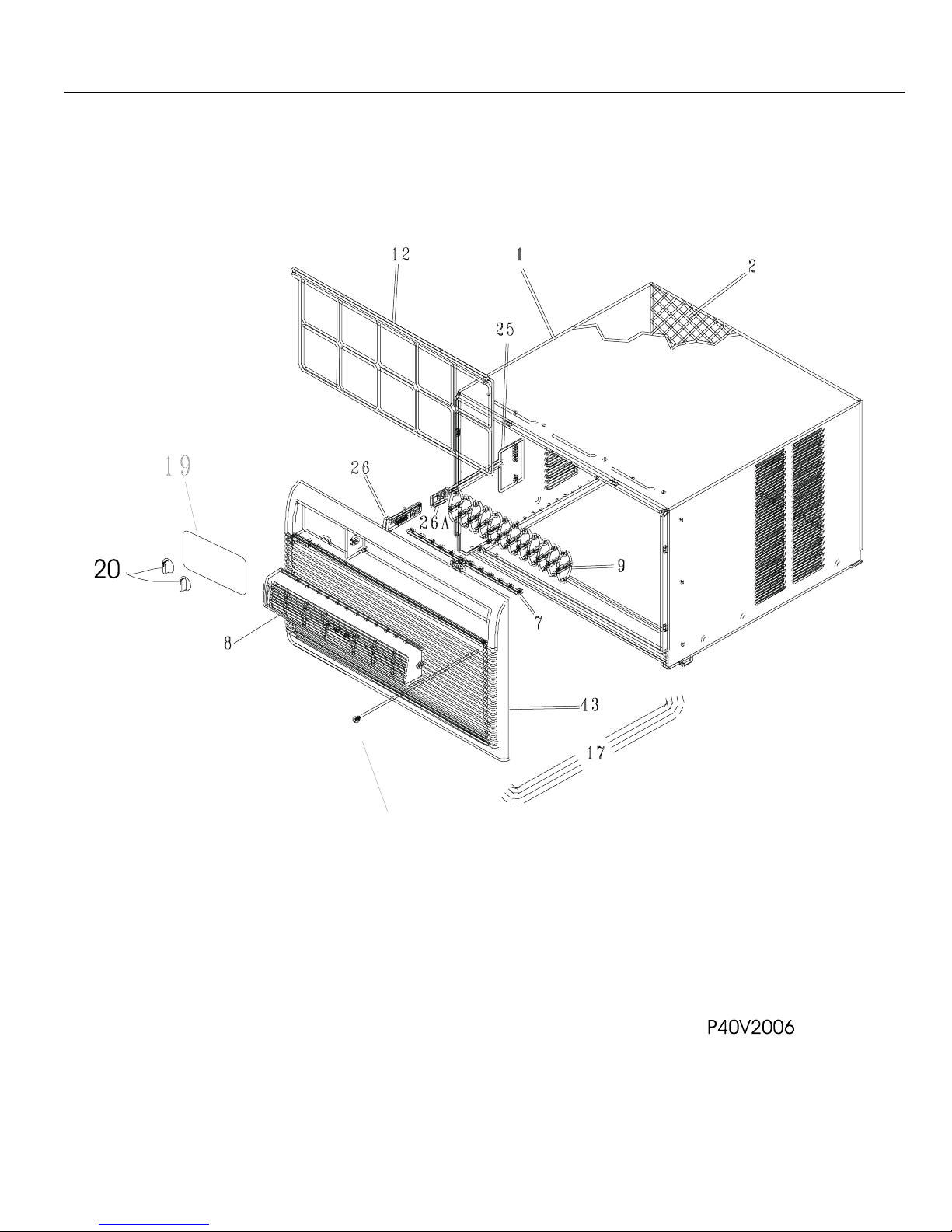

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAS154K1A Publication No.

5995348546

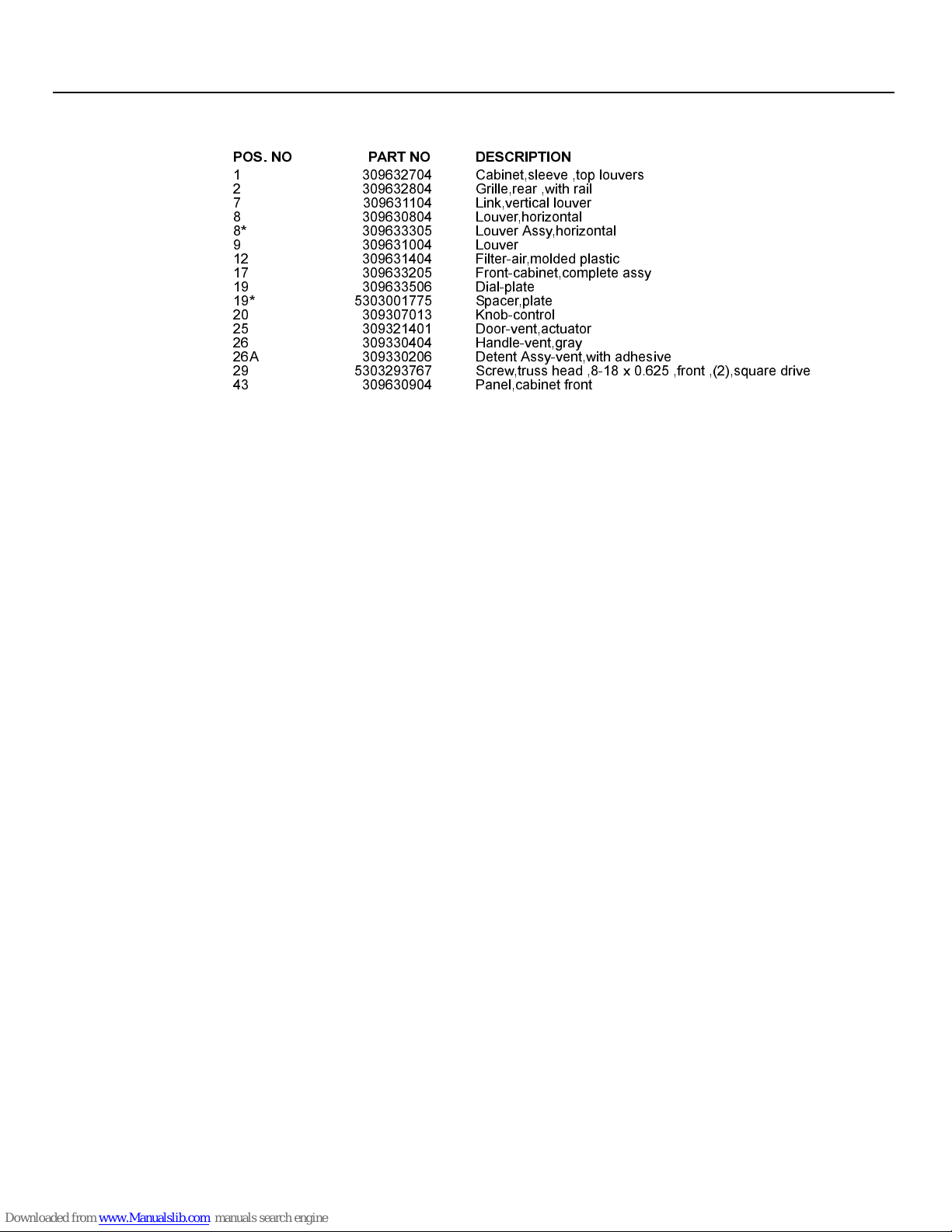

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309630804 Louver,horizontal

8* 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309633506 Dial-plate

19* 5303001775 Spacer,plate

20 309307013 Knob-control

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26A 309330206 Detent Assy-vent,with adhesive

29 5303293767 Screw,truss head ,8-18 x 0.625 ,front ,(2),square drive

43 309630904 Panel,cabinet front

06/01 4

Publication No. FAS154K1A

5995348546

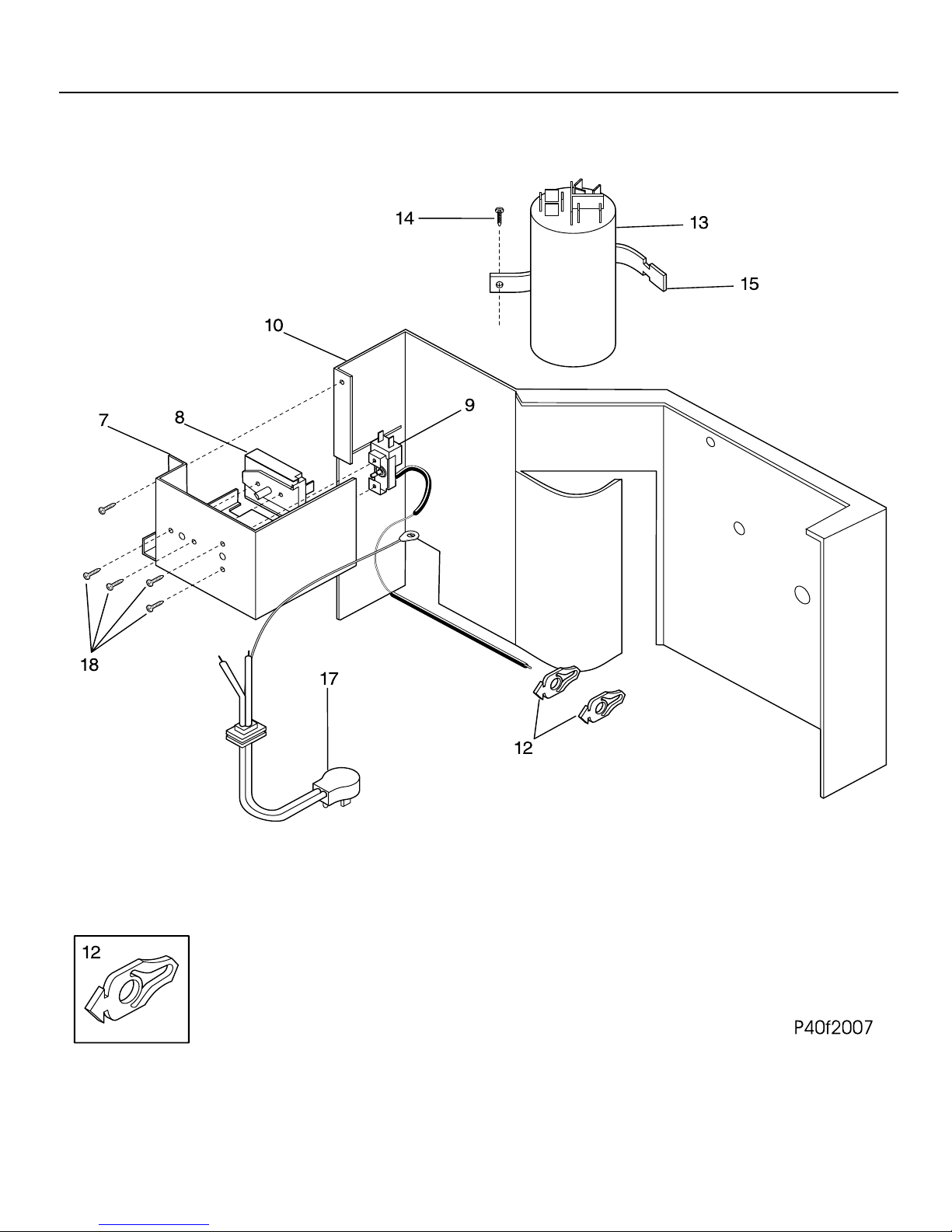

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAS154K1A Publication No.

5995348546

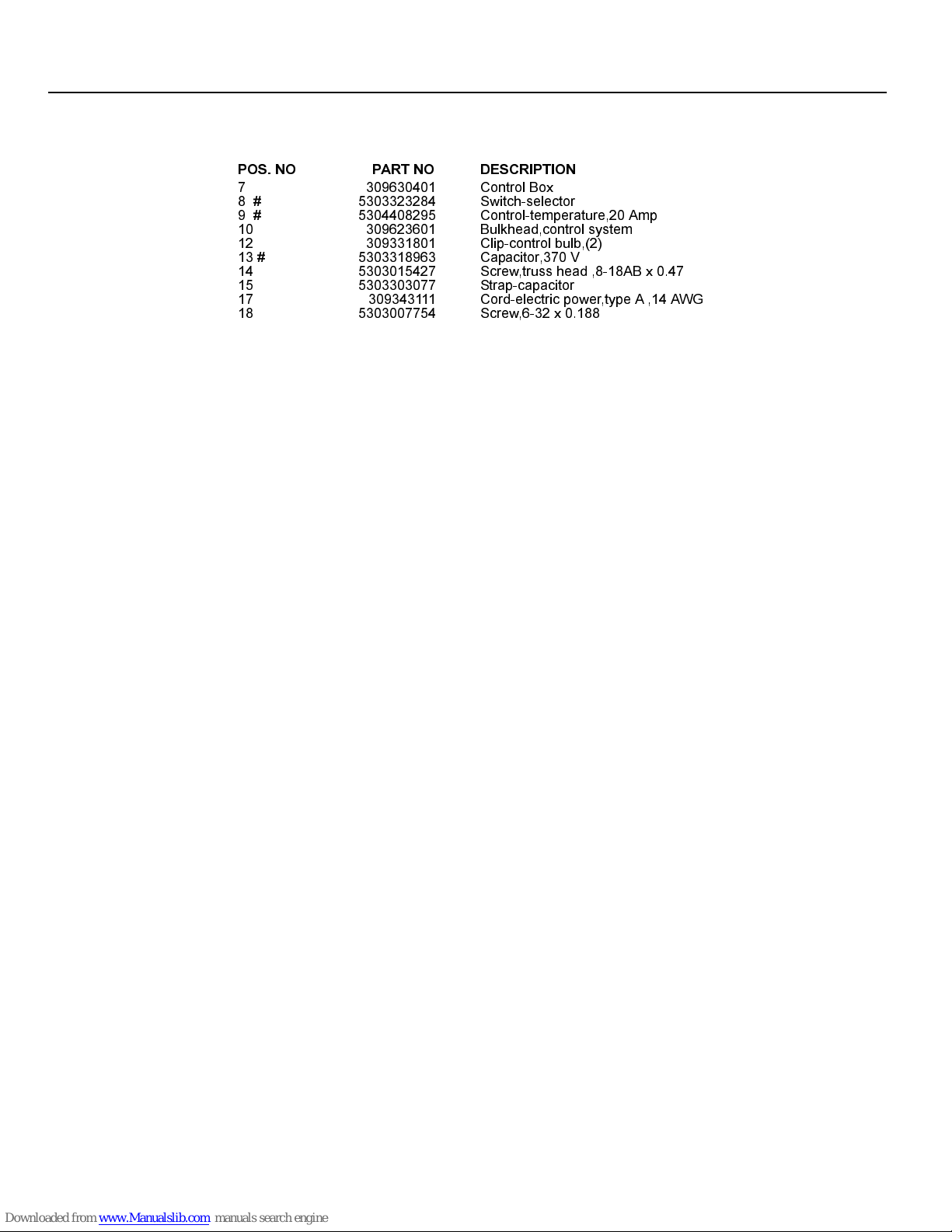

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630401 Control Box

8 # 5303323284 Switch-selector

9 # 5304408295 Control-temperature,20 Amp

10 309623601 Bulkhead,control system

12 309331801 Clip-control bulb,(2)

13 # 5303318963 Capacitor,370 V

14 5303015427 Screw,truss head ,8-18AB x 0.47

15 5303303077 Strap-capacitor

17 309343111 Cord-electric power,type A ,14 AWG

18 5303007754 Screw,6-32 x 0.188

06/01 6

Publication No. FAS154K1A

5995348546

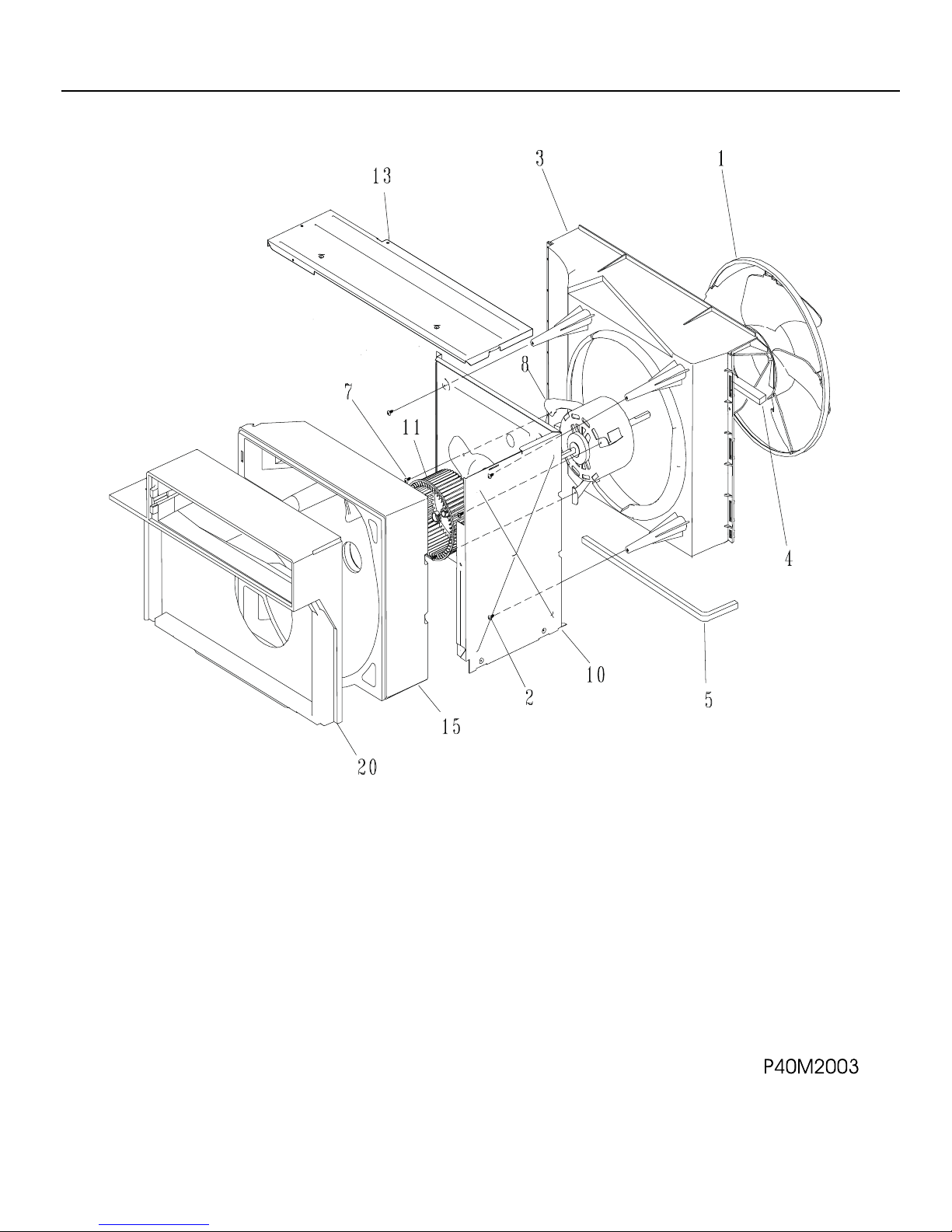

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAS154K1A Publication No.

5995348546

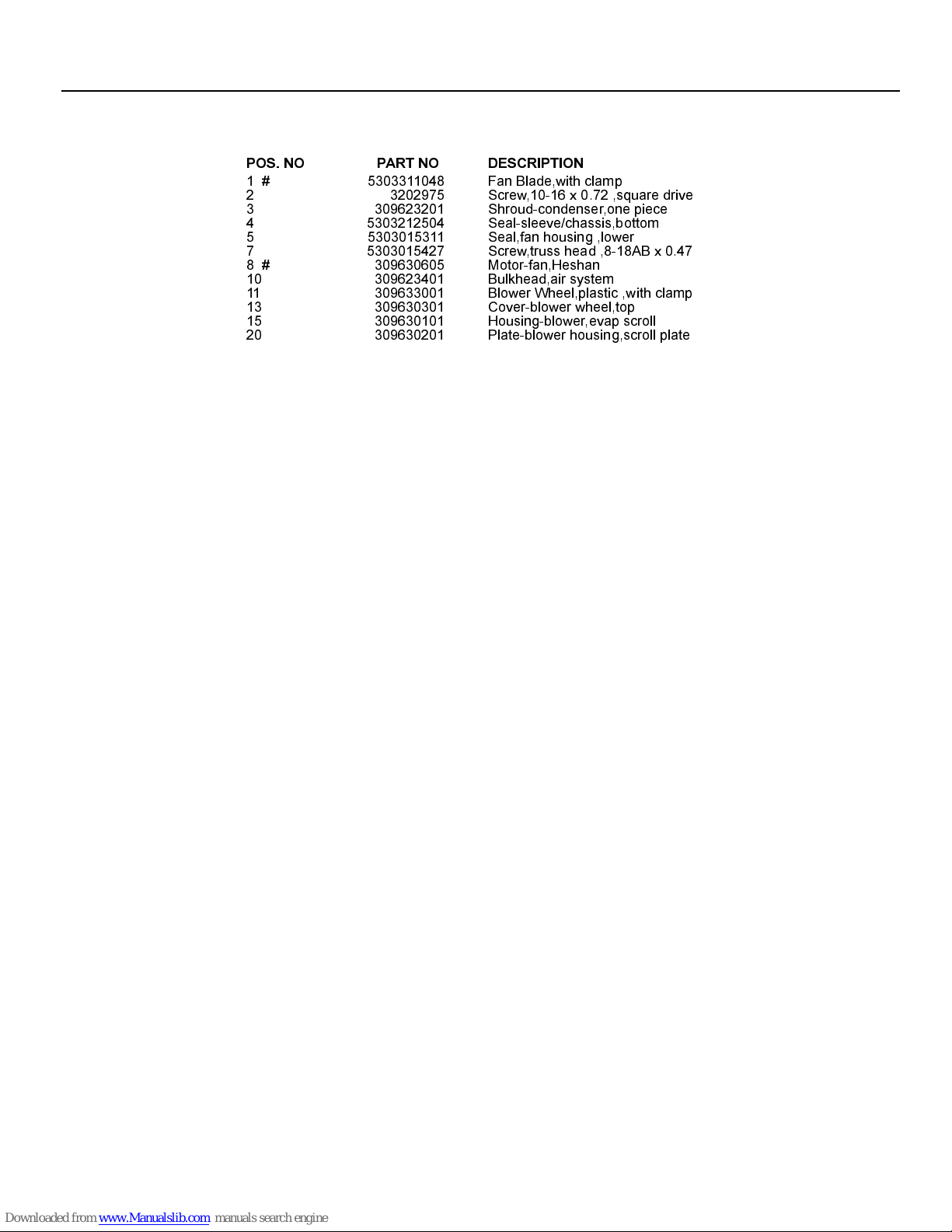

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309623201 Shroud-condenser,one piece

4 5303212504 Seal-sleeve/chassis,bottom

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630605 Motor-fan,Heshan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630301 Cover-blower wheel,top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

06/01 8

Publication No. FAS154K1A

5995348546

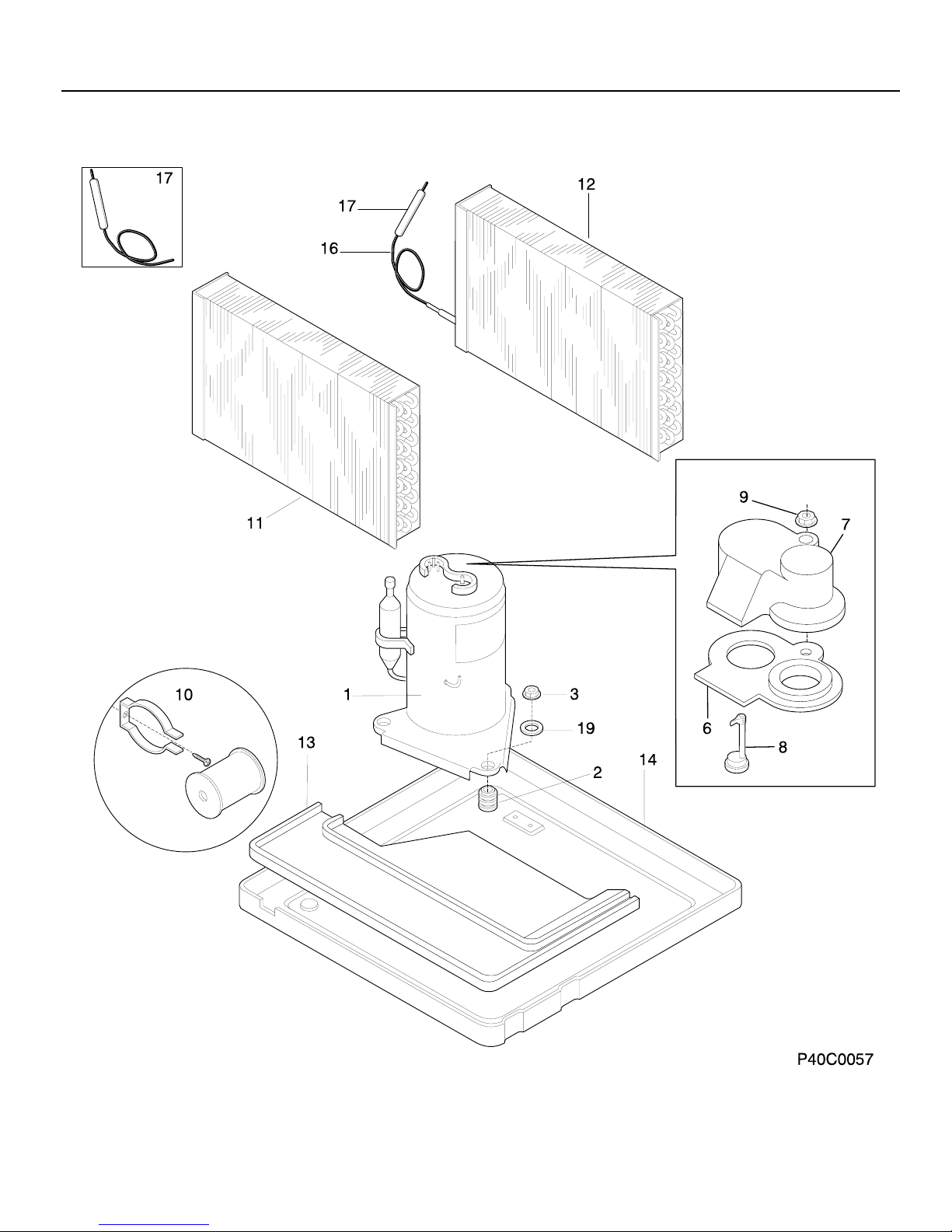

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAS154K1A Publication No.

5995348546

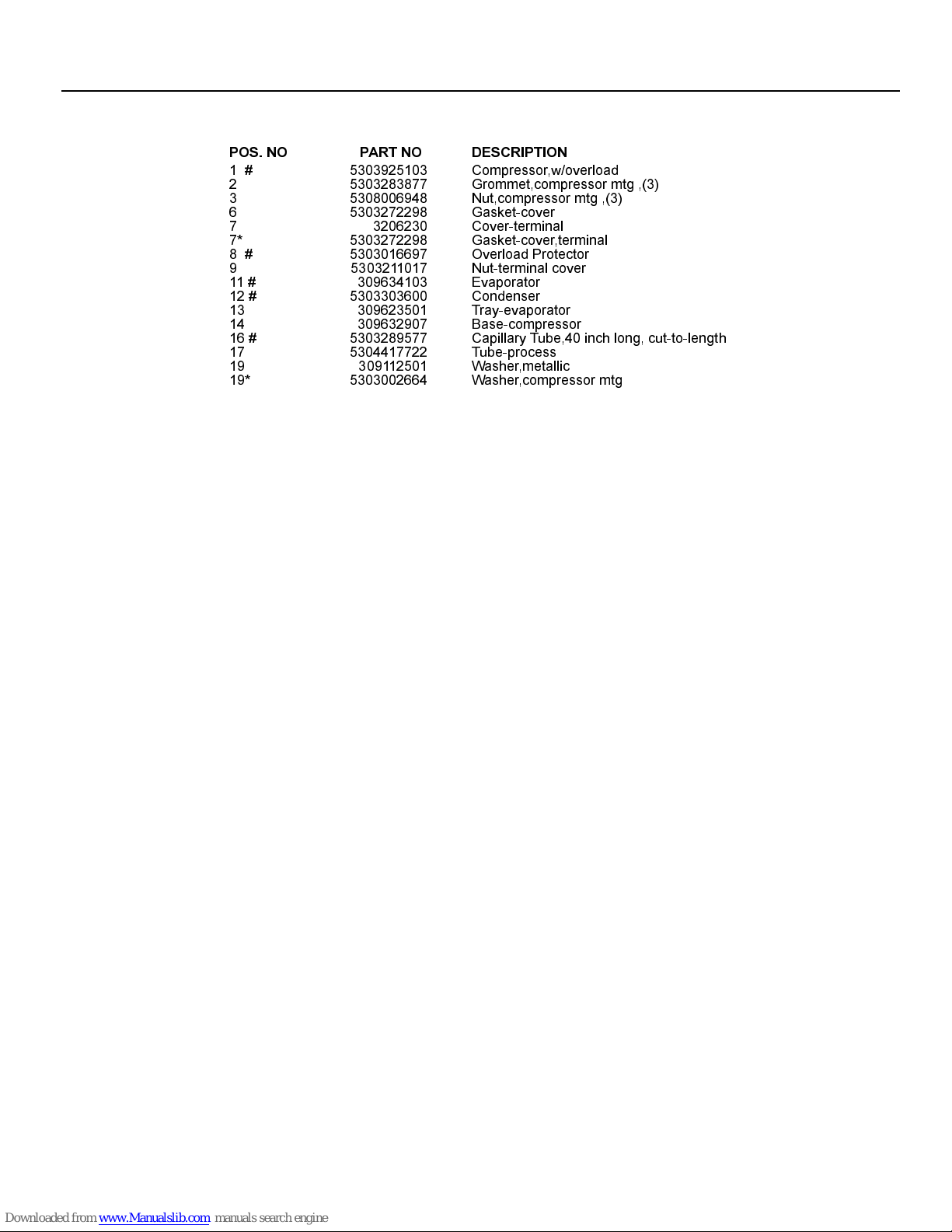

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5303925103 Compressor,w/overload

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303272298 Gasket-cover

7 3206230 Cover-terminal

7* 5303272298 Gasket-cover,terminal

8 # 5303016697 Overload Protector

9 5303211017 Nut-terminal cover

11 # 309634103 Evaporator

12 # 5303303600 Condenser

13 309623501 Tray-evaporator

14 309632907 Base-compressor

16 # 5303289577 Capillary Tube,40 inch long, cut-to-length

17 5304417722 Tube-process

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

06/01 10

Publication No. FAS154K1A

5995348546

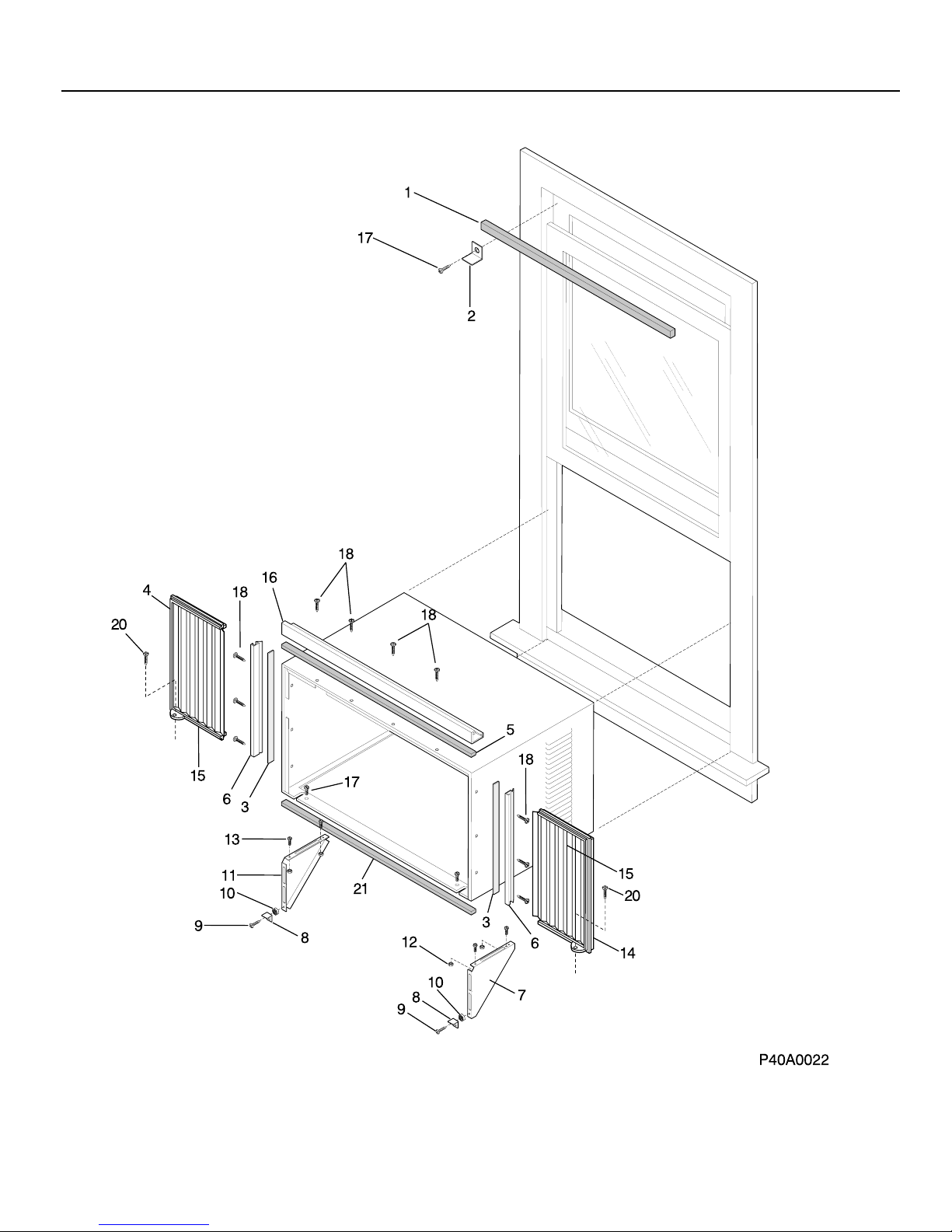

WINDOW MOUNTING PARTS
