Frigidaire FAK103J1V3 Manual de usuario

ROOM AIR CONDITIONER

Model No.

FAK083J1V3

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # A232012

OWNER’S GUIDE - # 309000816

ENERGY GUIDE - # 309367405

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAK103J1V3 FAK103J1V3 115 10000 BTU

MARKET

USA

Publication No.

5995367918

020309

-EN/SERVICE /BLT

345

03/02 2

Publication No. FAK103J1V3

5995367918

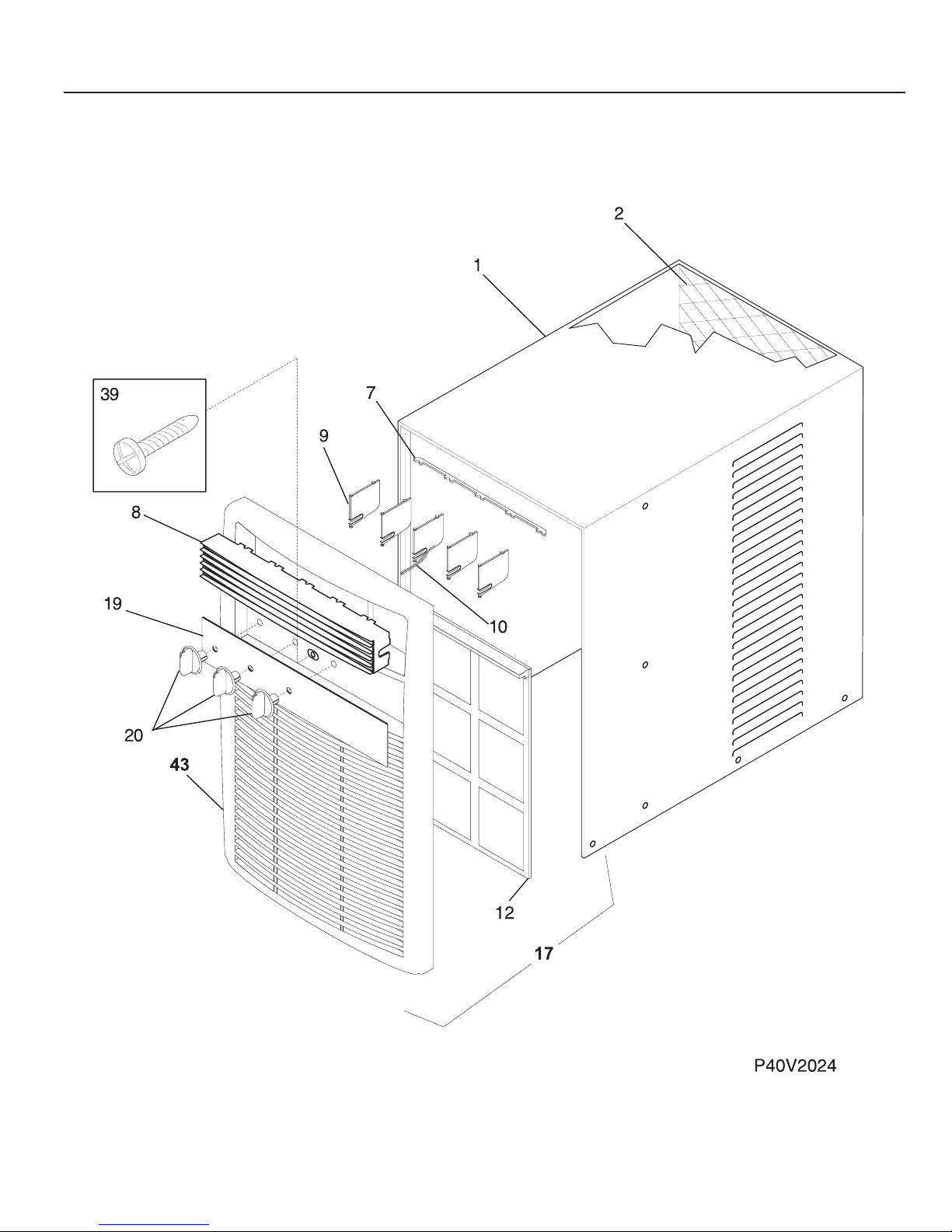

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 03/02

* = Non-Illustrated Parts

FAK103J1V3 Publication No.

5995367918

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309622004 Cabinet,sleeve ,complete assy

2 5303317604 Grille,rear

7 5304414087 Link,vertical louver

8 309622204 Louver,horizontal

8 309622504 Louver Assy,Incl-7,8,9,10

9 309622103 Louver,vertical

10 309622104 Louver,vertical ,w/handle

12 309622304 Filter,air ,front

17 309622404 Front Assy,complete ,7,8,9,10,12,43

19 309622609 Dial Plate

20 309307013 Knob,control

39 3015312 Screw,8-18AB x 0.500

43 309621804 Frame,cabinet front

* 309367405 Energy Guide,FAK103J1V3

03/02 4

Publication No. FAK103J1V3

5995367918

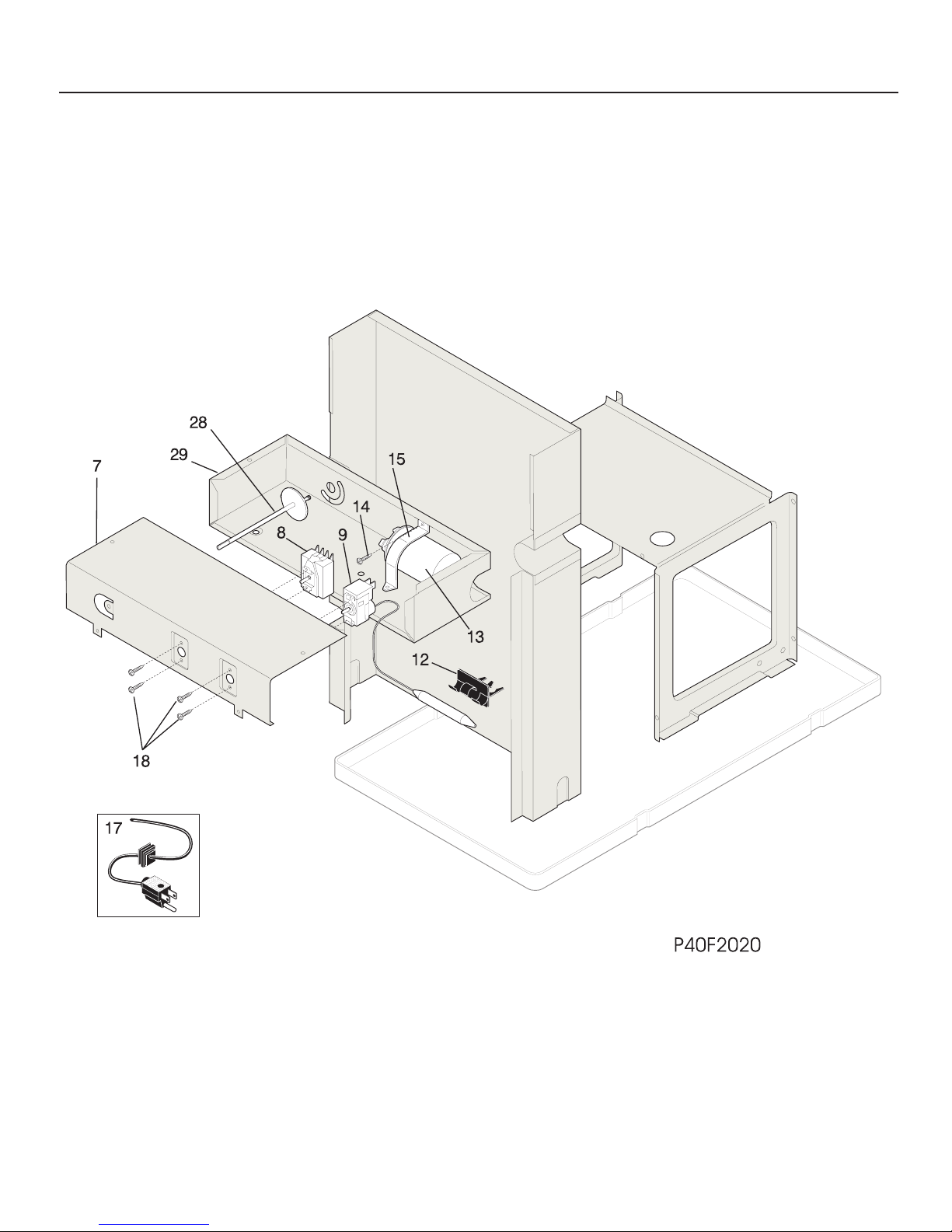

CONTROLS

# = Fast-moving Parts 5 03/02

* = Non-Illustrated Parts

FAK103J1V3 Publication No.

5995367918

CONTROLS

POS. NO PART NO DESCRIPTION

7 309606501 Panel-mounting,controls

8 # 5303323284 Switch,selector ,7 posn,3 speed

9 # 5304409252 Control temperature

12 309321201 Clip,temp sensor mtg ,thermostat

13 # 5304416302 Capacitor,370 V ,40+15 uF

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground

15 5303303077 Strap,capacitor mtg.

17 # 309343105 Cord-electric power,type A ,16 AWG

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

18 5303007754 Screw,6-32 x 0.188

28 309625301 Door Opener,vent mechanism

29 309606402 Control Box

03/02 6

Publication No. FAK103J1V3

5995367918

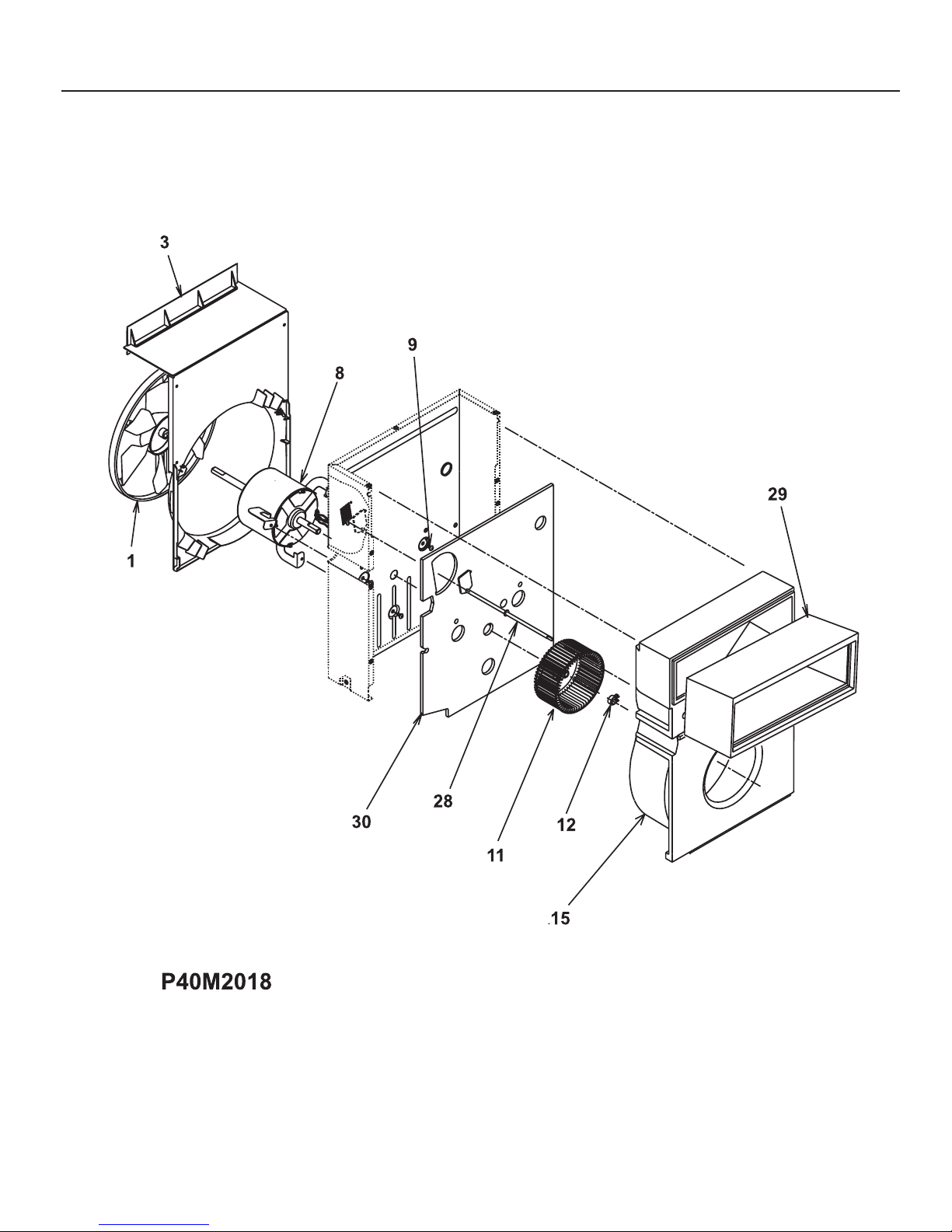

AIR HANDLING PARTS

# = Fast-moving Parts 7 03/02

* = Non-Illustrated Parts

FAK103J1V3 Publication No.

5995367918

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309626001 Fan Blade

3 309642301 Housing,fan shroud

8 # 309646001 Motor,fan

9 3202975 Screw,10-16AB x 0.72 ,square drive

11 # 309625201 Blower Wheel,plastic

12 5303012110 Clamp,blower wheel mt

15 309624801 Housing,blower scroll

28 309625301 Door Opener,vent mechanism

29 309624901 Adapter,scroll/housing ,front

30 309624601 Plate,scroll/housing ,back

03/02 8

Publication No. FAK103J1V3

5995367918

COMPRESSOR PARTS

03/02 9

FAK103J1V3 Publication No.

5995367918

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 5304414964 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket,terminal cover

7 3200281 Cover,compr terminal

8 # 5303203064 Overload Protector

9 5303211017 Nut,terminal cover ,compressor elec

10 # 5303317601 Start Assist Kit,compressor

11 # 309617009 Evaporator

12 # 309617311 Condenser

13 309624101 Tray-evaporator

16 5303289577 Capillary Tube,40 inch long ,cut-to-length

17 # 5300265301 Drier-filter,service kit

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

23 309627602 Base,compressor mt.

03/02 10

Publication No. FAK103J1V3

5995367918

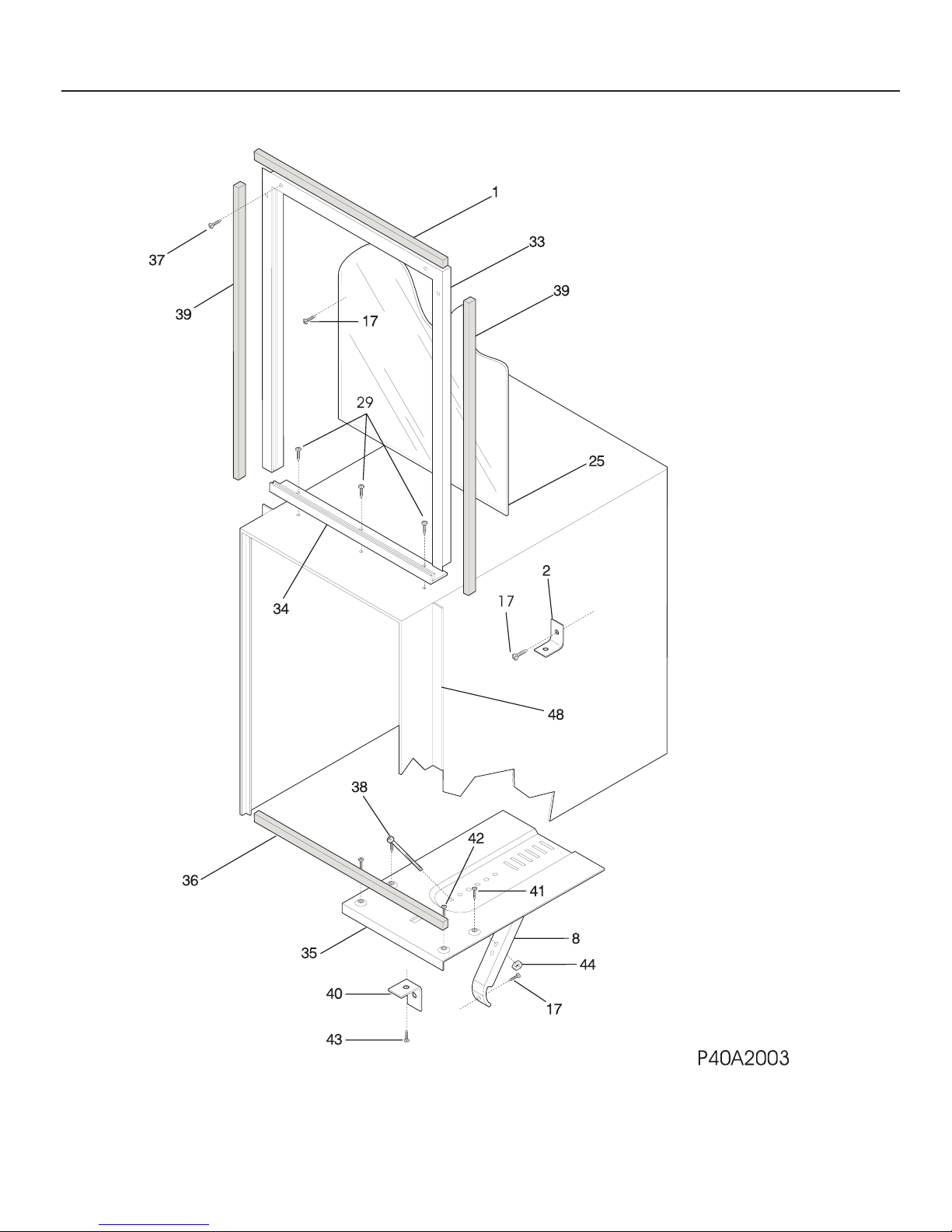

WINDOW MOUNTING PARTS
