Frigidaire FAH106J2T2 Manual de usuario

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAH106J2T2 FAH106J2T USA 10000BTU

Publication No.

5995348413

010115

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAH106J2T

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107701

OWNER’S GUIDE - # 309000823

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAH106J2T

5995348413

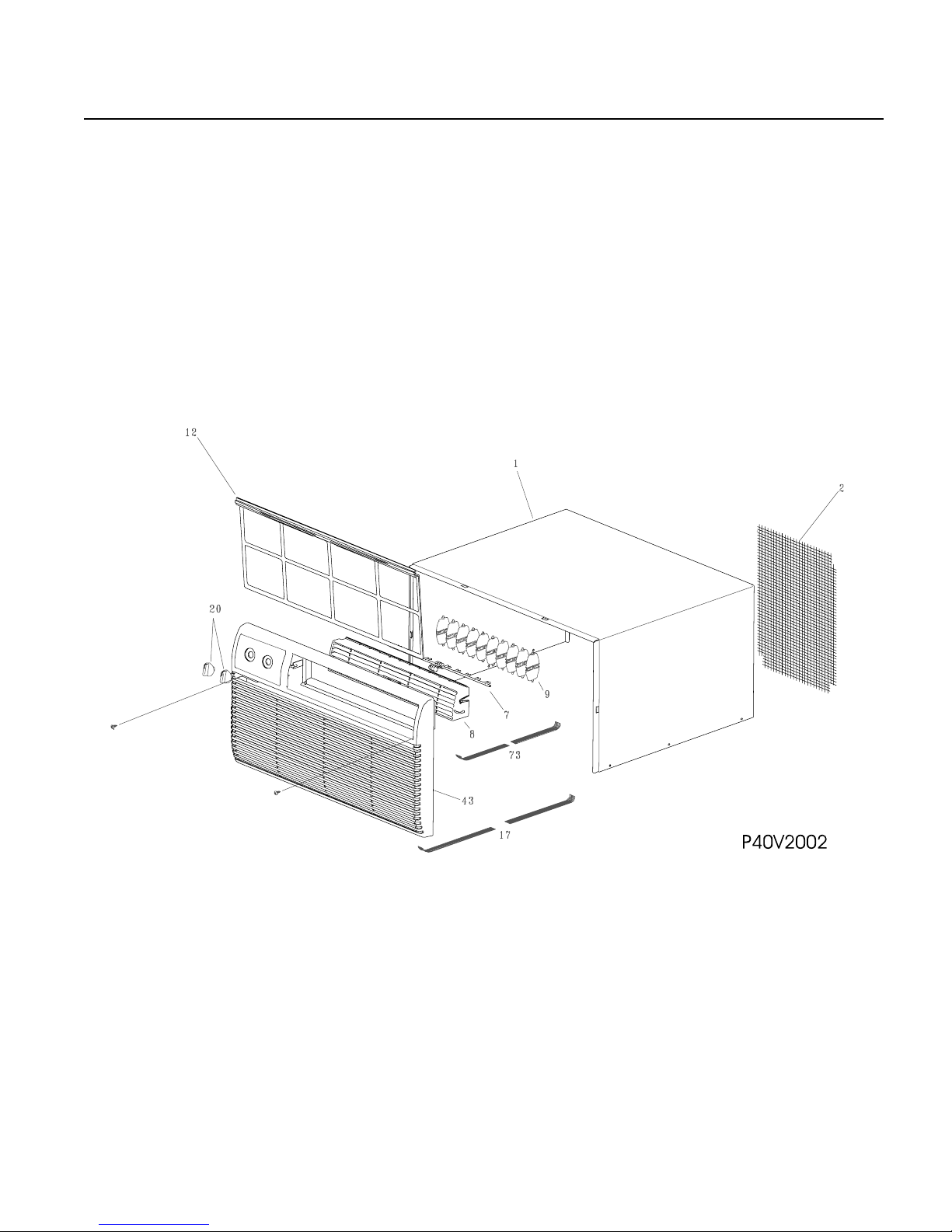

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAH106J2T Publication No.

5995348413

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309627504 Cabinet-,U-bend 18.5BLD

2 309636101 Screen-safety,18.5BLD

7 309324004 Link-handle

8 309628004 Louver,horizontal

9 309628104 Louver-vertical

12 309628204 Filter,air ,molded plastic ,grey

17 309629405 Front assy,18.5 bld cool

20 309307011 Knob-control

20* 309307013 Knob-control

43 309631805 Front assy,control/label

73 309629304 Louver Assy,grey

* 5304408740 Panel-Rear plastic

08/01 4

Publication No. FAH106J2T

5995348413

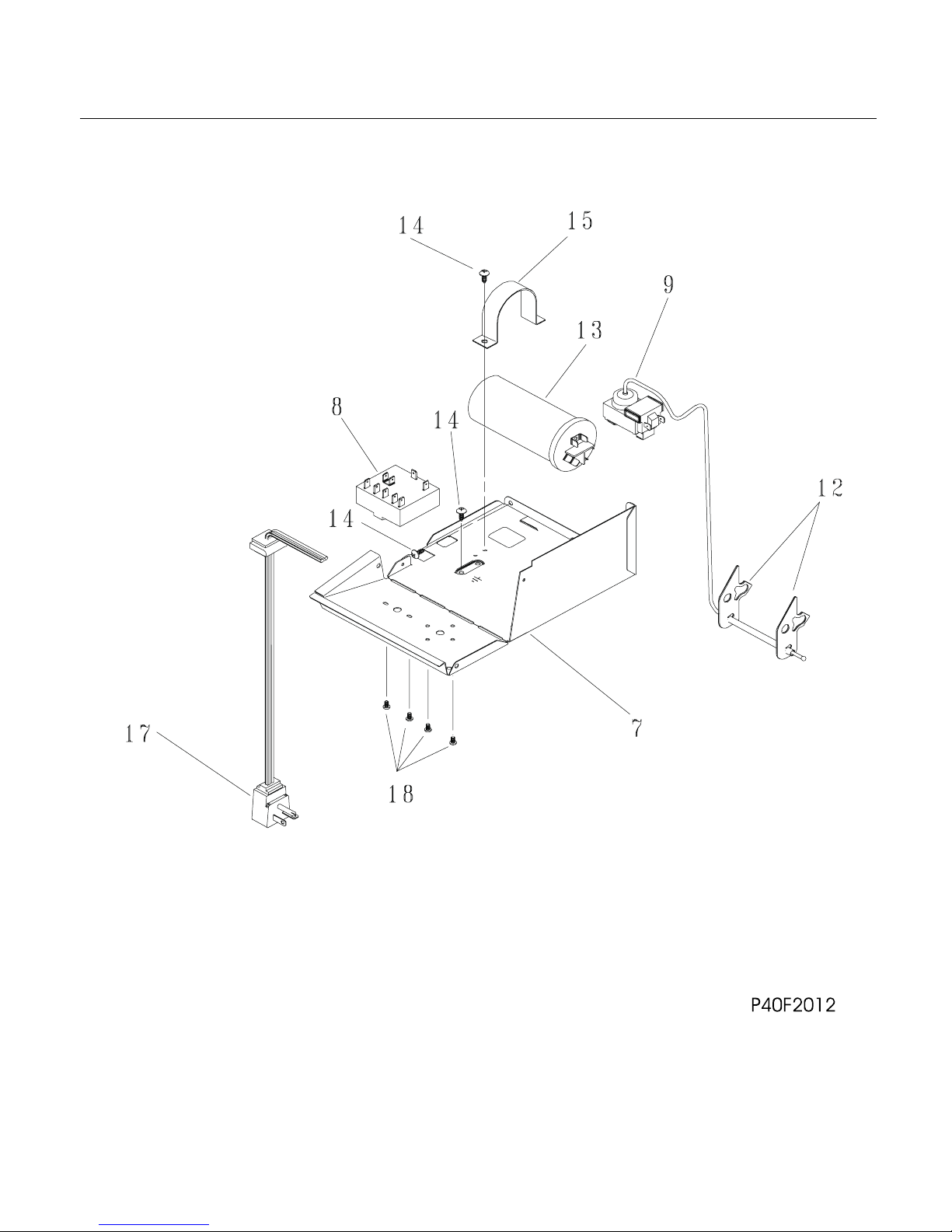

CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAH106J2T Publication No.

5995348413

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309628501 Box-control

8 # 5304408739 Switch,GE 3sp l

9 5304408746 Control-temperature,12AMP

12 309329801 Clip-sensor bulb

13 # 5303316710 Capacitor,370 V ,25+6 mfd

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap-capacitor

17 # 309343109 Cord-service,type C ,230V/18GA

18 5303007754 Screw,6-32 x 0.188

08/01 6

Publication No. FAH106J2T

5995348413

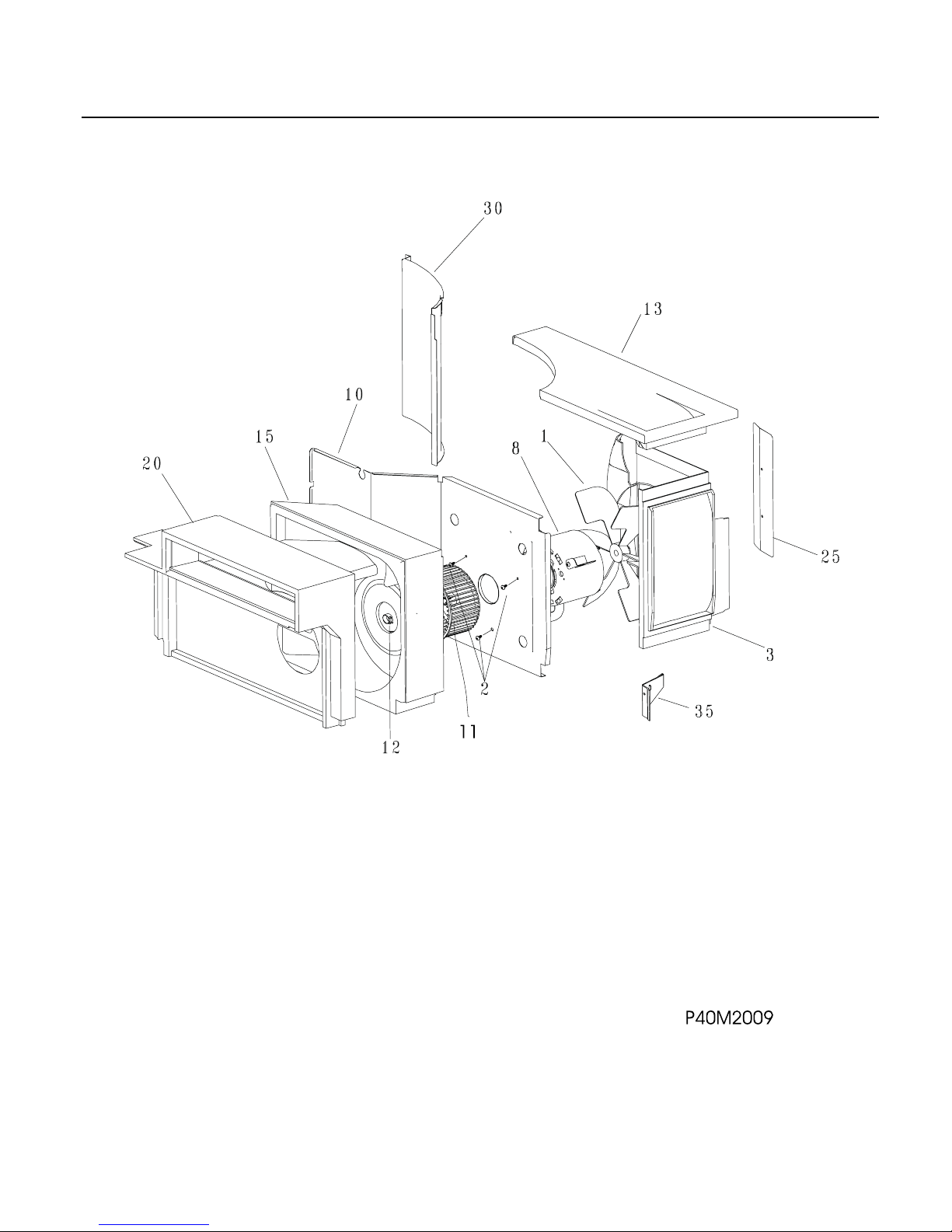

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAH106J2T Publication No.

5995348413

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309629102 Blade-fan ass’y

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309628901 Shroud-condenser

8 # 5304408763 Motor-fan,GE 3sp w/lds ,48FR

10 309627401 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

13 309628802 Top-cover

15 309622801 Scroll

20 309622901 Scroll plate

25 309335201 Baffle-air

30 309629001 Partition,shroud,galv-steel

35 309335001 Baffle-splash/motor

08/01 8

Publication No. FAH106J2T

5995348413

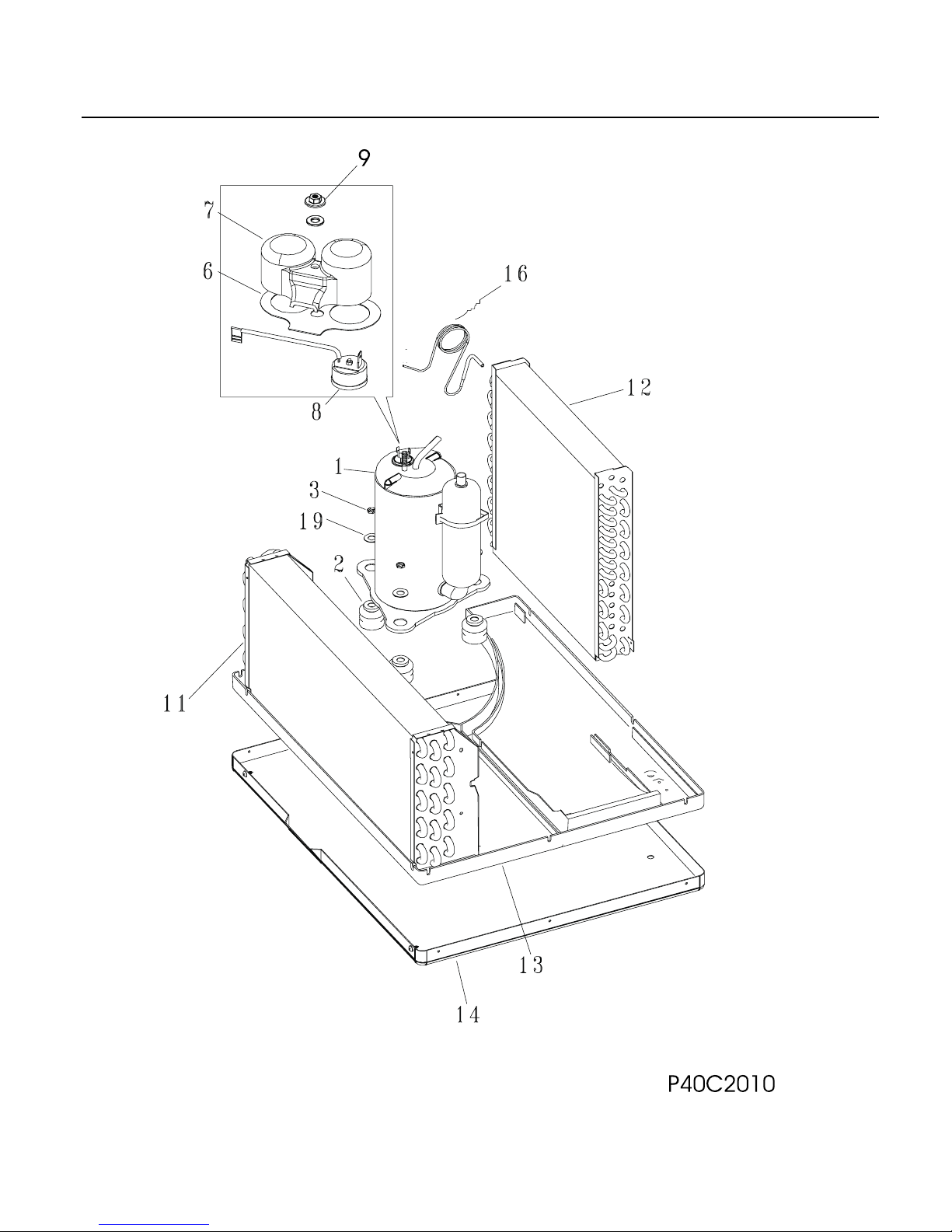

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAH106J2T Publication No.

5995348413

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309603108 Compressor-Goldstar,GK147KAA

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

7* 5303293809 Washer

8 # 5304419130 Overload-,MRA 98996-694

9 5303294292 Nut-terminal cover

11 # 309632307 Evap-assy,2RW/17FPI

12 # 309632501 Condenser-assy

13 309628705 Tray-base

14 309632003 Base/stud assy

16 # 5308017120 Capillary Tube,45 inch long cut to length

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

08/01 10

Publication No. FAH106J2T

5995348413

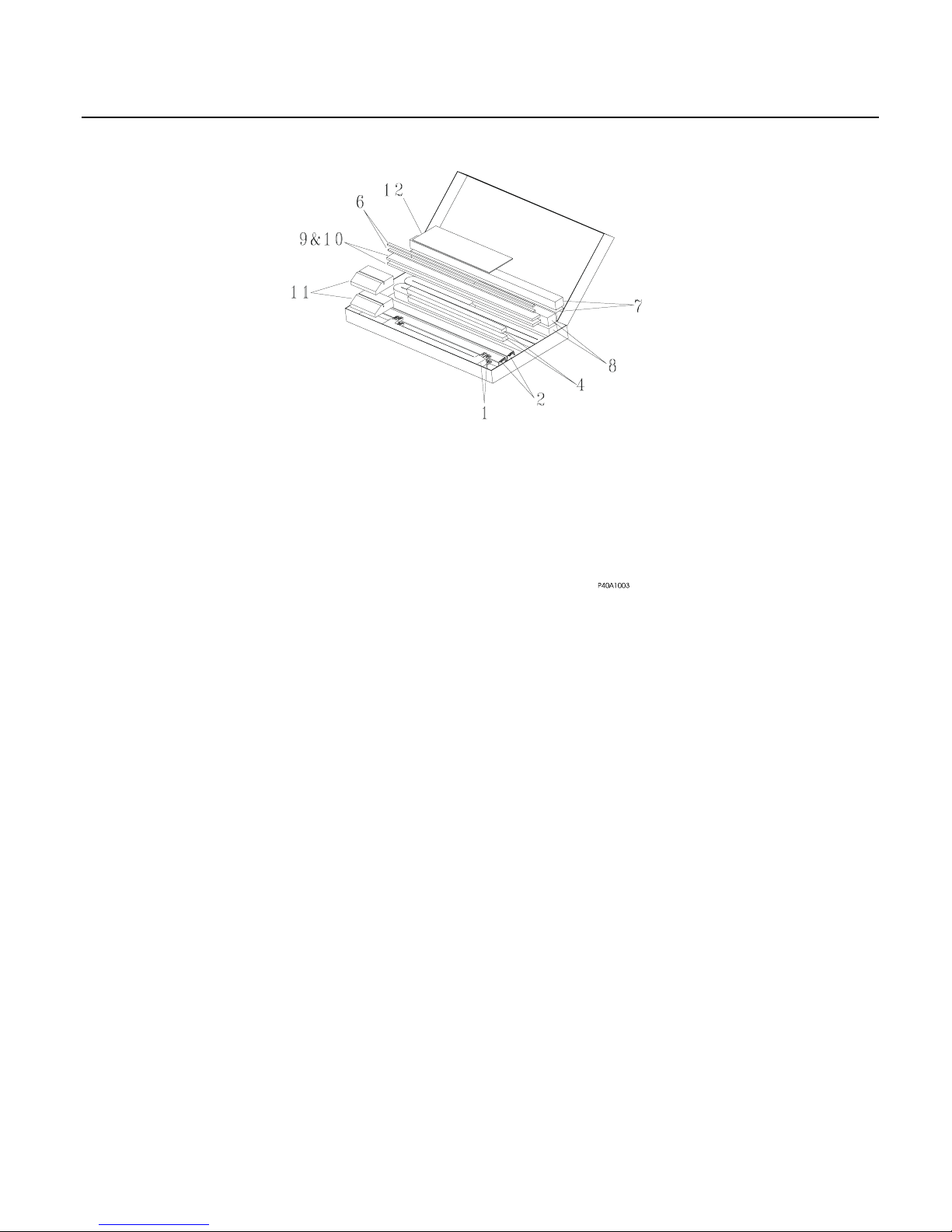

WINDOW MOUNTING PARTS

POS. NO PART NO DESCRIPTION

1 309628603 Trim

2 309628604 Trim frame-top & sides (2)

4 5304409304 Block,tapered

6 5304409305 Seal-bracket end,cond

8 5304409307 Seal-rear pnl/sides,condenser

9 5304409308 Seal-rear pnl top/botm,cond

10 5304409309 Seal-rear pnl/sides,cond

11 5304409310 Block-cabinet/chassis

12 309335101 Divider,cond in/out

13 5304409311 Kit-grille mtg

14 3015312 Screw,8-18AB x 0.500

* 309636002 Kit-mtg complete

* 5304409303 Kit-wire grounding
