Frigidaire FAC103J1A1 Manual de usuario

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAC103J1A1 FAC103J1A 115 9950

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAC103J1A1

WIRING DIAGRAM # - 309103901

OWNERS GUIDE # - 309000823

Publication No.

5995305173

000413

-EN/SERVICE /REP

345

5995338992

FAC103J1A1

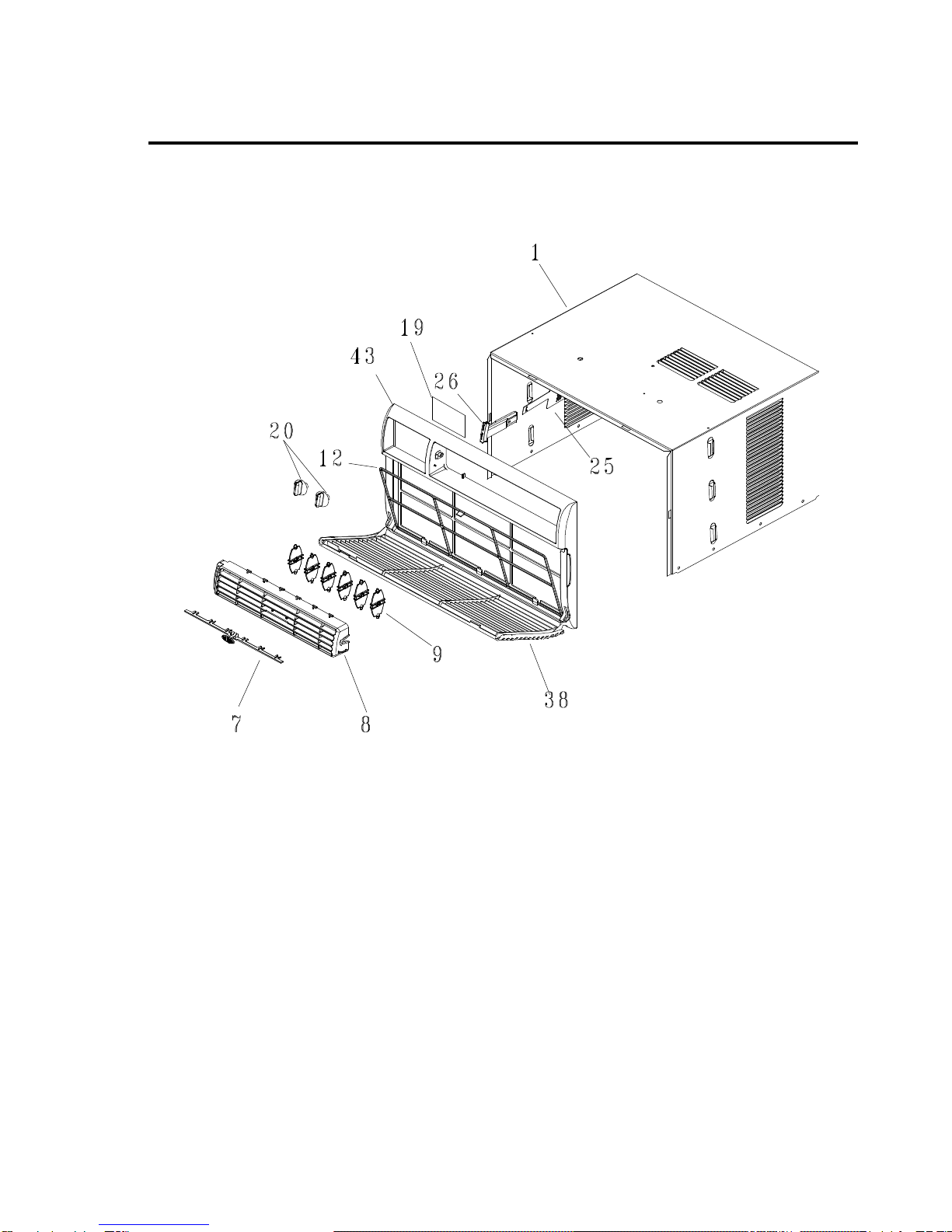

CABINET FRONT AND WRAPPER

4/00 1

FAC103J1A1

1 5304413783 Cabinet

7 309638001 Link / handle

8 309639301 Louver-horizontal

9 309342001 Louver, Vertical, (6)

12 3096343501 Filter-Mesh

17 309640102 Front, cabinet, complete

19 309342903 Plate-Dial

20 309306811 Knob-control

25 309328601 Door-Vent Actuator HDTC

26 309639401 Handle-Vent

26A* 309330201 Detent-vent

29 5303303691 Screw, 8-18AB x .38

*5304403255 Seal-front, bottom

*5303001775 Spacer-Dial Plate

*309640202 Louver assy-includes 7, 8 & 9

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

4/00 2

FAC103J1A1

CONTROL PARTS

4/00 3

FAC103J1A1

7 309602502 Box-Control

8# 5303323284 Switch-selector

9# 5303302852 Control-temperature

10 309602403 Bulkhead

12 309101202 Clip-control bulb (2)

13# 309335304 Capacitor, 370V, 40 + 10 mfd

14 5303303691 Screw, 8-18AB x .47

15 5303303086 Strap-capacitor

17# 309343102 Cord-power 115v

18 5303007754 Screw, .138-32 x 0.188

19 5303302855 Cover, capacitor

20 5303002600 Sleeve, control

POS. NO. PART NO. DESCRIPTION

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

4/00 4

FAC103J1A1

AIR HANDLING PARTS

4/00 5

FAC103J1A1

1# 309624502 Fan Blade, with clamp

2 3202975 Screw,10-16 x 0.72 square drive

3 309624201 Housing-fan

4 5303270043 Seal, condenser

6 5300105402 Grommet-motor

8# 309627307 Motor-Fan

10 309602403 Bulkhead

11 309617101 Blower Wheel

12 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-Scroll

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 6

FAC103J1A1

COMPRESSOR PARTS

4/00 7

FAC103J1A1

1# 309603103 Compressor

25303283877 Grommet-compressor,3

35308006948 Nut, compressor, 3

65303291330 Gasket-cover

75303291329 Cover,terminal

8# 5304403166 Overload protector

95303294292 Nut, cover

10 5303317601 Start Assist Kit, compressor

11# 309619303 Evap-Assy

12# 5303303195 Condenser

13 5303302849 Tray-Evap

14 5304414893 Base/Compressor-Stud Assy

16# 5303209547 Capillary Tube

19 5303002664 Washer,compressor

20 5303291328 Spring-overload

21 5303293809 Washer,cover

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

4/00 8

FAC103J1A1

1 5304407729 Seal, frame, top

2 5303211056 Bracket

4 5304413847 Frame,LH

5 0806226 Seal-top rail

6Not Used Retainers are part of cabinet

14 5304413848 Frame,RH

15 309626504 Accordian

16 5304413784 Rail,top

17 3002803 Screw-wood

18 5303303691 Screw, 8-18AB x .38

20 5303295750 Screw, 8-18 x .75

22 5304403252 Retainer, bottom

23 3001806 Screw

24 530802974 Screw

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 9
