Frigidaire FAC053K7A1 Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FAC053K7A1 FAC053k7A white USA

FAC053K7A2 FAC053k7A white USA

PRODUCT NO. BTU-COOLING

FAC053K7A1 5200

FAC053K7A2 5200

Publication No.

5995348066

010104

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC053K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309103901

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC053K7A

5995348066

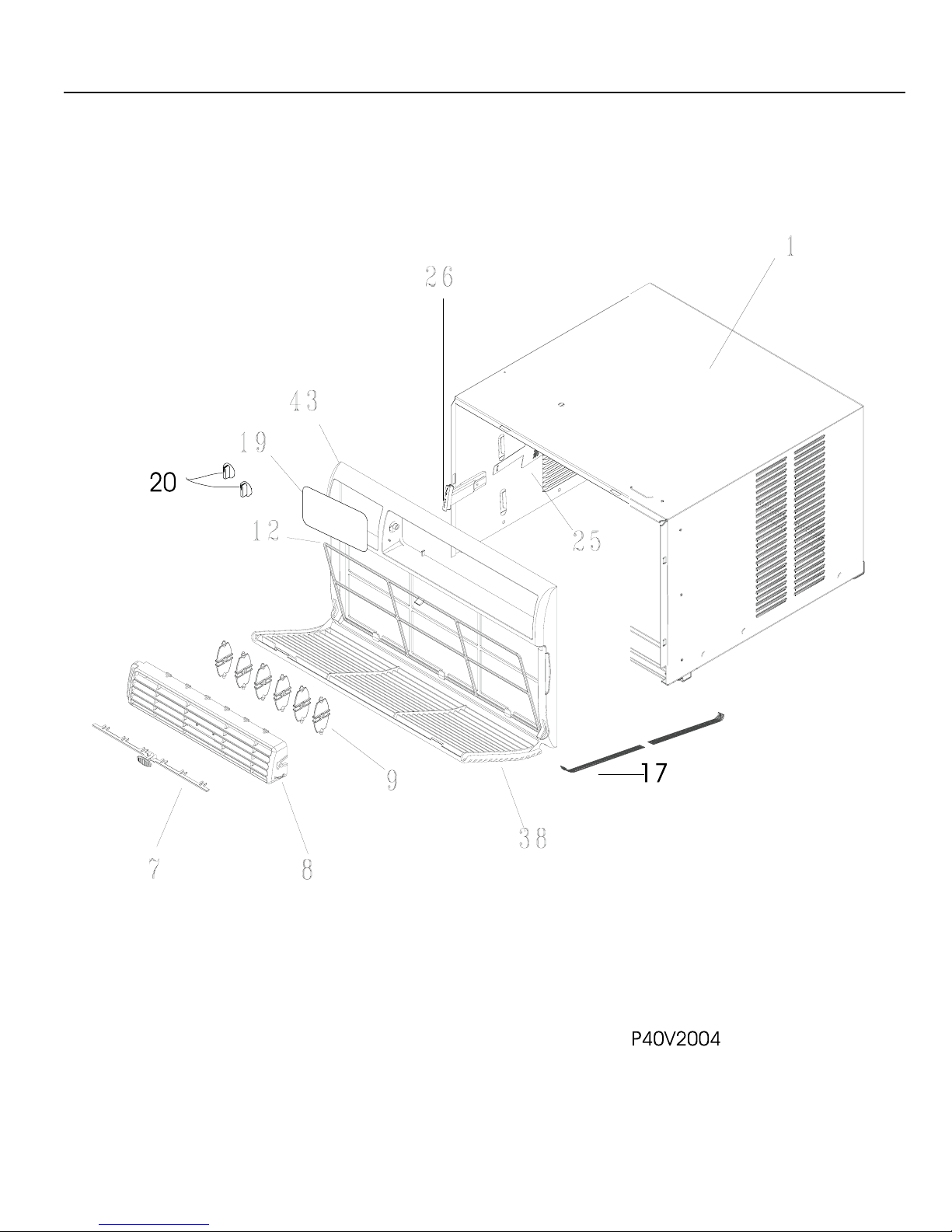

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC053K7A Publication No.

5995348066

CABINET FRONT AND WRAPPER

A = FAC053K7A (FAC053K7A1)

B = FAC053K7A (FAC053K7A2)

POS. NO PART NO DESCRIPTION

1 5304413783 A B Cabinet

7 309638001 A B Link,vertical louver ,with handle

8 309639301 A B Louver,horizontal

8* 309640202 A B Louver Assy,horizontal ,Incl-7,8,9

9 309342001 A B Louver,vertical ,(6)

12 309343501 A B Filter-air,7.12 x 17.31 ,no frame

17 309640102 A B Front-cabinet,4 way ,complete assy

19 309342904 A B Dial Plate

20 309306810 A B Knob-control,rotary

20* 309306811 A B Knob-control,rotary

25 309328601 A B Door-vent,fresh air

26 309638201 A B Handle vent door

26* 309330201 A B Detent-vent

38 309639201 A B Panel,cabinet front

43 309639101 A B Frame,cabinet front

06/01 4

Publication No. FAC053K7A

5995348066

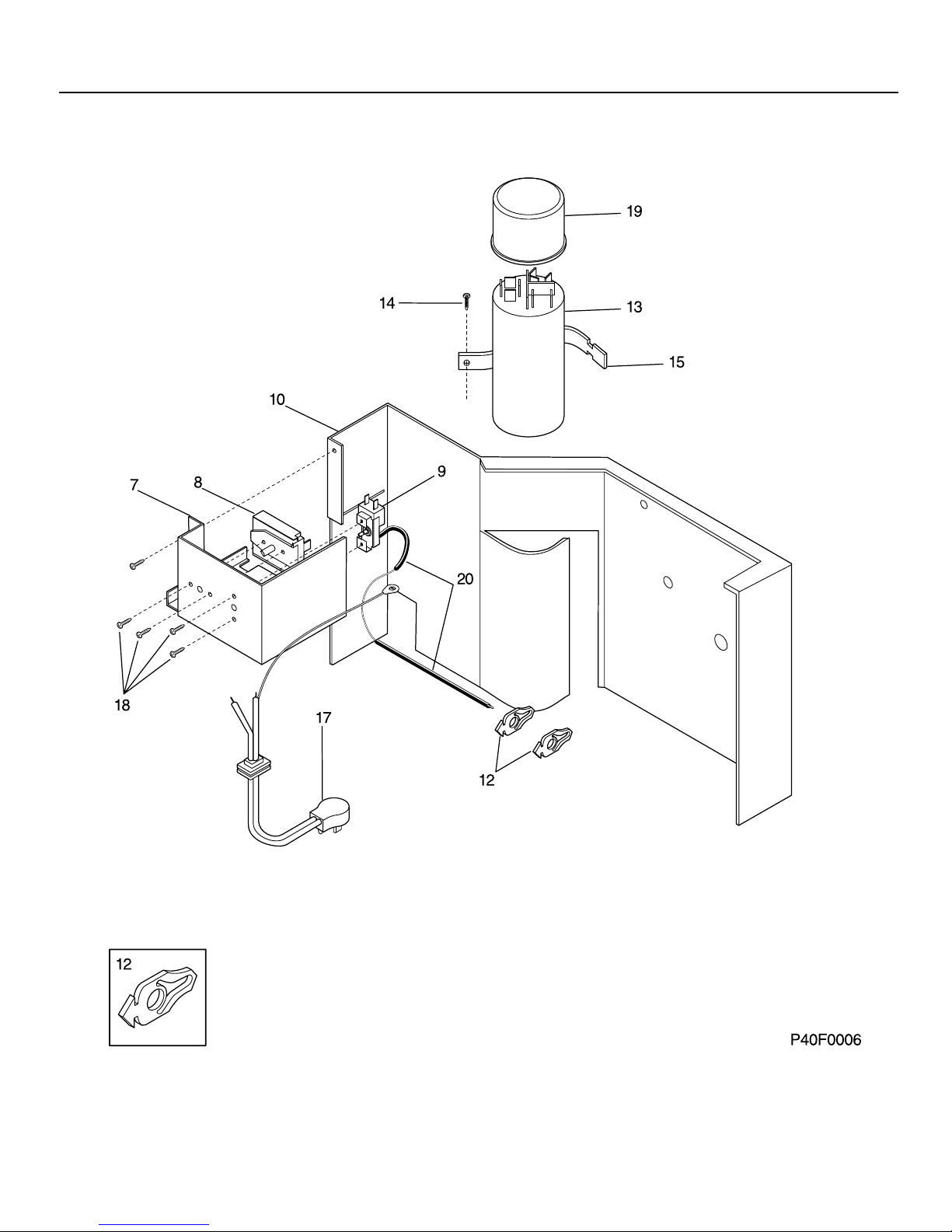

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC053K7A Publication No.

5995348066

CONTROLS

A = FAC053K7A (FAC053K7A1)

B = FAC053K7A (FAC053K7A2)

POS. NO PART NO DESCRIPTION

7 309350302 A B Control Box

8 # 5303323284 A B Switch-selector

9 # 5304402838 A B Control-temperature

10 309602404 A B Bulkhead

10* 309111201 A B Grommet,wire protector

12 309101202 A B Clip-control bulb,(2)

13 5304410675 A - Capacitor,370 V ,25+4/370

13 # 5304413779 - B Capacitor

14 3015312 A B Screw,8-18AB x 0.500

15 5303303086 A B Strap-capacitor

17 # 309343101 A B Cord-electric power,18 AWG ,115 V

18 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

19 5303302855 A B Cover,capacitor

20 5303002600 A B Sleeve,control

06/01 6

Publication No. FAC053K7A

5995348066

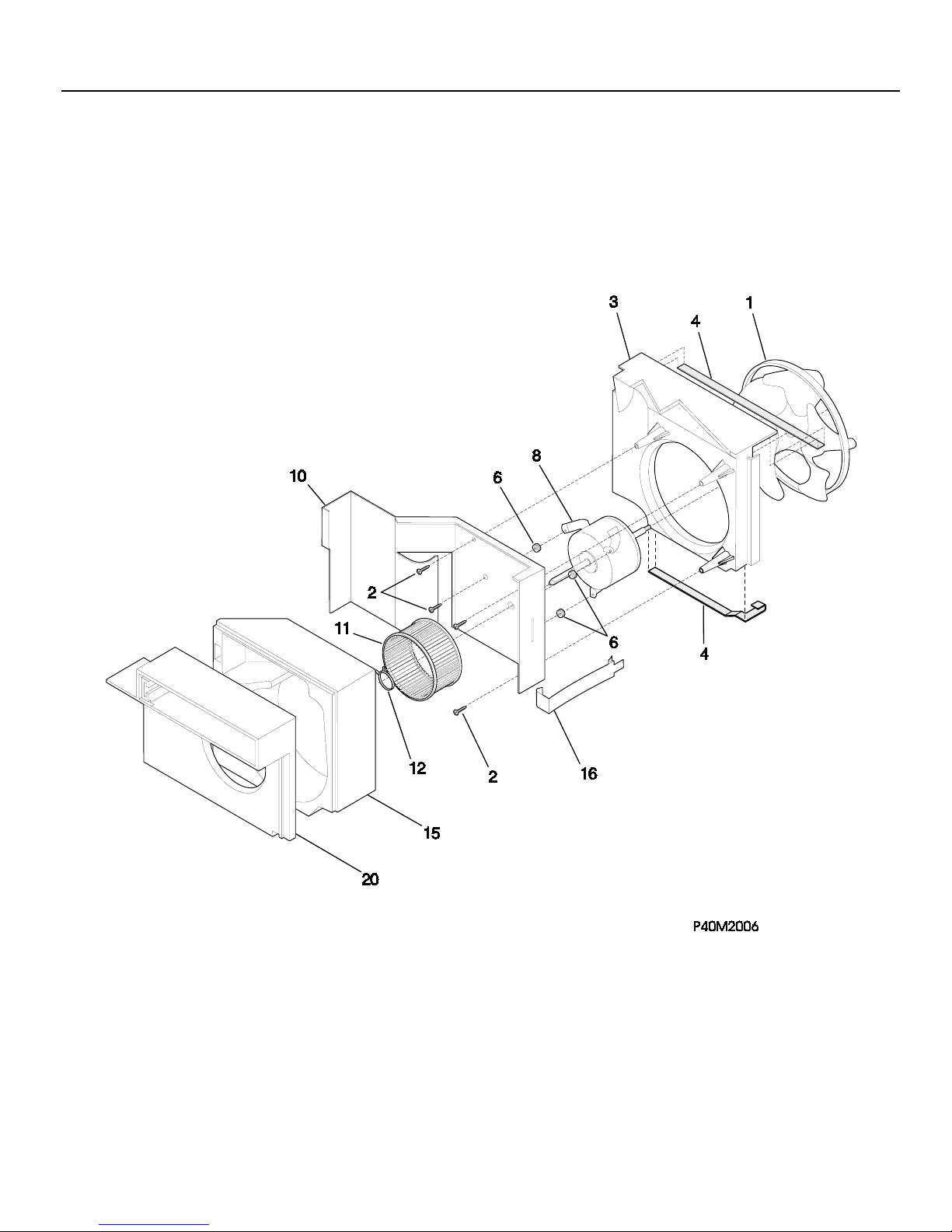

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC053K7A Publication No.

5995348066

AIR HANDLING PARTS

A = FAC053K7A (FAC053K7A1)

B = FAC053K7A (FAC053K7A2)

POS. NO PART NO DESCRIPTION

1 # 309624502 A - Fan Blade,with clamp

1 # 309624506 - B Fan Blade,with clamp

2 3202975 A B Screw,10-16 x 0.72 ,square drive

3 309624201 A B Housing-fan

4 5303270043 A B Seal,condenser

6 5300105402 A - Grommet,motor ,(3)

6 08007481 - B Nut,keps ,motor mtg

8 # 309627302 A - Motor-fan,3 speed

8 # 309642701 - B Motor-fan

10 309602404 A B Bulkhead

11 # 309603301 A - Blower Wheel

11 # 309631702 - B Blower Wheel

12 309112101 A - Clamp-blower

12 5303012110 A - Clamp-blower

12 327161302 - B Clamp-blower

15 5304407653 A B Housing-blower

16 309100201 A B Clip

18 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

20 5304407654 A B Plate-blower housing,scroll plate

06/01 8

Publication No. FAC053K7A

5995348066

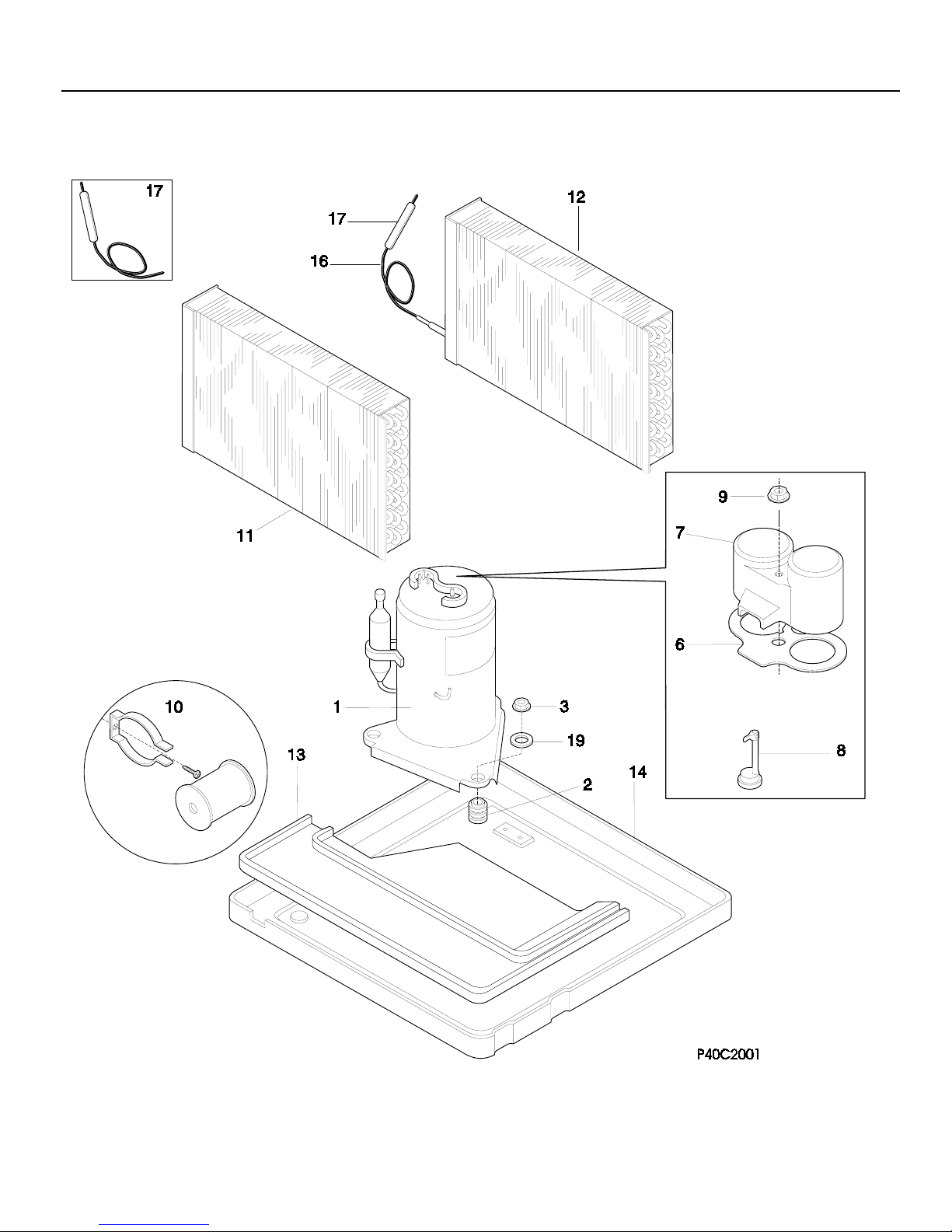

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC053K7A Publication No.

5995348066

COMPRESSOR PARTS

A = FAC053K7A (FAC053K7A1)

B = FAC053K7A (FAC053K7A2)

POS. NO PART NO DESCRIPTION

1 # 5304410678 A - Compressor

1 # 5304417319 - B Compressor

2 5303283877 A B Grommet,compressor mtg ,(3)

3 5308006948 A B Nut,compressor mtg ,(3)

6 5303291330 A B Gasket,terminal cover

7 5304416126 A B Cover-terminal,compressor

7* 5303293809 A B Washer

8 # 5303209085 A - Overload Protector

8 # 5304417320 - B Overload Protector

9 5303294292 A B Nut-terminal cover

10 # 5303317601 A B Start Assist Kit,compressor

11 # 309604215 A - Evaporator

11 # 309637505 - B Evaporator

12 # 5303307226 A - Condenser

12 # 5303302850 - B Condenser

13 5303302849 A B Tray-evaporator

14 5304413780 A B Base-compressor

16 # 5308017120 A B Capillary Tube,45 inch long ,cut to length

17 5304413857 A B Tube-process

19 309112501 A B Washer,metallic

19* 5303002664 A B Washer,compressor mtg

06/01 10

Publication No. FAC053K7A

5995348066

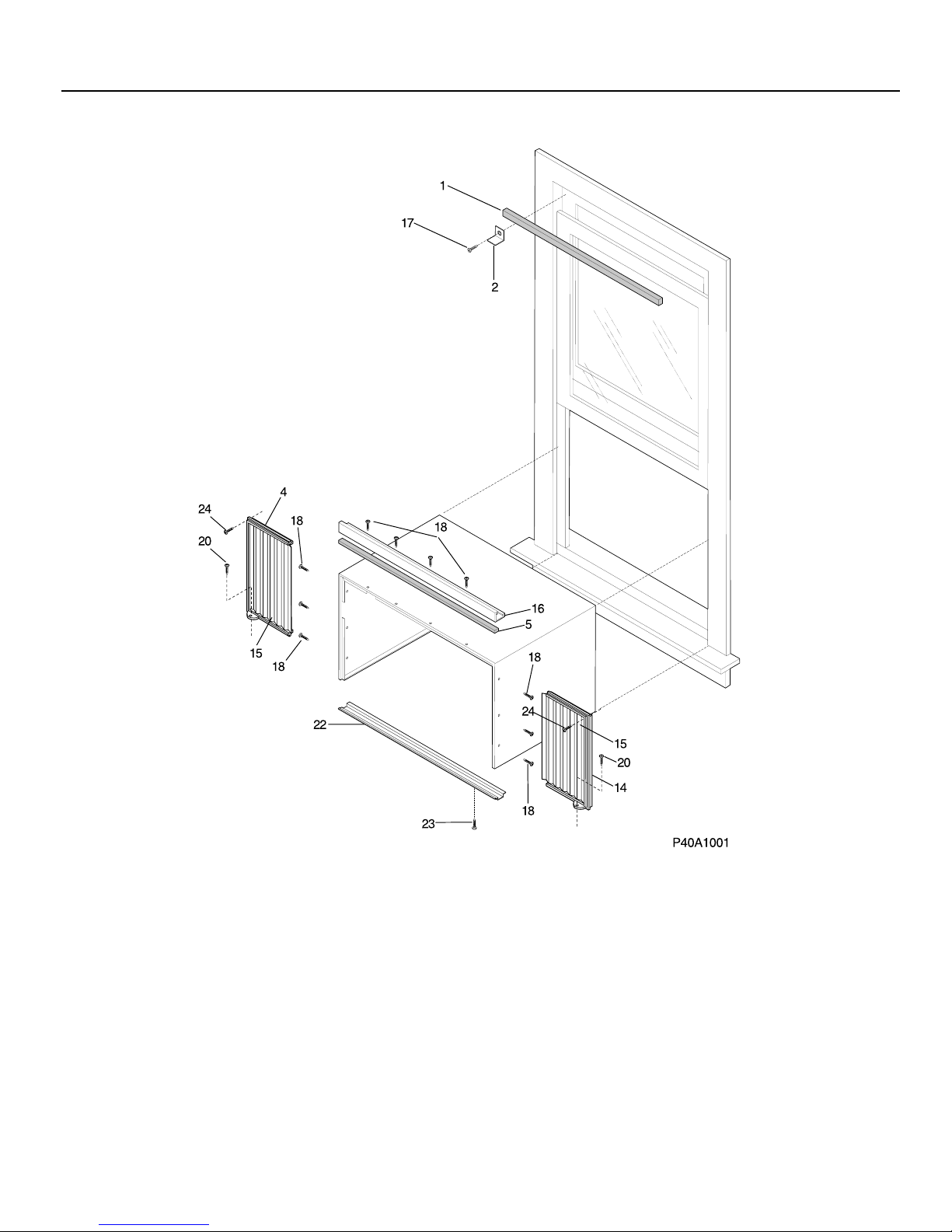

WINDOW MOUNTING PARTS
