Frigidaire FAA065P7 Manual de usuario

M40L0002.eps M40C0002.eps M40M0001.eps 2202049158.eps

Product No. FAA065P7A1 FAA065P7A2 FAA065P7A3 FAA065P7A4

Series MS II MS II MS II MS II

Color N/A N/A N/A N/A

Volts 115 115 115 115

BTU-Cooling 6000 6000 6000 6000

Owner's Guide 220201d011 220201d011 220201d011 220201d011

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438503

05/06/03

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA065P7

Publication No: 5995438503 FAA065P7

06/05 2

CABINET, FRONT, CONTROLS

FAA065P7 Publication No: 5995438503

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA065P7A (FAA065P7A1)

BFAA065P7A (FAA065P7A2)

CFAA065P7A (FAA065P7A3)

DFAA065P7A (FAA065P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446364 A - - D Base, unit chassis

1 5304446365 - B C - Base, unit chassis

2 5304437068 A B C D Rail, shutter track, bottom

3 5304437055 A B C D Frame, shutter panel, LH

4 5304437052 A B C D Retainer, shutter lock

5 5304437053 A B C D Shutter, accordion panel

6 5304437057 A B C D Retainer, shutter mount, cabinet sides

7 5304446348 A B C D Cabinet, wrapper/sleeve

8 5304437069 A B C D Rail, shutter track, top

9 5304437054 A B C D Frame, shutter panel, RH

10 5304437063 A B C D Front Assembly, complete panel, includes

11 5304437059 A B C D Panel, front grille, tilt-out

12 5304437062 A B C D Filter, air, plastic frame

13 5304437058 A B C D Frame, front assembly

14 5304437061 A B C D Louver, horizontal

15 5304437060 A B C D Louver, vertical

17 5304436536 A B C D Enclosure, control, pcb display

17* 5304436541 A - - D Control Panel, display, electronic

17* 5304446371 - B C - Control Panel, display, electronic

18 # 5304437074 A B C D PC Board, display/input

19 5304446346 A B C D Panel, ctrl mtg board

20 # 5304436532 A B C D PC Board, control/power

21 # 5304436543 A B C D Sensor, ambient temp

22 # 5304436542 A B C D Sensor, evap temp, defrost

23 5304436530 A B C D Strap, capacitor mtg.

24 # 5304437111 A B C D Capacitor

25 5304437070 A B C D Control Box

26 # 5304436595 A B C D Remote Control, transmitter

27 # 5304436529 A B C D Ionizer

Publication No: 5995438503 FAA065P7

06/05 4

COOLING & AIR FLOW SYSTEMS

FAA065P7 Publication No: 5995438503

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA065P7A (FAA065P7A1)

BFAA065P7A (FAA065P7A2)

CFAA065P7A (FAA065P7A3)

DFAA065P7A (FAA065P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D Scroll, blower housing, bottom

2 # 5304446350 A B C D Blower Wheel, centrifugal fan

3 5304446351 A B C D Scroll, blower housing, top

6 5304446355 A B C D Cover, blower scroll, top

7 # 5304437049 A B C D Fan Blade, propeller, axial flow

8 # 5304447863 A B C D Shroud, fan housing

9 # 5304446369 A - C - Motor, fan

9 # 5304446370 - B - D Motor, fan

11 # 5304446356 A B C D Evaporator

12 # 5304446360 A B C D Capillary Tube

13 # 5304446368 A - - D Discharge Tube

13 # 5304437099 - B C - Discharge Tube

14 # 5304446367 A - - D CompressorAssy

14 # 5304437079 - B C - Compressor Assy

15 # 5304437089 A B C D Condenser

16 # 5304446366 A - - D Suction Tube

16 # 5304437098 - B C - Suction Tube

* # 5304446361 A B C D Power Cord, electric, 115 V

* 5304458022 A B C D Hardware Kit, installation

Publication No: 5995438503 FAA065P7

06/05 6

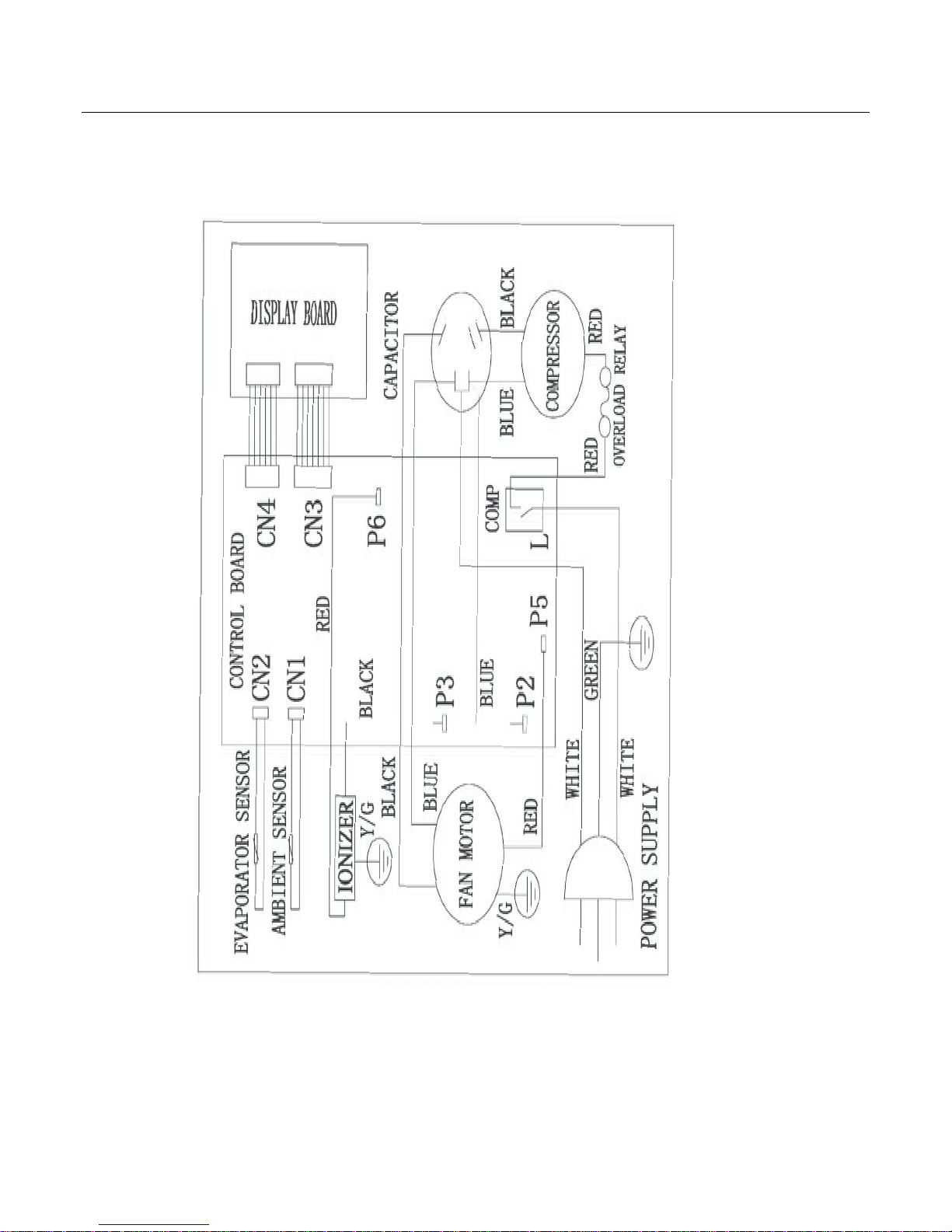

WIRING DIAGRAM

2202019158
