Operating Guide

Compact Programmable

Room Air Conditioner with remote control

CP14

CP18

CP24

Whenever you call to request service

on your appliance, you will need to

provide your complete model number

and serial number. You can ﬁnd this

information on the model and serial

number label.

Please record model and serial

number information below:

MODEL NUMBER

SERIAL NUMBER

PURCHASE DATE

Please register

your air conditioner

Table of Contents

Air Conditioner Safety ......................................................................................................................................................2

Installation Requirements ...............................................................................................................................................3

Tools and Parts....................................................................................................................................................................3

Location Requirements .......................................................................................................................................................3

Electrical Requirements......................................................................................................................................................4

Installation Instructions..................................................................................................................................................6

Unpacking ...........................................................................................................................................................................6

Window Installation (on some models)...............................................................................................................................7

Through-the-Wall Cabinet Installation ...............................................................................................................................9

Complete Installation ........................................................................................................................................................ 10

Air Conditioner Use......................................................................................................................................................... 11

Starting Your Air Conditioner—Digital Control ..............................................................................................................12

Remote Control Operation ................................................................................................................................................ 13

Normal Sounds..................................................................................................................................................................13

Air Conditioner Care........................................................................................................................................................ 14

Cleaning the Air Filter ...................................................................................................................................................... 14

Cleaning the Front Panel................................................................................................................................................... 14

Repairing Paint Damage ................................................................................................................................................... 14

Annual Maintenance......................................................................................................................................................... 14

Troubleshooting............................................................................................................................................................... 14

Assistance or Service......................................................................................................................................................15

Warranty........................................................................................................................................................................... 16

Air Conditioner Safety

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

Parts supplied (on some models)

Check that all parts are included in parts package.

NOTE: Installation parts are supplied for double-hung windows

up to 40" (101.6 cm) wide. A special Wide Window Kit is available

from your dealer or service center. See “Accessories.”

A. Support brackets with

adjustment bolts (2)

B. Foam seals (2)

C. Window lock bracket (2)

D. #10 x

¹⁄₄

" pan-head Phillips

screws (6)

E. #10 x

³⁄₈

" washer-head

Phillips screws (4)

F. #10 x

¹⁄₂

" pan-head Phillips

screws (4)

G. #10 x

³⁄₄

" round-head screws (6)

H. #10 x

⁷⁄₈

" pan-head Phillips

screws (4)

I. Top channel

J. Side curtains (2)

A. Cabinet louvers

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of ﬁre, electrical shock or injury when using your air conditioner, follow these basic precautions:

■ Plug into a grounded 3 prong outlet.

■ Do not remove plug ground prong.

■ Do not use a plug adapter.

■ Do not use an extension cord.

■ Unplug air conditioner before servicing.

■ Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

Installation Requirements

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools Needed

■ Flat-blade and Phillips

screwdrivers

■ Level

Through-the-wall installation

In addition to the tools listed above, the following tools and sup-

plies are needed for though-the-wall installation.

■ Saw

■ Wood preservative

■ Caulk

■ Tape measure

■ Drill and ³⁄16" or smaller bit

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Check the location where air conditioner will be installed.

Proper installation is your responsibility. Make sure you have

everything necessary for correct installation.

The location should provide:

■ Grounded electrical outlet within 4 ft (122 cm) of where the

power cord exits the air conditioner.

NOTE: Do not use an extensioncord.

■ Free movement of air in room to be cooled.

■ A large enough opening for the air conditioner.

■ Adequate wall support for weight of air conditioner. Air con-

ditioner weighs between 145 and 200 lbs (66 to 91kg).

NOTE: Cabinet louvers must not be obstructed. Air must be

able to pass freely through the cabinet louvers (A).

■ 1" (2.5 cm) or thicker lumber

■ 7 - #10 x 1" wood screws

Power supply

cord Wiring requirements

■115-volt (103.5 min. - 126.5 max.)

■0-12 amps

■15-amp time-delay fuse or circuit breaker

■Use on single outlet circuit only.

■230-volt (207 min. - 253 max.)

■0-12 amps

■15-amp time-delay fuse or circuit breaker

■Use on single outlet circuit only.

¹⁄₄"

(0.6 cm)

The wall opening measurements should be:

 Height (A): 17 ¼" plus twice thickness of wood used to build

frame

 Width (B): 26 ¼"

 Depth (D): 4" minimum to 8" maximum.

Electrical Requirements

Ground wire must be connected to ground screw located in lower

right corner of air conditioner when air conditioner is in cabinet.

The electrical ratings for your air conditioner are listed on the

model and serial number (nameplate) label. The model and serial

number label is located behind the front panel on the flange below

the control panel area.

Specific electrical requirements are listed in the chart below.

Follow the requirements for the type of plug on the power supply

cord.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove powercord ground prong.

Do not use a plug adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Window installation

Window opening measurements:

27"min. to 42" max. (76.2 cm to 101.6 cm) opening width (A).

20" min. (50.8 cm) opening height (B).

Through-the-wall installation

A.27"min.(76.2cm)

B . 20" min. (50.8 cm)

A. 17 ¼"

B. 26 ¼"

C. Wood thickness

D. 4" minimum to

8" maximum.

CP14

CP18 / CP24

Recommended grounding method

This air conditioner must be grounded. This air conditioner is

equipped with a power supply cord having a grounded 3 prong

plug. To minimize possible shock hazard, the cord must be

plugged into a mating, grounded 3 prong outlet, grounded in

accordance with all local codes and ordinances. If a mating outlet

is not available, it is the customer' s responsibility to have a

properly grounded 3 prong outlet installed by a qualified electrical

component installer.

It is the customer's responsibility:

To contact a qualified electrical installer, and

To assure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70 -

latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

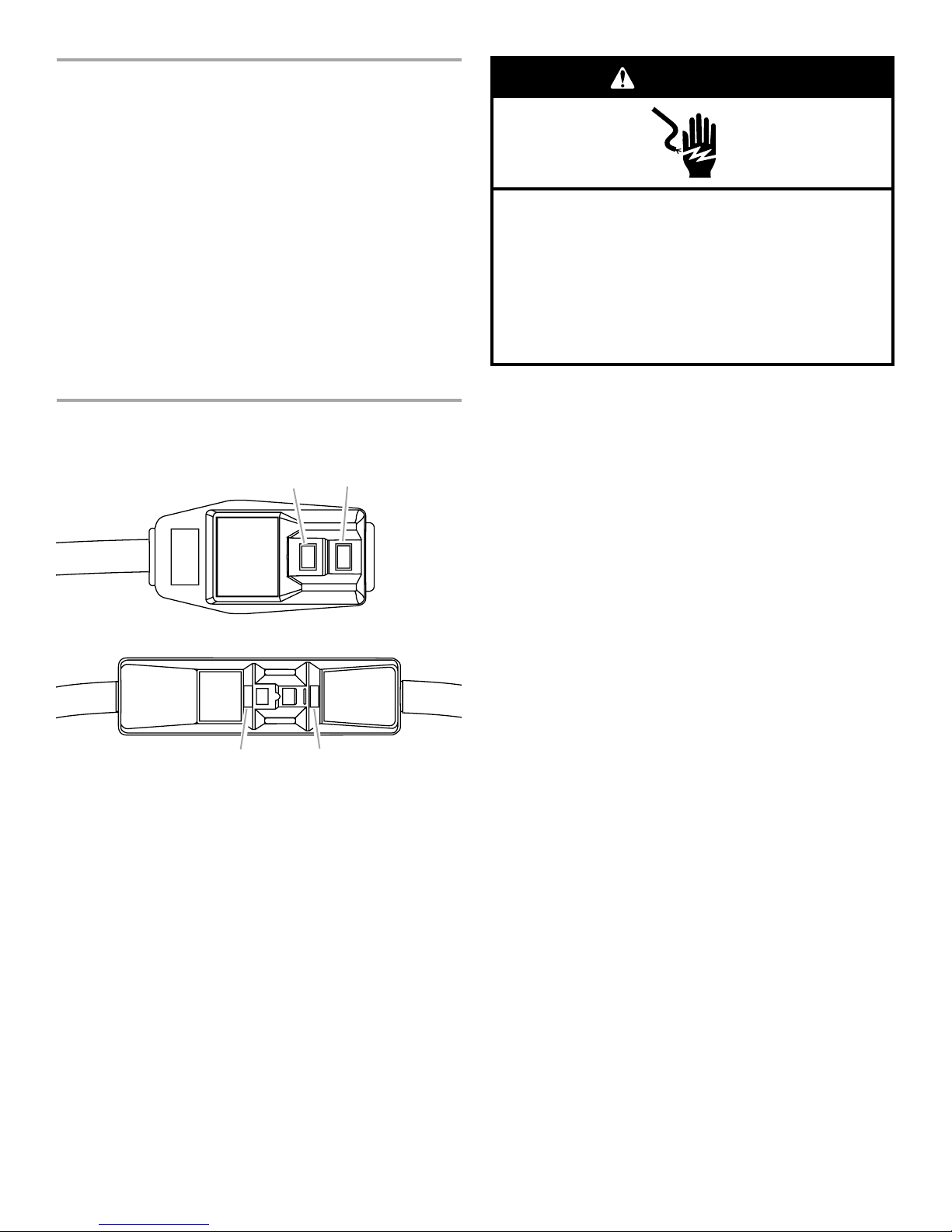

Power Supply Cord

NOTE: Your unit’s device may differ from the ones shown.

This room air conditioner is equipped with a power supply cord

required by UL. This power supply cord contains state-of-t he-art

electronics that sense leakage current. If the cord is crushed, the

electronics detect leakage current and pow er will be

disconnected in a fraction of a second.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET.

3. Press TEST (listen for click; Reset button will trip and pop

out).

4. Press and release RESET (listen for click; Reset button will

latch and remain in). The power supply cord is ready for

operation.

NOTES:

The Reset button must be pushed in for proper operation.

The power supply cord must be replaced if it fails to trip when

the test button is pressed or if it fails to reset.

Do not use the power supply cord as an off/on switch. The

power supply cord is designed as a protective device.

A damaged power supply cord must be replaced with a new

power supply cord obtained from the product manufacturer

and must not be repaired.

The power supply cord contains no user serviceable parts.

Opening the tamper-resistant case voids all warranty and

performance claims.

A. Reset button

B. Test button

TEST

RESET

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove powercord ground prong.

Do not use a plug adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Remove packaging materials

Remove and dispose of or recycle packaging materials. Remove

tape and glue residue from surfaces before turning on the air

conditioner. Rub a small amound of liquid dish soap over the

adhesive with your ﬁngers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, ﬂammable ﬂuids,

or abrasive cleaners to remove tape or glue. These products can

damage the surface of your air conditioner.

Handle air conditioner carefully and gently

1. Remove the air conditioner from the carton and place it on

cardboard.

2. Remove shipping screws from the rear of the cabinet (if present).

3. Remove front grille by pulling bottom of grille upward.

Remove hinges at top.

4. Remove air ﬁlter

5. Remove the window lock bracket and screw from the air

conditioner and set aside.

A. Remove shipping screws

Installation Instructions

Unpacking

5. Remove the window lock bracket and screw from the air

conditioner and set aside.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

6. Remove front panel screw from right side of ﬁlter

area.

7. Remove the ground screw and ground wire from

the front of the air conditioner. Save the ground

screw.

A. Green ground wire

B. Ground screw

8. Pull on handle to slide air conditioner out of

cabinet. Place air conditioner on cardboard.

A. Pull Handle

NOTE: Do not lift, push, pull or remove any expanded

polystyrene (foam) from inside the air conditioner. It is

not packing material.

Window Installation (on some models)

NOTES:

■Handle air conditioner carefully and gently.

■Be sure your air conditioner cabinet does not fall out of the

opening during installation or removal.

■The place where the power cord exits the air conditioner

should be no more than 4 ft (122 cm) from a grounded

3prongpower outlet.

■Do not block the louvers on the front panel.

■Do not block the louvers on the outside of the air conditioner.

Attach Top Channel

NOTE: Attach top channel and side curtains to air conditioner

cabinet before placing cabinet in window.

1. Locate provided bag of screws.

2. Place top channel on top of air conditioner cabinet, lining up

the 4 holes in top channel with the 4 holes on top of air

conditioner cabinet.

3. Using 4 - #10 x ³⁄₈" washer-head Phillips thread-cutting

screws, attach top channel to air conditioner cabinet.

Attach Side Curtains

1. Locate provided bag of screws.

2. Insert top and then bottom of right-hand curtain housing in

top and bottom curtain channels on air conditioner.

Top v ie w

Bottom view

3. Extend right-hand curtain outward so you may insert the

first screw through the middle hole of the curtain. Using #10 x

¹⁄₄" pan-head Phillips screw, screw curtain to middle hole in

air conditioner cabinet.

NOTE: This screw is required to correctly attach curtain (top

to bottom) to the air conditioner cabinet.

4. While the right-hand curtain is still extended, insert #10 x ¹⁄₄"

pan-head Phillips screws into the top and bottom slots of

curtain. Screw curtain to the top and bottom holes in the air

conditioner cabinet side.

5. Slide the curtain housing into the curtain channels as far as it

will go.

6. Repeat above steps for the left-hand curtain.

Attach foam adhesive seal

Attach foam adhesive seal along the bottom of the curtain

bottom channel.

A. Top channel

B. #10 x

³⁄₈

" washer-head Phillips thread-cutting screws

A. Curtain housing

B. Curtain top channel on air conditioner

A. Curtain housing

B. Curtain bottom channel on air conditioner

A. Curtain housing

B. Foam adhesive seal

Install Cabinet into Window

■Handle air conditioner carefully and gently.

■Be sure your air conditioner cabinet does not fall out of the

opening during installation or removal.

■The place where the power cord exits the air conditioner

should be no more than 4 ft (122 cm) from a grounded

3prongpower outlet.

■Do not place cabinet where front louvers will be blocked.

■Do not place cabinet where outside louvers will be blocked.

1. Center empty cabinet in window. Check that lower rail of air

conditioner cabinet is behind and against back side of

windowsill. Maintain a firm hold on the air conditioner

cabinet. Lower window sash to hold cabinet in place.

2. Measure the distance between the right-hand side of the

cabinet and the inside of the window channel.

3. Repeat for the left side. Adjust the cabinet until the distance

on each side is the same.

4. Use a ³⁄₁₆" drill bit to drill 4 starter holes ³⁄₈" deep through the 4

holes in the cabinet and into the windowsill.

5. Attach cabinet to windowsill with 4 - #10 x ¹⁄₂" pan-head

Phillips screws.

Attach Side Curtains to Window Frame

1. Pull left-hand curtain out until it fits into window channel. Use

a³⁄₃₂" drill bit to drill a starter hole through the hole in the

curtain housing and into the lower window sash.

Front View

Top Vi ew

2. Insert one of the #10 x ³⁄₄" round-head screws through the

threaded hole in the top of the curtain.

3. Repeat for right-hand curtain.

Attach Support Brackets

A. Window sash

B. Empty cabinet

C. Window channel

A. Left-hand curtain

B. Window channel

C. #10 x

³⁄₄

" round-head screw

A. #10 x

³⁄₄

" round-head screw

A. Align holes in cabinet with holes in support b racket.

B. #10 x 7/8" 1

D. Window Seal

4. Use a ³⁄₁₆" drill bit to drill 4 starter holes ³⁄₈" deep through the 4

holes in the cabinet and into the windowsill.

5. Attach cabinet to windowsill with 4 - #10 x ¹⁄₂" pan-head

Phillips screws.

6. Check that air conditioner cabinet is tilted to the outside so

that water will run to the outside.

A. #10 x

⁄₂

" pan-head Phillips screws

B. Windowsill

2. Using #10 x ⁷⁄₈" pan-head Phillips screws, attach bracket to

cabinet. Repeat for other bracket.

3. Loosen locking nut and turn the adjustment bolt (C) for each

bracket until the bolt touches the wall (B).

4. Tighten the locking nut on adjustment bolt to lock in position.

Complete Installation

1. Insert seal behind the top of the lower window sash and

against the glass of the upper window (B).

2. Place one window-lock bracket on top of lower window and

against upper window sash on each side of window (A).

3. Use a ³⁄₃₂" drill bit to drill a starter holes through the holes in

each bracket into the window sash.

4. Attach both window-lock brackets to window sash with #10 x

³⁄₄" round-head screws to secure window in place.

Through-the-Wall Cabinet Installation

NOTES:

■Handle air conditioner gently.

■Be sure your air conditioner cabinet does not fall out of the

opening during installation or removal.

■The place where the power cord exits the air conditioner

should be no more than 4 ft (122 cm) from a grounded

3 prong outlet.

■It is the customer's responsibility and obligation to have this

product installed by a qualified technician familiar with

through-the-wall room air conditioner installations.

■Do not block the louvers on the front panel.

■Do not block the louvers on the outside of the air conditioner.

Option 1—Wood, metal or plastic molding

When using a wood, metal or plastic molding, the wood frame

should line up with inside wall as shown.

Option 2—Plastered wall with no molding

If the plastered wall is to be flush with the cabinet and no molding

is used, the wood frame must be set ¹⁄₂" (13 mm) into the inside

wall.

Install Wood Frame

1. Construct wood frame. See “Location Requirements” for

dimensions.

2. Measure outside width and height of frame to determine wall

opening dimensions.

3. Cut opening through the wall. Remove and save insulation.

NOTES:

■Dimension for depth depends on wall thickness and type

of molding.

■Do not block louvers in air conditioner cabinet.

A. Support bracket

B. Locking nut

C. Adjustment bolt

A. Window lock brackets

B. Window rail seal

C. Upper window glass

A. Trim Molding

B. Inside wall

C. Wood wall framing

D. Louvers

ACB

A. Plastered wall

B. Inside wall

C. Wood frame

D. Louvers

surface

■Use 2" x 4" or thicker lumber for wood frame.

4. Apply wood preservative to the outside exposed surface.

5. Insert the frame in the wall opening. Square and level frame.

6. Attach frame securely to the wall.

Install Cabinet into Wood Frame

1. Remove top channel and both side channels using a ¹⁄₄" nut

driver or socket wrench. Discard top channel and both side

channels.

2. Insert cabinet into the framed wall opening. The top of the

cabinet should extend ³⁄₄" (19.1 mm) into the room. If there is

trim, the cabinet should extend ³⁄₄" (19.1 mm) past the trim.

3. Use a level to check that cabinet is level side to side.

4. Check that air conditioner cabinet is tilted to the outside so

that water will run to the outside.

5. Reuse the insulation to seal opening between cabinet and

frame.

6. Use existing holes in sides and top of cabinet and 7 - #10 x

1" wood screws (not provided) to attach cabinet to frame.

NOTE: Do not overtighten screws or cabinet will distort and

provide a poor air seal between cabinet and air conditioner.

7. Caulk all outside wall openings around cabinet.

Complete Installation

NOTE: Handle air conditioner carefully and gently.

1. Make sure the free end of the ground wire is outside of the

cabinet.

2. Insert air conditioner into cabinet.

A. Outside width

B. Outside height

C. Depth

A. Remove these screws

³⁄₄

" (19.1 mm) extending into room

B. Trim

A. Level

WARNING

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

A. Make sure the free end of the ground wire is outside of the cabinet.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Friedrich

Friedrich

Friedrich ZoneAire P12B Manual de usuario

Friedrich

Friedrich Uni-Fit UE10C33 Thru-the-Wall Series Instrucciones de construcción

Friedrich

Friedrich Chill CP18 Manual de usuario

Friedrich

Friedrich ZQ08B10 Instrucciones de construcción

Friedrich

Friedrich HEAT PUMPS Instrucciones de funcionamiento

Friedrich

Friedrich Hazardgard SH15L30-C Manual de usuario

Friedrich

Friedrich Kuhl SS08 Manual de usuario

Friedrich

Friedrich Kuhl SQ06N10 Series Guía

Friedrich

Friedrich MR24UY3F Manual de usuario

Friedrich

Friedrich MW09Y3H Manual de usuario

Friedrich

Friedrich WallMaster PTAC Manual de usuario

Friedrich

Friedrich PDE07K Series Manual de usuario

Friedrich

Friedrich SS08 Manual de usuario

Friedrich

Friedrich MRM18Y3J Manual de usuario

Friedrich

Friedrich Kuhl SQ06 Manual de usuario

Friedrich

Friedrich MW09Y3FM Manual de usuario

Friedrich

Friedrich HazardGard SH14J30B-A Guía

Friedrich

Friedrich MW30C3F Manual de usuario

Friedrich

Friedrich HEAT&COOLING MODEL INVERTER (REVERSE CYCLE) ROOM AIR CONDITIONER WALL MOUNTED... Manual de usuario

Friedrich

Friedrich QuietMaster SL25 Manual de usuario

Friedrich

Friedrich MR18C3E Manual de usuario

Friedrich

Friedrich PTAC Series Instrucciones de funcionamiento originales

Friedrich

Friedrich MR24C3F Manual de usuario

Friedrich

Friedrich WallMaster WCT08 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
