1. INTRODUCTION
We wish to thank you for purchasing Deeper and hope that you will enjoy using it as much as we
have enjoyed creating it!
Please take your time to read this instruction manual which provides essential information on the
usage of both the gadget and the application. We have also included various hints and tips that will
help you make most out of your Deeper experience. Along the text you will find icons designed to
draw your attention to different bits of information:
This icon marks useful hints about the usage of Deeper.
This icon marks safety precautions or information of similar importance.
4
2. GETTING STARTED
Before any use of the device, ensure you have read all the safety information provided in the
separate leaflet.
This section provides you with quick step-by-step instructions from the moment you unpack your
Deeper to your first fishfinding. Follow the diagrams along with the comments to start using the
gadget.
Friday Lab is continuously developing this product, therefore illustrations in this manual
may not look the same as your product but your unit will function in the same way. Please
refer to the electronic manual provided with each mobile application update.
5
2.1. Opening and Charging
1. Ensure your Deeper gadget is dry
before opening it.
2. Open the gadget by turning its top half
counter-clockwise.
3. Connect the charger to the gadget with
a provided cable.
4. Plug the charger to the mains or your
car’s power outlet.
5. Blinking frequency of the orange indicator represents the charging state. Higher number of
blinks refers to higher charge level. Charging is complete whenever the indicator goes green.
If the indicator glows red, your Deeper needs servicing. Please refer to the Warranty and Service
section for further details.
6
In order to increase the battery life of your Deeper, do not leave it uncharged for long
periods of time. Even if you do not use your Deeper, recharge it every 3 months.
Lithium Ion batteries like the one used in the Deeper can be dangerous if handled
inappropriately. Make sure you follow the charging and battery safety rules provided in
the separate leaflet.
7
2.2. Installing the Application

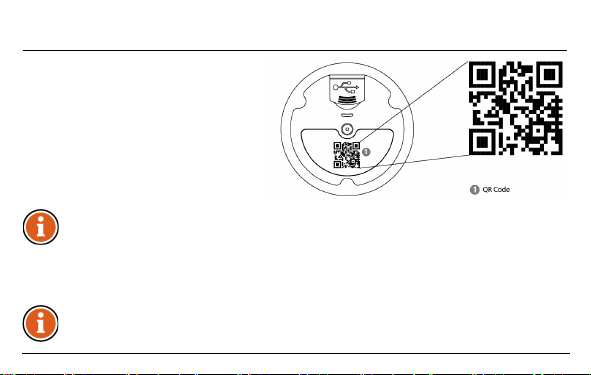

1. Scan a QR code, located inside the
gadget or go to the Google Play or
the App Store online shop and
search for the Deeper application.
2. Install the application just like any
other by following on-screen
instructions.
If you are not at the fishing spot yet but you can’t wait to try out the features of your Deeper
application, just launch it, go to settings and choose “Try”. This will allow you to access
most of the features of the application, also providing a demonstration of how the
application displays sonar information when your Deeper is being reeled in at a fishing
spot.
Refer to §3.11 for a list of compatible devices.
8
2.3. Pairing and Connecting
Before using Deeper for the first time, it must be paired with your mobile device or a tablet as
follows:
1. Ensure your Deeper is either charging or is immersed in water and so is automatically
powered on.
2. Go to the Bluetooth settings of your mobile device and enable Bluetooth.
3. Choose ‘Deeper’ in your Bluetooth settings to pair and connect it to your device. Make sure,
the distance to the gadget does not exceed 10 meters / ~36 feet, during pairing.
4. After the connection has been established successfully, return to the application.
You only need to pair your Deeper once. However, in some devices you may need to make the
connection separately after pairing.
9
You can pair multiple Deeper gadgets to your mobile device and access any of them by
selecting which gadget the application connects to in the application Settings (refer to
§3.10). Only one connection can be established at a time.
If you are already at your fishing spot, attach your gadget to a fishing line before
immersing it into water as instructed in the following section (§2.4).
10
2.4. Fishfinding
1. Ensure your gadget is tightly closed
and the attachment points are
aligned as depicted in the diagram.
2. Insert an attachment bolt into a
suitable attachment point on your
Deeper gadget, as chosen according
to your planned angling conditions,
fastening the bolt with 1.5 Nm
torque.
3. Securely attach the fishing line to the inserted attachment bolt.
4. Cast connected gadget to the desired spot.
5. Launch the application and start fishfinding.
6. Either reel in your gadget for an overview or keep it stationary for fish monitoring.
11
Only attach your gadget to a sufficiently strong fishing line and use a suitable, properly
tightened knot. Also ensure that your fishing pole withstand the weight of the Deeper.
Otherwise you are at risk of losing the device, damaging the equipment or someone’s
property, or even causing an injury.
When reeling the device, ensure it glides smoothly on top of the water with its heavy side
facing towards the bottom as this will result in the most accurate sonar view.
