Eye-Pal Reader Quick Start
440795-001 Rev. A
Setting Up the Unit

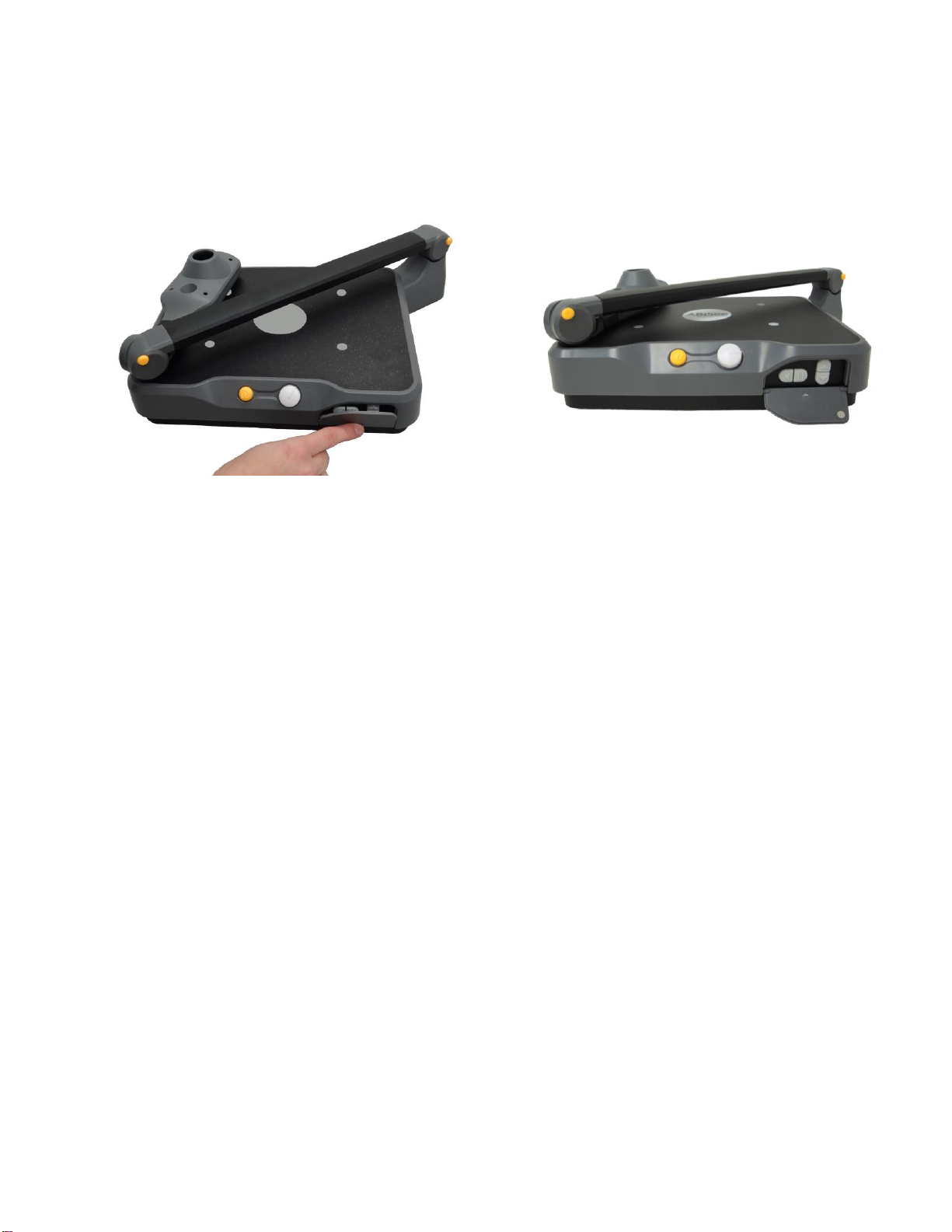

1. Place the Eye-Pal Reader on a flat surface with the front panel and buttons,
facing toward you.
2. Unfold the camera. Pull the camera arm up until it locks into place. You will
hear a clicking sound indicating that the arm is in place. Then swivel/pull
the camera head up until it also locks into place. Again you will hear a
clicking sound indicating that the camera head is in place.
3. Connect the power supply to the power cord. Turn Eye-Pal Reader around
so front panel is facing away from you. Plug the power supply into the back
of the Base on the left side. Then plug the other end into a power outlet.
4. Connect the keypad to the USB port located on the right side of the device.
Your Eye-Pal Reader is now ready to be used.
Make sure the platform is clear from any objects.
Power On and Read
1. Turn on the Eye-Pal Reader by holding in the small round button located in
the middle of the front panel.
2. Turn the volume knob clockwise. Volume knob is a big round button located
in the middle of the front panel. A tune will play while the software loads.
Note: You can use headphones with a pin audio jack. Headphones with a
USB connector are not compatible with the Eye-Pal Reader. Headphone
jack is located on the right side next to the USB port.
3. Once Eye-Pal Reader is done loading, you will hear “Please place your
document.” You are now ready to read.
Note: Keep the platform clear of any documents until you hear “Please place
your document.”
