Freecom FHD-XS Manual de usuario
Rev. 405
2
FREECOM FHD-XS
GB
Warning !
All rights reserved. The products named in this manual are only used for identifi-
cation purposes and may be trademarks or registered trademarks of the respective
companies. This device was designed for home or office use.
Freecom cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use this Freecom product, even if Freecom
has been advised of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological
advances.
Dear user!
Thank you for choosing the Freecom FHD-XS external hard drive. For optimal
use and performance we advise you to read this manual carefully before using
this product.
Freecom Technologies Germany
www.freecom.com
Contents of the box
Please check the contents of the box; the following items should be included:
Freecom FHD-XS external hard drive
CD-ROM with manual, driver and application software
Quick Install Guide
Warranty card + envelope
3
GB
Table of Contents
© 2004 Freecom Technologies
USER MANUAL
General Information ........................................................................... page 4
Precautionary measures .....................................................................page 5
FHD-XS external hard drive ................................................................ page 6
CHAPTER 1:
Installation of the Freecom SYNC software (PC) .............................. page 7
CHAPTER 2:
Hardware installation ......................................................................... page 10
CHAPTER 3:
Driver installation (PC) ....................................................................... page 12
CHAPTER 4:
Daily use of the FHD-XS with
Freecom Personal Media Suite software (PC) ................................... page 15
CHAPTER 5:
The User Interface of the Freecom Personal Media Suite (PC) ........page 17
CHAPTER 6:
Partitioning your FHD-XS (PC) ........................................................... page 32
CHAPTER 7:
Troubleshooting ................................................................................. page 46
4
FREECOM FHD-XS
GB
General Information
The following hardware and software requirements must be fulfilled to ensure
trouble-free operation.
Hardware Requirements
In order to use the Freecom FHD-XS, following components are needed:
Intel Pentium II 233MHz or higher
64MB RAM or higher
CD-ROM drive for installing drivers and/or software
Available USB 2.0 or USB 1.1 port*
Internet connection for online warranty registration and driver/software
updates and downloads
Software Requirements
Windows 98 SE
Windows ME
Windows 2000
WindowsXP
Mac:
iMac, iBook, Mac G3/G4 or Power Book G3 with USB interface
Operating system: Mac OS 9.0 or higher (OS 9.0 does not support USB 2.0)
(Bundled True Image software and Freecom Personal Media Suite do not
support MAC OS).
* (USB 2.0 is downwards compatible to USB 1.1. To achieve optimal performance from the
Freecom FHD-XS your PC should be equipped with an USB 2.0 port. USB 2.0 PCI Host
Controllers are separately available at www.freecom.com).
5
GB
General Information
Precautionary measures
To ensure that your Freecom FHD-XS functions properly, please take note of the
following precautions. If these are not followed, you may void your warranty
and damage the FHD-XS.
Safely remove the FHD-XS via your operating system (the "unplug or eject
hardware" option in the Windows taskbar) before disconnecting the Cable.
Failing to do so may result in data loss.
Do not drop the Freecom FHD-XS or expose it to other kinds of sudden
mechanical shocks as this may result in data loss and damage to the hard
drive.
Do not use the Freecom FHD-XS when the ambient temperature is below
10°C or above 45°C.
If the Freecom FHD-XS is moved from a cool environment to a warmer
environment, please allow the drive to acclimatize to the ambient tempera-
ture before operating the device. Failing to do so may lead to condensation
within the drive enclosure, which in turn may cause the drive to malfunction.
Do not place liquids or drinks on the FHD-XS. When liquids are spilled and get
in contact with the electronics within the drive enclosure, it will damage the
drive and will cause the drive to malfunction.
Do not use the FHD-XS in a dusty environment. Dust inside the enclosure may
damage the internal electronics and result in drive malfunction.
Opening the FHD-XS will void the warranty.
Since USB 2.0 is backwards compatible with USB 1.1, the FHD-XS can be
connected to all USB ports. When connected to a USB 1.1 port, however, the
performance (data transfer rate) of the FHD-XS will be much lower than
when the drive is connected to a USB 2.0 port.
6
FREECOM FHD-XS
GB
FHD-XS external hard drive
The hi-speed data transfer through the USB 2.0 interface makes it ideally suitable
for data-storage, file sharing, backup, archiving, digital video editing, audio
playback and all applications that need fast file access.
For your convenience, the Freecom FHD-XS has been partitioned (1 partition)
and pre-formatted (FAT32 file system). The FAT32 format ensures maximum
interchangeability of the FHD-XS between different computers. Should you
choose to format the FHD-XS in another file system (e.g. NTFS), please be aware
of possible problems when connecting the FHD-XS to another computer than
the one you used for formatting.
Options:
Freecom USB 2.0 LE PCI Host Controller
See www.freecom.com for these and other Freecom products, or contact your
local Freecom reseller/dealer.
Recommended sequence of installation
1. Install Freecom Personal Media Suite Software.
2. Plug the interface cable into the appropriate slot of your computer.
3. (Only Windows 98 SE:) Install all necessary drivers.
4. Create a SYNC folder with Freecom Personal Media Suite Software.
Please refer to chapters 1-3 for a detailed description of the hardware and
software installation.
7
GB
1
CHAPTER 1: Installation of the Freecom Personal Media Suite
software (PC only)
If you want to use the SYNC button on the FHD-XS, you need to install the
Freecom Personal Media Suite software first.
Note: To use the functions of the Freecom Personal Media Suite described
in this handbook, your Freecom FHD-XS has to be connected to your PC.
1.1 Installation of the Freecom Personal Media Suite

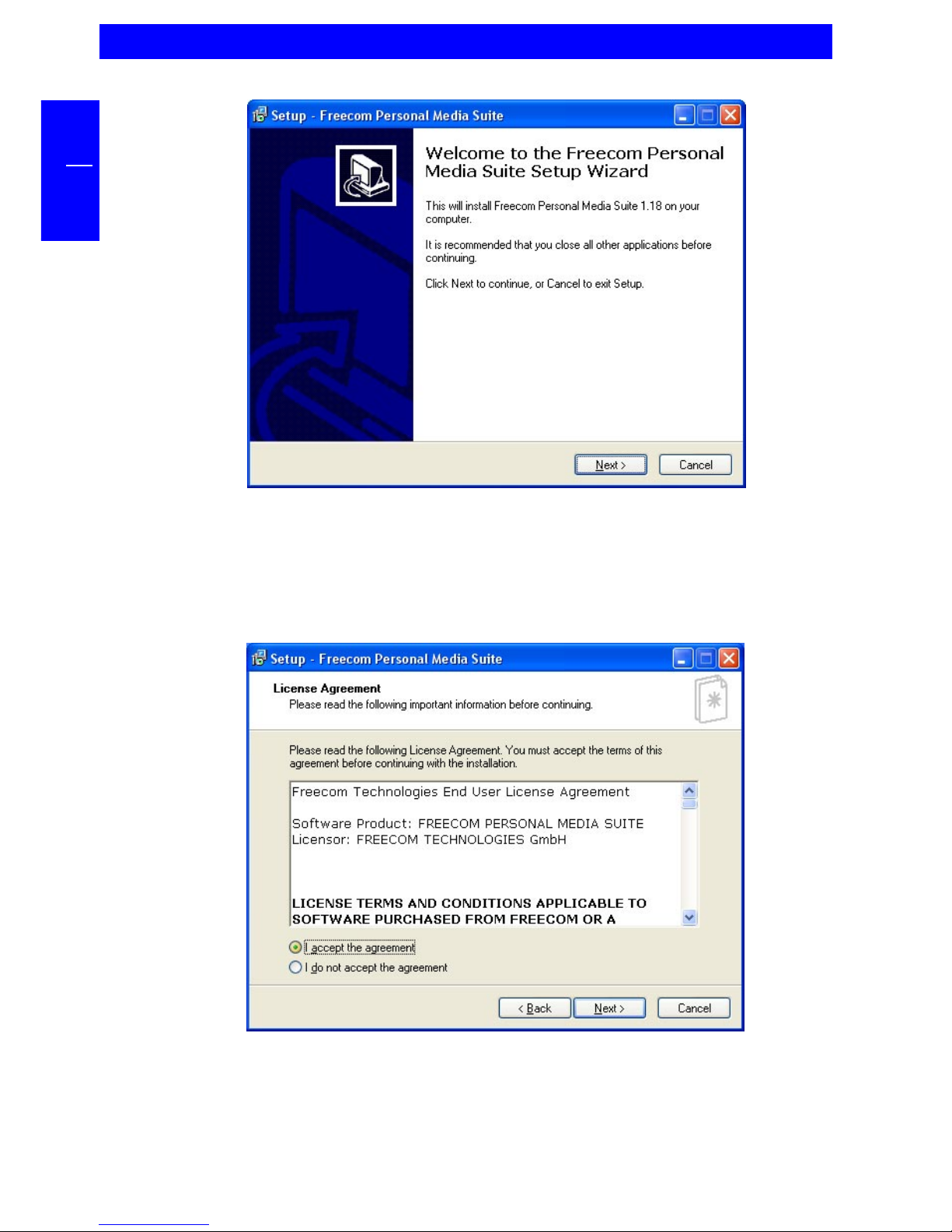

1. Insert the FHD-XS Software & Manual CD into your CD drive. The Freecom
start menu opens:
In case the software does not open automatically, please click on "Start" in
the main directory of the CD.
2. Click on "Install Software" and select "Freecom Personal Media Suite". The
installation of the Freecom Personal Media Suite starts now. Follow the
instructions on the screen, confirm with "Next" in order to continue with the
installation.
Installation of the Freecom Personal Media Suite software
8
FREECOM FHD-XS
GB
1
3. Please read the license agreement carefully. To accept the license agree-
ment, confirm with "Yes". Note: Clicking on "No" ends the installation.
Select the target folder and program folder in the start menu in which the
Freecom Personal Media Suite symbol is to appear.
4. Default target folder is C:\Programs\Freecom Personal Media Suite. You can
select a different target folder for the program files by selecting another
folder on your hard drive.
9
GB
1
5. In the dialogue "Options" you can select whether to create a link to the
Freecom Personal Media Suite Software on the desktop and whether the
program should be started automatically when starting Windows. It is
recommended to select both options for better operation of the Freecom
Personal Media Suite.
6. Click on "Next" to start the installation. All necessary program files are now
written on the hard drive of your computer.
7. In the last window, you will be asked whether you want to start Freecom
Personal Media Suite now. It is recommended to select this option so that you
can configure the software for your FHD-XS. Please click on "Finish".
Installation of the Freecom Personal Media Suite software
10
FREECOM FHD-XS
GB
1
1.2 Deinstallation of the Freecom Personal Media Suite
In order to remove the Freecom Personal Media Suite from your computer,
please proceed as follows:
1. In the "Start" menu, please click on "Programs" - "Freecom Personal Media
Suite".
2. Select "Uninstall Freecom Personal Media Suite". The software is now
removed from your computer.
