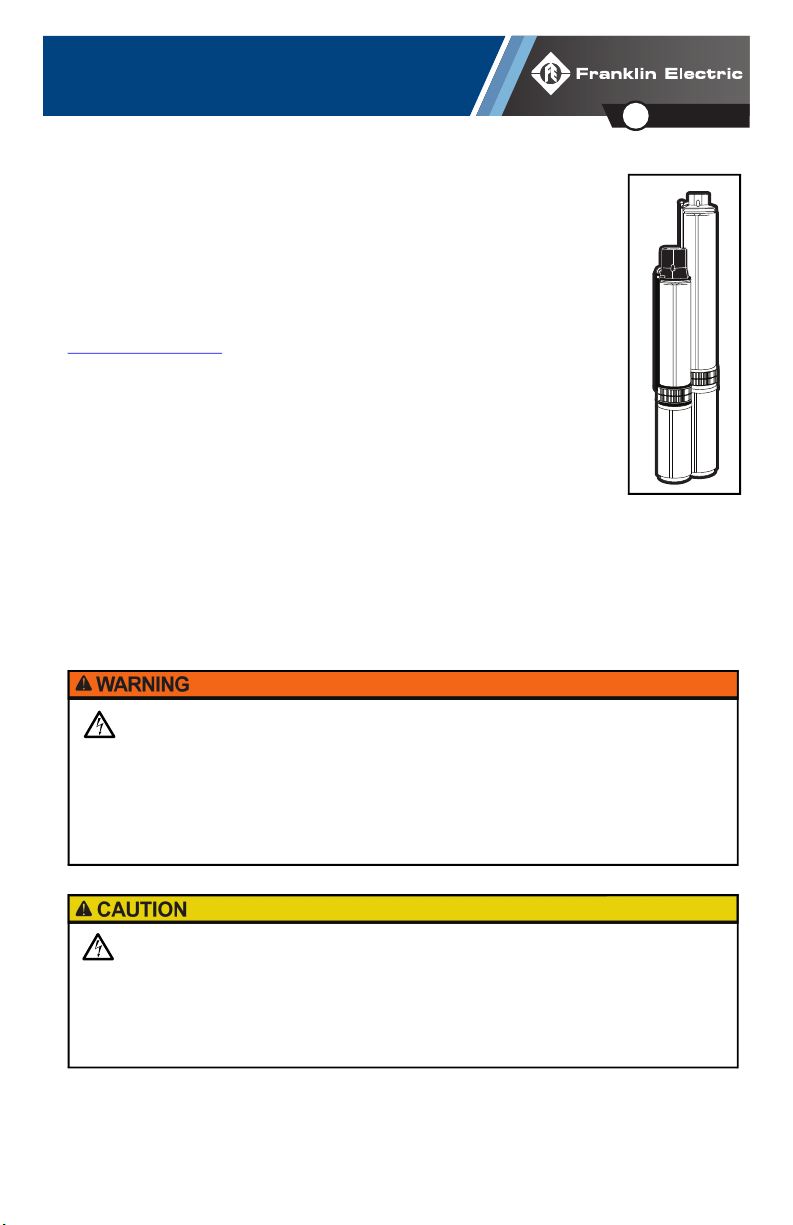

4" Environmental E-Series Pumps
OWNER'S MANUAL
English
EN
These pumps are used for filtered effluent service, aeration, and ornamental fountains or
waterfalls.
Please examine your item(s) carefully to ensure that no damage occurred during ship-
ment. If damage has occurred, please contact the place of purchase. They will assist you
in replacement or repair, if required.
This product is covered by a Limited Warranty for a period of 12 months from the date of
original purchase by the consumer. For complete warranty information, refer to
www.FranklinWater.com.
SAFETY INSTRUCTIONS
Before Getting Started
This equipment should be installed and serviced by technically qualified personnel who
are familiar with the correct selection and use of appropriate tools, equipment, and
procedures. Failure to comply with national and local electrical and plumbing codes and within Franklin
Electric recommendations may result in electrical shock or fire hazard, unsatisfactory performance, or
equipment failure.
Know the product’s application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of severe injury or death by electrical shock.
• Ground motor before connecting to power supply.
• To reduce risk of electrical shock, disconnect power before working on or around the system. More than one disconnect switch
may be required to de-energize the equipment before servicing.
• Wire pump system for correct voltage. Follow wiring instructions in this manual when connecting motor to power lines.
• Check local electrical and building codes before installation. The installation must be in accordance with their regulations as well
as the most recent National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA).
• Do not use motor in swimming areas.
Risk of bodily injury, electric shock, or equipment damage.
• This equipment must not be used by children or persons with reduced physical, sensory or mental abilities, or lacking in experi-
ence and expertise, unless supervised or instructed. Children may not use the equipment, nor may they play with the unit or in
the immediate vicinity.
• Operation of this equipment requires detailed installation and operation instructions provided in this manual for use with this
product. Read entire manual before starting installation and operation. End User should receive and retain manual for future use.
Keep safety labels clean and in good condition. Keep work area clean, well-lit, and uncluttered.
INSTALLATION
Typical Installation
2
INSTALLATION
Typical Installation
Risk of damage to pump or other equipment.
• The motor on this pump is guaranteed by the manufacturer. In event of failure, it must be returned to an authorized product
reseller for review and disposition. Product warranty is void if product is disassembled or reviewed by any other party.
• Install the pump in a properly developed well. Undeveloped well water often contains abrasives that can damage the pump.
• Check that the well is deep enough to allow the pump to be set at least 5 ft from the bottom.
• Do not set pump below the casing perforations or well screen unless there is an adequate flow of water over the motor for cooling
purposes is ensured.
• Determine the correct pump setting from the driller’s record, taking into account the static water level and the draw-down at the
proposed pumping rate.
Pressure Tank
Pressure Switch
Gate Valve
Service Pipe
Pressure Gauge
Pressure Relief Valve
Spring-Loaded
Check Valve
See Wiring Diagrams
Sanitary Well Seal
or Pitless Adapter Discharge Pipe
Submersible Cable
Spring-Loaded Check Valve
(Per manufacturer’s recommendation)
Safety Cable
Drop Pipe Electrical Cable
(secured to drop pipe with tape or clamps every 10ft / 3m)
Well Casing
Spring-Loaded Check Valve at Pump Discharge
Submersible Pump Unit
Suction Screen
Motor
Well Screen or Casing Perforations
Note: Keep pump at least 5 ft from
bottom of well and above well screen
or casing perforations.
Torque Arrestor
INSTALLATION

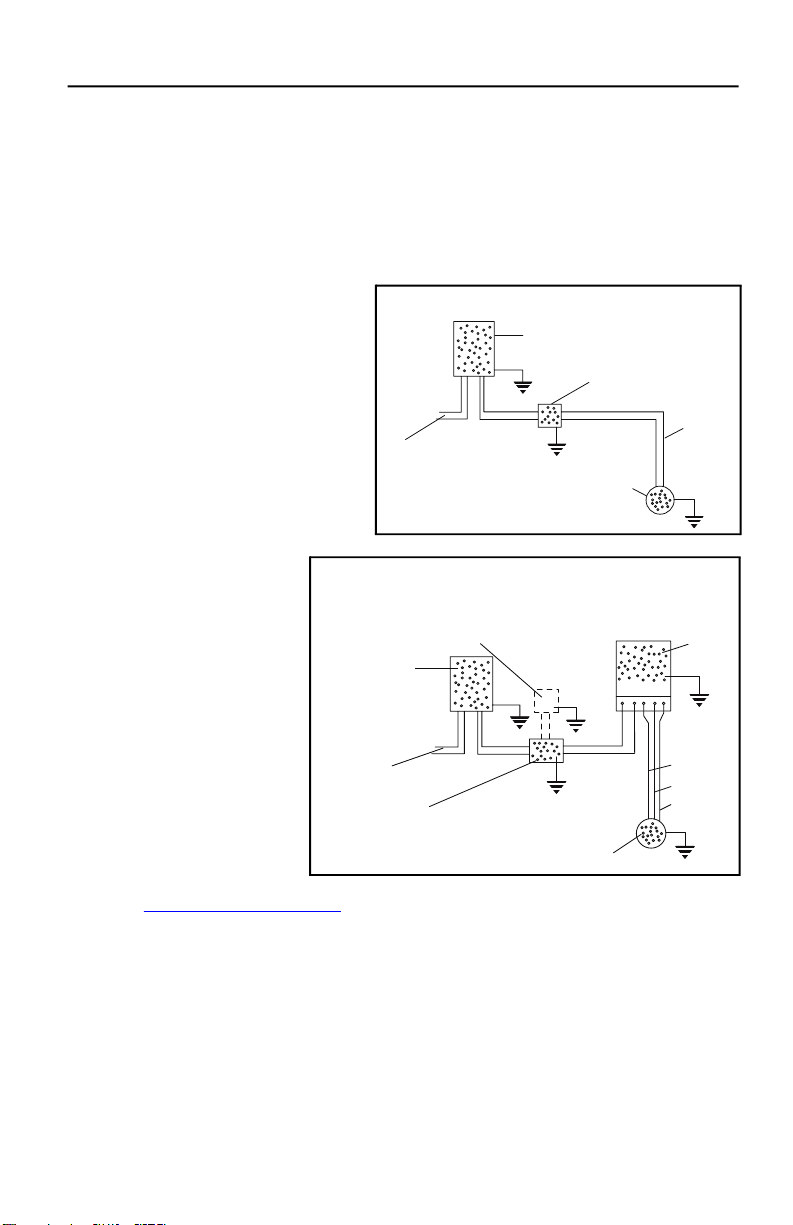

Electrical Connections
3
Electrical Connections
Employ a licensed electrician or water systems contractor to ensure installation is done properly. All
wiring must be done in accordance with national and local electrical codes. Follow the cable splicing kit
instructions.
1. Make sure the power supply corresponds with the electrical rating of the motor.
• For 3-wire, single phase pumps, check electrical rating of the control box.
2. Install a fused disconnect switch or circuit breaker.
3. Ground the pump and the distribution panel with the motor’s green conductor.
4. For two-wire pumps, make wiring con-
nections.
5. For three-wire, single-phase pumps,
make wiring connections and install the
control box.
• Mount in an area protected from
rain, snow, high temperatures, and
temperatures below 14 °F (-10 °C).
• Refer to the control box’s wiring dia-
gram.
• Install a magnetic contac-
tor if the pressure switch is
not sufficient to handle the
motor’s electrical rating.
The pressure switch is then
used as a pilot circuit to
control the contactor.
6. Install a separate lightning
arrestor close to the wellhead.
7. Test the unit. Brace pump shell
and apply power momentarily.
8. Ensure pump rotation is clock-
wise when viewed from pump
discharge.
9. Place the motor and pump
labels in the circuit breaker
box for future reference.
Physical Installation
Refer to “Typical Installation” on page 2.
1. Confirm that the motor’s lead wires are secure under the pump’s lead guard.
2. Install a pressure tank per manufacturer’s recommendations.
3. Attach a 3/16” diameter to 1/4” diameter steel safety cable to pump.
IMPORTANT: If using a different type of cable, confirm the system weight does not exceed the
limit.
4. Attach schedule 40 galvanized pipes to pump for installations up to 600 ft (180m).
• For deeper settings, use schedule 40 pipe for the bottom 600 feet (180m) and schedule 80 for
the remainder.
Incoming 1 Phase Power
1 Phase Submersible Motor
Submersible
Cable
Switch or Timer
Circuit Breaker or Fuse Disconnect Switch
2 WIRE, Single Phase Wiring Diagram
Circuit Breaker or
Fused Disconnect Switch
Pressure Switch (for pilot circuit)
If Magnetic Contactor is used
for starting. Single-Phase
Control Box
Red
Yellow
Black
1-Phase Sumbersible Motor
Switch or Timer (for direct switching) OR
Magnetic Contactor (w/ pilot circuit)
Incoming 1 Phase Power
Note: Order of red, yellow and black may
vary from control box to control box.
Always connect like colors.
L1 L2 R YB
3-WIRE, Single Phase Wiring Diagram
INSTALLATION
Well Test
4
• If using plastic pipe, refer to manufacturer’s recommendations for depth and pressure.
• Keep pipes clean and free from debris and use pipe sealant on all fittings.
5. Install system check valves.
IMPORTANT: Install only positive sealing check valves. Never use swing type check valves.
• For installations more than 100 ft (60m), install check valves in the drop pipe at intervals of 100
ft (60m) or as specified by the manufacturer.
• Install an inline check valve in the discharge line within 25 ft of the pump and below the draw-
down level of the water supply.
• If permitted by local codes, install a relief valve between the wellhead and the pressure tank.
• 4" submersible pumps with a 1-1/4" or 2”discharge contain a spring-loaded removable poppet
style check valve assembly. Refer to “Maintenance” on page 5 to remove valve for drain back.
6. Install a torque arrestor just above the pump.
7. Fasten the electrical cable to the drop pipe with clamps or appropriate tape every 10 ft (3m).
• Take care not to scrape or pinch the cable against the well casing.
• Keep the cable slack when using plastic drop pipe to allow for stretching.
• Use an ohmmeter or megger to make insulation and continuity checks.
8. Lower pump at least 5 ft (1.5m) from bottom of well and above well screen or casing perforations.
9. Test the well. Refer to “Well Test” on page 4.
10. Place a sanitary well seal or pit-less adapter over top of well per manufacturer’s recommendations.
Well Test
1. Install a partially opened gate valve on the end of the pipe.
2. Start the pump and slowly open valve to full flow.
3. If the discharge water is not clear within 30 minutes, stop pump and take necessary steps to correct.
4. Close valve until maximum required system flow rate is obtained.
5. Ensure the pump output is not greater than the yield of the well (low-yielding) by monitoring the
well draw-down level at the maximum system flow rate.
• Refer to “Low-Yielding Well” on page 4 to correct issue.
Low-Yielding Well
1. Install a smaller pump. Consult licensed water systems professional contractor for sizing.
2. Install additional length of drop pipe to place pump lower in well.
3. Install a Franklin Pumptec or similar electronic run dry sensor.
4. Install a floatless liquid level control to work with the pressure switch.
5. Install a flow control valve in the discharge line upstream from the pressure switch to restrict output.
• A pressure tank with a bonded diaphragm, air cell, or water bag is recommended.
6. Install a low-pressure cut-off switch.
Risk of damage to pump or other equipment.
• Never run pump unless it is completely submerged in water to avoid pump and motor damage
• Air drawn into the pump can cause an airlock under certain conditions.
MAINTENANCE
Poppet Check Valve
5
MAINTENANCE
Poppet Check Valve
Use a T-Handle Poppet Wrench (part no. 106964101),
ordered separately, or standard needle nose pliers to
remove the poppet assembly by turning clockwise.
If reinstalling, tighten to 15 inch-pounds.
Troubleshooting
Risk of damage to pump or other equipment.
• Fluid draining back through the pump can cause the pump to rotate backwards. If pump/motor starts during this time, damage to
the pump can occur.
Poppet Assembly T-Handle Poppet Wrench
Problem Probable Causes Corrective Action
Pump fails to start
Electrical trouble Call dealer or electrician
Draw-down protection device
has pump turned off
Make sure system check valves are correctly installed or uninstall draw-down
protection device. Reset low pressure cutoff switch (if installed).
Overload tripped Reset overloads and low pressure cutoff switch (if installed).
Pump fails to deliver
water or reduced out-
put
Clogged intake screen Clean intake screen.
Insufficient well yield Shut off system. Refer to “Low-Yielding Well” on page 4.
Worn pump Replace pump.
Low voltage Make sure the power supply corresponds with the electrical rating of the
motor. For 3-wire, single phase pumps, check the control box.
Incorrect rotation (3-phase) Interchange any two leads at the magnetic starter.
Pump cycles too fre-
quently
Pressure drop between pres-
sure switch and tank. Check system for a plumbing leak and correct as necessary.
“Cut-in” or “Cut out” pressure
too high.
Follow manufacture’s instructions to properly set the on/off cycle of the pres-
sure switch.
Waterlogged pressure tank Follow manufacturer’s instructions on resetting/establishing proper air pres-
sure setting for the tank.
Electrodes of floatless liquid
level control too close together.
Follow manufacture’s recommendation for installation of the electrodes on
the level control.
Tank too small. Install pressure tank with bonded diaphragm, air cell, or water bag.
Overloads trip Electrical trouble Call dealer or electrician.
Pressure switch cycles
rapidly
Pressure switch too far from
pressure tank Adjust air charge of tank to manufacturer’s recommendations.
Backspin Failed or no check valve Install new, non-swing type check valve(s).
Upthust Check valve drilled Install positive sealing check valves only.
Water Hammer
Lowest check valve leaks or is
more than 30 ft above water Shut system down and contact pump installer to correct issue.
Check valve drilled Install positive sealing check valves only.
INSTALLATION RECORDS
Troubleshooting
6
INSTALLATION RECORDS
Purchased From
Date of Installation:
Pump Model Number:
Well Inside Dia. (in/mm):
Depth of Well (ft/mm):
Depth of Water (ft/m):
Pump Setting (ft/m):
Drop Pipe Size:
Wire Size (pump to control box):
Wire Size (control box to power source):
Horizontal Offset (between well & house):
Materials of Construction
3-Phase Panel Info:
(Standard, Soft Start, or VFD)
Power Supply Options:
(Utility, Generator, or Alternative Energy
Source)
Make of Pump
Amps
HP
Volts
Ph
Make of Control Box
HP
Volts
Power Supply
Volts
HZ
Pressure Switch (PSI)
Cut-in
Cut-out
NOTES
800.348.2420 | franklinwater.com
For technical assistance, parts, or repair, please contact:
Form 106259101 Rev. 003 06/20 Copyright © 2020, Franklin Electric, Co., Inc. All rights reserved.
Otros manuales para E Series
1
Tabla de contenidos
Otros manuales de Bomba de agua de Franklin Electric
Franklin Electric
Franklin Electric E-Tech Series Manual técnico
Franklin Electric
Franklin Electric NCX Series Manual de usuario
Franklin Electric
Franklin Electric S & J SERIES Manual de usuario
Franklin Electric
Franklin Electric LittleGIANT MGP-1C18-2 Manual de usuario
Franklin Electric
Franklin Electric DA1A Manual de usuario
Franklin Electric
Franklin Electric LittleGIANT 1 Series Manual de usuario
Franklin Electric
Franklin Electric FAOT Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant PE-1 Manual de usuario
Franklin Electric
Franklin Electric E-Tech ES-VN-VL Manual técnico
Franklin Electric
Franklin Electric RM2 Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant PE-1 Manual de usuario
Franklin Electric
Franklin Electric Little Giant BPLA Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant Pit+Plus Jr. with Floats Manual de usuario
Franklin Electric
Franklin Electric MH Series Manual de usuario
Franklin Electric
Franklin Electric SubDrive Solar Manual
Franklin Electric
Franklin Electric FBSTF Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant PES-70 Manual de usuario
Franklin Electric
Franklin Electric LittleGIANT HT-10EN-CIM Manual de usuario
Franklin Electric
Franklin Electric Little Giant 16 G Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant 555702 HRK-360S Manual de usuario
Franklin Electric
Franklin Electric Hydropompe FWS Series Instrucciones de operación
Franklin Electric
Franklin Electric FACGF Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant BE Series Manual de usuario
Franklin Electric
Franklin Electric Little Giant 6EN-CIA-SFS Manual de usuario
Manuales populares de Bomba de agua de otras marcas
Sykes AmeriPumps
Sykes AmeriPumps GP100M Guía de solución de problemas
DUROMAX
DUROMAX XP WX Series Manual de usuario
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 Manual de usuario
Xylem
Xylem e-1532 Series Manual de usuario
Milton Roy
Milton Roy PRIMEROYAL Manual de usuario
STA-RITE
STA-RITE ST33APP Manual de usuario
