Franke FCBI 1204 C X Manual de usuario

Instructions for use and installation

Cooker Hood

Instrucciones para el uso y la instalaciòn

Campana

FCBI 1204 C X

INDEX

SAFETYINFORMATION......................................................................................................................................................... 3

CHARACTERISTICS.............................................................................................................................................................6

INSTALLATION...................................................................................................................................................................... 7

USE........................................................................................................................................................................................ 8

CAREANDCLEANING.........................................................................................................................................................10

ÍNDICE

INFORMACIÓNDESEGURIDAD..........................................................................................................................................12

CARACTERÍSTICAS ...........................................................................................................................................................15

INSTALACIÓN..................................................................................................................................................................... 16

USO......................................................................................................................................................................................17

LIMPIEZAYMANTENIMIENTO.............................................................................................................................................19

EN 3

For your safety and correct operation of the appliance, read this manual

carefully before installation and use. Always keep these instructions

with the appliance even if you move or sell it. Users must fully know the

operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

 The manufacturer will not be held liable for any damages resulting from

incorrect or improper installation.

 The minimum safety distance between the cooker top and the extractor

hood is 650 mm (some models can be installed at a lower height,

please refer to the paragraphs on working dimensions and installation).

 If the instructions for installation for the gas hob specify a greater

distance, this must be respected.

 Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

 Means for disconnection must be incorporated in the fixed wiring in

accordance with the wiring rules.

 For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

 Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

 Regulations concerning the discharge of air have to be fulfilled.

 Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

SAFETY INFORMATION

EN 4

 If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust gas.

When the cooker hood is used in conjunction with appliances supplied

with energy other than electric, the negative pressure in the room must

not exceed 0,04 mbar to prevent fumes being drawn back into the room

by the cooker hood.

 The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels.

 If the supply cord is damaged, it must be replaced from the manufac-

turer or its service agent.

 Connect the plug to a socket complying with current regulations, lo-

cated in an accessible place.

 With regards to the technical and safety measures to be adopted for

fume discharging it is important to closely follow the regulations pro-

vided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

 Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance

with these instructions may result in electrical hazards.

 Do not look directly at the light through optical devices (binoculars,

magnifying glasses…).

 Do not flambè under the range hood; risk of fire.

 This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and under-

stand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without

supervision.

 Children should be supervised to ensure that they do not play with the

appliance.

EN 5

 The appliance is not to be used by persons (including children) with re-

duced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

 Clean and/or replace the Filters after the specified time period (Fire

hazard). See paragraph Care and Cleaning.

 There shall be adequate ventilation of the room when the range hood is

used at the same time as appliances burning gas or other fuels (not

applicable to appliances that only discharge the air back into the room).

 The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of elec-

trical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed informa-

tion about recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you pur-

chased the product.

EN 6

CHARACTERISTICS

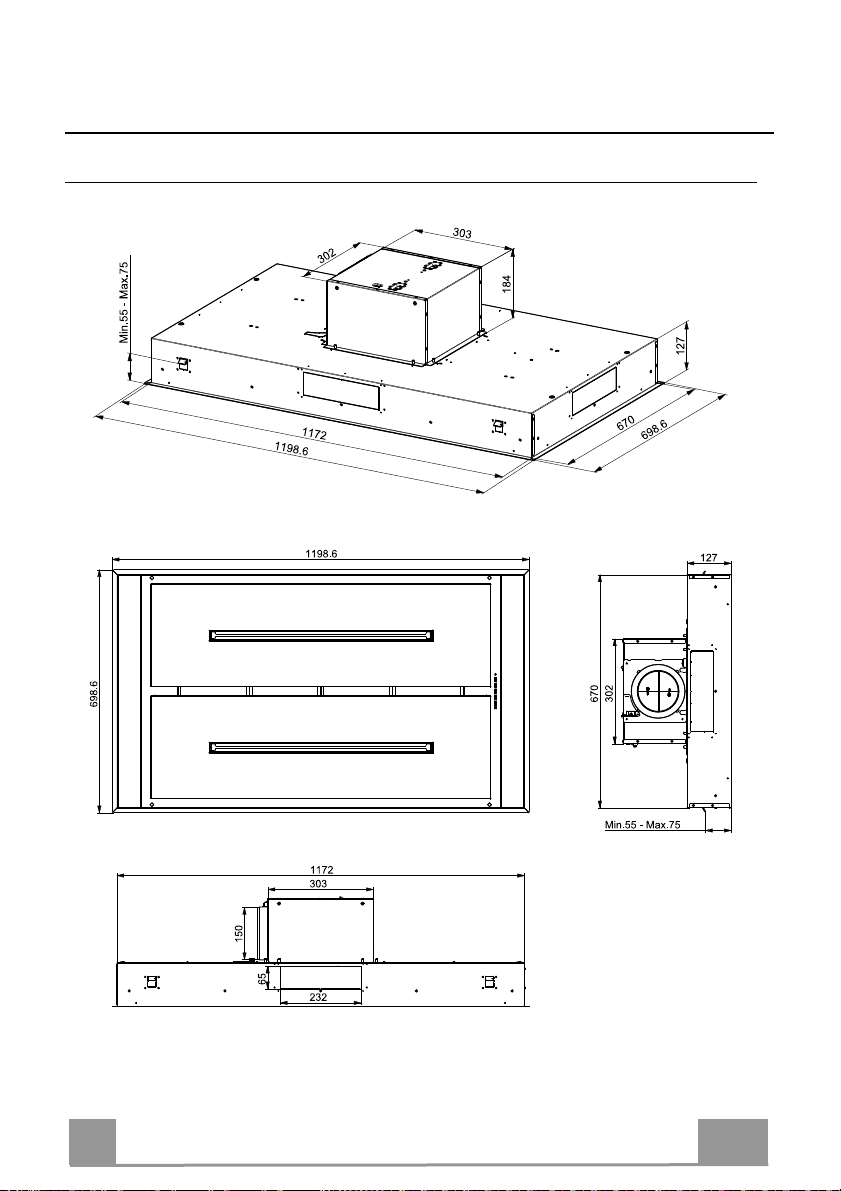

Dimensions

EN 7

INSTALLATION

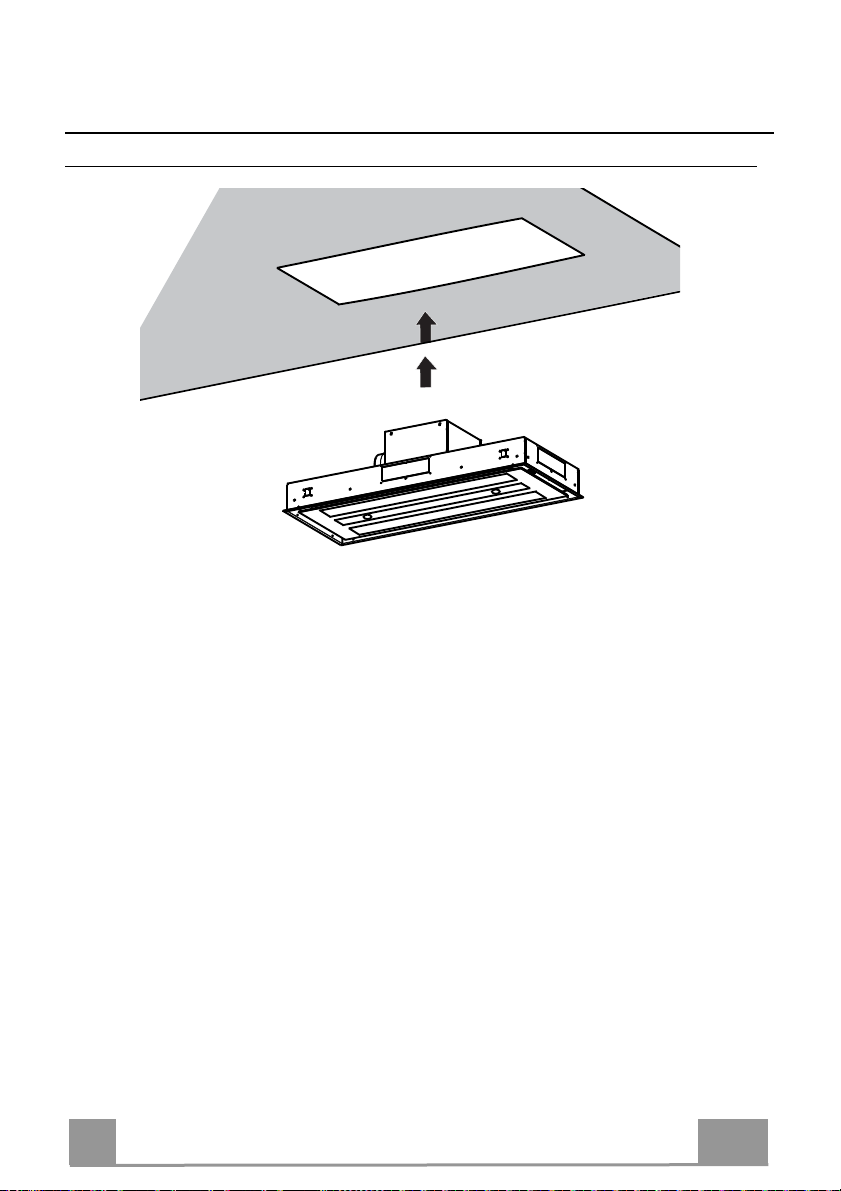

Fixing the Hood

• In all cases where the ceiling is not strong enough at the suspension point, the installer must

provide strengthening using suitable plates and backing pieces anchored to the structurally

sound parts.

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-pole switch having a contact gap of at least 3

mm..

EN 8

USE

T1 T2 T3 T4

LT3

T1 T4

LT3T2T1 T4

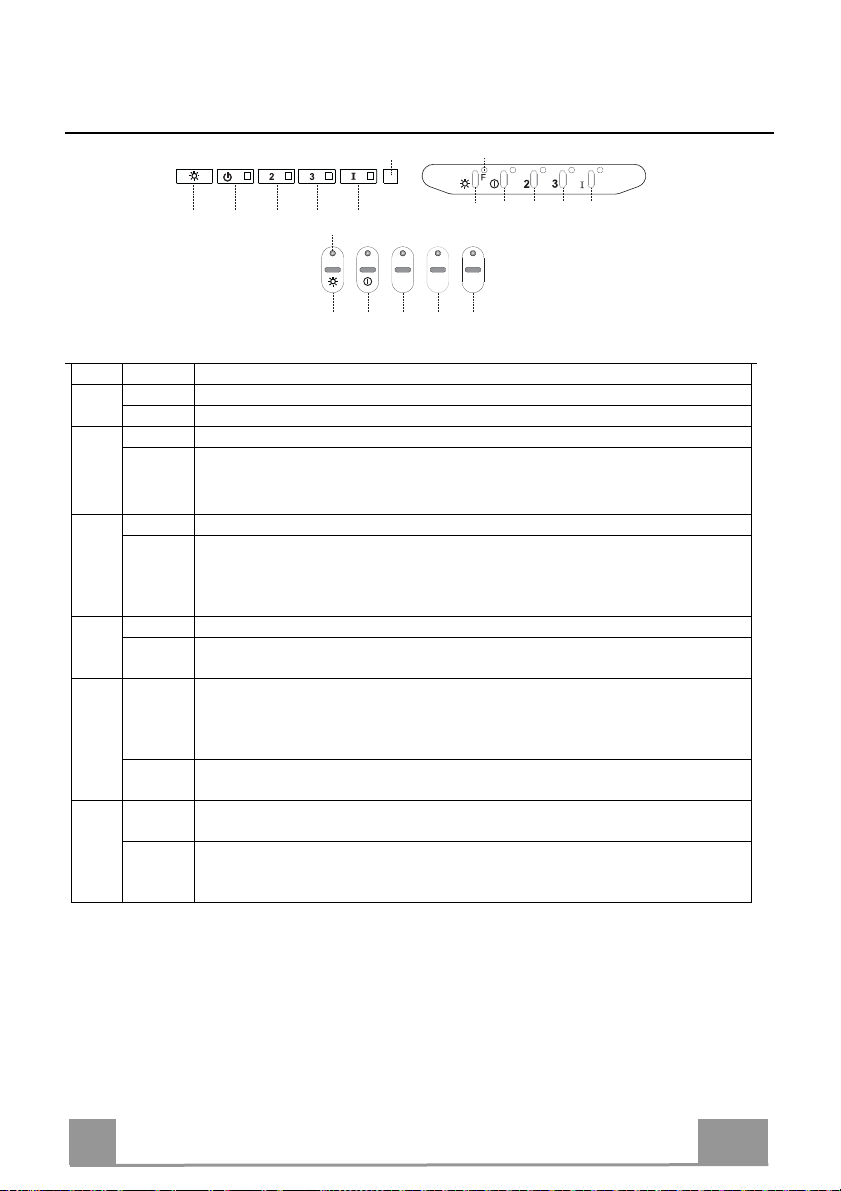

Control panel

Button Led Function

L - Turns thelights ON/OFF at maximum strength.

Pressand hold forapprox. 2seconds to turnthe lightingsystemonandoffat reducedintensity.

T1 Fixed Turnsthe motoron/offat speedone.

Delay function:

Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function

(automatic switching off of the Motor, the Fans and the Lighting with a 30' delay).

Cannotbeenabled whenIntensive or24hare on.

T2 Fixed Turnsthe Motoronat speed two.

Press and hold the button for approximately 5 seconds, withall the loads turned off (Motor and Lights),

toturnthe ActivatedCharcoalFilter alarm on.The relevant LEDflashestwice to confirm.

To turn the alarm off, press the button again and hold for at least 5 seconds. The relevant LED flashes

once.

T3 Fixed Turnsthe Motor onatspeed three.

Press and hold the button for approximately 3 seconds, withall the loads turned off (Motor and Lights),

toperformareset. The LED S1flashesthree times.

T4 Fixed Turnsthe Motoronat INTENSIVESpeed.

This speed is timed to run for6 minutes. At the end of this time, the system returns automatically to the

speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of

thetime.

Pressand hold for5 secondstoenable theremotecontrol, indicated bythe LED flashing twice.

Pressand hold for5 secondstodisable theremotecontrol, indicated by the LED flashing just once.

S1 Fixed Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The

alarmis triggeredafterthe Hoodhasbeen inoperation for100 workinghours.

Flashing When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter

must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter satura-

tionalarmcomes intooperation aftertheHood hasbeenworking for200 hours.

EN 9

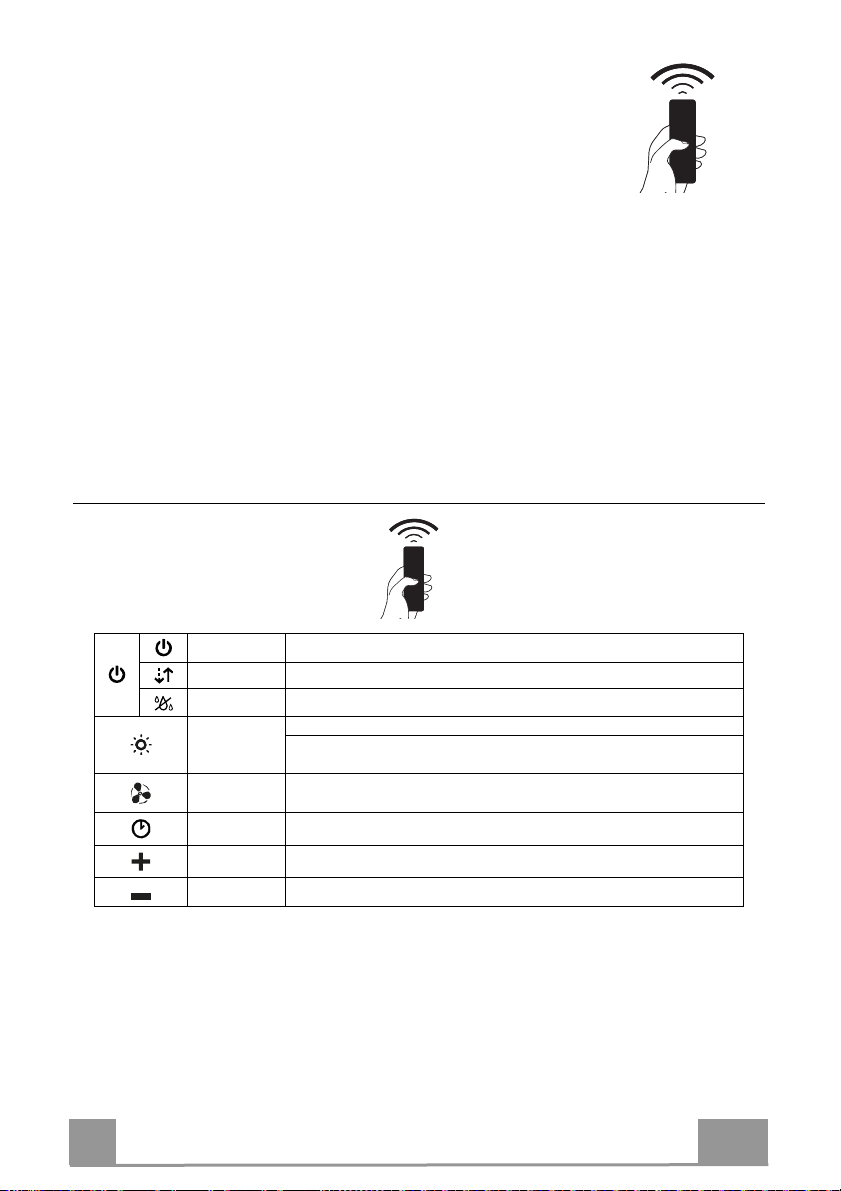

REMOTECONTROL

This appliance can be controlled using a remote control.

Remote control panel

Motor Motor On / Off.

- -

Lights On / Off

Light Press for 2 seconds to modify the intensity of the Light.

Intensive Activates the Intensive function

Delay Activates / Deactivates the Delay function

- Increases the working speed each time it is pressed.

- Decreases the working speed each time it is pressed.

EN 1

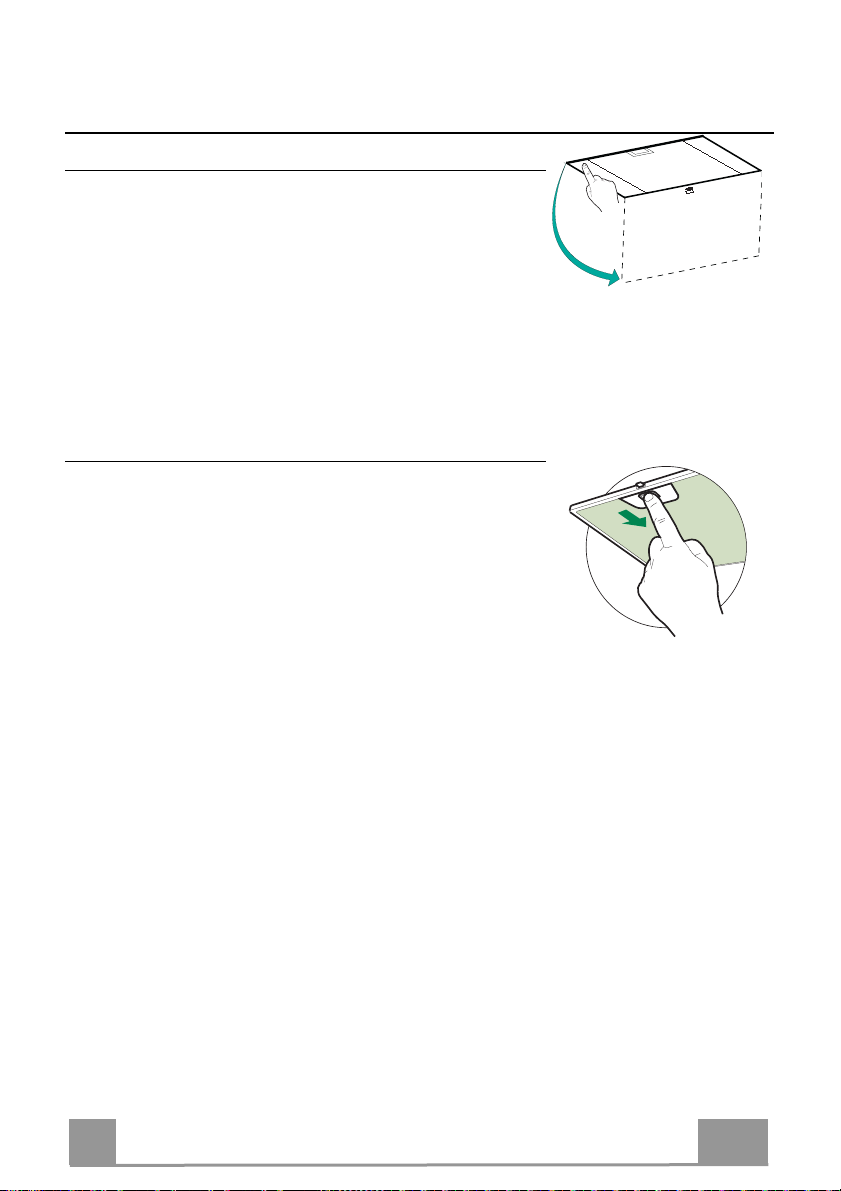

Opening Panel

• Open the Panel by pulling it.

• Clean the outside with a damp cloth and neutral detergent.

• Clean the inside using a damp cloth and neutral detergent; do

not use wet cloths or sponges, or jets of water; do not use

abrasive substances.

Metal grease filters

These can be washed in the dishwasher, and need to be cleaned

whenever the S1 Led comes on or at least once every 2 months

use, or more frequently if use is particularly intensive.

CLEANING THE FILTERS

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.

• Press T3 and hold for at least 3 seconds, until LED flashes

three times in confirmation.

Cleaning the Filters

• Open the doors.

• Remove the Filter, pushing it towards the back of the unit and

at the same time pulling downward.

• Wash the filter without bending it, and leave it to dry thor-

oughly before replacing (if the surface of the filter changes

colour over time, this will have absolutely no effect on its effi-

ciency).

• Replace, taking care to ensure that the handle faces forwards.

• Close the doors again.

CARE AND CLEANING
