Foxconn 848P7MB Manual de usuario
This manual is the intellectual property of FOXCONN, Inc. Although the
information in this manual may be changed or modified at any time,
FOXCONN does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.1in English for 848P7MB series motherboard.
P/N: 91-181-U84-M2-1E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit FOXCONN
website: www.foxconnchannel.com
Version:
Trademark:
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５
Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
848P7MB series
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
EN 55022/A1: 2000 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
EN 61000-3-2/A14:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
EN 55024/A1:2001 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : TAIPEI/2004
Printed Name : James Liang Position/ Title : Assistant President
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５
Declaration of conformity
Trade Name: FOXCONN
Model Name: 848P7MB
Responsible Party: PCEIndustryInc.
Address: 458E.LambertRd.
Fullerton,CA92835
Telephone: 714-738-8868
Facsimile: 714-738-8838
Equipment Classification: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer:HON HAI PRECISION INDUSTRY
COMPANY LTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions : (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2004
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５
Product Introduction
Installation Instructions
Supply ............................................................................................
BIOS Description
StandardCMOSFeatures .......................................................................... 22
BIOSFeatures ...........................................................................................
Advanced BIOS Features ..........................................................................
Advanced Chipset Features ......................................................................
IntegratedPeripherals ................................................................................
PowerManagementSetup .........................................................................
PnP/PCIConfigurations...............................................................................
PCHealthStatus ........................................................................................
Frequency/Voltage Control.........................................................................
Load Fail-Safe Defaults .............................................................................
LoadOptimizedDefaults ............................................................................
Set Supervisor/User Password ................................................................. 37
Save & Exit Setup ......................................................................................
ExitWithoutSaving ....................................................................................
Table of Contents
Chapter
Chapter
Chapter
Driver CD Introduction
UtilityCDcontent........................................................................................ 40
Start to install drivers ................................................................................. 41
Chapter
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５5
1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due high temperatures.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or
removing expansion cards or other peripherals, especially when
you insert or remove a memory module. Failure to switch off the DC
power supply may result in serious damage to your system or
memory module.
Warning:
We cannot guarantee that your system will operate normally while
over-clocked. Normal operation depends on the over-clock capacity
of your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS
description in this manual is just for reference. We do not guarantee
that the content of this manual will remain consistent with the actual
BIOS version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５6
Chapter
Thank you for buying FOXCONN 848P7MB series motherboard.
This series of motherboard is one of our new products, and
offers superior performance, reliability and quality, at a reason-
able price. This motherboard adopts the advanced Intel® 848P+
ICH5 chipset, providing users a computer platform with a high
integration-compatibility-performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1
Chapter 1 Product Introduction
2848P7MB Series User Manual
Main Features
Size
ATX form factor of 9.6 inch x 8.0 inch
Microprocessor
Supports Intel® Prescott-T processor in an LGA 775 package
Supports FSB at 533MHz/800MHz
Supports Hyper-Threading technology
Chipset
Intel®848P (North Bridge) + ICH5 (South Bridge)
System Memory
Two 184-pin DIMM slots
Supports 266MHz/333MHz/400MHz Single-Channel DDR DRAM interface
Supports 128-Mb, 256-Mb and 512-Mb DRAM densities
Supports up to 2 GB of DDR memory
Registered DIMMs not supported
Supports non-ECC DIMMs
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB headers
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 Protocol up to 480 Mbps transmission rate
Onboard Serial ATA
150MBps transfer rate
Supports two S-ATA devices
Onboard LAN (optional)
Supports 10/100 Mbit/sec Ethernet
LAN interface built-in on board
3
848P7MB Series User Manual
Chapter 1 Product Introduction
Onboard Audio
AC’97 2.3 Specification Compliant
Supports SPDIF output
Onboard Line-in jack, Microphone-in jack, Line-out jack
Supports 5.1 channels audio (setting via software)
AGP 8X support
AGP 8X (AGP 3.0) is the VGA interface specification that enabled enhanced
graphics performance with high bandwidth speeds up to 2.12 GB/s.
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off).
Expansion Slots
Three PCI slots
One AGP slot
Advanced Features
PCI 2.3 specification compliant
Supports Windows 2000/XP soft-off
Supports PC Health function (capable of monitoring system voltage, CPU,
system temperature, and fan speed)
Chapter 1 Product Introduction
4848P7MB Series User Manual

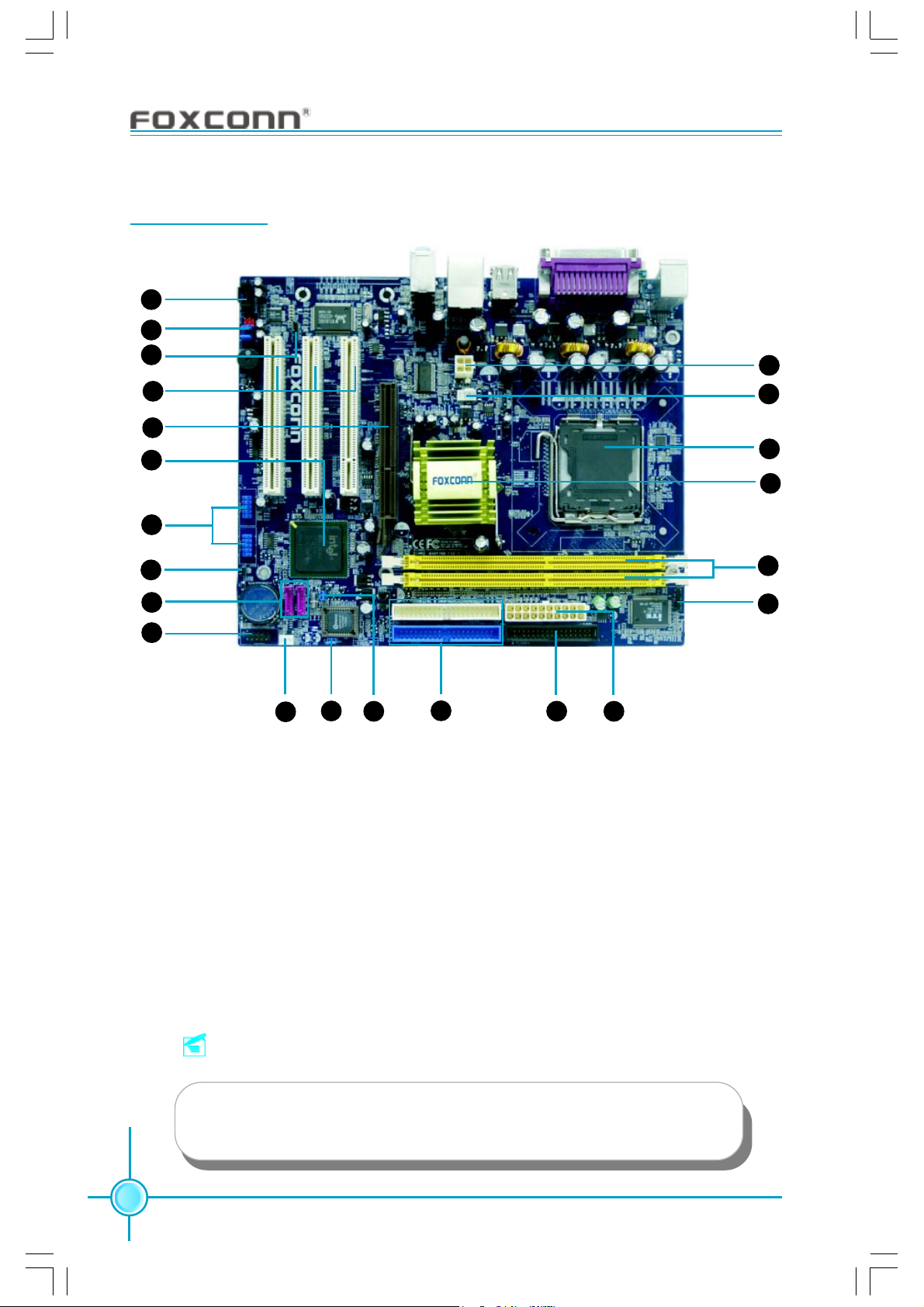

848P7MB Layout
2
5
6
16
22
3
15
9
12 8
17
1
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
18
19
4
7
11 10
13
14
21
20
1.ATX 12 V Connector
2. CPU Fan Connector
3. CPU Socket
4. North Bridge:Intel®848P
5. DDR DIMM Slots
6. IrDA Header
7. ATX Power Connector
8. Floppy Disk Connector
9. IDE Connectors
10. Clear CMOS Jumper
11. BIOS_WP Jumper
12. System Fan Connector
13. Front Panel Connector
14. SATAConnector
15. Chassis Intruder
Connector
16. Front USB Headers
17. South Bridge: Intel®ICH5
18.AGP Slot
19. PCI Slots
20. SPDIF Connector
21. F_Audio Connector
22. CD_IN Connector
5
848P7MB Series User Manual
Chapter 1 Product Introduction
This chapter introduces the hardware installation process, in-
cluding the installation of the CPU, memory, power supply,
slots, rear panel and pin headers, and the mounting of
jumpers. Caution should be exercised during the installation of
these modules. Please refer to the motherboard layout prior
to any installation and read the contents in this chapter carefully.
This chapter includes the following information:
CPU
Memory
Power supply
Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter2
2
