Forms + Surfaces DISPATCH RECEPTACLE Manual de usuario
DISPATCHTM RECEPTACLE
SURFACE MOUNT WITHOUT CONCRETE BASE INSTALLATION INSTRUCTIONS
page 1 of 2 | Rev. 12-17-12
© 2012 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
T 800.451.0410 | www.forms-surfaces.com
TOOLS NEEDEDMATERIALS INCLUDED
STEP BY STEP
Mark hole locations
• Place receptacle in desired location.
Mark center of each hole location in
base with a pencil.
Drill holes
• Use hammer drill to drill 1-7/8" deep x
1/2" diameter anchor hole at each
marked location using a 1/2" drill bit
suitable for concrete drilling.
NOTE: Forms+Surfaces recommends
starting holes with 3/16" diameter drill
bit followed by 3/8" and finally 1/2" for
maximum accuracy.
Insert & set anchors
• Use compressed air and steel wire brush
to clean each anchor hole.
• Insert 3/8"-16 x 1-1/2" anchor (a) into
each anchor hole and use hammer to tap
anchor tops flush with ground level.
• Use 1/4" punch and hammer to set
anchors by driving down the center of
each anchor until it stops.
steel
wire brush
hammer drill
pencil
hammer
1/4" punch
FOR ALL SURFACE MOUNTED DISPATCH RECEPTACLES WITHOUT CONCRETE BASES (SECTION VIEW SHOWN)
7/32" hex bit for
tamper-resistant
screws
a b c
d
e
a
3/16", 3/8" & 1/2" drill
bits for concrete
DISPATCHTM RECEPTACLE
SURFACE MOUNT WITHOUT CONCRETE BASE INSTALLATION INSTRUCTIONS
page 2 of 2 | Rev. 12-17-12
© 2012 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
T 800.451.0410 | www.forms-surfaces.com

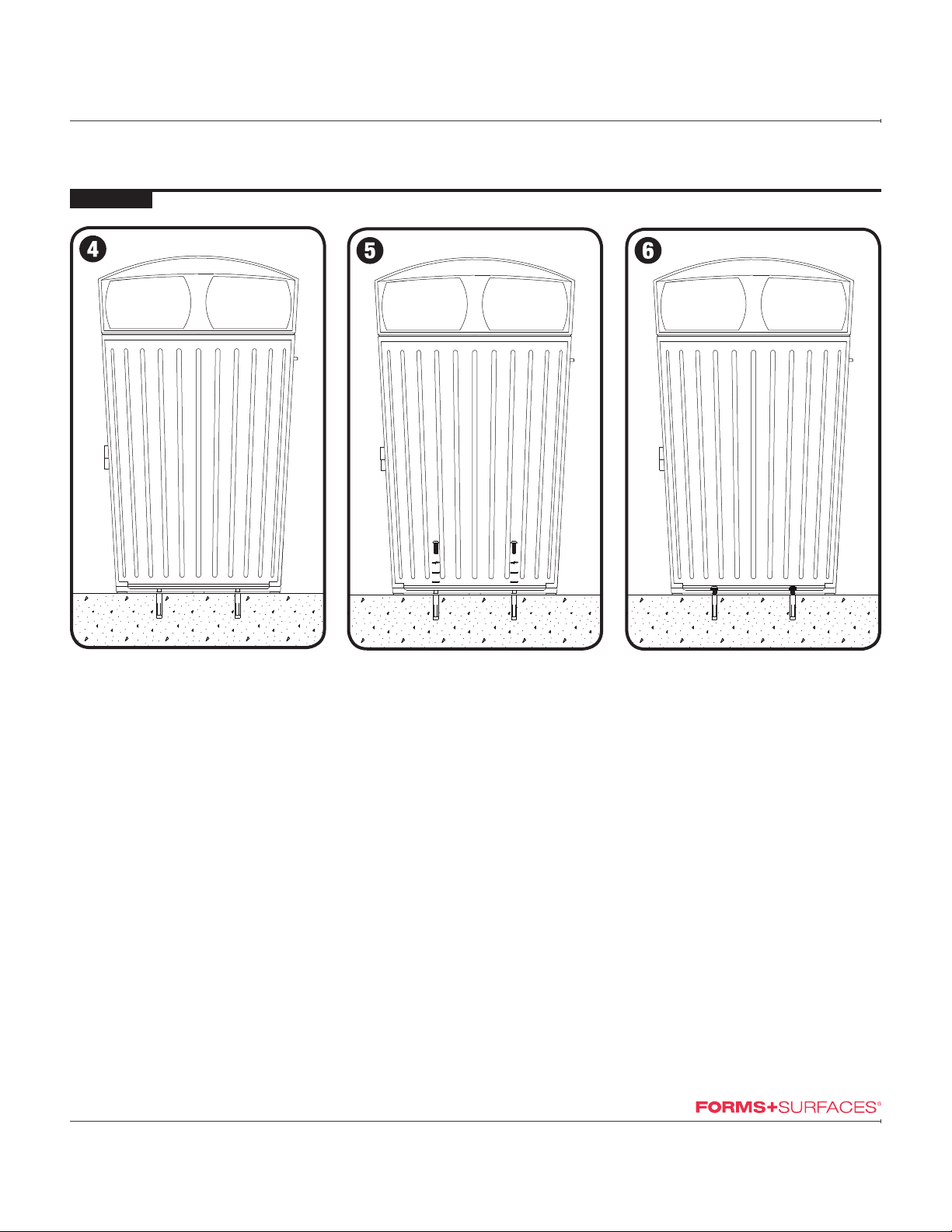

Position receptacle
• Position receptacle so that mounting
holes line up with anchors.
Attach receptacle
• Slide 3/8" stainless steel lock washer (c),
then 3/8" stainless steel flat washer (d)
and 3/8" nylon flat washer (e) onto each
3/8"-16 x 1" tamper-resistant button
head cap screw (b).
• Insert screws into mounting holes in
receptacle and thread into anchors using
provided 7/32" hex bit for tamper-
resistant screws.
STEP BY STEP
Tighten screws
• Tighten screws until snug.
• Place liner(s) inside receptacle.
FOR ALL SURFACE MOUNTED DISPATCH RECEPTACLES WITHOUT CONCRETE BASES (SECTION VIEW SHOWN)
b
c
d
e
