Forging Mount HY4114 Manual de usuario

Instruction Manual

Swivel TV Stand

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? If you have any questions, please feel

free contact us.

Email：[email protected]

We’re ready to help!

HY4114

Connecting the Support Pillar to Tempered Glass

Step 1

Pillar

•Carefully open the carton, remove contents and lay out on cardbard or other protective

surface to avoid damage.

•Check to assure that all components were received undamaged. Do not use damaged or

defective parts.lf you require replacement parts, contact customer service at

[email protected]

•Carefully read all instructions before attempting installation.

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

•Install and operate this product with care. Please read this instruction before beginning the

installation, and carefully follow all instructions contained herein. Use proper tools during

installation.

•

If you do not understand the instructions or have any concerns or questions, please contact

customer service at

[email protected]

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment!

over resulting in death or serious injury!

This product contains small items that could be a choking hazard if swallowed.

Keep these items away from young children

It is the installer’s responsibility to make sure the combined weight of HY4114 and the display

does not exceed 88 ibs(40kg).Use with heavier televisions may result in instability causing tip

Step 1-1

Step 2

Put O (Tempered Glass) on the table. Put R (Metal Pad) and L

(M6x25 Bolt) under O. Turn Y (Plastic Cover) and P (Support

Pillar) upside down under O to install and then tighten screws.

If you ﬁnd the support column (P) is not in the correct direction, please see ﬁgure 1.1

below. Loosen M6x25 screws(L), adjust the support to the correct direction then

tighten screws again.

Step 1-2

Step 1-3

Allen key

3 positions

Bolt

M6X8

Metal Pad

Attach the Swiveling bracket to the Support Pillar

M6x40 Bolt

Metal PadT

VAllen Key

Swiveling bracket

Attaching J

STEP 3-2 cable management (Attaching wire clips)

STEP 3-1 Attach the TV Plate(03) to the Swiveling bracket of Support Pillar

M6 X8 screws

(Q) M6X8 Bolt

(03) TV Plate

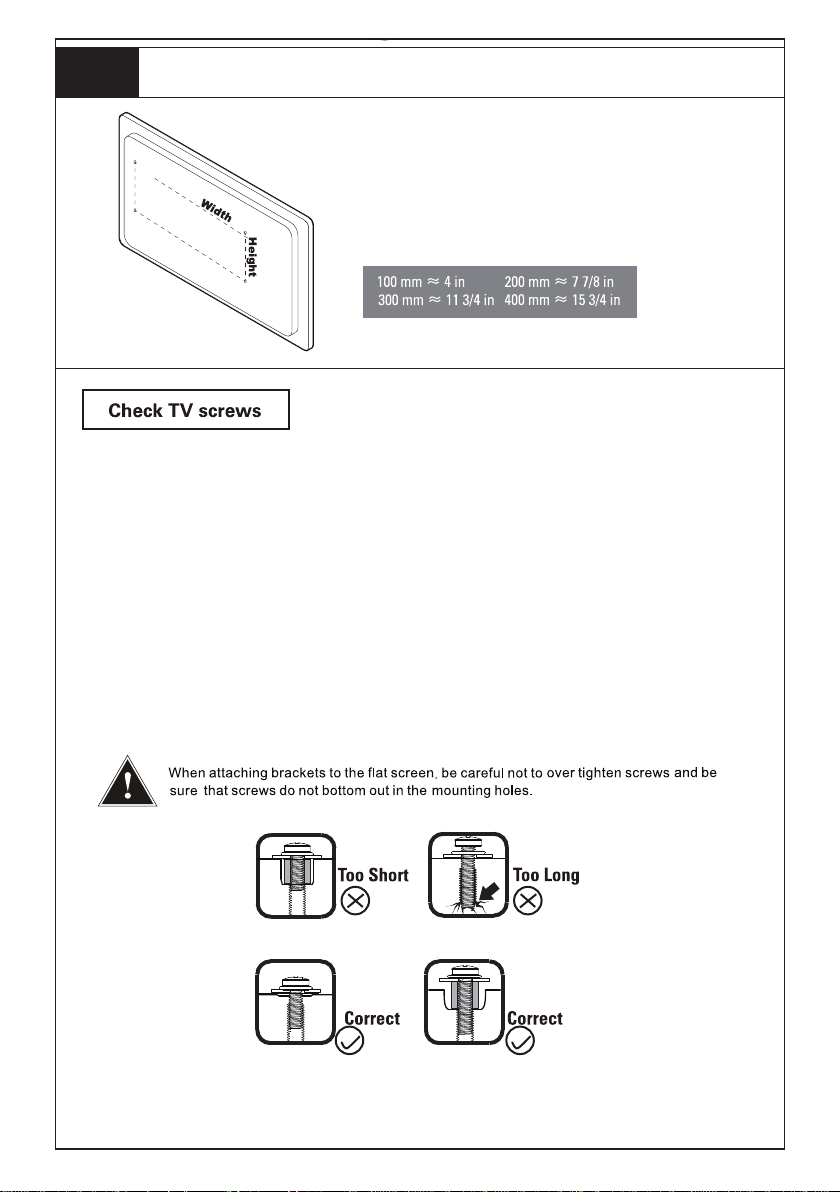

Measure VESA and Check TV screws

Measure the distance between the holes located at the

back of your TV (these measures may form the shape of a

square, or a rectangle) and check that these taken

measures are within the VESA (*) range for this wall

mount. (*) VESA: International standard established by the

TV manufacturers used to determine if LCD/LED TVs are

compatible with wall mounts.

Please select the proper screw length for your

TV by hand tightening to check your ﬂat panel

thread depth.

Step 4

Mounting the Monitor Brackets(N) to your TV

Step 5-1

A16

First, make sure the diameter of the bolt(A-F) fits your TV. Then, please see the diagram above.

You will need to thread the bolt into the TV using the correct washer (G) and spacer (G or I) if

necessary with a screwdriver(Not included). Please make sure the monitor brackets(N) are vertically

centered and level with each other.

Insert the Safety Lock

in the bottom of the bracket

and then tighten the screws.

STEP 5-2 Hang TV to the TV Plate

Height Adjustable of the TV Brackets

Step 6

STEP 7 Swivel adjustments

45 degrees Swivel left to right

cable management
