FOREVER Care Me Manual de usuario
User Manual for Forever Care Me KW-400 Kids
Smartwatch
Specifications:
- Display: 1.4" 210x240 colorful touch screen
- Supported SIM: microSIM card
- Battery capacity: 400mAh, rechargeable
- Battery life: up to 3 days
- Charging time: 2h
Device description:
1. USB charging port
2. Touch Screen
3. SIM card slot
4. Camera
4. On/Off button
6. SOS button, torch
Charging
It’s recommended to use a charger of output parameters of 5V DC, 500mA.
The charger is not included in the package. To fully charge the watch, it’ll
take approximately 2 hours. Connect the included micro USB cable to the
watch and then connect the second end of the cable to a USB port in a
computer or a charger.
1. Preparation of the watch
Open the SIM card protection, then insert micro SIM card into the slot so
that the chip is facing up to the watch. You’ll hear a clicking sound
confirming the correct installation.
2. First launching
After installing the SIM card and making sure that the device is charged up,
you may activate it by pressing and holding the ON button, located on the
right-hand side. Upon activation, the watch will connect to the mobile
network and obtain the GPS and WIFI signals if they are available.
3. Watch operation
The watch is operated using the touch screen by moving your finger on the
screen; you may switch between particular functions and select it by
pressing the screen.

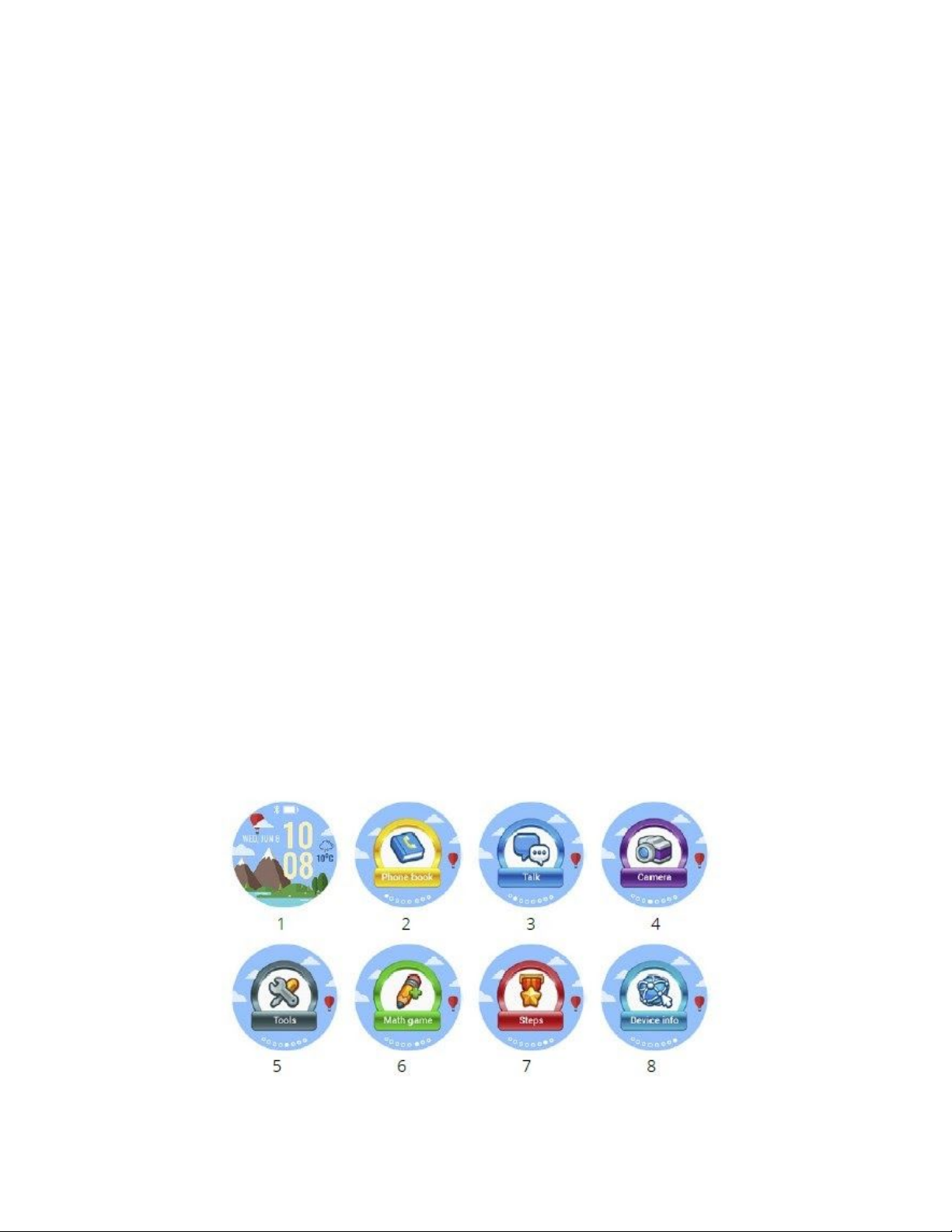

1) The watch’s main screen shows the current date and time, as well as the
battery level. The screen also contains icons indicating the connection with
the mobile network, GPS and WIFI and the amount of received prizes.
2) The phone directory provides access to 10 contacts defined using the
app.
3) It allows you to send voice messages and receive text and voice
messages.
4) It allows you to take a photo that will be saved in the album.
5) Access to the settings, album, flashlight, stopwatch, theme, etc.
6) Simple mathematical game with thee challenging levels.
7) Preview of the number of steps taken after prior activation of a
pedometer in the app
8) Information about watch registration.
4. Forever application
Download the application "Forever KidsCare" (Google Play) or
"ForeverCare" (App Store) and install it on your phone. You can
also use the QR code on the packaging.
Account and watch registration:
In the registration window, enter or scan the watch code located on the
package’s bottom and by the watch. Enter your e-mail address, name, and
password. Then, select the language of the application and the area in
which the watch will be used.
- Chat: Sent a text or voice message to the watch by entering it with a
keyboard or recording with a phone microphone. You can also listen to
voice messages sent from the watch.
- Remote camera: Take a photo using the camera of the watch and receive
it on your phone. The taken photo will appear after some time, depending
on the strength of the mobile network signal.
- Map: Shows the current position of the watch on the map.
- Route: Set date and time for which you want to check the route traveled
by the watch user in a given time.
- Safety zone: Click the + mark to specify the safety zone. Enter the name
of your zone, click on the map, and then select the size of the mapped
zone size in the range between 200m and 2000m. When the watch leaves
the zone, you’ll be notified.
- Notifications: Here, you may receive and view any notifications and
alarms received from the watch.
- Activity: Double-click on the steps bar to activate measurement of the
activity and enter necessary settings, such as measurement time, step
length, weight. Double-click the sleep monitor to set it. You may also check
the data collected on a selected day.
- Alarm clock: Set selected time and frequency of repeating.
- Prizes: Send the appropriate number of hearts that will be displayed on
the watch screen. Specify any meaning for each number and prize the user
of the watch.
- Find the watch: Click to find the watch if it’s near you. The watch will ring,
informing about its location.
- Me:
● Personal data: Your account settings
● List of devices: Add, edit, or delete connected watches
● Change password: Change your account password
Settings
- SOS numbers: When the user of the watch presses and holds the SOS
button, the watch will automatically make an alarm call to three contacts
defined here.
- Voice monitoring: Enter a phone number which the watch will call,
allowing to listen to the surroundings of the watch. Answer the call and
check what’s happening in the vicinity. The user of the watch won’t be
notified about a call.
- Do not disturb: Select the time during the day at which the user of the
watch will not get any phone calls.
- Locating mode: Select normal mode - refreshing the location of the watch
once every 10 minutes; energy saving mode - once every hour; tracking
mode - every minute.
- SMS notifications: Enter a number to which you want to receive SMS
notifications about events, such as low watch battery level, SOS alarm
activation.
- Phone directory: Define up to 10 contacts that will be available to the
watch user in the phone directory.
- Time zone: Set your time zone to allow the watch to display correct date
and time on the screen.
- Language: Select one of the available languages of the watch.
- Settings switch: Activate or deactivate functions of the watch.
- LBS localization: Activate or deactivate localization using antennae of
network operators.
- Remotely deactivate the watch: The watch will be turned off.
