Foreseeson WIS1000 Manual de usuario

WIS1000

Wireless Imaging System

60GHz WirelessHD Transceivers

Caution: Federal (U.S.A.) law restricts this device to sale by

or on the order of a physician.

User’s Guide

2FSN1922 - 7/2012

FSN1922 - 7/2012

Table of Contents

1. Device Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3. Indications for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5. Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Directions for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8. Maintenance of Quality of Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

a. Design Characteristics: Interference from other WIS1000 Devices . . . . 15

Design Characteristics: Accommodation of Diminished Video Signal Quality

. 15

c. Design Characteristics: Interference from Devices . . . . . . . . . . . . . . 16

d. Design Characteristics: Device Security . . . . . . . . . . . . . . . . . . . . . 17

9. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

10. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

11. Servicing & Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

a. Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

b. Cleaning Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

c. Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

d. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

12. Technical Specications & Symbol Descriptions . . . . . . . . . . . . . . . . . . 20

a. General Specication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

b. Input / Output connector specication . . . . . . . . . . . . . . . . . . . . . 21

c. Video Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

d. Classication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

e. FCC Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

13. Warranty and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

14. Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4FSN1922 - 7/2012

WIS1000 Wireless Imaging System

Carefully read all instructions prior to use. Observe all contraindications, warnings and pre-

cautions noted in these directions. Failure to do so may result in patient complications.

1. Device Description

The 60Ghz WIS1000 transmitter wirelessly transmits high quality audio and video (up to

1080p/60hz) to a paired WIS1000 receiver in a typical operating room. The transmitter is

designed to be connected via an HDMI or HDMI-to-DVI cable to a video source (such as an

endoscopic camera) with the receiver connected via an HDMI or HDMI-to-DVI cable to a

video monitor.

Up to six pairs of the WIS1000 transmitter/receiver combinations operating at dierent

frequencies within the 60Ghz band can be used simultaneously within the same room.

The WIS1000 is designed to be unaected by cell phones, RFID, wireless 802.11 b/g/n. The

60Ghz operating frequency cannot pass through walls and will work within a 10m radius.

128-bit AES encryption ensures that no other devices can speak with the WIS1000.

FSN1922 - 7/2012

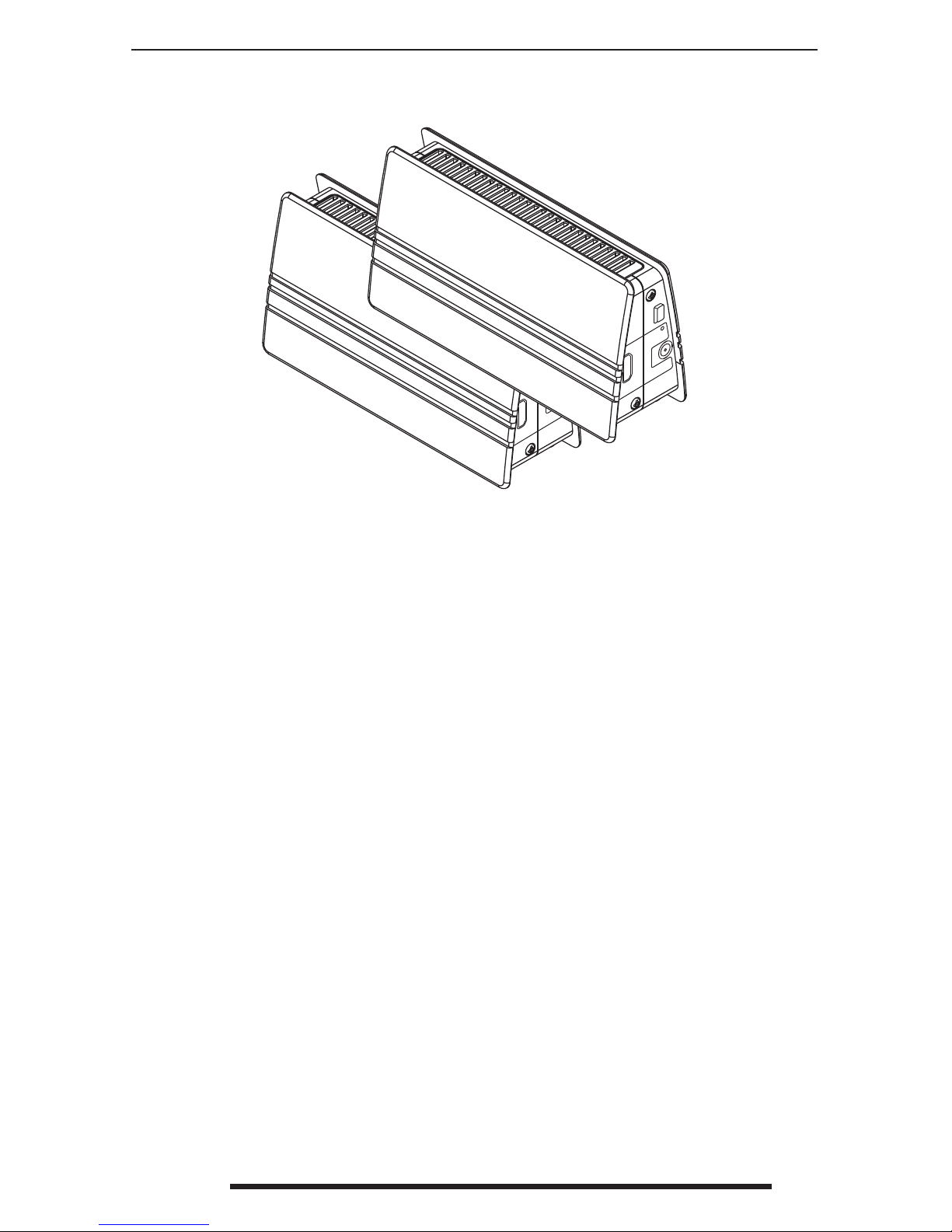

The WIS1000 transmitter is 162.0mm x 86.0mm x 50.0mm and weighs approximately 242g.

The WIS1000 receiver is 162.0mm x 86.0mm x 50.0mm and weighs approximately 242g.

Both components are mains powered (120 – 240 V).

The WIS1000 wireless device is a non-sterile reusable device not intended for use in the

sterile eld.

6FSN1922 - 7/2012

9 4

Standard DC Splitter WIS1001

Item Description Pack Qty Pack Qty Pack Qty

1 Wireless HD transmitter (WIS1000 Tx) unit . . . . . . . . . . 1

2 Wireless HD receiver (WIS1000 Rx) unit . . . . . . . . . . . . 1

3 User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

4 HDMI to DVI-D cables . . . . . . . . . . . . . . . . . . . . . . . 2

5 Medical grade power cord . . . . . . . . . . . . . . . . . . . . 2

6 Medical power adaptor (5V/2A) . . . . . . . . . . . . . . . . .2

For wall mounting:

7 1x Bracket (Standard type for installing) and screw. . . . . 1

For monitor bezel installation:

8 Bracket (Medical type for installing) and screw . . . . . . . 1

9 DC splitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

10 DVI to HDMI signal converter/scaler (WIS1001) . . . . . . . . . . . . . . . . . . . . . . . . . . .1

11 HDMI to HDMI cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

12 Cable guides and extra screws . . . . . . . . . . . . . . . . . . 1

13 Power cable for WIS1001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2. Package Contents

1. Verify that you received all components of your respective package.

2. Inspect each component and verify that none of the components have been tampered with in any way.

3. Optional: Install the corresponding mount to the wall/monitor bezel as desired. Mount the WIS1000 Rx

onto the desired mounting bracket. See mounting instructions in installation section.

FSN1922 - 7/2012

3. Indications for Use

The Foreseeson Custom Display’s WIS1000 transmitter and receiver wirelessly transmit

(60GHz) high quality audio and video (up to 1080p/60Hz) to displays during endoscopic

and surgical procedures including arthroscopy (orthopedic surgery), laparoscopy (general

and gynecological surgery), thorascopy, endoscopy (general, gastroenterological and ENT

surgery) and general surgery. The WIS1000 wireless components are non-sterile reusable

devices not intended for use in the sterile eld.

4. Warnings

Do not use in MR environments.

External equipment intended for connection to signal input, signal output or other con-

nectors, shall comply with relevant IEC standard (e.g., IEC 60950 for IT equipment and IEC

60601 series for medical electrical equipment). In addition, all such combination systems

shall comply with the standard IEC 60601-1-1, safety requirements for medical electrical

systems. Any person who forms a system is therefore responsible for the system to comply

with the requirements of IEC 60601-1-1. If in doubt, contact a qualied technician or your

local representative.

Before connecting the AC power cord to the system, make sure the recommended voltage

designation on the cord corresponds to the available power source.

Never use this system with a damaged power cord. Do not allow anything to rest on the

power cord. Keep the power cord away from areas where it may cause tripping.

Be sure to hold the plug, not the power cord, when disconnecting from an electric socket.

If this system does not operate normally, in particular, if there are any unusual sounds or smells

coming from it unplug it immediately and contact an authorized dealer or service center.

Put this system in a location with low humidity and a minimum amount of dust. Locate it

near an easily accessible AC outlet.

Openings in this system’s cabinet are provided for ventilation. To prevent overheating,

these openings should not be blocked or covered. If placed in an enclosed space, be sure to

provide adequate ventilation.

Do not attempt to disassemble or modify this product. Only authorized personnel should

perform service.

Never insert anything metallic into the cabinet openings and vents. Doing so may create

the danger of electrical shock.

8FSN1922 - 7/2012

Do not touch signal input, signal output or other connectors, and the patient simultaneously.

To reduce the risk of electrical shock, do not remove cover. No user-serviceable parts inside.

Only a qualied technician should open the case of this system.

Power

Use only a properly grounded plug and voltage.

-An improper ground may cause electric shock or equipment damage

WARNING: This is a radio-frequency (RF), radiation emitting device that has nonthermal

biological eects for which no safety guidelines have yet been established. Controversy

exists as to whether these eects are harmful to humans. Exposure to RF radiation may be

reduced by limiting your use of this device and keeping away from the head and body.

5. Precautions

Always treat the product with care and keep it in a clean and dust-free environment.

Do not expose the product to liquid, moisture, or humidity.

Do not use your product in temperatures above 40°C when unit is operational.

Do not drop or throw the product.

Do not attempt to disassemble or modify the product. Only authorized personnel

should perform service on the product.

Do not use dierent AC adapters.

Replace damaged equipment. If damage is found call your COMPANY representative. Do

not attempt to operate the system before thoroughly reading these Instructions for Use.

For future reference, keep these documents in a convenient, easily accessible place.

Installation

Do not connect any other wires or accessories which don’t comply with this system to this

system.

An improper wire may cause electric shock or equipment damage. Insert wire connections

rmly so that they do not come loose.

A bad connection may cause a fault. Do not stack and locate close to other equipment.

FSN1922 - 7/2012

To prevent re or shock hazards, do not expose this unit to rain or moisture. Do not use this

unit’s polarized plug with an extension cord receptacle or other outlets unless the prongs

can be fully inserted. This device is designed to meet the medical safety requirements for a

patient vicinity device.

This device may not be used in connection with life support equipment.

Operating Environment

Be sure to contact this equipment’s supplier if it is to be installed in a location with heavy

dust, high or low temperatures, high humidity, or chemical substances.

Others

Please contact this equipment’s supplier when you want to use this system with unknown

equipment. Please power o and pull out the power cord when you want to move this

system to another place.

Underwriters Laboratories (UL) Classication:

UL safety Compliance:

This system is U.L. Classied WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL

HAZARDS ONLY IN ACCORDANCE WITH UL 60601-1/CAN/CSA C22.2 NO. 601.1

EEC Safety Compliance:

This system meets the requirements of EN-60601-1 so as to conform to the Medical Device

Directive 93/42/EEC (general safety information).

This unit uses plug for US: 120V rating 5-15P type only.

This system complies to the above standards only when used with the supplied medical

grade power supply.

Caution: Make sure the power cord is the correct type that is required in your area.

This system has a universal power supply that allows operation in either 100-120V AC or

200-240V AC voltage areas (no user adjustment is required).

Use the proper power cord with correct attachment plug type. If the power source is 120V

AC, use a Hospital Grade Power Cord with NEMA 5-15 style plug, labeled for 125 volts AC

with UL and C-UL approvals.

If the power source is a 240 V AC supply, use the tandem (T blade) type attachment plug

with ground conductor power cord that meets the respective European country’s safety

regulations.

10 FSN1922 - 7/2012

6. Installation

Receiver Installation

Monitor Mount Option Wall Mount Option

Monitor Mount Option

1) Choose a position 1 or 2

2) Remove two mounting screws, place the bracket in position and reinstall the screws.

3) Connect DVI to HDMI cable between the monitor and WIS1000 Rx.

4) Connect DC splitter between the DC power adapter and monitor.

5) Connect the 5volt cable of the DC splitter to the WIS1000 Rx.

6) Align the cables.

Wall Mount Option

1) Position the wall mount bracket on the wall and mark the screw locations.

2) Insert the two screws into the wall.

3) Slide the Rx or Tx onto the bracket and lock in place with a screw from the underside.

4) Align the bracket holes with the wall screws push and slide down into position.

Position 1

5V DC DC splitter DC input from

adapter

DVI to

HDMI cable

Position 2

Wall or

solid object

Tabla de contenidos

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
