FODSPORTS FX30C PRO Manual de usuario
PRO
30C
Thank you for purchasing the FX 30C PRO helmet Bluetooth intercom with camera .
For optimum use, please read the manual before use.
Attention:
HELMET BLUETOOTH INTERCOM WITH CAMERA
PRO
30C
User Manual
1.Package Include............................................................................................................................................................................
2.Charging.........................................................................................................................................................................................
3.Installation.......................................................................................................................................................................................
4.Camera & Video Function..........................................................................................................................................................
5.Button and Basic Function Operation......................................................................................................................................
6.Device Pairing and Connection.................................................................................................................................................
7.Technical Specifications..............................................................................................................................................................
8.Q&A / Warning...............................................................................................................................................................................
9.Statement / Warranty...................................................................................................................................................................
1
2
5
9
18
23
28
29
30
CONTENTS
PRO
30C
rubber stickersMetal ClipRotating Plastic ClipPlastic ClipButton Microphone
Velcro Eva rubber
Rubber Mat
one-sided rubber sticker
3M Glue Velcro
Start Guide
FX 30C PRO USB CableSpeakers&Hard Tube Microphone
1.Package Iuclude
https://www.fodsports.com
START GUIDE
Long Distance Communication 2-WayIntercom
Smart Noise Reduction
PRO
30C
2.1 When charging, the LED indicator will light up in red, and the indicator light goes out after the charging is
completed(As shown below). Please charge it before using it for the first time.
2.2 Please use 5V/1A±0.5A qualified charger to charge the device. Unstable current may damage the equipment.
2.3 Please keep charging at least once every 2 months If the product is not used for a long time.
2.Charging:
3.1 Speaker Installation
1. Open the inner lining of the
helmet ear position and fix the
Velcro to the ring position.
Remark: the microphone should be closed to and aim at the mouth as possible. The speakers are as close to
ears as possible. If installation position of the speaker is too deep so that the speaker is too far away from the
ear, the sponge in accessory may be used to jack up.
2. Fit the headset to the Velcro
and fix it to the ring position. (The
short-line speaker is on the left).
3. Stick the microphone and
Velcro on the left side of the
helmet at a suitable position,
aim the microphone at the mouth
position, and arrange the wires to
the inner lining.
3.Installation

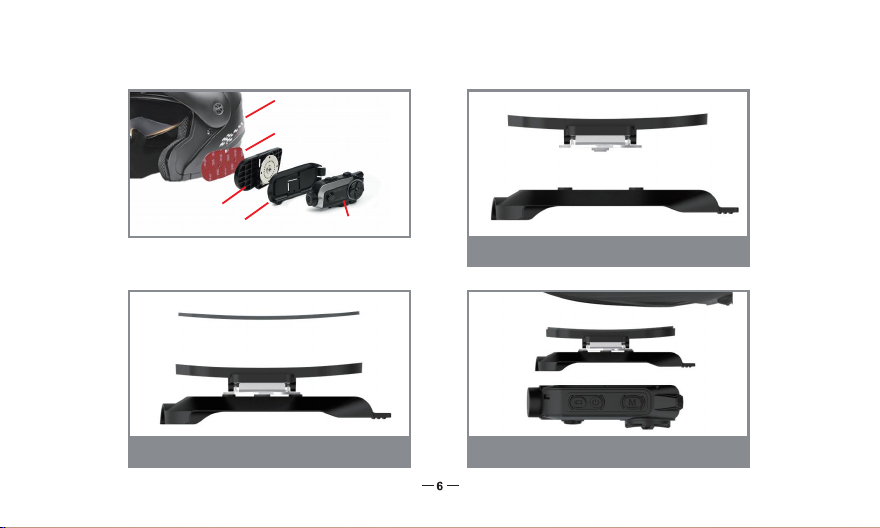

Method 1: Metal Clip + Rotating Parts + Plastic Clip
3.2 Clip Installation
Metal Clip
Rotating Parts
Plastic Clip FX 30C PRO
Helmet
Rubber Pads for
Rotating Parts
Recommended method 1 1.Assemble the Rotating Parts to vvthe Plastic Clip
2.Fix the Rubber Pads to the Rotating Parts;
Assemble the Metal Clip to the Rotating Parts 3.Install the Rotating Parts to helmet
Method 2: 3M Stickers + Rotating Parts+Plastic Clip
1.Assemble the Rotating Parts to the Plastic Clip
2.Fix the Rotating Parts 3M Stickers
to the Rotating Parts 3.Install the FX 30C PRO to the helmet
Helmet
Rotating Parts 3M
Stickers
Rotating Parts
Plastic Clip FX 30C PRO
Method 3: Metal Clip + Plastic Clip
Rubber Pads for
Plastic Clip
Metal Clip
Helmet
Plastic Clip
FX 30C PRO
1.Install the FX 30C PRO into the Plastic Clip
2.Assemble the Plastic Clip and Metal clip 3.Install the FX 30C PRO to the helmet
PRO
30C
3.3 Insert the headset / Pull out headset
Insert the microphone and earphone connection line,
installation complete.
Pull out the headset plug.
PRO
30C
