DS108MaintenanceManual

For internaluse only

2011-8-20

DocumentName DS108Maintenance Manual

Version V1.0

Draft date 2011-8-20

Documentcode

2

TableofContents

1Productperformanceis introduced ---------------------------3

2Themachine disassemblechart andpartslists ---------------4

3Assemble and disassemble guidelines -------------------------5

4Circuitdiagram, detailed instructions---------------------12

5Noteson Failure Handling----------------------------------13

6Faultrepairs-----------------------------------------------14

7Troubleshooting --------------------------------------------16

3

1 Productperformanceisintroduced

1.1Product overallintroduction

GSM/GPRS850/1800/1900or900/1800/1900MHz（0ptional）

WAP/MMS

MP3player

VoiceRecorder

FMRadio-internal antenna

MicroUSB2.0

JAVA

2.2QCIF

MTK6252Aplatform

1.2 Appearance

4

2 Themachinedisassemblechartandparts lists

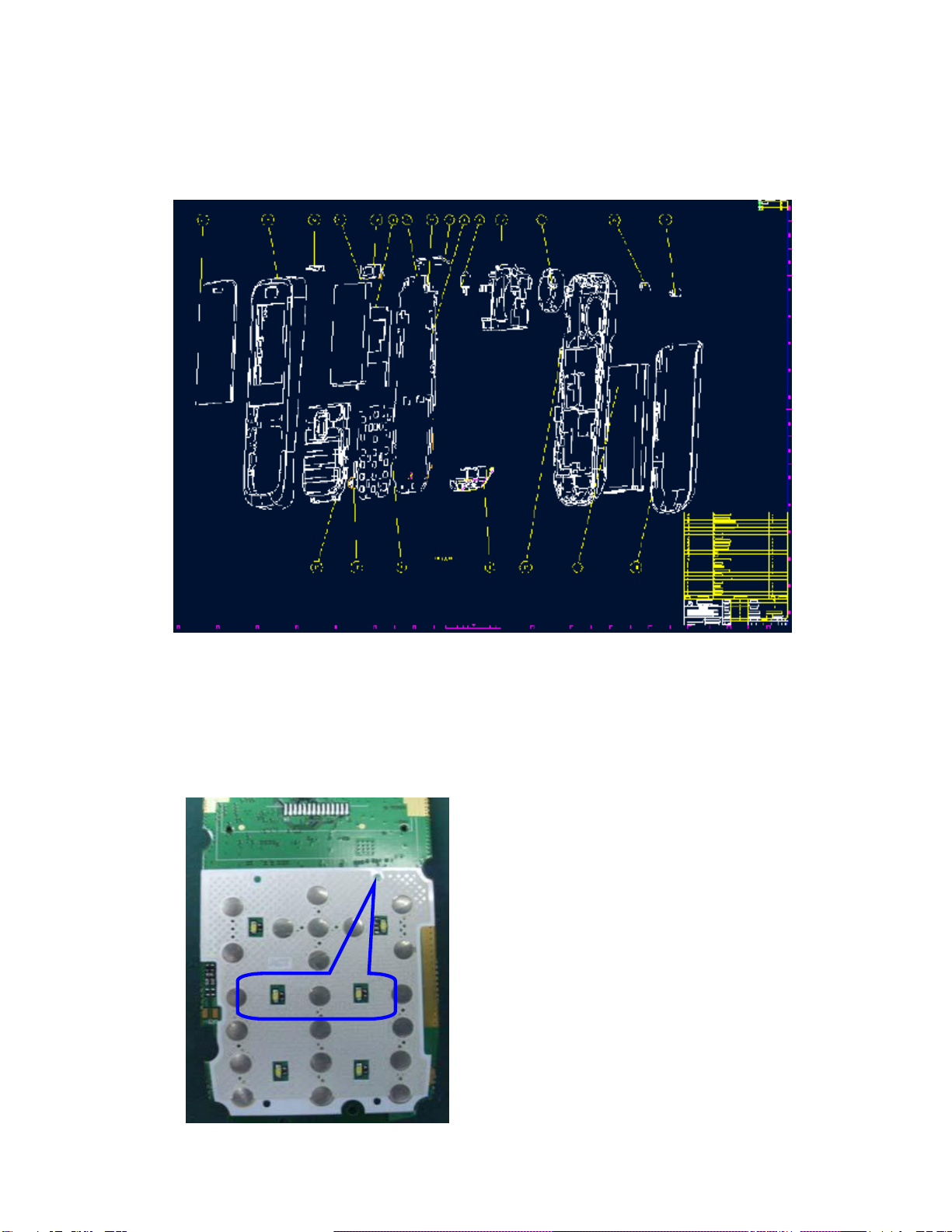

2.1 DS108GSMdigitaltelephonedecompositionfigure

3Assemble and disassembleguidelines

3.1Assembleintroduction

1. AssemblePCBA.

aAssemble Dome;refertothefourholesinDome.

.

Referenceholes

5

bSolderLCD;refertothe signon themainboard, thenstickthegasketunderLCD

d:lie theLCMtomainboard

e. Soldervibratorandspeaker, torch,noticetothe polar, asfigure.

Gasket

Mylartap

6

f.Assemble Speaker trestle as belowturn

putSpeaker into trestle，Assembleholderto PCBA vibrator fasten screw.

g. AssembleGSMantenna, thenfastenthescrew.

+

--

7

h. Soldermicrophone

2.Assemblecover

aAssemblekeypad，Receiver,asfigure

Herefirst

8

b:PutPCBAintocover,notice onthehookandmicrophone.

c:Assembletorchlens

d:AssembleBcover

buttonBcover

②FastenScrews

③Filltheplug

Sol

9

3.1Disassembleintroduction

Disassemblyprocessisoppositetoassemblyprocess

10

4. Circuit diagram, detailed instructions

Baseband

J501 IO connector

U401 FlashRom

U701FMIC

RDA5802HS

J701SIMSlot

J302 Battery

slot

J603T-Card

slot

U201 CPU

MT6252A

X301Crystal

SSP

-

T7

-

F

Camerapad

Lenspad

Keybacklight

U901BTchip

U102RFPA

RPF88162B
