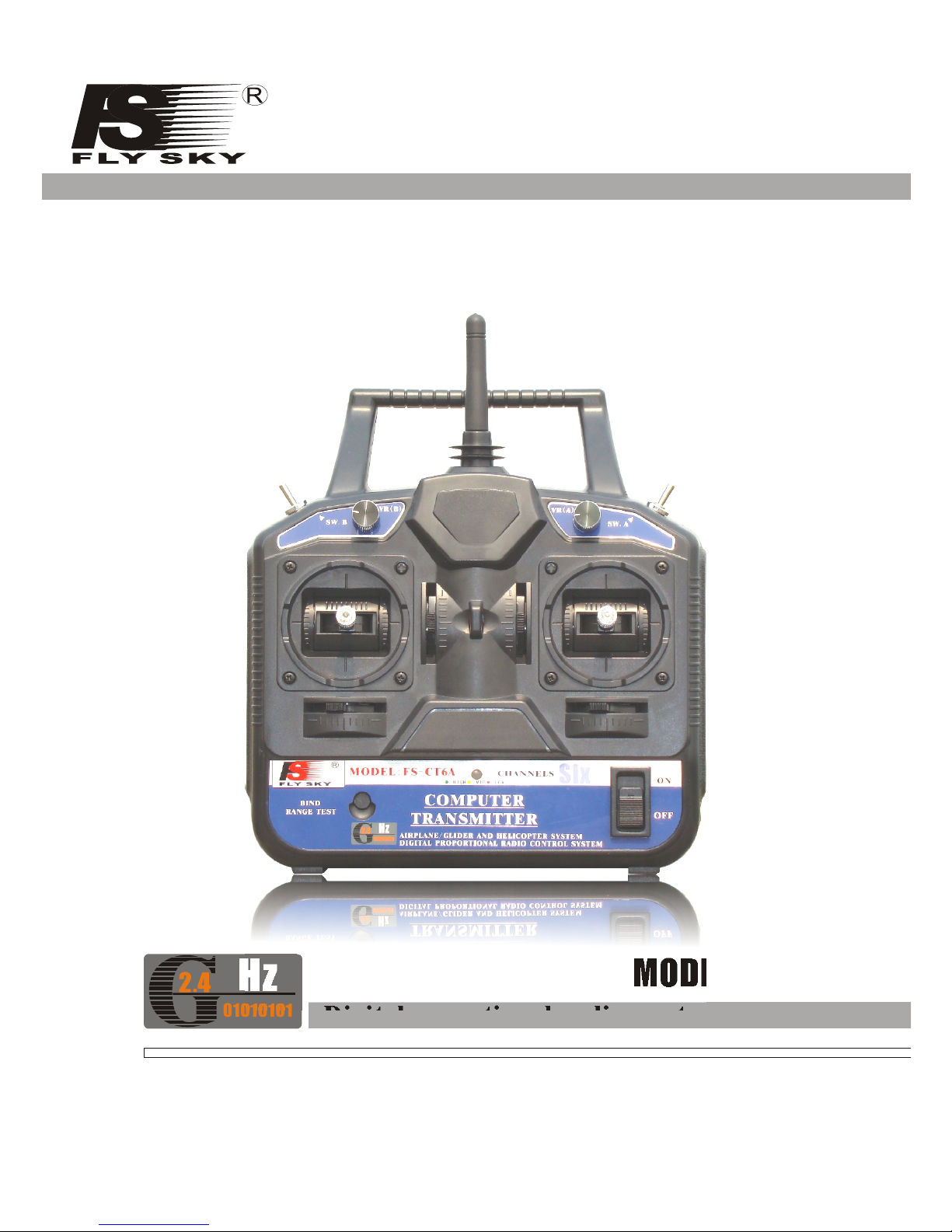

Fly Sky FS-CT6A Manual de usuario

6 CHANNEL RADIO CONTROL SYSTEM

INSTRUCTION MANUAL

Http:www.flyskychina.com

FS-CT6A

MODEL:

Copy right 2007@flysky co.,ltd

Digital propotional radio control system

1. Introduction..................................2

2. Services..... ........ ..... ... ..... ........ ...2

3. The special symbols..... ..... ... ..... ........ .3

4. safty guides..................................3

8.. Each part of the transmitter.....................6

9.Receiver and server connectivity.................7

13.Transmitter function notes（Heli）... ........ ...1 2

14.Transmitter function notes（Plane）... ........ ..1 6

15 Professional terminology .... ........ ........ ...1 9

5. Power charging..... ........ ..... ... ..... .....4

1 0 .2 .4G Operation Notes... ..... ... ..... ... ..... 8

10.01 Matching.............................8

10.02 Boot.................................8

10.03 Shutdown.. ..... ... ..... ..... ... ..... .9

13.01 System function options..... ... ..... ... ..12

1 2 . .. ..... ... ..... ..1 1Computer software installation

13.02 System function settings..................13

13.03 Switches and potentiometer settings... ..... ..15

14.01 System function options..................16

14.03 Switches and potentiometer settings... ..... ..18

14.02 System function settings..................17

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

16 Packaging with content list.....................2 0

6.Transmitter parameters.........................5

7.Receiver parameters...........................5

11. ............1 0Computer hardware connection steps

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

1.Introduction

2.Services

If you found any problems during the operation process, please refer to the manual.

If the problem still exist, you could contact our dealers to found out the way to solve.

And you could also log on to our website service center:

HTTP:WWW.FLYSKYCHINA.COM

Thank you for choosing 2.4 G ratio remote control digital products, if you are the first

time to use this type of products, please read this statement carefully and strictly in

accordance with the requirements of operation. You could refer to the Manual if you

meet any problems during the operation . Please well keep the manual after use

because you might have to use it again next time. Once again, thanks for buying our

products, and hope that it brings happiness to you.

3.The special symbols

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Please pay attention to the following symbols when it appears on the manual,

and read carefully.

Danger:

If the oper ator does not oper ate by following the inst ruct ions,

the oper ator may lead to ser ious injuries, even Mortal dang er.

Warning:

If the operator does not operate by following the inst ruct ions,

the operator may lead to se rious injuries, eve n Mortal danger.

Attention:

If the operator does not operate by following the inst ruct ion s,

the operator may lead to minor injuries, but generally it will

not cau se ser ious injuries to the operator.

Prohibition Mandatory

4.Safty guides

Do not fly in bad weather such as rainy or thundering to assure the

safety of you and others.

Before you fly, please make sure the movement of server are correspond

with the direction of joystick. If inconsistent, please adjust before fly.

You need to turn the throttle channel(ch3) and inching switch

to the lowest before you use. Then switch on the transmitter power

(red light or flashing means low battery),finally connect the receiver.

The Sequence to shut down is first turn the receiver power and the

transmitter power.

If the above operations are reverse, it might lead to uncontrolled and

cause accident.

5.Battery charging notes

If you are using a nickel-cadmium, nickel-metal hydride batteries for

recharging, please use our company dedicated charger. If the electrical current

is too large and it may lead to temperature over-heated and cause fire burning

accident. Please cut off the power supply immediately after recharging. Please

take out the battery from the transmitter when you are not using it within a

period, it is because the battery may damage the aircraft batteries, thus being

exposed.。

Transmitter charger:

1. Install the battery to transmitter with correct direction, and cover it.

2. Connect the charger to the main connector.

3. Connect the charger to the transmitter

Connector.

4. Cut off the power supply immediately after

Recharge completed.

If your transmitter, receiver using a nickel-cadmium, nickel-metal hydride

rechargeable battery, you have to well-check before you fly. If lack of

electricity, it could happen those phenomenon like inadequate control or out of

control, resulting accident. So please charge immediately when low in battery.

Receiver charger:

1. Connect the charger to the main connector.

2. Connect the Rechargeable receiver with battery charger

3. Recharge completed, cut off the power supply immediately.

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

6.Transmitter parameters

7.Receiver parameters

*Channel：6

*Frequency band: 2.4GHz

*Power resource：1.5V*4 "AA"Battery

*Program type: GFSK

*Modulation type: FM

*RF Receiver sensitivity：- 76db

*Static current：≤85mA

*Size：45*23*13.5mm

*Size：25*16.8*6.5mm

*Weigth: 12g

*Color: Gray semi-transparent

*Antenna length：26mm

*Channels：6

*Charger port: Yes

*Frequency band: 2.4GHz

*Simulator port: PS-2

*Power resource：1.5V*8 "AA"Battery

*Program type: GFSK

*Modulation type:FM

*RF power：1 9 d b

*Static current：≤250mA

*Voltage display type：LED

*Size：189*97*218mm

*Weigth: 575g

*Color: black

*Antenna length：26mm

*Heli-140/Heli-120/Heli-90/Acro

*Sub Trim：Yes

*Thro Cuv: Programmable

*Pith Cuv: Programmable

*Support multiple user model

*Support trim movement

*Support rudder angle overturned

*Support rudder angle adjustment

*Support both hand software adjustment

*Support swashplate adjustment

*Support programmable channel output

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

8.Each part of the transmitter

Antenna

Handle

Switch A

Switch B

Pit Trim

HOV.Pit

Aileron

throttle stick

Direction

Elevator

Aileron trim

Throttle trim

Power switch

Power indicator

light

Rudder trim

Elevator trim

Charger

Port

Simulant

connecter

Battery

cover

Battery

box

Front

Back Side

Matching

(yards) keys

9.Receiver and server connectivity

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Receiver Module

CH1

Ch2

Ch3

Ch4

Ch5

Ch6

Main receiver

Battery

When installing the receiver please make sure that

two items showed 90 degree angle.

Receiver

Module

Main receiver

10.2.4G Operation notes

This is 2.4 G Frequency model products make of automatic address code.It use digital

transmission mode, and this prevent outside interference effective active and passive.

10.01 Matching (code)

1. Install the battery to 2.4G transmitter and shut it down.

2. ( 1）。Insert the matching lines to the channel Bat port of the receiver. Figure.

3.Connect the receiver battery to any one of the channel port, on the same time the

two LED are flashing and this means the receiver are going to the match status.

4.Press and hold the button on the transmitter, and then switch on the power supply.

6.Release the match button on the transmitter, take out the match line.

（ )

Observe the LED on the receiver, if found that the LED is not flash anymore and

that means successful matched. This process about 10s

7.Install the server and then test.

8.If the tests fail, please repeat the action above.

9.If the tests success, then insert the power supply port into BAT, match complete.

(The above ways of match is only suitable on FLYSKY 2.4G products)

Our products are well matched in the factory, you do not need to match by yourself.

But if your are going to match the receiver with other transmitter, please follow the

following steps:

Match line

Match key Figure 1

10.02 Boot

1.Connect every part.

2.Switch on the power supply.

3.Connect the power supply.

4.Receive LED light solid.

5.Finish and use.

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Boot

1.Cut off the receiver power supply.

2.Cut off the transmitter power supply.

Tx power ON

Tx power off

Rx power ON

Rx power off

Shut down

10.03 Shut down：
