Fluke CableIQ Manual de usuario
January 2005 (English)
© 2005 Fluke Corporation. All rights reserved. Printed in China.
All product names are trademarks of their respective companies.
CableIQTM
Qualification Tester
Getting Started Guide
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Fluke Networks mainframe products will be free from de-
fects in material and workmanship for one year from the
date of purchase. Parts, accessories, product repairs and
services are warranted for 90 days, unless otherwise stated.
Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripher-
als are all considered parts or accessories. This warranty does
not cover damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or han-
dling. Resellers are not authorized to extend any other war-
ranty on Fluke Networks’ behalf. To obtain service during
the warranty period, contact your nearest Fluke Networks
authorized service center to obtain return authorization
information, then send your defective product to that Ser-
vice Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE NET-
WORKS IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES,
ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limita-
tion of an implied warranty or of incidental or conse-
quential damages, this limitation of liability may not
apply to you.
4/04
Fluke Networks
PO Box 777
Everett, WA 98206-0777
USA
1
CableIQ Qualification Tester
Accessing the Users Manual
This guide provides basic information to help you quickly
get started using the tester. The CableIQ
Qualification
Tester Users Manual on the Product CD provides
additional information.
Safety
XWWarning
The tester is not intended to be connected to active
telephone inputs, systems, or equipment, including ISDN
devices. Prolonged exposure to the voltages applied by
these interfaces may damage the tester. Disconnect the
tester if the voltage alert symbol (V) appears.
Read the safety information given in the CableIQ Users
Manual on the Product CD before using the tester.
Controls
axy01
CableIQ Getting Started Guide
2
Setting User Preferences
Turn the rotary switch to SETUP; then use AD and H
to select a setting.
•User Information: Three lines of text are stored with
saved Autotests.
•Language / ft⋅m: Select a language for the display.
Select feet or meters for length measurements.
•Time / Date: Timestamp saved Autotests.
•Auto Shutoff: The tester stays on indefinitely or
turns off after 15 minutes of inactivity.
Editing Text
Use the keys to edit text on the User Information and
Enter ID screens.
H: Selects the highlighted field for editing.
BC: Moves the cursor. Moving the cursor beyond the
last character inserts the first character from the last
character’s set.
AD: Changes the highlighted character.
JIns: Inserts the first character from the set that
includes the highlighted character.
KDel: Deletes the highlighted character.
SHIFT and Dor SHIFT and A: Changes the character
set.
Character Sets Available
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
#"!$%&'( )*+,-./:;<=>?@[ \ ]^_ `{ | } space
Connecting for Cabling Tests
3
Connecting for Cabling Tests
Notes
A wiremap adapter or remote ID locator must
be connected to the end of the cabling for the
wiremap to be completely verified.
Fluke Networks recommends using patch cords
at least 2 m long.
Connecting to a Data Link
axy10
Connecting to a Bus Topology
axy13
CableIQ Getting Started Guide
4
Connecting to a Star Topology
axy12
Connecting to Coaxial Cabling
axy34
Results Icons
5
Results Icons
The icons below appear on Autotest and Discover
screens.
F The cabling qualifies for the application.
f The cabling does not qualify for the application.
i Results are for informational purposes only, not
for qualification. The cabling cannot be
completely qualified for the application because
the wiremap results are incomplete (wiremap
adapter not used).
O Pair is open.
N Pair is shorted.
W
R
Wiremap adapter or remote ID locator at far
end, with its number.
E Bridge tap detected.
Q Hub, switch, or PC NIC card detected. Port
speeds are 10, 100, 1000 Mb/s.
V Voltage detected. This may indicate an active
telephone circuit, ISDN line, or Power over
Ethernet (PoE) device.
U
The tester is connected to an active telephone
circuit.
T A signal is present on the pair.
? The tester cannot identify the termination.
CableIQ Getting Started Guide
6
Discovering Cabling Characteristics
Discover mode lets you quickly check wiremaps, measure
length, and determine if cabling is connected to a
network port or video device.
Turn the rotary switch to DISCOVER, then connect to
twisted pair or 75 Ωcoaxial cabling with or without a
wiremap adapter at the far end. Results from Discover
mode cannot be saved.

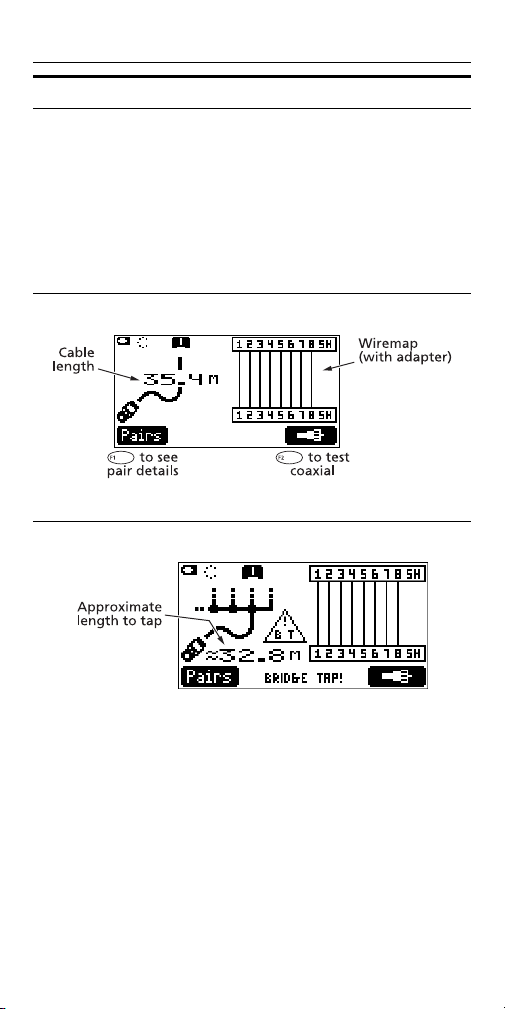

Discover Mode on Twisted Pair Cabling
axy46
Discover Mode on a Bridge Tap
axy49
Discovering Cabling Characteristics
7

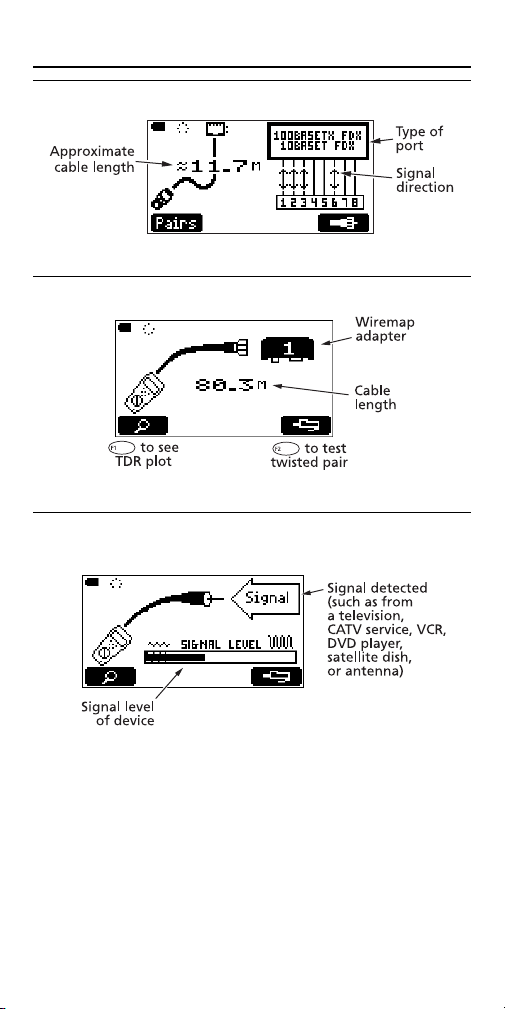

Discover Mode on a Port
axy48
Discover Mode on Coaxial Cabling with Adapter
axy50
Discover Mode on Coaxial Cabling Connected to a
Device
axy35
CableIQ Getting Started Guide
8
Discover Mode with MultiMap
Verifies wiremaps of multiple telephone outlets
connected in a star or bus topology.
axy07
Qualifying Cabling with the Autotest
The Autotest tells you if cabling will support a selected
application. You can save Autotest results to document
an installation.
Connect to the cabling as shown on pages 3 and 4. Turn
the rotary switch to AUTOTEST; then press P. To select
tests and pairs to test, press JSetup.
Note
The Autotest does not support use of multiple
remote ID locators (the MultiMap function).
To save the test, press KS. You can enter a Site
name, Location, and Outlet to identify the results. The
last character of the Outlet string increments each time
you save an Autotest.
