Thank you for purchasing a water pump.

This manual covers the operation and maintenance of water pump: HYDROBLASTER 1.8

The information and specifications included in this publication were in effect at the time of

approval for printing.

General-purpose Engine Co., Ltd. Reserves the right to make changes at any time

without notice and without incurring any obligation.

No part of this publication may be reproduced without written permission.

This manual should be considered a permanent part of the pump and should remain with 7

the pump if it is resold.

The illustrations in this manual are based in: HYDROBLASTER 1.8 High Pressure

The illustration may vary according to the type.

Keep this owner’s manual handy, so you can refer to it at any time. This owner’s manual is

considered a permanent part of the water pump and should remain with the water pump if

resold.

If a problem should arise, or if you have any questions about the pump, consult an

authorized dealer.

CONTENTS

1.INFORMATION ……………………………………………………………………………2

2. COMPONENT …………………………………………………………………………… 6

3. CONTROLS ……………………………………………………………………………7

4. CHECK BEFORE OPERATION …………………………………………………………9

5. OPERATION ……………………………………………………………………………10

6. MAINTENANCE ……………………………………………………………………………14

7. STORAGE/ TRANSPORTING …………………………………………………………23

8．TROUBLESHOOTING …………………………………………………………………26

9. TECHNICAL & CONSUMER INFORMATION ………………………………………27

10. SPECIFICATIONS ………………………………………………………………………29

11. ENGINE TYPE WITH OIL ALERT AND WITHOUT ELECTRIC STARTING

………………………………………………………………………………………30

12.OPERATION ……………………………………………………………………………31

1.INFORMATION

Thank you for purchasing a water pump.

The information and specifications included in this publication

were in effect at the time of approval for printing.

No part of this publication may be reproduced without written

permission.

This manual should be considered a permanent part of the pump

and should remain with the pump if it is resold.

The illustrations in this manual are based in:

HYDROBLASTER 1.8 High Pressure

The illustration may vary according to the type.

Keep this owner's manual handy, so you can refer to it at any time.

This owner's manual is considered a permanent part of the water

pump and should remain with the water pump if resold.

If a problem should arise, or if you have any questions about the

pump, consult you authorized dealer.

Your safety and the safety of others are very important. And using this

water pump safely is an important responsibility.

To help you make informed decisions about safety, we have provided

operating procedures and other information on labels and in this

manual. This information alerts you to potential hazards that could hurt

you or others.

Of course, it is not practical or possible to warn you about all the

hazards associated with operating or maintaining a water pump. You

must use your own good judgment.

You will find important safety information in a variety of forms,

including:

Safety Labels on the pump.

Safety Messages preceded by a safety alert symbol and one of three

signal words, DANGER, WARNING, or CAUTION. These signal words

mean:

You WILL be KILLED or SERIOUSLY HURT if you don't follow

instructions.

You CAN be KILLED or SERIOUSLY HURT if you don't follow

instructions.

You CAN be HURT if you don't follow instructions.

Your pump or other property could be damaged if you don't follow

instructions.

Safety Headings such as IMPORTANT SAFETY INFORMATION.

Safety Section such as PUMP SAFETY.

Instructions how to use this pump correctly and safely.

This entire book is filled with important safety information, please read

it carefully.

IMPORTANT SAFETY INFORMATION

This water pump is designed to pump only water that is not intended for

human consumption, and other uses can result in injury to the operator

or damage to the pump and other property.

Always make a pre-operation inspection before you start the engine.

You may prevent an accident or equipment damage.

Most accidents can be prevented if you follow all instructions in this

manual and on the pump. The most common hazards are discussed

below, along with the best way to protect yourself and others.

Operator Responsibility

It is the operator's responsibility to provide the necessary safeguards

to protect people and property. Know how to stop the pump quickly in

case of emergency.

If you leave the pump for any reason, always turn the engine off.

Understand the use of all controls and connections.

Be sure that anyone who operates the pump receives proper instruction.

Do not let children operate the pump. Keep children and pets away from

the area of operation.

Pump Operation

Pump only water that is not intended for human consumption. Pumping

flammable liquids, such as gasoline or fuel oils, can result in a fire or

explosion, causing serious injury. Pumping sea water, beverages, acids,

chemical solutions, or any other liquid that promotes corrosion can

damage the pump.

Refuel With Care

Gasoline is extremely flammable, and gasoline vapor can explode.

Refuel outdoors, in a well-ventilated area, with the engine stopped and

the pump on a level surface. Do not fill the fuel tank above the fuel

strainer shoulder. Never smoke near gasoline, and keep other flames

and sparks away. Always stored gasoline in an approved container.

Make sure that any spilled fuel has been wiped up before starting the

engine. After refueling, make sure the tank cap closed properly and

securely.

Hot Exhaust

The muffler becomes very hot during operation and remains hot for a

while after stopping the engine. Be careful not to touch the muffler

while it is hot. Let the engine cool before transporting the pump or

storing it indoors.

To prevent fire hazards, keep the pump at least 3 feet (1 meter) away

from building walls and other equipment during operation. Do not place

flammable objects close to the engine.

Carbon Monoxide Hazard Exhaust gas contains poisonous carbon

monoxide. Avoid inhalation of exhaust gas. Never run the engine in a

closed garage or confined area.

2. COMPONENT

3. CONTROLS

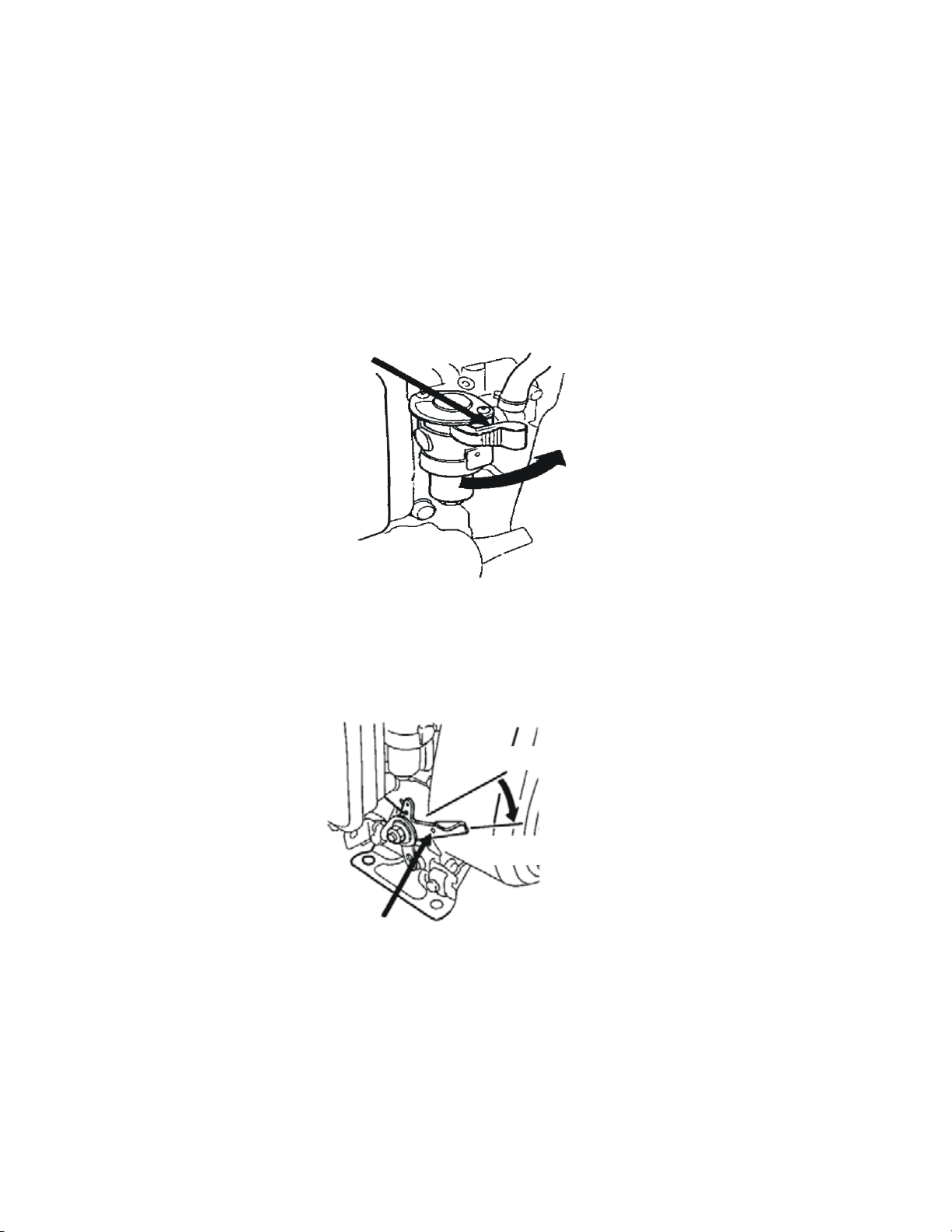

Fuel Valve Lever

The fuel valve opens and closes the passage between the fuel tank and the carburetor.

The fuel valve lever must be in the ON position for the engine to run.

When the engine is not in use, leave the fuel valve lever in the OFF position to prevent

carburetor flooding and to reduce the possibility of fuel leakage.

FUEL

VALVE

Throttle Lever

The throttle lever controls engine speed.

Moving the throttle lever in the directions shown makes the engine run faster or slower.

THROTTLE LEVER

HI GH SPEED

LOW SPEED

Engine Switch

The engine switch enables and disables the ignition system.

The engine switch must be in the ON position for the engine to run.

Turning the engine switch to the OFF position stops the engine.
