Flip-Pal 100C Manual de usuario

User’s Guide

User’s Guide for Mobile Scanner – Flip-Pal®100C

Legal and notice information

The information in this manual is subject to change without notice.

The only warranty for this product is set forth in the express warranty statement accompanying

the product. Nothing in this manual should be construed as constituting an additional warranty.

Couragent, Inc. shall not be liable for technical or editorial errors or omissions contained herein.

“FLIP-PAL®” and the Flip-Pal®logo are trademarks of Couragent, Inc.

Windows® is a U.S. registered trademark of Microsoft Corporation.

and logos are trademarks of SD-3C, LLC.

Other names and products not mentioned above may be registered trademarks or

trademarks of their respective companies.

Table of Contents

Table of Contents....................................................................................................................... 3

1 Introduction............................................................................................................................. 4

Meet the Flip-Pal®Mobile Scanner................................................4

What’s In the Box? .........................................................................4

Scanner Overview ..........................................................................4

2 Setup and Overview................................................................................................................ 5

Apply Window Protector Sheet (Optional)....................................5

Activate the Batteries.....................................................................5

Power On and Off...........................................................................5

Set Date and Time ..........................................................................6

Home Screen ..................................................................................6

Review Screen................................................................................6

Menu and Status Bar......................................................................7

Customizing Settings.....................................................................7

Setting the Resolution ...................................................................8

Setting the Power-Saver Timer......................................................8

Quick Tips.......................................................................................8

Customizing the Home Screen......................................................8

3 Scanning and Reviewing......................................................................................................... 9

Standard Scanning.........................................................................9

Flip and Scan..................................................................................9

Scanning Large Originals............................................................10

Reviewing Scans..........................................................................11

4 Using Scans...........................................................................................................................12

Flip-Pal®Software on the SD Card ..............................................12

How to Transfer and Delete Scans..............................................13

How to Stitch Large Originals with Flip-Pal®EasyStitch Software14

How to Restore Color to Faded or Yellowed Photos .................14

How to Upload Scans to Facebook.............................................15

How to Order Prints......................................................................15

5 Specifications.........................................................................................................................16

Battery Information ......................................................................16

Supported Batteries and Battery Life..................................................................................16

Replacing Batteries............................................................................................................16

Extending Battery Life........................................................................................................16

SD Memory Cards.........................................................................16

Other Uses for the SD Memory Card .................................................................................17

Product Care.................................................................................17

Operating System and Browser Support....................................17

Accessories and Replacement Parts..........................................17

Troubleshooting...........................................................................18

Customer Support........................................................................18

Limited Warranty................................................................................................................18

Disclaimer..........................................................................................................................18

Declaration of Conformity...................................................................................................19

Appendix A –Flip-Pal®EasyStitch End-User Software License Agreement20

1 Introduction

Meet the Flip-Pal®Mobile Scanner

With the Flip-Pal®mobile scanner, no longer will your precious photos and other memories be

scattered or lost. Have fun, enhance your creativity and share your memories with family and

friends. Use it like a traditional scanner, or take advantage of the multi-use, patented flip-and-

scan technology.

Scan anywhere, anytime. Enjoy its versatility in scanning any size document and even small

objects. Appreciate how the scans look just like the original. Save time and keep your photos

safe by scanning them while still in an album or frame.

What’s In the Box?

Your Flip-Pal®mobile scanner comes with everything you need to scan photos, drawings and

other documents. Included with the scanner are:

Flip-Pal®Model 100C Mobile Scanner

oFour AA batteries (installed)

o2GB SD memory card (installed) which stores your scans and also contains Flip-

Pal®Software. To remove it, push it in gently; it will spring out, allowing you to

slide it out.

SD Memory Card to USB adaptor

Quick Start Guide

Scanner Overview

Bottom (viewing side)

Top (scanning side)

Scanner Bed

Removable Lid

Display

UP, DOWN, RIGHT, LEFT ARROW Buttons

OK Button (center)

Photo Guide

Viewing Window for Flip

and Scan

Battery Compartment

Business Card Pocket

SD Memory Card Slot

Scan Button

Power Switch

2 Setup and Overview

Apply Window Protector Sheet (Optional)

The bottom viewing window is made of a strong, scratch-resistant plastic. It may get scratched

when carrying the scanner around. You can protect it with either a carrying case or by applying

an optional window protector sheet.

The window protector sheet provides additional protection against scratches to the bottom

viewing window. Do not apply it to the scanner bed. To apply it, follow these steps:

1. Clean the bottom viewing window of any dirt

or fingerprints if needed.

2. Peel corner of the protector sheet away from

the backing. Align sheet along one side of the

bottom window, matching the corners.

Carefully hold the protector sheet at the

corners when applying to eliminate any oils or

fingerprints that may remain on the protector.

3. Lay the sheet down while sliding a credit card

across the window protector to apply. To

reposition, gently lift up and reapply. Any

“bubbles” remaining after you smooth out the sheet will not affect scan quality.

4. Replace window protector as needed. Replacement sheets can be ordered from www.flip-

pal.com.

Activate the Batteries

The scanner is shipped ready to use with four AA batteries. To activate them, remove the

battery-protect tab by pulling the plastic tab protruding through the small gap in the battery door,

located on the bottom of the scanner. It is not necessary to open the battery door to pull the tab

out.

Power On and Off

When you are done using your scanner, move the power switch toward the back of the scanner

to power it down. The scanner will also power down automatically, based on the Power-Saver

Timer setting (default is 2 minutes). On newer models, it will power down after 5-10 seconds if

the SD memory card is removed.

Press gently on battery door

while pulling tab sideways to

remove

Slide the spring-loaded

power switch toward rear,

hold until the display lights

up, then release

Battery Life

Resolution

Scans Remaining

Custom Settings

Quick Tips

NOTE: On some older scanners, the screen dims after 60 seconds of not being used, to save

battery power. Pressing any button will return the screen to full brightness.

Set Date and Time

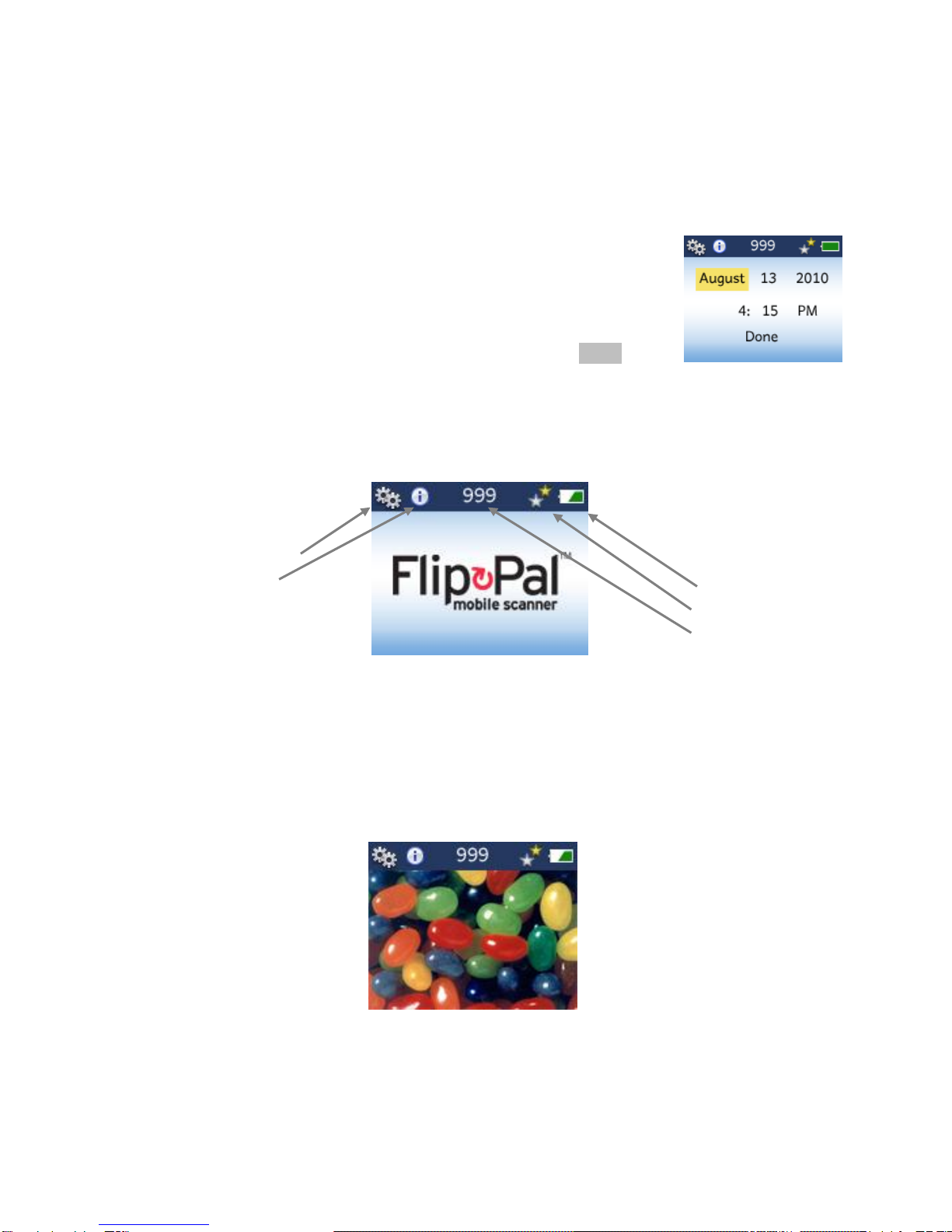

The scanner performs a quick self-test then asks you to set the date and time. Here is the

screen you will see.

Use UP ARROW and DOWN ARROW to change the value within each

field. Use LEFT ARROW and RIGHT ARROW to scroll to each of the

fields in turn, starting with Month and ending with AM/PM.

When you are satisfied with all settings, move the highlight to Done and

press OK to save the settings and go to the Home Screen. If you want to skip this step, you

can just press the green scan button; the scanner will use either the default date and time, or

the latest one set.

Home Screen

Review Screen

After you have scanned, you will see the Review Screen, with the most-recently scanned

image.

Use LEFT ARROW to scroll backwards through previous scans and RIGHT ARROW to scroll

forward.

Menu and Status Bar

The bar at the top of the screen shows menu choices and status icons:

Status

1. Custom Settings:

Resolution

Power-Saver Timer

2. Quick Tips:

Reminders on how to use the scanner.

3. Estimated Scans Remaining:

4. Resolution Indicator:

1 yellow star: 300 DPI: fastest scan, smaller file

2 yellow stars: 600 DPI: more detail, good for

enlargements

5. Battery Life Indicator

Customizing Settings

There are two settings that you can customize:

Resolution

1 star = 300 DPI*

2 stars = 600 DPI

Power-Saver

Timer

1, 2*, or 10 minutes before scanner powers down when not in use.

Use a shorter setting to help preserve battery life. Use the 10-minute

setting when transferring a large number of scans with a wireless SD

memory card (available from third parties).

*Default Settings

To access the Settings menu, press UP ARROW from either the Home or Review Screen, then

press DOWN ARROW to get into the settings menu. You will see the following screen. Current

settings are indicated with a green checkmark.

Status

Setting the Resolution

From either the Home or Review Screen:

Press UP ARROW to highlight the Settings icon. The current or factory settings will have a

checkmark above them.

Press DOWN ARROW to move into the Resolution (dpi) menu.

Use RIGHT ARROW to highlight the desired resolution setting

Press OK to select.

Press OK again to move back to the Home Screen or the Review Screen, if there are

images to review or Press DOWN ARROW to move to the Power-Saver Timer setting.

Setting the Power-Saver Timer

From the Resolution setting (above):

Press DOWN ARROW to move to the Power-Saver Timer setting.

Use RIGHT or LEFT ARROW to highlight the desired timer setting.

Press OK to select.

Press OK again to move back to the Home or Review Screen.

Quick Tips

To see a variety of tips on using your scanner, from the Home or Review Screen, press UP

ARROW then RIGHT ARROW to move to Quick Tips. You will see the Contents Screen similar

to this.

Use UP or DOWN ARROW to scroll through the contents. Press OK to view the Quick Tip for

that topic. If a topic takes more than one screen press RIGHT ARROW to move to the next

screen.

After reading a Quick Tip, you can:

Press LEFT ARROW to go back to the index

Press UP ARROW or DOWN ARROW to scroll through all the tips

Press OK to return to the Home or Review Screen

Customizing the Home Screen

You can use one of your own images for the Home Screen. It can be any JPEG file with an

image that is 160 pixels wide by 106 pixels tall. The name must be MyScanner.jpeg. Store it

in the top level of the SD memory card. Visit www.flip-pal.com for more information.

3 Scanning and Reviewing

Standard Scanning

You can scan originals up to 4x6 inches.

The scan is stored on the SD memory card and the scanner will be in Review mode. Scanning

is complete when the entire image is displayed.

To help ensure that the scan is straight, align the original with the photo guide on the lid as

shown.

Flip and Scan

Flip scanning allows you to scan a photo in an album or frame, scan large originals for stitching

together later on your computer, or scan small objects such as coins. To flip and scan:

When the scan bar stops its forward motion, the scan is done and you can move the scanner.

1. Open the lid

2. Place original face down on scanner

bed; align with photo guide

3. Close the lid

4. Press green Scan button

5. Scan is done when image is shown

on display

1. Remove lid: Pull up

on small tabs at ends

of the Photo Guide

2. Flip scanner over onto original

3. Align by looking through the

viewing window

4. Press green Scan button

Scanning Large Originals

For originals larger than 4x6 inches, you can take multiple scans of the original, then stitch them

together later on your computer using Flip-Pal®EasyStitch software. (see How to Stitch Large

Originals in Chapter 4.)

Remove the lid and flip the scanner over. Make multiple scans, allowing at least 1 inch or

more overlap between adjacent scans. The overlaps need not be aligned or spaced precisely;

the stitching software compensates for that. It is OK to scan past the edge of the photo. Be sure

to keep the scanner still during each scan.

You can use the lines etched in the bottom window to

align the overlaps.

If you are scanning something like a framed photo it is

acceptable to rotate the scanner along one edge to capture the entire image. The EasyStitch

software will rotate individual scans as needed to ensure proper stitching of the final image.

Example:

These scans can then be stitched together to form one image.

Otros manuales para 100C

Tabla de contenidos

Otros manuales de Escáner de Flip-Pal

Flip-Pal

Flip-Pal 100C Manual de usuario

Flip-Pal

Flip-Pal 100C Manual de usuario

Manuales populares de Escáner de otras marcas

Plustek

Plustek Scanner Manual de usuario

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manual de usuario

Renkforce

Renkforce DS100-5M Manual de usuario

Image Access

Image Access WideTEK A2 Manual de usuario

Canon

Canon imageFORMULA CR-120N Manual de usuario

Fujitsu

Fujitsu FI-4860C2 Manual de usuario

GeoSlam

GeoSlam ZEB Horizon Instrucciones de instalación

Kodak

Kodak i5800 Scanner Manual de usuario

Kodak

Kodak i7300 Manual de usuario

Revopoint

Revopoint POP Manual de usuario

Fujitsu

Fujitsu fi-4860C Manual de usuario

Eddyfi Technologies

Eddyfi Technologies Floormap X Manual de usuario

Faselase

Faselase F6 Manual de usuario

Fujitsu

Fujitsu CardMinder Manual de usuario

Uniden

Uniden BC340CRS Manual de usuario

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manual de usuario

Mustek

Mustek PageExpress 4800 Pro Manual de usuario

Optex

Optex 750830 Manual de usuario
