(EN) THANK YOU FOR PURCHASING THIS FLASH-BUTRYM

PRODUCT. BEFORE BEGINNING TO OPERATE THIS UNIT, PLEASE

READ THE INSTRUCTIONS CAREFULLY TO ENSURE THE BEST

POSSIBLE PERFORMANCE.

(PL) DZIĘKUJEMY ZA ZAKUP PRODUKTU FLASH-BUTRYM. PRZED

ROZPOCZĘCIEM OBSŁUGI TEGO URZĄDZENIA NALEŻY UWAŻNIE

PRZECZYTAĆ INSTRUKCJĘ, ABY ZAPEWNIĆ NAJLEPSZĄ MOŻLIWĄ

WYDAJNOŚĆ.

Please keep this User Manual for future

consultation. If you sell the xture to another

user, be sure that they also receive this

instruction booklet.

Unpack and check carefully there is no

transportation damage before using the xture.

Before operating, ensure that the voltage and

frequency of power supply match the power

requirements of the xture.

It’s important to ground the yellow/green

conductor to earth in order to avoid electric

shock.

Disconnect main power before servicing and

maintenance.

Use safety chain when xes this xture. Don’t

handle the xture by taking its head only, but

always by taking its base.

Maximum ambient temperature is: 40°C Don’t

operate it where the temperature is higher than

this.

WARNING! The Led Moving Head (LMH) has a powerful pan motor. The torque reaction when

the head is panned suddenly can cause the base to move if the fixture is standing unsecured on

a surface. Do not apply power to the LMH unless the baase is securely fastened to a surface or to

rigging hardware.

WARNING! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock

each clamp with both 1/4-turn fasteners. Fasteners are locked only when turned a full 90clockwise.

WARNING! When clamping the fixture to a truss or other structure at any other angle than with

the yoke hanging vertically downwards, use two clamps of half-coupler type. Do not use any type of

clamp that does not completely encircle the structure when fastened.

WARNING! Position or shade the head so that the front lens will not be exposed to sunlight or any

other strong light source from any angle - even for a few seconds. See Figure 1. The LMH lens

can focused the sun's rays, creating a potential fire hazard and causing damage.

IMPORTANT! Do not point strong light output from other fixtures at the LMH, as intense

illumination can damaged the display.

In the event of serious operating problem,

stop using the xture immediately. Never try

to repair the xture by yourself. Repairs carried

out by unskilled people can lead to damage

or malfunction. Please contact the nearest

authorized technical assistance center. Always

use the same type spare parts.

Do not connect the device to any dimmer

pack.

Do not touch any wire during operation and

there might be a hazard of electric shock.

To prevent or reduce the risk of electrical

shock or re, do not expose the xture to rain

or moisture.

The housing must be replaced if they are

visibly damaged.

Do not look directly at the LED light spot while

the xture is on.

2. SAFETY INFORMATION

1. INTRODUCTION

THANK YOU FOR PURCHASING LED FRAME 700W. FOR SAFETY REASONS AND TO

ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS.

User Manual • Instrukcja Obsługi

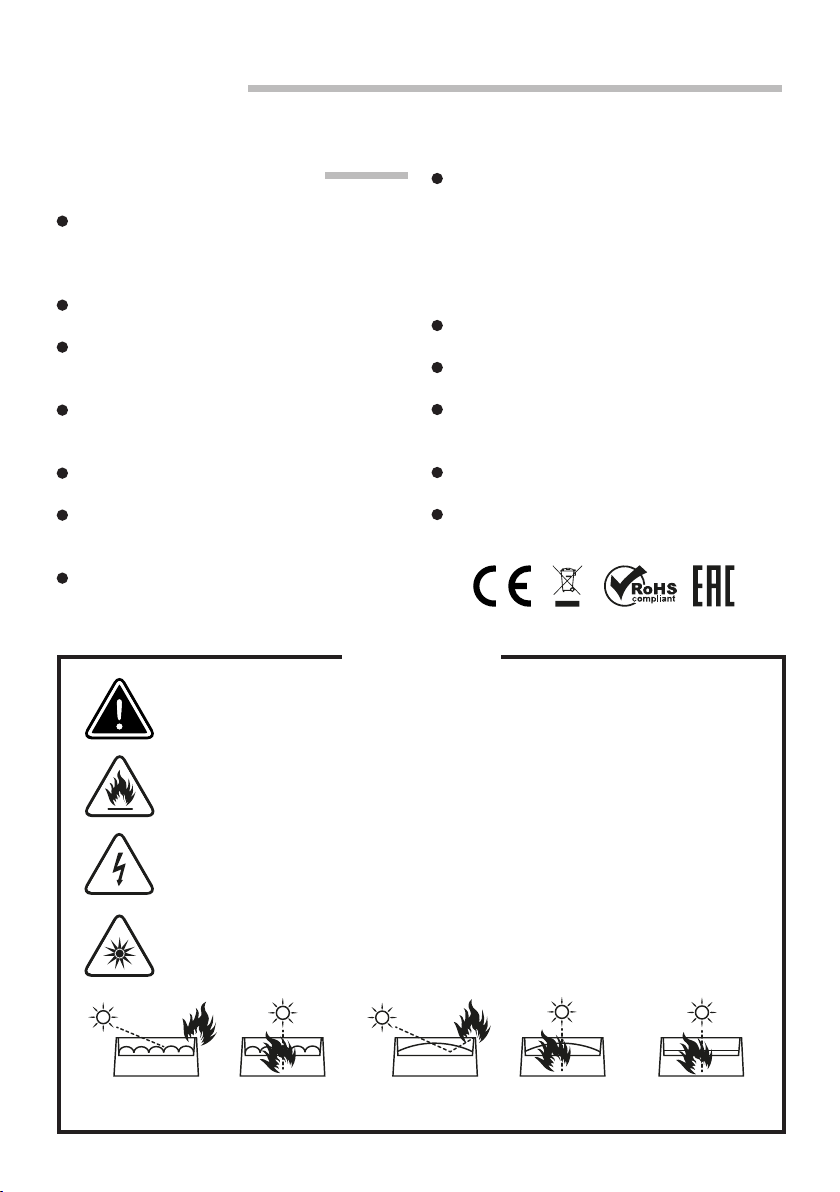

Figure 1. Lenses can focused sunlight and strong light, presenting a risk of fire and damage to the fixture.

Shield or shade the head if necessary.

WARNING

LED FRAME 700W • Art No F7100751

The unit should be mounted via its screw

holes on the bracket. Always ensure that

the unit is firmly fixed to avoid vibration

and slipping while operating. Always

ensure that the structure to which you are

attaching the unit is secure and is able to

support a weight of 10 times of the unit’s

5.1 Connecting DMX signal

The connection is performed using cable with

XLR-female -> XLR-Male plugs.

4. INSTALLATION

5. CONNECTION

3. PRODUCT INFORMATION

weight. Also always use a safety cable

that can hold 12 times of the weight of

the unit when installing the fixture. The

equipment must be fixed by professionals.

And it must be fixed at a place where is

out of the touch of people and has no one

pass by or under it.

The device is equipped with the following

interfaces:

1. DMX (in/out): XLR 3(5)-pin socket

2. Power (in/out): powerCON socket

CAUTION! At the last xture, the

DMX signal has to be terminated with

a terminator. Solder a  resistor

between signal (-) and signal (+) into a

XLR plug and plug it in the DMX output of

the last xture.

FEMALE

XLR

GROUND

DMX +

DMX -

MALE

XLR

3-pin XLR

FEMALE

XLR

GROUND

DMX +

DMX -

MALE

XLR

5-pin XLR

Light Source: 1 Standard LED (Single color)

Power consumption: 700W

Power supply voltage: 110-240V,

50/60Hz AC

PAN range: 540°

TILT range: 270°

Beam angle (min/max): 5°-55°

Color: 8000K, Color wheel - 7 colors

+ white (open)

Zoom: Yes

Focus: Electronic

Gobo wheel: Roto Gobo: (6 interchangeable

gobos, 1 xed gobo, 1 empty) indexed,

Fixed Gobo: (8 interchangeable gobos,

1 empty) indexed

Prism: 3-wall prism, 6-sided linear prism

(can work together at the same time)

Flash frequency min./max: 0-20Hz

Features: Linear CRI lter from 68 to 90

CRI. Animation wheel: Dynamic ame or

water effect with no rotation limit,

indexed. CTO.

Framing: 4 knives + 90 degrees rotation

mounted close to each other, which

means that you can sharpen each knife at

the same time

Operating modes: DMX 512, RDM, Artnet

(Optional), Auto-running, Master/Salve,

Sound active, Built-in program

Frost lter: Yes

36 DMX channel mode.

IP Rating: IP20

Housing made: ABS

Cooling: Active

AC IN/OUT: powerCON IP65

3-Pin XLR DMX Input/Output

Net Weight: 36kg

Dimensions: H(90,5)xW(56)xD(45,5) cm

Weight: 6 kg

The connection is performed using

power cable with PowerCon connector

(included). The device must be

operated by qualified personnel.

1. Press „Menu” to „Set DMX Address”,

and press „ENTER” keys to enter into.

2. Show „Set DMX Address DMX Address:

001”, Press the „UP and DOWN” keys to

amended.

5.2 Voltage specification

5.5 Set DMX Address Code

Input Voltage Total Power Frequency

110~240V AC 700W 50/60Hz

5.3 Connecting power supply

CAUTION! In the case of cable damage do not attempt to repair.

Replacement or repair can be made only on the manufacturer or by

a person with appropriate permissions.

Make sure that the power grid supply

parameters are consistent with device

parameters and limitations are not exceeded.

Using lamp, the change rate of power voltage should be within

±10%, if the voltage is too high, it will shorten the light’s life; if it’s not

enough, the lamp will be dark. Please restart it after turning off light

for 20 minutes until full-cooling. Frequent switching will reduce the

life span of lamps and bulbs; intermittent using will improve the life

of bulbs and lamps.

3. Press „ENTER” keys to save and Exit,

Press the „MENU” Keys does not save

and Exit.

DMX

Controller DMX 512 DMX 512 120



User Manual • Instrukcja Obsługi

6. DMX CHANNELS

36 CH Mode

CH Function Value Description

1PAN 0-255 0-540

2 PAN Fine 0-255 0-2

3 Tilt 0-255 0-270

4 Tilt Fine 0-255 0-1

5 Pan/Tilt Speed 0-255 From Fast » Slow

6 Strobe 0-3 OFF

4-127 Pulse Strobe from Slow » Fast

128-191 Gradual Strobe from Slow » Fast

192-251 Random Strobe from Slow » Fast

252-255 ON

7 Dimmer 0-255 0-100% Linear Dimmer

8 C 0-255

9 M 0-255

10 Y 0-255

11 CTO 0-255

12 Color 0-127 Linear Color

128-137 Red

138-146 Green

147-155 Blue

156-164 Yellow

165-173 Magenta

174-182 Orange

183-191 Pink

192-222 Clockwise color effect Fast » Slow

223-224 STOP

225-255 Anticlockwise color effect from Slow » Fast

13 CRI 0-79 Mover away

80-255 Insert

LED FRAME 700W • Art No F7100751

CH Function Value Description

14 Fixed Gobo 0-9 White (OPEN)

10-19 Gobo 1

20-29 Gobo 2

30-39 Gobo 3

40-49 Gobo 4

50-59 Gobo 5

60-69 Gobo 6

70-79 Gobo 7

80-89 Gobo 8

90-99 Gobo 1 (Shake)

100-109 Gobo 2 (Shake)

110-119 Gobo 3 (Shake)

120-129 Gobo 4 (Shake)

130-139 Gobo 5 (Shake)

140-149 Gobo 6 (Shake)

150-159 Gobo 7 (Shake)

160-169 Gobo 8 (Shake)

170-212 Gobo rotation Clockwise Fast >> Slow

213-215 STOP

216-255 Gobo rotation Anticlockwise Slow >> Fast

15 Rotation Gobo 0-9 White (Open)

10-19 Rot. Gobo 1

20-29 Rot. Gobo 2

30-39 Rot. Gobo 3

40-49 Rot. Gobo 4

50-59 Rot. Gobo 5

60-69 Rot. Gobo 6

70-79 Rot. Gobo 1 (Shake)

80-89 Rot. Gobo 2 (Shake)

90-99 Rot. Gobo 3 (Shake)

100-109 Rot. Gobo 4 (Shake)

User Manual • Instrukcja Obsługi

CH Function Value Description

110-119 Rot. Gobo 5 (Shake)

120-129 Rot. Gobo 6 (Shake)

130-190 Rot. Gobo rotation Anticlockwise Fast>>Slow

191-192 STOP

193-255 Rot. Gobo rotation Anticlockwise Slow>>Fast

16 Indexed Gobo Rot. 0-127 Indexde Gobo Rotation

128-190 Clockwise Rotation Fast >> Slow

191-192 STOP

193-255 Anticlockwise Rotation Slow >> Fast

17 Effect Insert 0-255

18 Effect Rotation 0-128 Anticlockwise Eff. Rotation Slow >> Fast

129-255 Clockwise Eff. Rotation Slow >> Fast

19 Focus 0-255

20 Focus ne 0-255

21 Zoom 0-255

22 Prism 1 0-63 Empty

64-127 Prism 1

128-191 Prism 2

192-255 Prism 1 + Prism 2

23 Prism 1 Rotation 0-127 Prism Indexed

128-187 Prism Rotation Clockwise Fast >> Slow

188-195 STOP

196-255 Prism Rot. Anticlockwise Slow >> Fast

24 Prism 2 Rotation 0-127 Prism Indexed

128-187 Prism Rotation Clockwise Fast >> Slow

188-195 STOP

196-255 Prism Rot. Anticlockwise Slow >> Fast

25 Frost 0-127 Frost OFF

128-255 Frost ON

26 Blade 1 0-255 Linear Insert - Left Top

27 Blade 2 0-255 Linear Insert - Left Down

LED FRAME 700W • Art No F7100751

User Manual • Instrukcja Obsługi

CH Function Value Description

28 Blade 3 0-255 Linear Insert - Right Down

29 Blade 4 0-255 Linear Insert - Right Top

30 Blade 5 0-255 Linear Insert - Top Left

31 Blade 6 0-255 Linear Insert - Top Right

32 Blade 7 0-255 Linear Insert - Down Left

33 Blade 8 0-255 Linear Insert - Down Right

34 Blade wheel 0-255 Blades Rotation Anticlockwise

35 Iris 0-127 Indexed Open >> Close

128-255 Speed Pulse Close >> Open (Slow >> Fast)

36 Function 0-209 Empty

210-219 Reset XY after 3 sec.

220-235 Reset effect motor after 4 sec.

240-255 Reset whole unit after 5 sec.

LED FRAME 700W • Art No F7100751

User Manual • Instrukcja Obsługi

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Equipo de DJ de Flash

Flash

Flash F7100545 Manual de usuario

Flash

Flash F71000269 Manual de usuario

Flash

Flash F7200177 Manual de usuario

Flash

Flash FL-230 Manual de usuario

Flash

Flash LIGHT BOX MOON 1 Manual de usuario

Flash

Flash DIAMOND ROTO PRISM Manual de usuario

Flash

Flash Spyder 3-HEAD Manual de usuario

Flash

Flash F7100336 Manual de usuario

Flash

Flash Strobe FL-1500 DMX Manual de usuario

Flash

Flash STROBO FL-1500SC DMX Manual de usuario

Flash

Flash LED MOONTH FLOWER LIGHT Manual de usuario

Flash

Flash LED Spyder Mini Moving Head 8x15W 4in1 RGBW- No Limit... Manual de usuario

Flash

Flash BEAM Moving Head 15R Manual de usuario

Flash

Flash F5300003 Manual de usuario

Flash

Flash F7100499 Manual de usuario

Flash

Flash F7100098 Manual de usuario

Flash

Flash F7200169 Manual de usuario

Flash

Flash F7000643 Manual de usuario

Flash

Flash F7100315 Manual de usuario

Flash

Flash F7000543 Manual de usuario

Flash

Flash LED MOVING HEAD 60W Manual de usuario

Flash

Flash LASER 2000mW RGB Manual de usuario

Flash

Flash F7100305 Manual de usuario

Flash

Flash LED PAR 56 7X15W RGBWA+UV 6IN1 Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
