Flare Fireplaces CLASS 2901 84 Manual de usuario

INSTALLER: Leave this manual with appliance

CONSUMER: Retain this manual for future reference.

Installation & servicing of this appliance MUST be performed by a qualified NFI certified technician.

MASSACHUSETTS: The piping and final gas connection must be performed by a licensed plumber gas fitter in

the state of Massachusetts.

Modern Gas Fireplaces –Linear Fireplaces

FLARE FIREPLACES | POWER VENT INSTALLATION MANUAL

[SIT CS7 SYSTEM] HIGH VOLTAGE VERSION 5.7

NOTICE

WARNING: IF THE INFORMATION IN THESE INSTRUCTIONS

ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY

RESULT , CAUSING PROPERTY DAMAGE, PERSONAL INJURY,

OR LOSS OF LIFE.

-DO NOT STORE OR USE GASOLINE OR OTHER

FLAMMABEL VAPORS AND LIQUIDS IN THE VICINTY OF

THIS OR ANY OTHER APPLIANCE.

-WHAT TO DO IF YOU SMELL GAS?

•DO NOT TRY TO LIGHT ANY APPLIANCE

•DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT

USE ANY PHONE IN YOUR BUILDING.

•IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A

NEIGHBOR’S PHONE. FOLLOW THE GAS SUPPLIERS’

INSTRUCTIONS.

•IF YOU CANNOT REACH YOUR GAS SUUPLIER, CALL

THE FIRE DEPARTMENT.

-INSTALLATION AND SERVICE MUST BE PERFORMED BY A

QUALIFIED INSTALLER, SERVICE AGENCY OR GAS

SUPPLIER.

2 | P a g e

CONTENTS
SAFTEY INFO AND WARNINGS ......................................................................................................................................................3
FLARE FIREPLACES –FRAMELSS IN EVERY WAY .............................................................................................................................4
SAFETY ........................................................................................................................................................................................4
MANUAL MODEL LIST & INFORMATION........................................................................................................................................4
POWER VENTING OVERVIEW .......................................................................................................................................................5
POWER VENT DRAWINGS.............................................................................................................................................................5
HORIZONTAL END OF LINE POWER VENT DRAWING ...........................................................................................................................5
HORIZONTAL END-OF-LINE POWER VENT FRAMING DIMENSIONS .....................................................................................................6
HORIZONTAL POWER VENT PARTS LIST ...............................................................................................................................................7
VERTICAL END OF LINE POWER VENT DRAWING .................................................................................................................................8
VERTICAL POWER VENT PARTS LIST...................................................................................................................................................10
IN-LINE POWER VENT DRAWING .......................................................................................................................................................11
IN-LINE POWER VENT PARTS LIST ......................................................................................................................................................12
VENT ADAPTER CONVERSION.....................................................................................................................................................13
CLEARANCES TO POWER VENT...................................................................................................................................................16
CLEARANCES TO VENT PIPE........................................................................................................................................................16
MINIMUM CLEARANCE TO COMBUSTIBLES FROM VERTICAL VENT..............................................................................................16
MULTIPLE VERTICAL TERMINATION POINTS................................................................................................................................17
MULTIPLE HORIZONTAL TERMINATION POINTS ..........................................................................................................................17
VENT TERMINATION CLEARANCES..............................................................................................................................................18
VENT RESTRICTOR SETUP ...........................................................................................................................................................19
VENT RESTRICTOR TROUBLESHOOTING ......................................................................................................................................19
POWER VENT ELECTRICAL CONNECTION ....................................................................................................................................20
SIT PROFLAME 2 CONNECTIONS.................................................................................................................................................22
FIREPLACE ELECTRICAL DRAWING (WITH POWER VENT –SIT PROFLAME II) .....................................................................................23
POWER VENT ELECTRICAL WIRING DRAWING.............................................................................................................................24
DOUBLE GLASS BOARD AND FAN SWITCHES .....................................................................................................................................25
STARTING UNIT..........................................................................................................................................................................26
VENTING ...................................................................................................................................................................................26
CONNECTING 3X5 PIPE...............................................................................................................................................................28
REPLACEMENT PARTS ................................................................................................................................................................29
APPENDIX ..................................................................................................................................................................................30
YEARLY SERVICE REQUIREMENTS ...............................................................................................................................................30
PILOT MAINTENANCE ........................................................................................................................................................................30
BURNER MAINTENANCE....................................................................................................................................................................31
VENT MAINTENANCE.........................................................................................................................................................................31
DOUBLE GLASS FANS .........................................................................................................................................................................31
MAINTENANCE LOG...................................................................................................................................................................32
WARRANTY POLICY ....................................................................................................................................................................33



3 | P a g e

SAFTEY INFO AND WARNINGS

•

Series, in

Canada.

•This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied

with the appliance.

•

At High Altitude

•

from hot surfaces

•

result causing property damage,

personal injury, or loss of life.

•

supplier

•

appliance.

WARNING!

4 | P a g e

FLARE FIREPLACES –FRAMELSS IN EVERY WAY

Flare Fireplaces is where innovation, quality and luxury come together to form new ideas. By combining superior raw materials,

contemporary design, creative technology, and a frameless way of thinking, we have created a full line of direct-vent fireplaces

that are luxurious, simple to operate and efficient. Our Fireplaces are distinguished by their clean design, superior build quality

and unique features.

SAFETY

CSA CERTIFICATION

All our fireplaces are tested and have been certified to meet stringent CSA guidelines, ensuring optimum quality, safety, and

efficiency. All our fireplaces have been certified and tested to work with Natural Gas or Propane. Certification Information:

ANSI Z21.88/CSA 2.33-2014- Vented Gas Fireplace Heaters

CSA CLASSES:

CLASS 2901 84 / CLASS 2901 04

MANUAL MODEL LIST & INFORMATION

The Following manual should be used for Flare Fireplaces Models:

•Flare Front 30-100 “

•Flare See-Through 30-100”

•Flare Corner Right and Left 30-100”

•Flare Double Corner 30-100”

•Flare Room Definer 45-100”

To simplify the installation and operation, all models above share the same gas valve system, remote, gas connection, glass type.

All warnings and instructions apply to all models. Flare Fireplaces Power Vent system must only be connected to M&G 3x5

venting system. For detailed chimney installation information please use the M&G DuraVent direct vent installation manual:

https://www.duravent.com

Installation

MUST

comply with local,regional, state and national codesand regulations.Consult insurance carrier,

local building

inspector, fire officials or authorities having jurisdiction over restrictions, installation inspection and

permits.

This installation mustconform to local codes. In the absence of local codes, you must comply with the

National Fuel Gas Code,

ANSIZ223.1-Latest Edition inthe U.S.A.andtheCAN/CGAB149 Installation Codes in Canada.

Improper installation, adjustment,alteration, serviceor maintenance can cause injury or property damage. For

assistance or

additional information,consulta qualified service technician, service agencyor your dealer.

5 | P a g e

POWER VENTING OVERVIEW

In the event of a vent route that is unsupported based on the Gravity Vent Tables shown in the Flare Install Manual, Flare

Fireplaces may use a power vent to accommodate any extremely long, or negative degree venting routes. The 3 power vent

options allow the fireplace to operate in vent conditions that would not be possible without the powered fan. With a power-vent

you can install a 90-elbows right off the top of the fireplace. When using the power vent system, it is critical that the vent path

remain completely sealed for the power vent system to operate. The vent length and restrictor level should be set based on

number of feet, number of elbows, and the vent termination.

The system is designed and tested with DuraVent 3x5 gasket direct vent pipes. It is critical for the safety and operation of the

system to use the DuraVent 3x5 gasket system. See the link below for a DuraVent catalog & vent parts with part numbers:

https://www.DuraVent.com/docs/product/CVS_Catalog.pdf

All three Flare Power Vent systems can be installed to include 8 elbows and run up to 100ft vent run.

-A minimum length of 12ft venting is required between the Fireplace and the PV, Flare Fireplaces sizes 30”-70”. A minimum

length of 15ft,Flare sizes 80”-100”, is required between the fireplace and the PV.

-Elbows, whether 45 or 90 degrees, do not count towards the minimum distance requirements.

-Do not install any Power Vent system if the minimum length is below listed above. The three Power Vent systems can be

installed with a maximum of 5ft vent run below the fireplace.

-Do not install any of the Flare Power Vent fans inside the fireplace cavity, as this increases the risk of overheating

-Do not snake 3x5 vent pipe within cavity to achieve minimum length, as this will lead to increased heat buildup.

POWER VENT DRAWINGS

HORIZONTAL END OF LINE POWER VENT DRAWING

6 | P a g e

HORIZONTAL END-OF-LINE POWER VENT FRAMING DIMENSIONS

ROUGH OPENING CUT-OUT DIMENSIONS: 13 ½ W x 14 ½ H

7 | P a g e

HORIZONTAL POWER VENT PARTS LIST

HORIZONTAL POWER VENT PART LIST:

ITEM NUMBER

PART Name

DESCRIPTION

W-F-08

PV External Cover

W-F-14

PV Board Cover

Draft Switch

HUBA control to measure fan pressure

Elec. Holder

Electrical wiring holder

Motor inner cover

Internal cover motor

Exhaust Blower

Main Exhaust Fan

Housing of Exhaust Blower

PV Whole Block

W-F-10

Bracket for fixing PV hole.

Exhaust Blower Carrier

Exhaust Outlet Holder

8 | P a g e

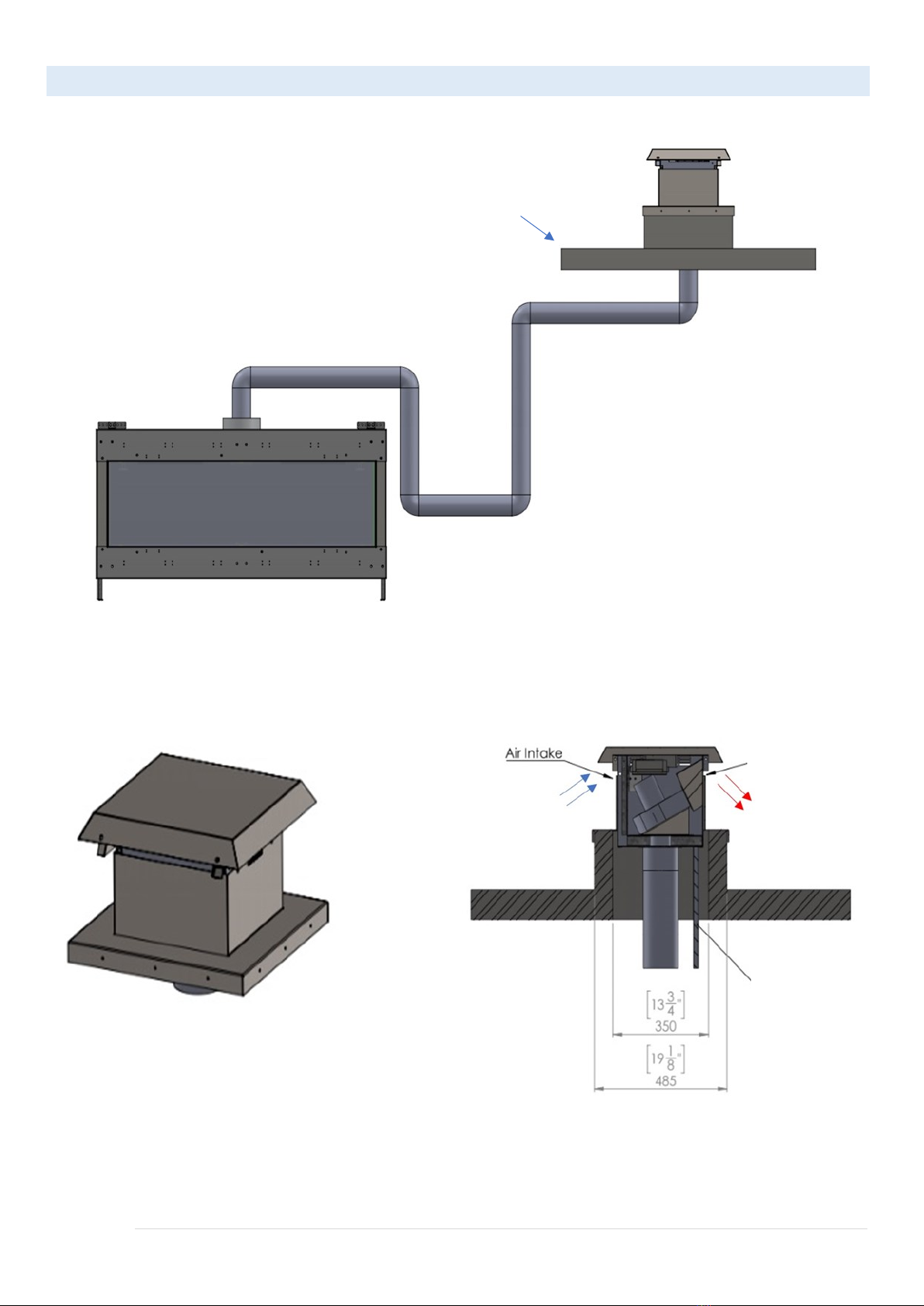

VERTICAL END OF LINE POWER VENT DRAWING

ROOF

Exhaust Outlet

110V AC Cable

9 | P a g e

10 | P a g e

VERTICAL POWER VENT PARTS LIST

VERTICAL POWER VENT PARTS LIST:

ITEM NUMBER

PART NUMBER

DESCRIPTION

Housing of Exhaust Blower - Vertical

The whole block for vertical power vent

Fan | 03 + 04

Main Fan Holder

Exhaust Blower

Main Exhaust Fan

Fan | 08

Inner upper cover for exhaust outlet

Draft Switch

HUBA Control for pressure measuring

Electric Board

Electrical Board Cover

Fan

Cooling Fan

Fan | 12

Cooling Fan Holder

Fan | 06

External Upper Cover
