Fishmaster Casting Platform Manual de usuario
Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
cDES-260
REV 1.0
Casting Platform
Included Hardware Identification
Gather Additional Tools and Materials
INSTALLATION MANUAL
3x
12 x
4x
We are confident that you will up your
fishing game with Fishmaster’s Fishing
Platform. Our non-skip molded deck
surface will keep your feet firmly planted
while you cast away. The Fishmaster
casting platform features easily removed
legs for fast storage.
Allen Wrench Set
Actual Size
Hand Drill
Permanent Marker 45 Chamfer Drill Bit
13/64” Drill Bit
1
Loctite 242 Blue
R
with Leaning Rail
4x
4x 4x
3M 5200
TM
*Loctite 242 Blue can be applied to any bolt during assembly to ensure a locking fit.
R
Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
cDES-260
REV 1.0

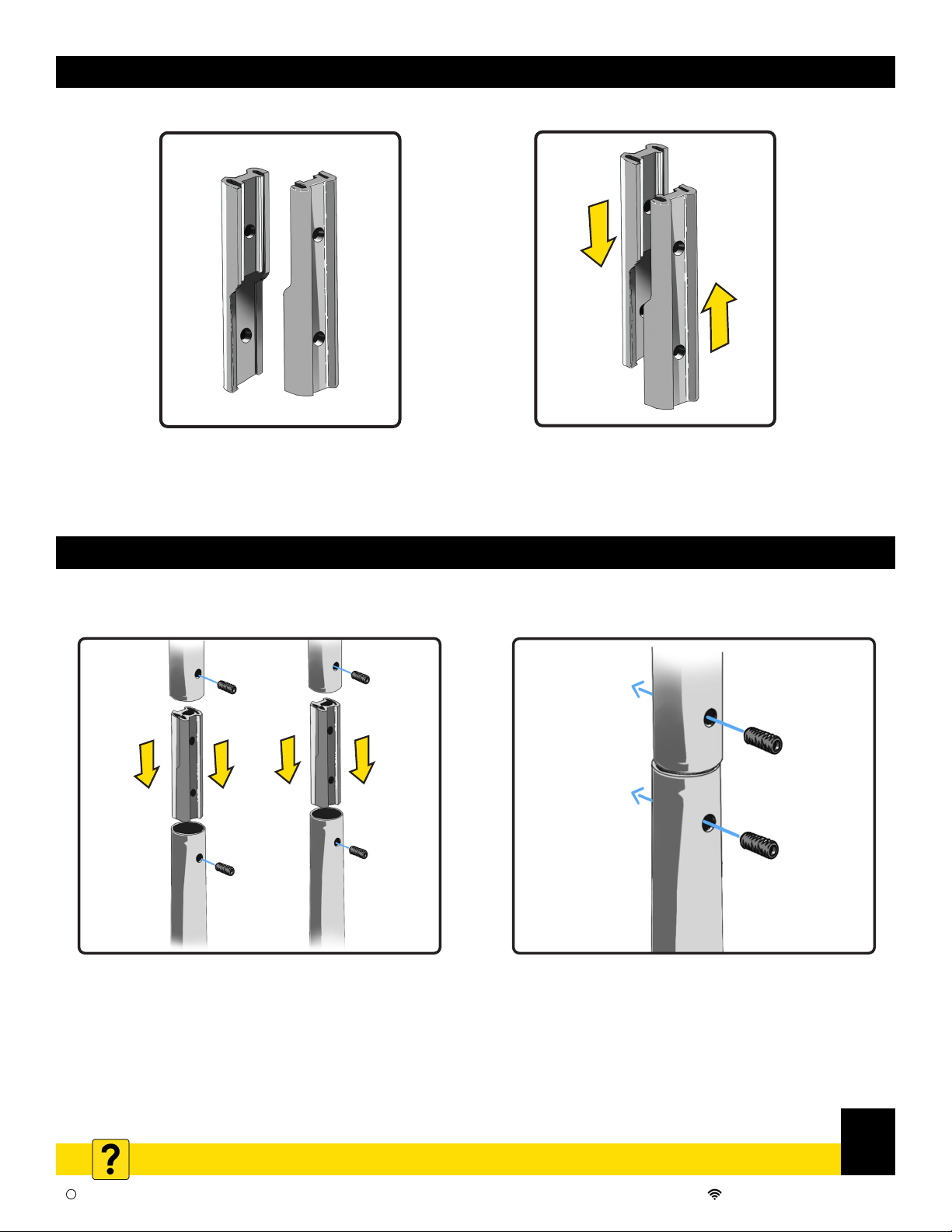

Step 1: Assemble Tubing Connector
Step 2: Assemble Legs to Base
1. 2.
Gather the tube connector pieces. Slide the parts together.
1. 2.
Insert the tube connector into the base
and then slide the leg over the connector.
Thread screws into the holes of the
legs and base.
2
Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
cDES-260
REV 1.0
3
Step 3: Assemble Leaning Rail
Step 4: Insert Connectors Into Legs
1. 2.
Gather the tube connector pieces. Slide the parts together.
2.
1. Insert the tube connector into the legs and
then slide the leaning rail over the connector. Thread screws into the holes of the legs.
Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
cDES-260
REV 1.0
4
Step 5: Attach Leaning Rail to Casting Platform
1. 2.
Position the leaning rail mounting tabs
on the backside of the pre-drilled holes.
Using the M10 socket screws and hardware, attach
the leaning rail to the casting platform base.
Step 6: Assemble and Mount the Base
4.
Assemble the base by attaching the eyelet.
1. 2.
Use permanent marker to mark all
three drill locations.
Drill in reverse with 13/64” bit.
Drill all three holes.
3. Apply 3M 5200 Adhesive to base and holes and
then mount the base to the boat screwing it into place.
PRO TIP: Use a 45 chamfer
bit after drilling the first holes
to prevent gel coat cracking.
TM
Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
cDES-260
REV 1.0
Step 7: Assemble the Turnbuckle and Mount Casting Platform
5
1. 2.
Assemble the turnbuckle by
screwing in the eyelet into
its base.
Attach the turnbuckle to frame rail. 3. Position the turnbuckle where needed.
4. Adjust base plate to be level with
the bow of the boat.
