Fisher-Price V4595 Manual de usuario

V4595

V9115

www.ﬁsher-price.com

Stage 2

Stage 1

To avoid serious injury:

• Never use near/keep away from cars and

other motor vehicles, streets, steps, steep

inclines, sloped driveways, hills, roadways,

alleys, swimming pools, or other bodies

of water.

• Always wear shoes.

• Never allow more than 1 rider.

• Not for children with a body weight of more

than 20 kg (44 lb).

• Adult supervision required.

• For stage 2 use, protective equipment should

be worn. Use helmet, wrist guards, kneepads

and elbow pads.

• Never ride at night.

WARNING

Consumer Information

IMPORTANT! For stage 2 use, please take a few moments to

review the following safety tips:

Please use with caution as this product requires skill to operate•

safely to avoid falls, collisions, and injuries to yourself (the rider)

and others.

This product is intended to be used outdoors for stage 2 use.•

Adults should supervise beginners.•

Wear shoes or sneakers that provide good support. Do not wear•

open-toe shoes.

Keep loose laces and pant legs away from the wheels.•

Choose areas for riding that are free of obstacles.•

Ride on smooth, paved surfaces away from motor vehicles.•

Avoid wet or uneven surfaces; sharp bumps, drainage grates, and•

other sudden surface changes, as the product may suddenly stop.

Avoid excessive speed associated with downhill rides.•

Towing riders with bicycles or cars is unsafe.•

Avoid colliding with pedestrians.•

Learn to stop safely.•

Please keep this instruction sheet for future reference, as it•

contains important information.

Adult assembly is required.•

Tools required for assembly: 2 Phillips screwdrivers (not included).•

Ages: 18 months and older.•

Weight Limit: 44 lbs (20 kg).•

For• stage 1 use, please refer to the instructions beginning on

page 4.

For• stage 2 use, please refer to the instructions beginning on

page 7.

Your product comes with replacement warning labels which•

you can apply over the factory applied warning label if English

is not your primary language. Select the warning label with the

appropriate language for you.

Actual product may appear different from the photos shown.•

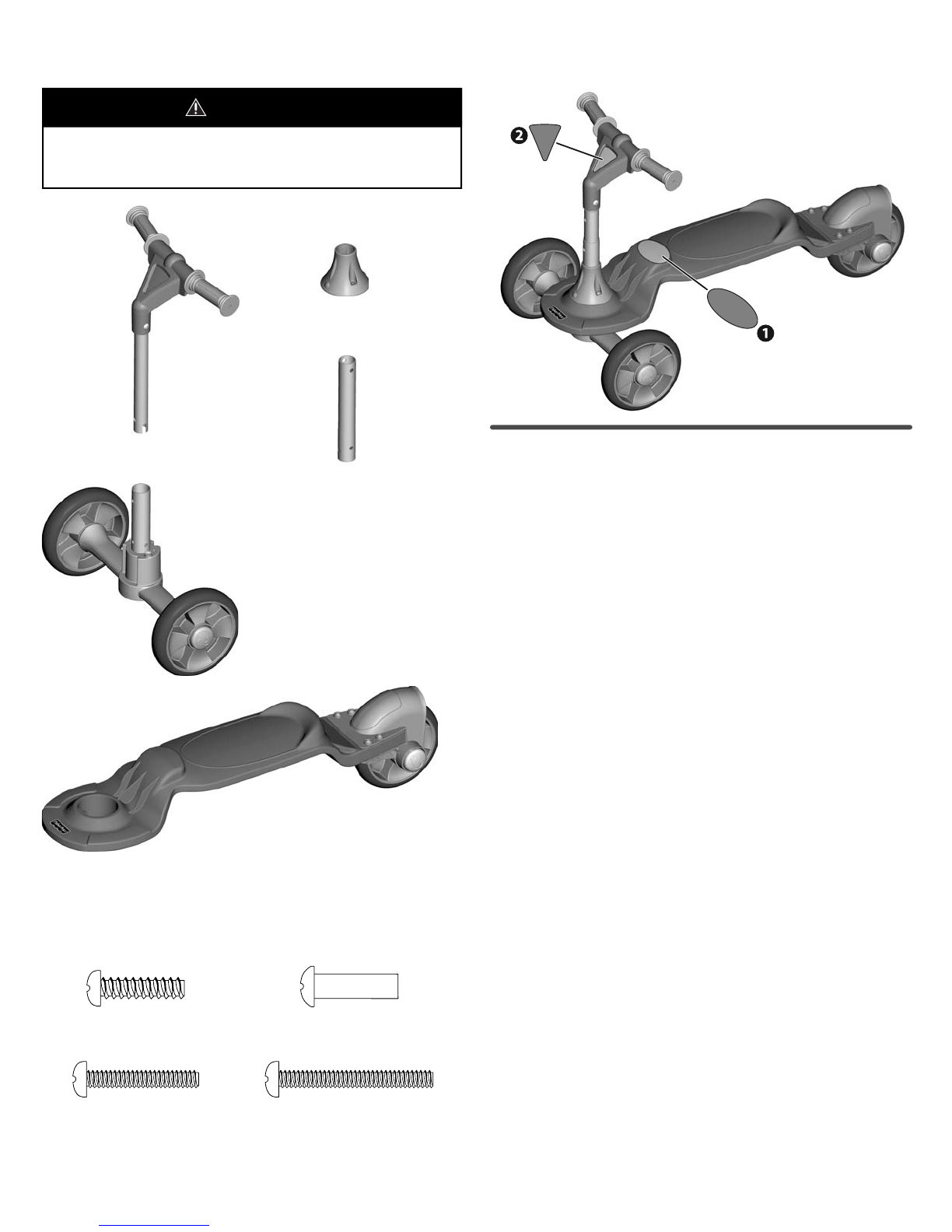

Parts Decoration

Handlebar

Part not shown: Decorative Labels

Collar

Board

Front Wheel Assembly

Fasteners

Fasteners Shown Actual Size.

Tighten and loosen the screws with a Phillips screwdriver.

#10 x ¾˝ (1,9 cm) Screw - 2

#8 x 1˝ (2,5 cm) Screw - 2

#10 x ¾˝ (1,9 cm) Barrel Nut - 2

#8 x 1

˝ (3,5 cm) Screw - 4

(assembled to the rear wheel)

Extension Tube

Hint: The extension tube

is located inside the front

wheel assembly post.

Remove it from the post

before beginning assembly.

CAUTION

This product contains small parts in its

unassembled state. For adult assembly only.

Wipe the areas where the labels will be applied with a clean, dry•

cloth to remove any oils before applying labels.

Apply labels exactly as shown in the illustration. For best results,•

avoid repositioning the label after it has been applied.

Starting at the center of a label rub firmly with a dry cloth, and•

smooth towards the outer edges to remove air bubbles.

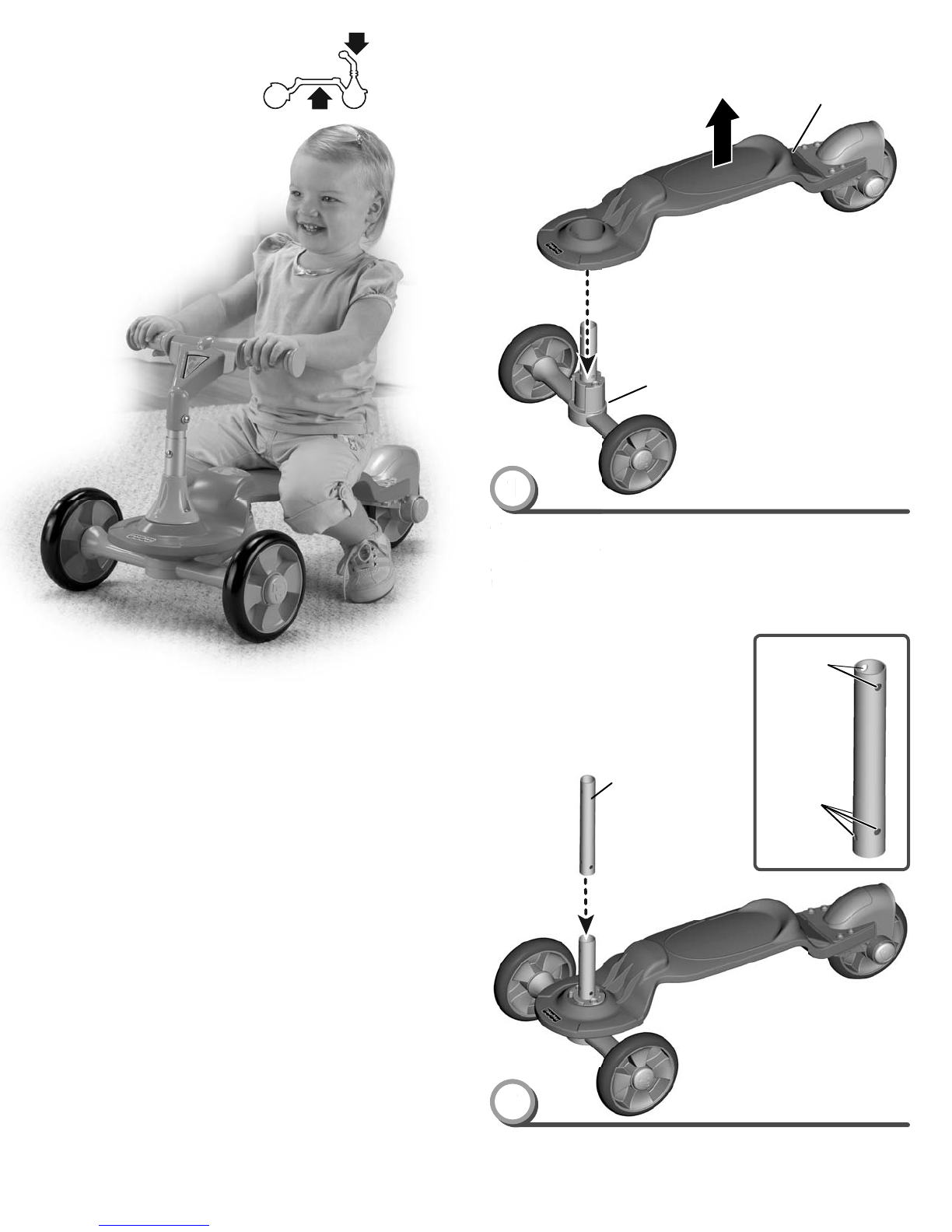

With the seating area upright• , slide the board onto the front

wheel assembly.

Hint: The board and front wheel assembly are designed to fit one

way for stage 1 use. If the front wheel assembly does not seem to

fit, turn it around and try again.

Board

Wheel Assembly

Stage 1 Assembly

Sit & Scoot Mode

Position the extension tube so the end with• two holes is upright.

Slide the extension tube into the front wheel assembly post.•

e seat

•

wheel assembly.

The board a

or stage 1 u

it, turn it around

Sit

Scoot

Mode

Seating Area

Extension Tube

2 Holes

Upright

4 Holes

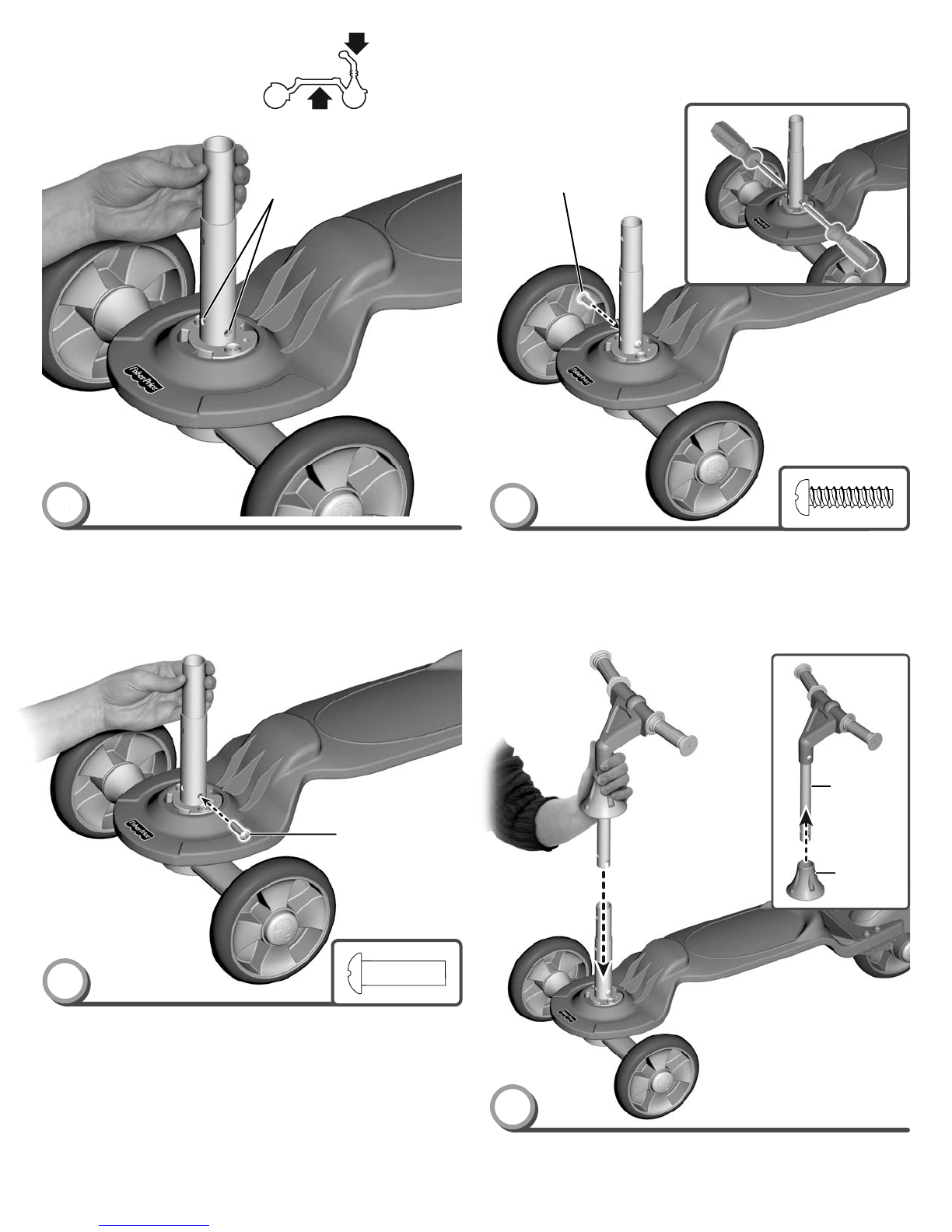

While holding the extension tube in position, insert a•

#10 x ¾˝ (1,9 cm) barrel nut into one of the side holes in the

post and through the extension tube.

Insert a #10 x ¾˝ (1,9 cm) screw into the opposite side hole in•

the post and into the barrel nut.

While holding the barrel nut in place with a Phillips screwdriver,•

fully tighten the screw with another Phillips screwdriver.

Stage 1 Assembly

Sit & Scoot Mode

Align all four holes in the lower end of the extension tube with the•

holes (front and back and both sides) in the wheel assembly post.

Holes

Slide the collar, narrow end up, onto the end of the handlebar.•

Slide the handlebar assembly into the extension tube.•

Barrel Nut

Handlebar

Collar

#10 x ¾˝ (1,9 cm) Screw

Insert two #8 x 1˝ (2,5 cm) screws into the holes in the collar•

and tighten.

Slide the collar down onto the board.•

Stage 1 Assembly

Sit & Scoot Mode

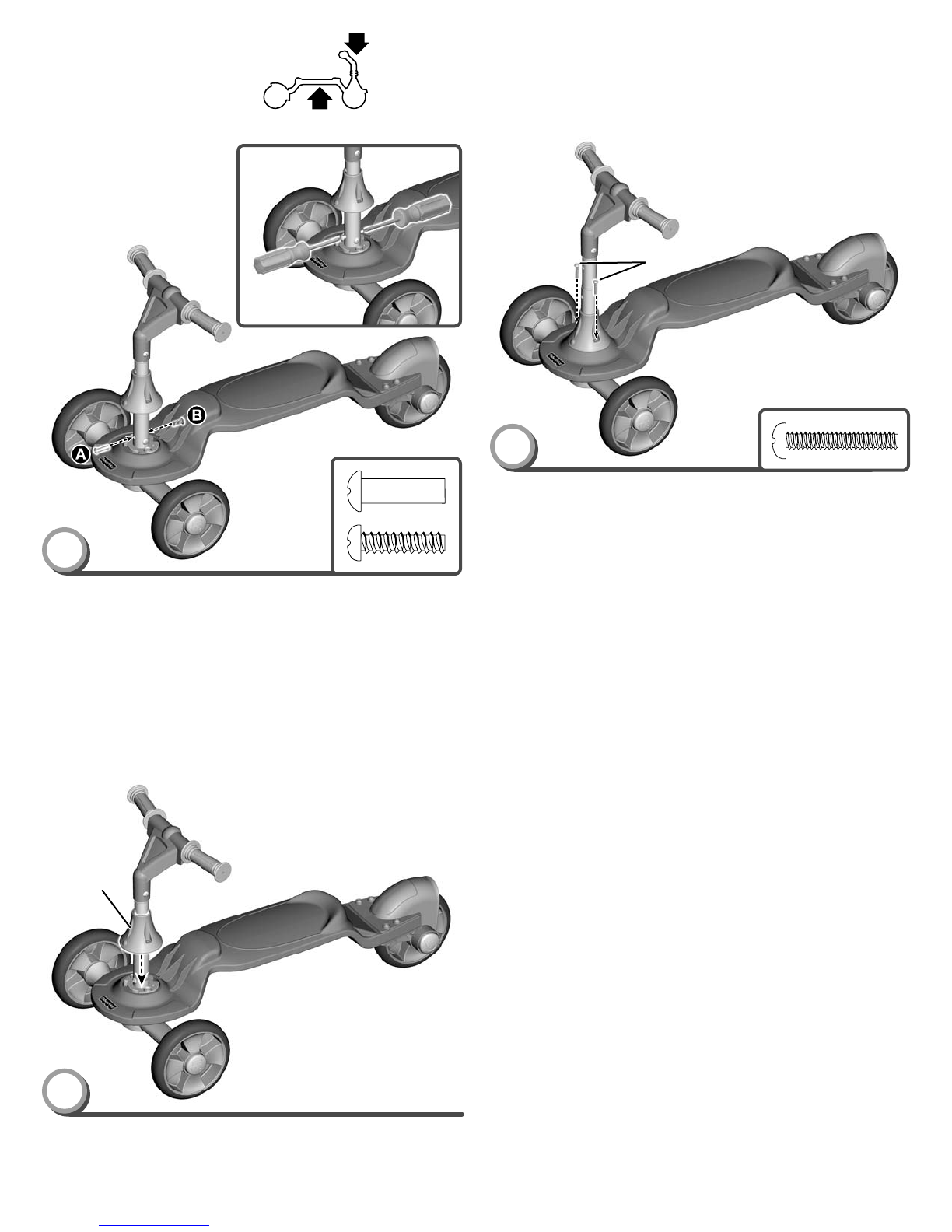

Insert a #10 x ¾˝ (1,9 cm) barrel nut into the front hole in the•

post A. Next, insert a #10 x ¾˝ (1,9 cm) screw into the rear hole

in the post Band into the barrel nut.

Turn the front wheel assembly slightly.•

While holding the barrel nut in place with a Phillips screwdriver,•

fully tighten the screw with another Phillips screwdriver.

IMPORTANT! Pull up on the handlebar to be sure it's secure. If you

can remove the handlebar, please go back to step 2 to assemble the

extension tube, handlebar and collar to the post.

Collar

#8 x 1˝ (2,5 cm) Screws

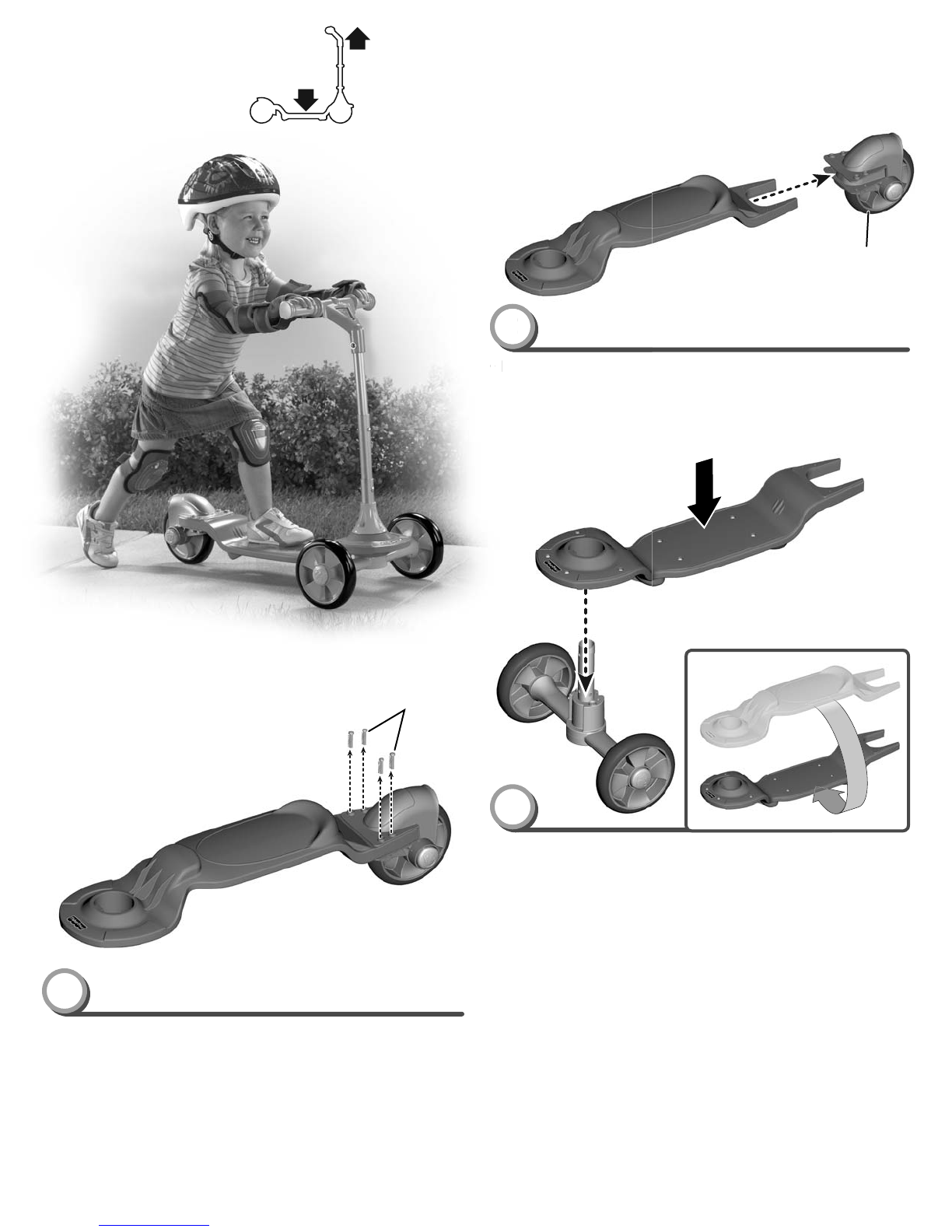

Turn the board over so that the stepping area curves down. Fit the•

board back onto the front wheel assembly, as shown.

Hint: The board and front wheel assembly are designed to fit one way

for stage 2 use. If the front wheel assembly does not seem to fit,

turn it around and try again.

Remove the rear wheel assembly from the board. Set the rear•

wheel assembly aside. It will be re-assembled in step 9.

Loosen and remove the four #8 x 1• 3/8˝ (3,5 cm) screws in the

board near the rear wheel assembly.

Set the screws aside. They will be re-used to assemble the•

rear wheel in the last step.

emove the rear wheel

•

assem

bly

Stage 2 Assembly

Stand & Scooter Mode

Stepping Area

#8 x 1

8˝

(3,5 cm) Screws

Rear Wheel

Assembly

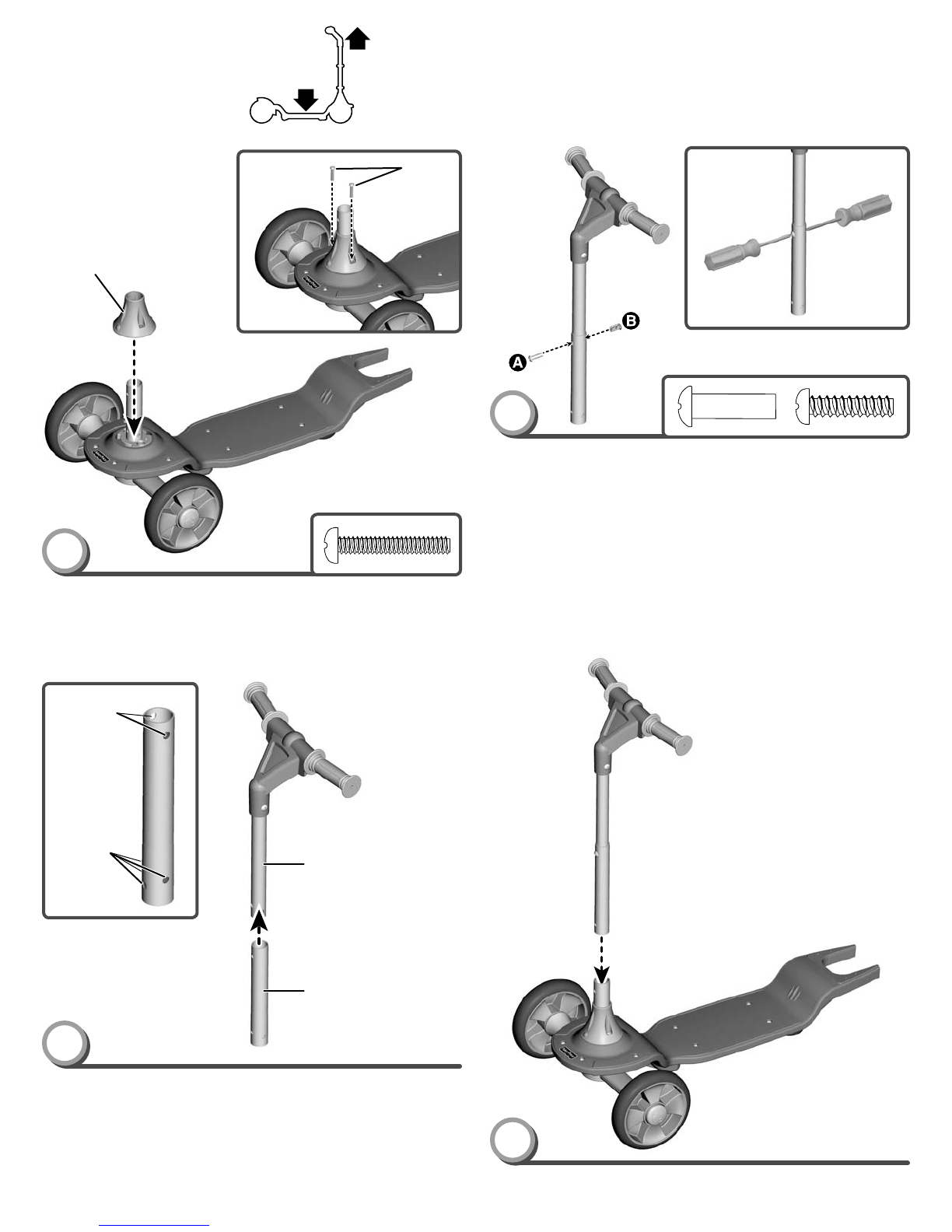

Slide the collar (wide end down) onto the post, as shown.•

Insert two #8 x 1˝ (2,5 cm) screws into the collar and tighten.•

Position the extension tube so the end with• two holes

is upright.

Slide the extension tube onto the handlebar.•

Align the holes on the extension tube with the holes•

in handlebar.

First, insert a #10 x ¾˝ (1,9 cm) barrel nut into a hole in the•

extension tube A. Then, insert a #10 x ¾˝ (1,9 cm) screw into the

opposite hole in the extension tube B.

While using a Phillips screwdriver to hold the barrel nut in place,•

fully tighten the screw with another Phillips screwdriver.

Check to be sure the handlebar is attached to the extension tube.•

If you can pull them apart, go back to step 5 and follow the

instructions carefully.

Slide the handlebar assembly into the front wheel assembly post.•

Stage 2 Assembly

Stand & Scooter Mode

Collar

#8 x 1˝

(2,5 cm)

Screws

Handlebar

Extension Tube

2 Holes

Upright

4 Holes

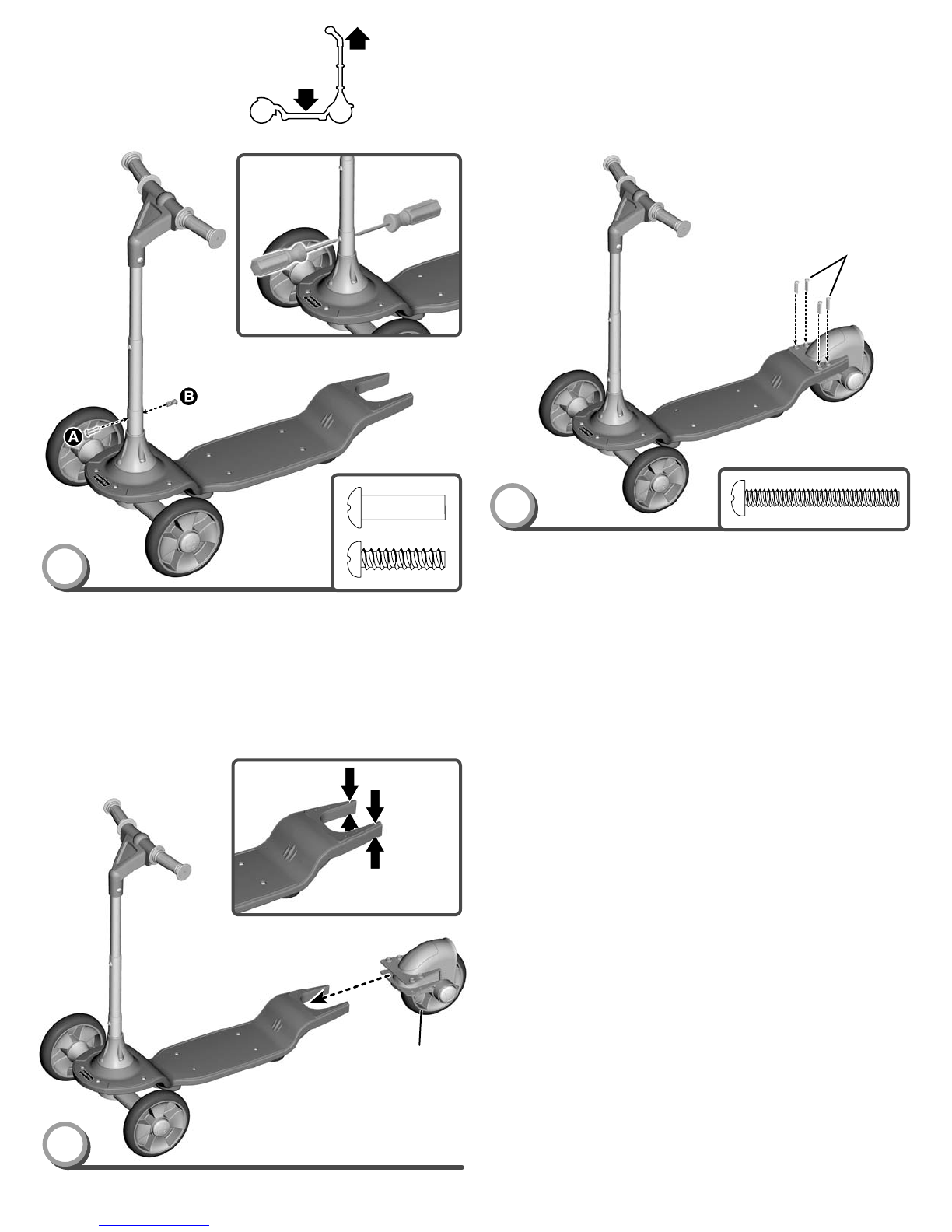

Align the holes in the handlebar assembly with the holes in•

the post.

First, insert a #10 x ¾˝ (1,9 cm) barrel nut into a hole in the•

post A. Next, insert a #10 x ¾˝ (1,9 cm) screw into the opposite

hole in the post B.

While holding the barrel nut in place with a Phillips screwdriver,•

fully tighten the screw with another Phillips screwdriver.

Replace the four #8 x 1• 3/8˝ (3,5 cm) screws into the board near

the rear wheel assembly and tighten.

Slide the rear wheel assembly onto the back of the board.•

Hint:

Squeeze the top and bottom

ends of the board together.

Stage 2 Assembly

Stand & Scooter Mode

Rear Wheel

Assembly

#8 x 1

8˝

(3,5 cm) Screws

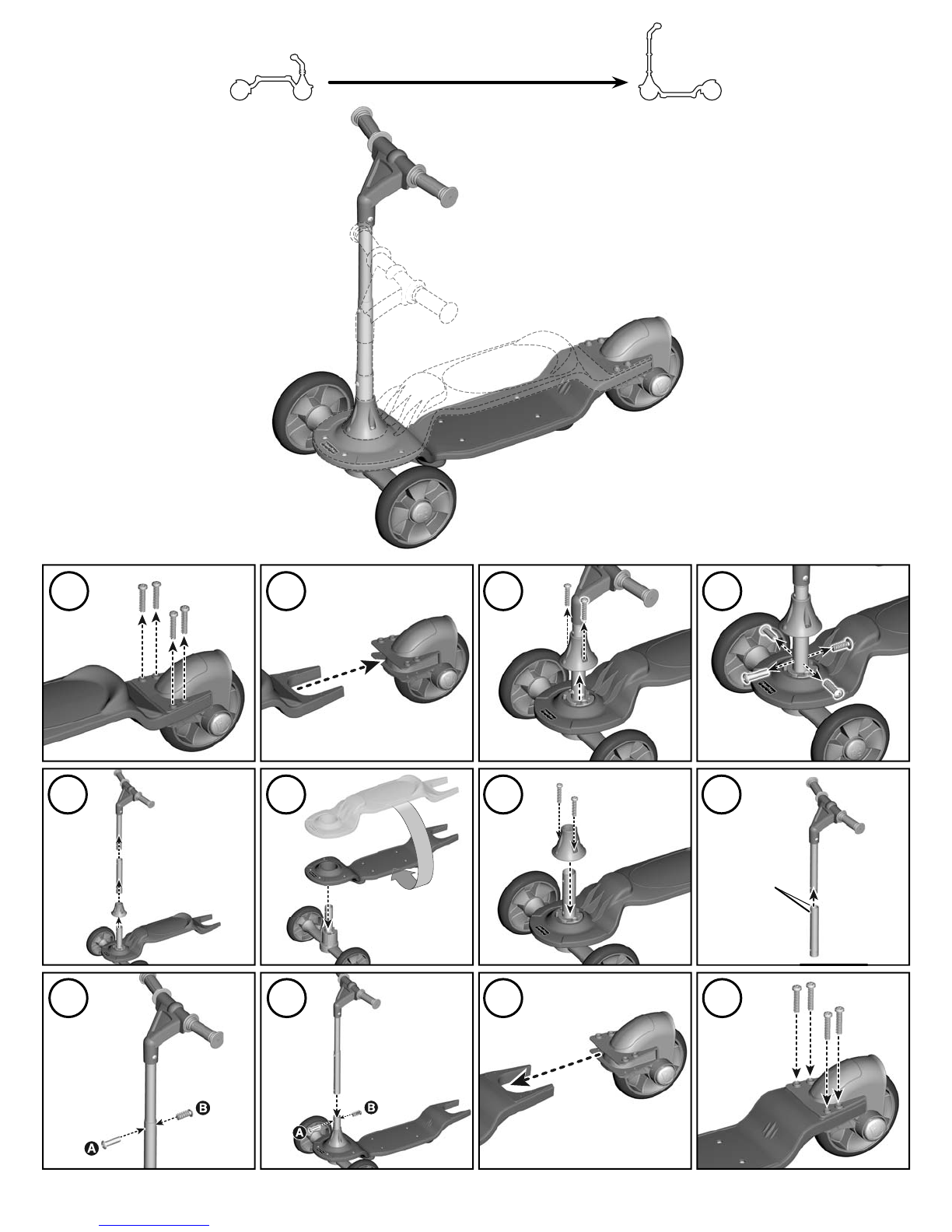

Convert Stage 1 to Stage 2

1234

5678

910 11 12

2 Holes

Upright
