Fisher & Paykel WB60S Series Manual de usuario

NZ AU GB IE

590513C 04.13

WB60S models

INSTALLATION INSTRUCTIONS

Warming Drawer

WARNING!

Electrical shock hazard

Before carrying out any work on the

electrical section of the appliance, it

must be disconnected from the mains

electricity supply.

Connection to a good earth wiring

system is absolutely essential and

mandatory.

Alterations to the domestic wiring

system must only be made by a qualified

electrician.

Failure to follow this advice may result

in electrical shock or death.

WARNING!

Cut hazard

Take care - some panel edges are sharp.

Failure to use caution could result in

injury or cuts.

IMPORTANT SAFETY INSTRUCTIONS!

To reduce the risk of fire, electrical shock, injury

to person, or damage when using the warming

drawer, please read these instructions carefully

before installing this product.

Please make this information available to the

person installing the product – doing so may

reduce your installation costs.

Installation work, maintenance and repairs may

only be carried out by suitably qualified and

competent persons in accordance with national

and local safety regulations.

Always disconnect the power supply prior to

carrying out any installation, maintenance or

repair work.

Before installation make sure that the voltage

and frequency listed on the data plate

corresponds with the household electrical supply.

SAFETY AND WARNINGS

WARNING!

Fire hazard

Do not use adapters, reducers, or

branching devices to connect this

appliance to the mains power supply.

Failure to follow this advice may result

in overheating, burning, or fire.

When installing companion products the weight

of the companion product should be distributed

across the edges of the warming drawer. Products

above which rest on “feet” may only be installed

if the feet of the product lie within 70mm of

the sides of the warming drawer, as this area

is reinforced. Failure to do this may result in

damage to the warming drawer and companion

product.

Before installing the warming drawer you must

inspect it for any signs of damage. Under no

circumstances should you install or use the

warming drawer if it has been damaged.

If the power supply cord is damaged, it must be

replaced by the manufacturer, its service agent

or a similarly qualified tradesperson in order to

avoid a hazard. .

Connect the warming drawer to a properly rated,

protected and sized power supply circuit to avoid

electrical overload.

Do not use an extension cord or a portable

electrical outlet device (e.g. multi-socket outlet

box) to connect the Warming Drawer to the

power supply. Make sure the power supply cord is

located so that it will not be stepped on, tripped

over or otherwise subject to damage or stress.

Ensure the connection to power supply is

accessible after installation.

IMPORTANT SAFETY INSTRUCTIONS!

The electrical outlet should be easily accessible

after installation.

When a companion product is installed in

combination with the warming drawer to the

same circuit, operating both products may

cause an overload. If in doubt consult a qualified

electrician.

When installed in combination with a companion

product the companion product may be placed

directly onto the warming drawer. It is not

necessary to place a shelf between the products. A

built- in shelf at the base of the cabinetry able to

support the weight of both products is required.

If installing the warming drawer directly

underneath an oven, ensure you do not damage

the oven’s lower trim. The lower trim ensures

correct air circulation to the oven and allows

the door to open and close without obstruction.

Fisher & Paykel does not accept any responsibility

for any damage resulting from incorrect

installation.

The maximum weight the warming drawer is able

to support is 60 kg.

The warming drawer is not designed for use in

mobile installations such as recreational vehicles,

boats or aircraft.

SAFETY AND WARNINGS

PRIOR TO INSTALLATION

the cavity is square and level, and of the required dimensions.

the installation will comply with all clearance requirements and applicable standards and regulations.

the power switch will be easily accessible to the customer when the warming drawer is installed.

the warming drawer (and any product on top of it) will rest on a surface that can support its weight.

the height from the floor suits the customer.

you consult local building authorities and by-laws if in doubt regarding installation.

If installing with a companion product

Important!

If installing with a companion product please refer to the installation instructions of that product to ensure the installation requirements of BOTH products are met.

When installing products on top of the warming drawer, the weight of the product should be distributed across the edges of the warming drawer.

Products above which rest on “feet” may only be installed if the feet of the product lie within 70mm of the sides of the warming drawer, as this area is reinforced.

Failure to do this may result in damage to the warming drawer and companion product.

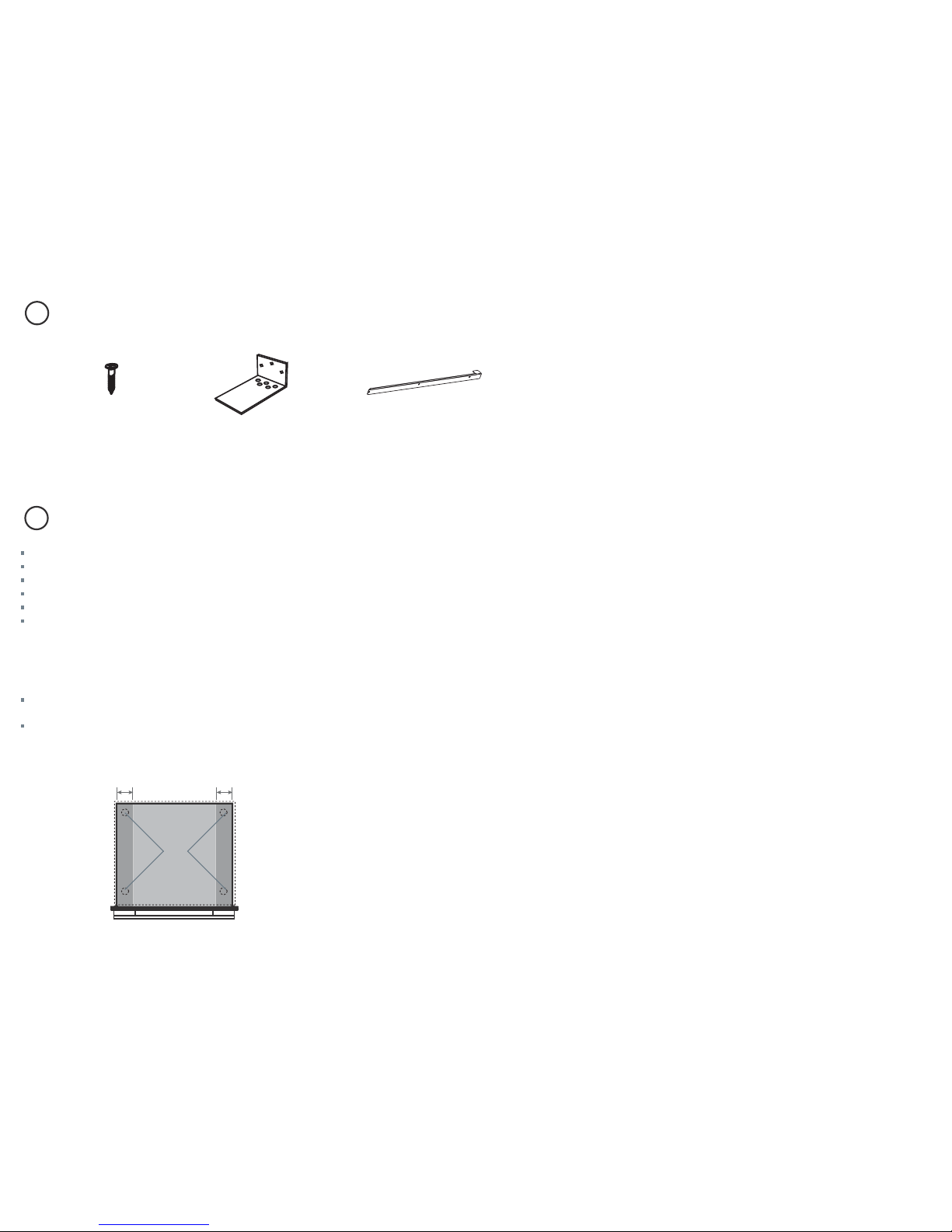

PARTS SUPPLIED

Screws (4) Anti-tip bracket (1) Oven support brackets (2)

Warming Drawer can withstand a

maximum weight of 60 kg

70 mm 70 mm

Feet

4PRODUCT DIMENSIONS

Product dimensions (mm)

WD60S

Aoverall height of product 118

Boverall width of product 596

Coverall depth of product (including terminal block, excluding handle) 555

Ddepth of chassis (including terminal block) 536

Ewidth of chassis 557

Fheight of chassis 102

Gdepth of drawer front panel (excluding handle) 20

Hdepth of drawer when fully open (measured from front of drawer front panel) 475

Iheight of drawer front panel 116

Jheight from top of front panel to top of chassis 2

Kdepth of handle 41

Lheight of bottom of front panel to bottom of chassis 16

TOP

FRONT SIDE

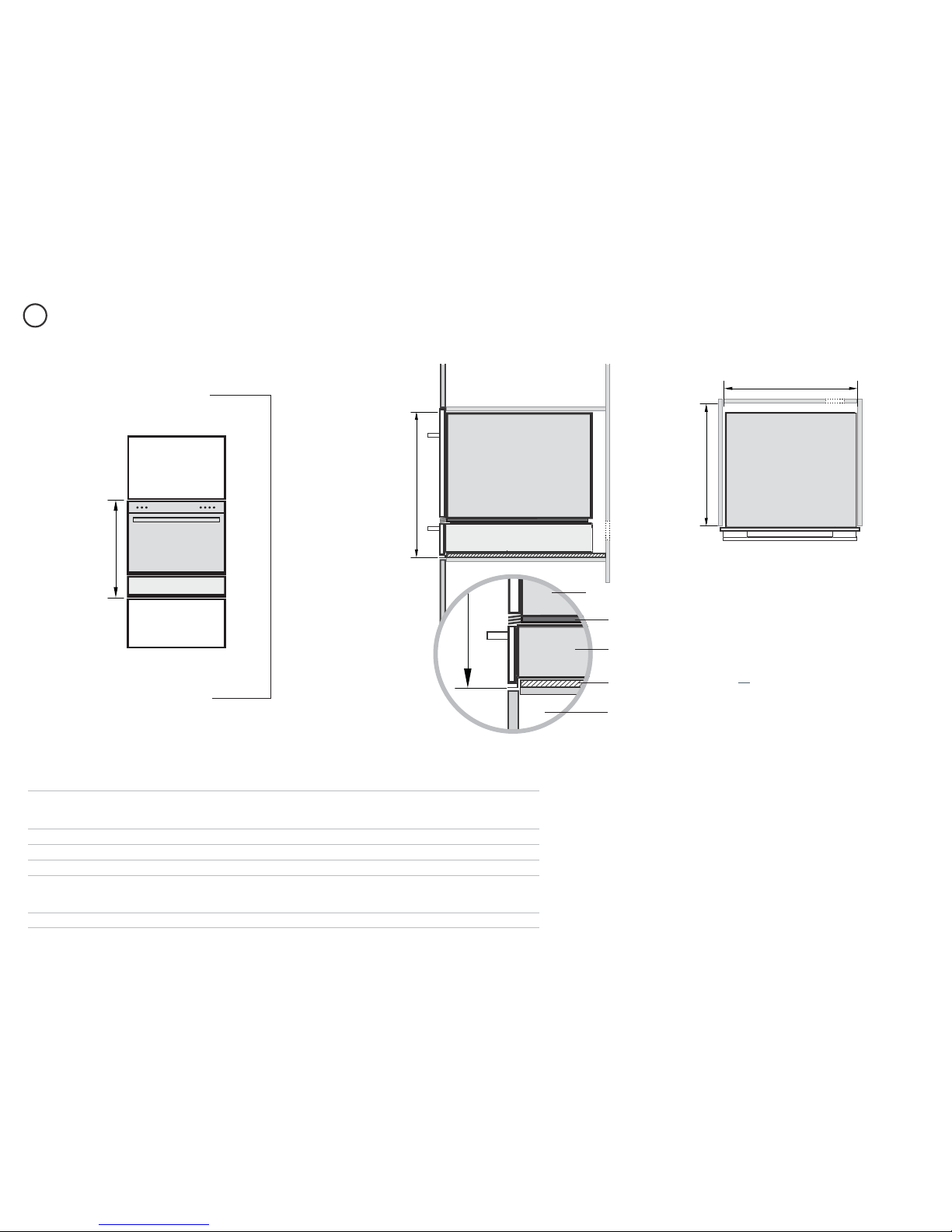

5a CABINETRY DIMENSIONS

Cabinetry dimensions (mm)

WD60S

Mminimum inside height of cavity (with F&P 60cm wide single oven) 687

Ninside width of cavity 560

Ominimum inside depth of cavity 565

Note: When installed in combination with a companion product the companion product may be placed directly onto the

warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to

support the weight of both products is required.

* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.

** In some instances the front cabinetry rail may need to be removed to enable installation.

TOP

SIDE

720 mm

Warming Drawer

Oven Oven

*PO

Tab

Oven support bracket

Fit the supplied oven support brackets

Unscrew-fit-

rescrew

THE FOLLOWING PAGES DETAIL COMMON CABINETRY SCENARIOS

Underbench (ie installed with a F&P 60cm wide single oven)

Important!

If installing under an oven, you must first fit the two supplied

Oven support brackets to the sides of the Warming Drawer.

The brackets help support the rear of the oven.

Unscrew the 3 top screws on each side, fit the brackets with the

tabs facing inwards as shown and screw back in.

Note: The screws may not be identical. Replace each screw into

its original hole position.

Oven support

brackets

5b CABINETRY DIMENSIONS

Cabinetry dimensions (mm)

WD60S

minimum inside height of cavity

with optional Lower grill kit tted

without optional Lower grill kit tted

590

570

Ninside width of cavity 560

Ominimum inside depth of cavity 550

Note: When installed in combination with a companion product the companion product may be placed directly onto the

warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to

support the weight of both products is required.

* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.

TOP

SIDE

600 mm

Warming Drawer

Compact Oven

*PO

Wall Mounted (ie installed with a F&P Compact Oven)

Cabinet below

Additional 18 mm Wood Spacer

Warming Drawer

Lower grill kit

(optional, supplied separately)

Compact oven

Important!

In a wall mounted installation, there

needs to be an 18 mm Spacer fixed

underneath the warming drawer first

to raise it to the required height.

5c CABINETRY DIMENSIONS

Cabinetry dimensions (mm)

WD60S

minimum inside height of cavity

with optional Lower grill kit tted

without optional Lower grill kit tted

590

570

Ninside width of cavity 560

Ominimum inside depth of cavity 545

Note: When installed in combination with a companion product the companion product may be placed directly onto the

warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to

support the weight of both products is required.

* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.

TOP

SIDE

600 mm

45 mm

Warming Drawer

Coffee Maker

*PO

Wall Mounted (ie installed with a F&P Coffee Maker)

Warming Drawer

Lower grill kit

(optional, supplied separately)

Coffee Maker

Side rail

Important!

When installing under an F&P Coffee Maker

you must ensure the supplied anti-tip bracket

is installed, unless there is a fixed shelf

above the drawer acting as an anti-tip obstacle.

Anti-tip Bracket

Supplied Anti-tip Bracket

(screwed to the back wall)

Important!

If installing under the F&P Coffee Maker, ensure there

is the 45 mm gap at the back of the cabinet and the

200 mm

toekick cutout required for airflow. Refer to

the Coffee Maker Install instructions.

Additional 18 mm Wood Spacer

Important!

In a wall mounted installation, there

needs to be an 18 mm Spacer fixed

underneath the warming drawer first

to raise it to the required height.

*PO

Additional 18 mm Wood Spacer

Cabinet above

Cabinet below

Fixed shelf

Important!

In a standalone wall mounted installation, you

must ensure that the supplied anti-tip bracket is

installed unless there is a fixed shelf above

acting as an anti-tip obstacle.

Supplied Anti-tip Bracket

(screwed to the back wall)

5d CABINETRY DIMENSIONS

Cabinetry dimensions (mm)

WD60S

Minside height of cavity 120

Ninside width of cavity 560

Ominimum inside depth of cavity 545

* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.

Wall Mounted (Standalone)

Warming drawer

120 mm

Warming Drawer

Steam Oven

TOPSIDE

Important!

In a wall mounted installation, there

needs to be an 18 mm Spacer fixed

underneath the warming drawer first

to raise it to the required height.

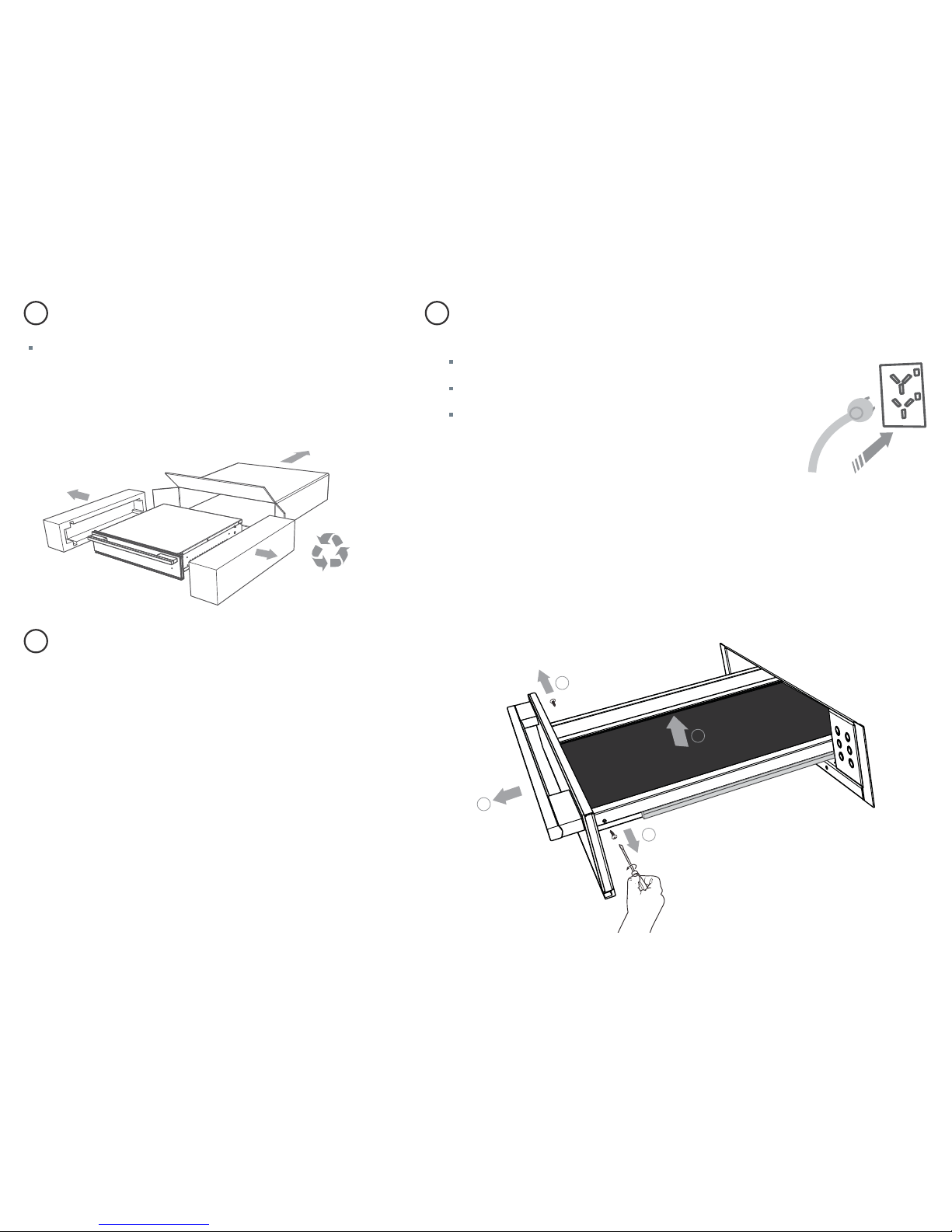

DISCARD PACKAGING RESPONSIBLY

REMOVING THE DRAWER (OPTIONAL)

CONNECT THE WARMING DRAWER TO THE MAINS SUPPLY

Recycle responsibly

Unpack the warming drawer and inspect for any signs of damage. Do not

install the warming drawer if it has been damaged.

Important!

Packing materials (e.g. plastic bags, polystyrene foam, staples, packing straps

etc) and tools should not be left around during and after installation,

especially if they are within easy reach of children, as they may cause serious

injuries.

Important!

All electrical work may only be carried out by suitably qualified and competent

persons in accordance with national and local safety regulations.

This warming drawer must be earthed.

Before placing the warming drawer into the cavity, route the power cord

into the back of the cavity and plug it in to the switched socket. The

switched socket should be in an easily accessible area within 900 mm of

the centre rear of the product.

Power requirements

Model Code Power Voltage Wattage

WB60SD 1.6 - 1.8 A 220-240 V 360-420W

You can remove the drawer to aid the installation process. Removing the drawer allows

you to pre-drill the holes through the front trim for the securing screws.

Ensure the warming drawer is switched off.

Open the drawer to its fullest extent (ensure the drawer is empty).

Using a small Phillips-head screwdriver undo the screws located on the drawer sides

(one on each side).

Carefully pull the drawer forward until clear of the tabs at the back of each telescopic

slide.

Lift the drawer off the telescopic slides.

Replacing the drawer

Extend the slides out.

Place the drawer over the outer ends of the telescopic slides.

One at a time, pull the telescopic slides forward until the screw holes in the slide and

drawer align.

Replace the screws.

Otros manuales para WB60S Series

Tabla de contenidos

Otros manuales de Cajón calentador de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel WB60SDEX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SDEB1 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SMG1-SET Manual de usuario

Fisher & Paykel

Fisher & Paykel 9 Series Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SD Series Manual de usuario

Fisher & Paykel

Fisher & Paykel OD30WDX1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel WD60S Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SMTB1-SET Manual de usuario

Fisher & Paykel

Fisher & Paykel DCS RF24DE Manual

Fisher & Paykel

Fisher & Paykel WB24SMB1-SET Manual de usuario

Fisher & Paykel

Fisher & Paykel PROFESSIONAL WB76SPEX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel CHAUFFE-PLATS 9 Series Manual de usuario

Fisher & Paykel

Fisher & Paykel PROFESSIONAL WB76SPEX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB24SDEB2 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SDEB1 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60SMB1-SET Manual de usuario

Fisher & Paykel

Fisher & Paykel OR90SCG6R1 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB24SDEB1 Manual de usuario

Fisher & Paykel

Fisher & Paykel 9 Series Manual de usuario

Fisher & Paykel

Fisher & Paykel OD30WDX2 Manual de usuario

Fisher & Paykel

Fisher & Paykel WB60S Series Manual de usuario

Fisher & Paykel

Fisher & Paykel W30SDEI Manual de usuario

Fisher & Paykel

Fisher & Paykel WB30SDEX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD605 Series Manual de usuario

Manuales populares de Cajón calentador de otras marcas

Siemens

Siemens HW 290 Series Manual de usuario

Hatco

Hatco HDW-1 Instrucciones de instalación

APW Wyott

APW Wyott WD-2CMF Manual de usuario

Viking

Viking DEWD102SS Manual de usuario

Miele

Miele ESW 6229 Manual de usuario

Brandt

Brandt WD1014X Manual de usuario

KitchenAid

KitchenAid KOWT107ESS Manual de usuario

Gaggenau

Gaggenau WSP 222 Manual de usuario

DCS

DCS WDI Manual de usuario

Electrolux

Electrolux EED21600X Manual de usuario

Fisher

Fisher PROFESSIONAL WB76SPEX1 Manual de usuario

Electrolux

Electrolux EW30WD55GS Manual de usuario

Hanseatic

Hanseatic TCN14J6D-S Manual de usuario

Jenn-Air

Jenn-Air JWD6030CDX Manual de usuario

Gaggenau

Gaggenau WS482710 Manual de usuario

Bosch

Bosch HWD2720UC Manual de usuario

NEFF

NEFF N29HA11Y2 Instrucciones de funcionamiento y mantenimiento

Bull

Bull W85747 Manual de usuario
