Fisher & Paykel 525911L Manual de usuario

CONTENTS

Introduction 2

Accessories 3

Important Safety Instructions 4

Control Functions 8

Primary Control Buttons 8

Lock 9

Electronic Display 10

Secondary Control Panel 12

Operating Instructions 13

Usage 14

DishDrawer Accessories 14

Purpose of Each Insert 14

DishDrawer Loading 16

Loading Pattern for 10 Place Settings 18

Detergent & Rinse Agent Dispenser 19

Detergent Compartments 19

Rinse Agent Dispenser 20

Option Adjustment Mode 21

Rinse Agent Setting 21

Auto Power 22

Water Pressure 22

Wash Programs 23

Installation of Upper Kickstrip 24

Care Guide 25

User Maintenance Instruction 26

Cleaning the DishDrawer 26

Cleaning the Drain Filter, Spray Arm,

Filter Plate & Motor Assembly 26

Vacation Time 27

Problem Solver 28

Fault Code Displays 32

DishDrawer Warranty 35

INTRODUCTION

Thank you and congratulations for making the wise decision in purchasing your

Fisher & Paykel DishDrawer. Every care has been taken in designing and

manufacturing your appliance. We are sure that you will enjoy using your

DishDrawer and will soon appreciate its many benefits. We wish you many years of

satisfying use.

Unique Features of Your DishDrawer

By now you will be aware that Fisher & Paykel's DishDrawer is a unique dishwasher,

which offers benefits no other dishwasher can.

The DishDrawer takes the everyday kitchen drawer - long recognised as the most

efficient, easy to access storage system in the kitchen - and turns it into the most

advanced dishwasher in the world.

If you have chosen a double DishDrawer, or more than one single DishDrawer, you

will have totally separate, independently operated washing units, introducing loading

and washing possibilities that have never before been possible.

Now you can treat precious glassware to a delicate wash and give pots and pans the

heavy duty treatment - all at the same time.

The Clutter-Free Counter Top Becomes A Reality

Now it really is possible to keep your counter top free from everyday clutter like tall

glasses and awkward serving dishes. The double DishDrawer's spacious

configuration gives you many new ways to load your machine - and use it.

Used cleverly, two DishDrawers can even provide extra kitchen storage. Use clean

dishes directly from one drawer and load them back into the other drawer when dirty.

Design Your Own Rack System

With flexible, interchangable inserts the DishDrawer can be arranged to

accommodate the way you live and the dishes you use most often. Inserts are easy to

remove so it is easy to change your layout as your daily needs change.

If you have two DishDrawers, you can arrange one drawer for all your lightly soiled

cups, saucers and fine glassware - including long-stemmed glasses - and wash them

using a delicate cycle. Set up your other drawer for your more robust, heavily-soiled

items like plates, pots and pans. Inserts can easily be removed completely to fit

awkward preparation or serving dishes.

The Guilt-Free Small Load

All DishDrawer models make the small, guilt-free load a reality. The DishDrawer

minimizes water and energy consumption with each drawer using less than half the

water of a conventional dishwasher. By washing smaller loads more frequently, you

need never run out of clean dishes.

Gentler Introduction of Detergent

The DishDrawer's innovative detergent dispenser thoroughly pre-mixes water with

detergent before it is introduced into the drawer, so your delicate dishes are protected

from "detergent burn". Precise markings inside the dispenser ensure you never use

too much or too little detergent for each program.

Big On the Inside

Each DishDrawer has been carefully designed to give you more usable space than

ever before.

Each DishDrawer can accommodate 12 large dinner plates up to 11.4" in diameter. A

deeper drawer design means large plates can be loaded into the drawer while cups

and glasses can be safely stacked into the two levels.

Fisher & Paykel strongly recommends that you read the information contained in

this Use & Care Manual before using the DishDrawer.

ACCESSORIES

Each DishDrawer is supplied with the following:

·Basket

·Cutlery Basket

·Mega Rack

·Drain Filter Access Panel

·Plate Insert

IMPORTANT SAFETY

INSTRUCTIONS

Warning - When using your DishDrawer, follow

basic precautions, including the following:

For your safety the information in this manual must be followed to minimize

the risk of fire or explosion or to prevent property damage, personal injury or

loss of life.

Please read all instructions before operating the DishDrawer.

Use the DishDrawer only for its intended function as described in this Use and

Care manual.

Use only detergents or wetting agents recommended for use in a dishwasher

and keep them out of reach of children.

Do not touch the heater plate during or immediately after use.

Do not operate your DishDrawer unless all the enclosure panels are properly

in place.

Do not tamper with the controls.

Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer.

When loading items to be washed

1. Locate sharp items so that they are not likely to damage the lid seal and

2. Load sharp knives with the handles up to reduce the risk of cut type

injuries.

IMPORTANT

SAFETY

INSTRUCTIONS

To reduce the risk of injury, do not allow children to play in or on the

DishDrawer.

Under certain conditions hydrogen gas may be produced in a hot water heater

system that has not been used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been used for such a period,

before using the dishwasher, turn on all hot water faucets and let the water flow

from each for several minutes. This will release any accumulated hydrogen

gas. As gas is flammable, do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old

dishwasher from service or discarding it.

Installation

This DishDrawer must be installed and located in accordance with the

Installation Instructions before it is used. If you did not receive an Installation

Instruction book with your DishDrawer, you can obtain one by calling toll free

1 888 9 FNP USA (1 888 9 367 872).

Installation and service must be performed by a qualified technician.

This appliance must be grounded. In the event of a malfunction or

breakdown, grounding will reduce the risk of electric shock by providing a

path of least resistance for electric current. This appliance is equipped with a

cord having an equipment - grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is installed and grounded

in accordance with all local codes and ordinances.

WARNING - Improper connection of the equipment - grounding conductor

can result in a risk of electric shock. Check with a qualified electrician or

service representative if you are in doubt whether the appliance is properly

grounded. Do not modify the plug provided with the appliance; if it will not fit

the outlet, have a proper outlet installed by a qualified electrician.

Ensure the DishDrawer is secured to the floor or adjacent joinery using the

brackets provided. Failure to do so may result in an unstable product, which

may cause damage or injury.

IMPORTANT SAFETY

INSTRUCTIONS

Do not operate this appliance if it is damaged, malfunctioning, partially

disassembled or has missing or broken parts, including a damaged cord or

plug.

Do not store or use gasoline, or other flammable vapors and liquids in the

vicinity of the DishDrawer.

Connect to a properly rated, protected and sized power supply circuit to avoid

electrical overload.

Make sure that the cord is located so that it will not be stepped on, tripped over

or otherwise subject to damage or stress.

Do not install or store the DishDrawer where it will be exposed to temperatures

below freezing or exposed to weather.

Do not use an extension cord or a portable electrical outlet device (e.g. multi

socket outlet box) to connect the DishDrawer to the power supply.

Maintenance

Do not repair or replace any part of the appliance or attempt any servicing

unless specifically recommended in this Use and Care Manual. We

recommend that you call a Fisher & Paykel Authorized Service Agent.

Keep the floor around your appliance clean and dry to reduce the possibility of

slipping.

Keep the area around / underneath your appliance free from the accumulation

of combustible materials, such as lint, paper, rags and chemicals.

When cleaning the underside of the filter plate, care must be taken on the

sharp outer edge to avoid the risk of cut type injuries.

Operational

Under no circumstances should you open the drawer whilst the DishDrawer

is in operation. Always use the Start / Pause button to pause and wait until you

hear the two additional beeps before opening the drawer.

IMPORTANT SAFETY

INSTRUCTIONS

The DishDrawer must be used with the motor assembly, filter plate, drain filter

and spray arm correctly in place.

When disconnecting the appliance pull the plug rather than the cord or

junction of cord to avoid damage.

Household appliances are not intended to be played with by children.

Children or persons with a disability that may limit their ability to use the

appliance, should have a competent person instruct them in its use. This

person should be satisfied that they can then use the appliance without danger

to themselves or their surroundings.

Close supervision is necessary if this appliance is used by or near children. Do

not allow children to play inside, on or with this appliance or any discarded

appliance.

The DishDrawer is designed for washing normal household utensils. Items that

are contaminated by gasoline, paint, steel or iron debris, corrosive, acidic or

alkaline chemicals are not to be washed in the DishDrawer.

If the DishDrawer is not being used for long periods of time, turn the power and

water supply to the DishDrawer off.

It is important that the Use & Care Manual should be retained with the appliance for

future reference. Should the appliance be sold or transferred to another owner, always

ensure that the Use & Care manual is left with the appliance in order that the new

owner can familiarize themselves with the appliance and the relevant warnings.

SAVE THESE INSTRUCTIONS

CONTROL FUNCTIONS

Where there are two DishDrawers in the one cabinet, each drawer has its own control

panel and can run independently of the other.

Figure 1 - Primary Control Panel

Primary Control Buttons

Power

The Power button, it turns the DishDrawer on and off.

After pressing the Power button the Electronic Display will show: -

·A green background.

·The number of minutes from the last wash program used.

·The min symbol flashing.

Off

To terminate a wash program, press the Power button. Any remaining water in the

DishDrawer will be pumped out.

At the finish of a wash program the DishDrawer will stop. The Electronic Display will

have no background light. The smiley face symbol and 00 will be displayed.

Lock

The Lock function disables all the other functions on the

DishDrawer. This function is useful when cleaning the

control panel and can also prevent children from turning

the DishDrawer on or off accidentally. This button can be

used when the DishDrawer is in operation and will remain

active until the Lock is deactivated.

To activate this function, press and hold the Lock button

until the key symbol at the bottom of the Electronic

Display appears continuously and is no longer blinking.

All the other buttons are now inactive.

To deactivate this function, press and hold the Lock button

until the key symbol in the Electronic Display

disappears.

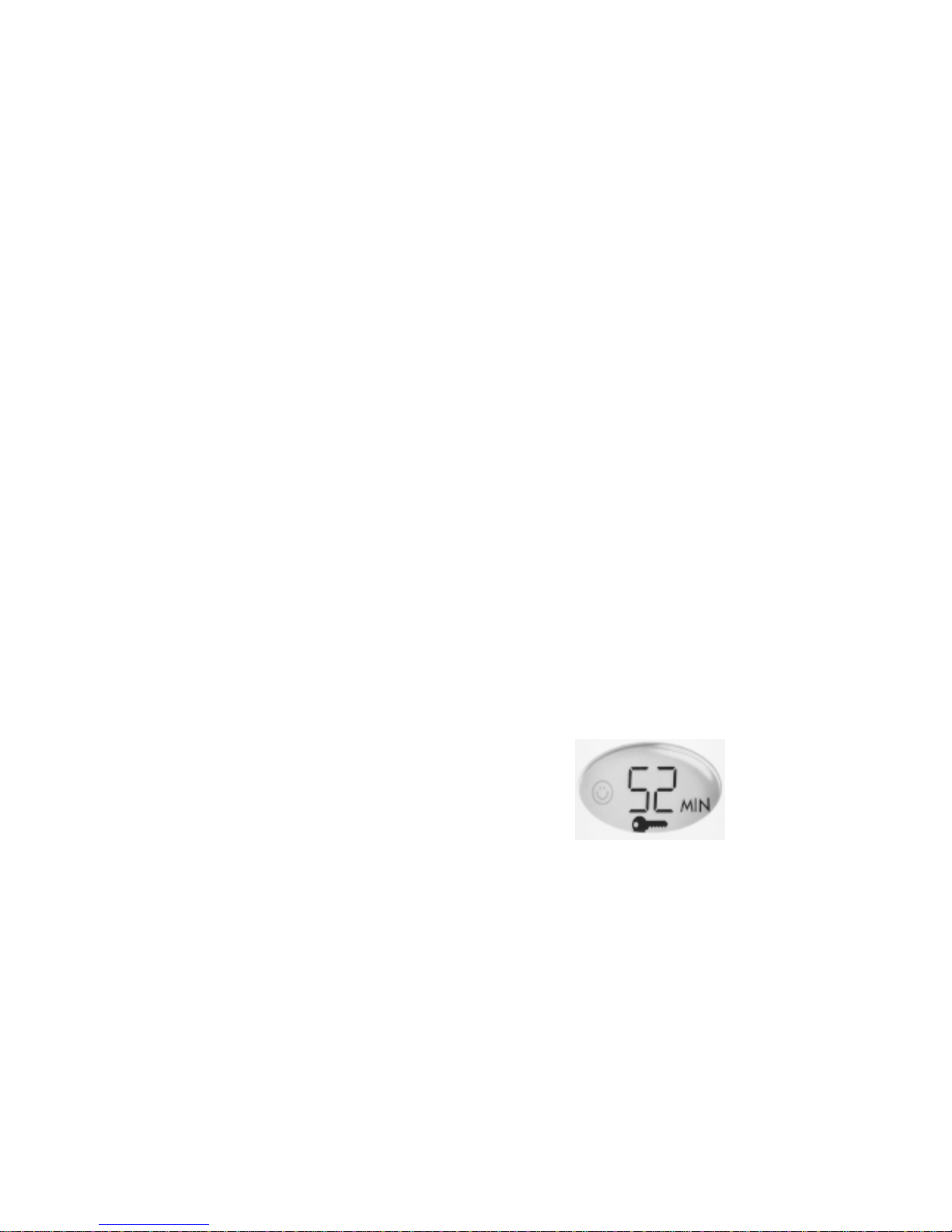

Figure 2 - Electronic

Display showing the lock

mode

Start / Pause

This button has a number of functions. It serves to:

·Start the DishDrawer, once the desired wash program has been selected.

·Interrupt the wash program while in operation.

When pausing the DishDrawer, wait until you have heard two additional

beeps before you open the drawer, allowing the lid seal to deflate.

While in the pause mode, the electronic display will be green, the min

symbol will flash and the "smiley face" symbol will disappear.

·Restart the DishDrawer after being paused.

You may notice a delay after the Start / Pause has been pressed. During this

time the lid seal will be inflating.

·One Button Start.

This starts the DishDrawer and will run the last wash program used,

excluding Delay Start if used in the previous wash.

·Initiates the Delay Start.

NOTE:

Under no circumstances do we recommend that you open the DishDrawer while in

operation unless you have pressed the Start / Pause button. If the drawer is opened

during the wash program, there is a possibility of getting wet, burnt, or damaging the

DishDrawer. There are safety mechanisms in place to stop the DishDrawer if it is

opened.

If Fault Code U2 Appears:

The fault code U2 will be displayed if the drawer is opened during operation. To

remove this fault code, press Power. Ensure the drawer is closed. The DishDrawer

will now be ready to start from the beginning of the wash program. You may have to

add more detergent in the dispenser and then press the Start / Pause button to start the

DishDrawer. The DishDrawer will not restart where it was interrupted after a U2 fault.

Otros manuales para 525911L

Este manual sirve para los siguientes modelos

Otros manuales de Lavavajillas de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel DW60 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD605 Series Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD603 PREFINISHED Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD60DAW8 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24DV2T9 Manual de usuario

Fisher & Paykel

Fisher & Paykel SINGLE DISHDRAWER DD60SCTHX9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD603I Integrated Manual de usuario

Fisher & Paykel

Fisher & Paykel Contemporary DW24UNT2X2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24SI9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD60DDFX7 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24SA Manual de usuario

Fisher & Paykel

Fisher & Paykel SINGLE DISHDRAWER DD24SCTB9 Instrucciones de funcionamiento

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24 Manual de instrucciones

Fisher & Paykel

Fisher & Paykel DishDrawer DD36STI2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD60DI7 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD60STX6HI Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD60DDFX9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24STI9N Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24DDFTB9 Instrucciones de funcionamiento

Fisher & Paykel

Fisher & Paykel DD60DAW9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24DCTX6 Manual de usuario

Fisher & Paykel

Fisher & Paykel DW60U6I Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24STI9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD60SHTI9 Guía de instalación y uso

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
