Fisher & Paykel CI302DTB Manual de usuario

NZ AU GB IE

590492A 03.13

CI302DTB, CI603DTB, CI604DTB,

CI754DTB & CI905DTB

models

INSTALLATION INSTRUCTIONS

Induction cooktop

WARNING!

Electrical shock hazard

Disconnect the appliance from the

mains electricity supply before carrying

out any work or maintenance on it.

Connection to a good earth wiring

system is essential and mandatory.

Alterations to the domestic wiring

system must only be made by a qualified

electrician.

Failure to follow this advice may result

in electrical shock or death.

WARNING!

Cut hazard

Take care - some panel edges are sharp.

Failure to use caution could result in

injury or cuts.

IMPORTANT SAFETY INSTRUCTIONS!

Particular attention shall be given to the relevant

requirements regarding ventilation.

Read these instructions carefully before installing

this product.

Please make this information available to the

person installing the appliance as it could reduce

your installation costs.

This appliance is to be installed and serviced only

by an authorised person.

Installation must comply with your local building

and local electricity regulations.

The manufacturer accepts no responsibility for

the incorrect installation of appliances. Incorrect

installation may result in personal injury, damage

to property and may invalidate any warranty or

liability claims.

Do not modify this appliance.

Do not use or store flammable materials on or near

this appliance.

Packing elements (eg plastic bags, polystyrene

foam, staples, packing straps etc) and tools should

not be left around during and after installation,

especially if they are within easy reach of children,

as these may cause serious injuries.

SAFETY AND WARNINGS

Before you install the appliance,

please make sure that

a suitable disconnection switch is incorporated in

the permanent wiring, mounted and positioned

to comply with the local wiring rules and

regulations. A means of disconnection with at

least a 3 mm air gap contact separation in all

poles must be incorporated into the fixed wiring

in accordance with the wiring rules, unless the

local wiring rules allow for alternative means.

the benchtop is made of a heat resistant material.

the power supply cable is not accessible through

cupboard doors or drawers.

there is adequate flow of cool air from the

cabinetry to the base of the cooktop. You may

ventilate from adjacent cupboards, but ensure

that the available air supply will not be restricted.

the ventilation area must be at least two o 50mm

holes or of an equivalent area.

the isolating switch is easily accessible by the

customer.

you use heat-resistant and easy-to-clean finishes

(such as ceramic tiles) for the wall surfaces

surrounding the cooktop.

the cooktop will not be installed directly above a

dishwasher, fridge, freezer, washing machine or

clothes dryer, as the humidity may damage the

cooktop electronics.

if the cooktop is installed above an oven, the oven

has a built-in cooling fan.

the installation will comply with all clearance

requirements and applicable standards and

regulations.

you consult local building authorities and by-laws

if in doubt regarding installation.

When you install the appliance

We do not recommend you flush mount or seal

this appliance into the bench with silicone or

glue. Doing so will make future servicing difficult.

Fisher & Paykel will not be liable for any costs

associated with removing or replacing a sealed-in

appliance, nor for repairing any damage that may

be incurred by doing this.

Seal exposed bare edges of the cutout with an

oil-based paint or moisture-proof polyurethane to

prevent possible moisture creeping between the

cooktop trim and the benchtop.

Take extreme care not to chip, crack, or break the

top glass surfaces during installation. A heavy

metal tool or part accidentally dropped on the

glass could damage it.

If, after following the instructions given, correct

performance cannot be achieved, please contact

your nearest Fisher & Paykel Authorised Service

Centre, Customer Care, or contact us through our

local website listed at the end of this document.

PARTS SUPPLIED

Clamping brackets (4)

and screws (4)

CG302DTB only

Clamping brackets (2)

and screws (2)

Installing multiple products

Note: We recommend installing products in separate cutouts with a minimum distance of 5 mm between the glass edges.

If installing multiple products adjacent to each other within the same cutout, a separate joining strip kit is required for installation.

The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our local website listed at the end of this document.

If installing different products adjacent to each other (eg a wok burner next to an induction cooktop), the minimum clearance measurements for the different products may vary. Always use the greater distance.

Foam tape (1)

4PRODUCT & CABINETRY DIMENSIONS

Product and cabinetry dimensions (mm)

CI302DTB

CI603DTB

CI604DTB

CI754DTB

CI905DTB

Aoverall height of product

(including terminal block below top of chassis) 54 54 54 54 54

Boverall width of product 300 600 600 750 900

Coverall depth of product 530 530 530 530 530

Dheight of chassis

(including terminal block below top of chassis) 49 49 49 49 49

Ewidth of chassis 254 546 546 716 852

Fdepth of chassis 478 478 478 478 482

Goverall width of cutout 265 560 560 725 870

Hoverall depth of cutout 490 490 490 490 494

Icorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10

Note: Electrical connection is

made at the right rear

TOP TOP

REAR

FRONT

SIDE

5CLEARANCE DIMENSIONS

Clearance dimensions (mm)

CI302DTB

CI603DTB

CI604DTB

CI754DTB

CI905DTB

Aminimum clearance from rear edge of cutout to nearest combustible surface 30 30 30 30 30

Bminimum clearance from glass surface to rangehood 650 650 650 650 650

Cminimum clearance from side edges of cutout to nearest combustible surface 30 30 30 25 25

Dminimum clearance from benchtop to overhead cabinet not directly above the cooktop 450 450 450 450 450

Eminimum clearance below top of benchtop to:

rear top of oven* installed below cooktop or cabinetry 65 65 65 65 65

* The oven installed below the cooktop MUST have a cooling fan.

FRONT

ISO

min. 75 mm

Alternatively

2x 50mm holes

in side wall

to allow adequate

cool air

min. 4 mm

Drawer or other obstruction

Oven with cooling fan

Ventilation gap

must be present

20 mm

Alternatively

2x 50mm holes

in side wall

to allow adequate

cool air

WARNING!

This cooktop requires

adequate supply of cool air

to fully function.

The base of the cooktop

must have direct

unrestricted ventilation to

the room where the

cooktop is installed. Follow

the requirements shown.

FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)

WARNING!

We do not recommend flush mounting and sealing as

servicing requires the cooktop to be removed from the

benchtop. The owner carries all risk for flush mounting

the cooktop. The owner must ensure the cooktop has

been cut out from the benchtop before servicing can

be carried out. Fisher & Paykel will not be liable for any

costs associated with removing or replacing a flush-

mounted and/or sealed-in product, nor for repairing

any damage that may be incurred by doing this.

Product and cabinetry dimensions (mm)

CI302DTB

CI603DTB

CI604DTB

CI754DTB

CI905DTB

Aoverall height of product

(including terminal block below top of chassis) 54 54 54 54 54

Boverall width of product 300 600 600 750 900

Coverall depth of product 530 530 530 530 530

Dheight of chassis

(including terminal block below top of chassis) 49 49 49 49 49

Ewidth of chassis 254 546 546 716 852

Fdepth of chassis 478 478 478 478 482

Goverall width of routered recess 305 605 605 755 905

width of cutout 265 560 560 725 870

Hoverall depth of routered recess 535 535 535 535 535

depth of cutout 490 490 490 490 494

Icorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10

Jcorner radius of routered recess max. 2 max. 2 max. 2 max. 2 max. 2

Kheight of routered recess 55555

minimum clearance below top of benchtop to:

rear top of oven* installed below cooktop or cabinetry

thermal protection barrier

Note: Electrical connection is

made at the right rear

TOP TOP

REAR SIDE

FRONT

FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)

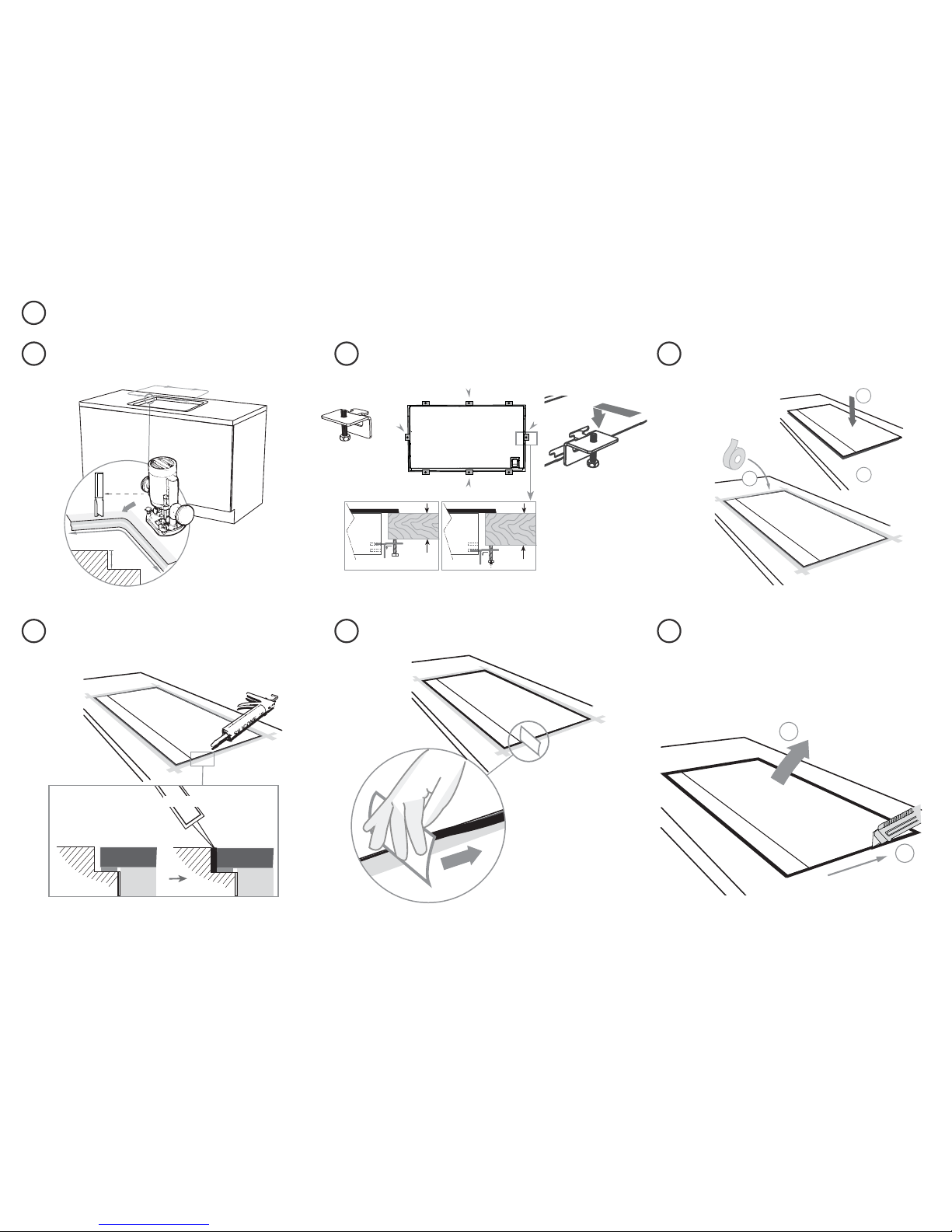

ROUTER THE BENCHTOP TO THE

SPECIFIED DEPTH

APPLY SILICONE

FIT THE CLAMPING BRACKETS

WIPE OFF EXCESS SILICONE

MASK OFF THE AREA TO BE

SILICONED

IF REMOVING PRODUCT, CUT

AROUND THE SILICONE

5 mm

min. 150 OC rated

TO REMOVE PRODUCT

Ensure silicone does not leak underneath glass.

12-40mm 40mm+

view from below

No. of brackets and slot positions depends on model

Fit a minimum of 2 brackets on opposing sides

DISCARD PACKAGING PLACE COOKTOP UPSIDE DOWN

LOWER GENTLY INTO THE CUTOUT

Recycle responsibly

Important!

To avoid damage to the glass, ensure there is a protective cover underneath it.

9APPLY ADHESIVE FOAM TAPE AROUND GLASS EDGE

Foam Tape

Adhesive side

Ensure edge of tape

lines up with outer

edge of cooktop

Apply the foam seal around the glass

overhang, 5 mm in from the edge of

the glass, with the adhesive side facing

down to form a continuous seal around

the cooktop.

Using a sharp cutter or trimmer knife,

trim the excess sealing material around

the edge of the cooktop. Take care not

to damage the benchtop.
