FingerTec DL-30B Manual de usuario
Door Preparation
No te: Please re fer to t he above picture to adjust the d irect ion of strike plate F and latch D.
1. Check the door thickness and prepare the corresponding mounting
hardware package.
2. Check door opening direction.
Left inward Right inward
Left outward Right outward
F
FF
F
D
DD
D
No te: The standa rd lock includ es 2 moun ting ha rdware packag es only, which are us ed for t he door
thickness o f 30-38mm and 39- 46mm se parately.
N
A

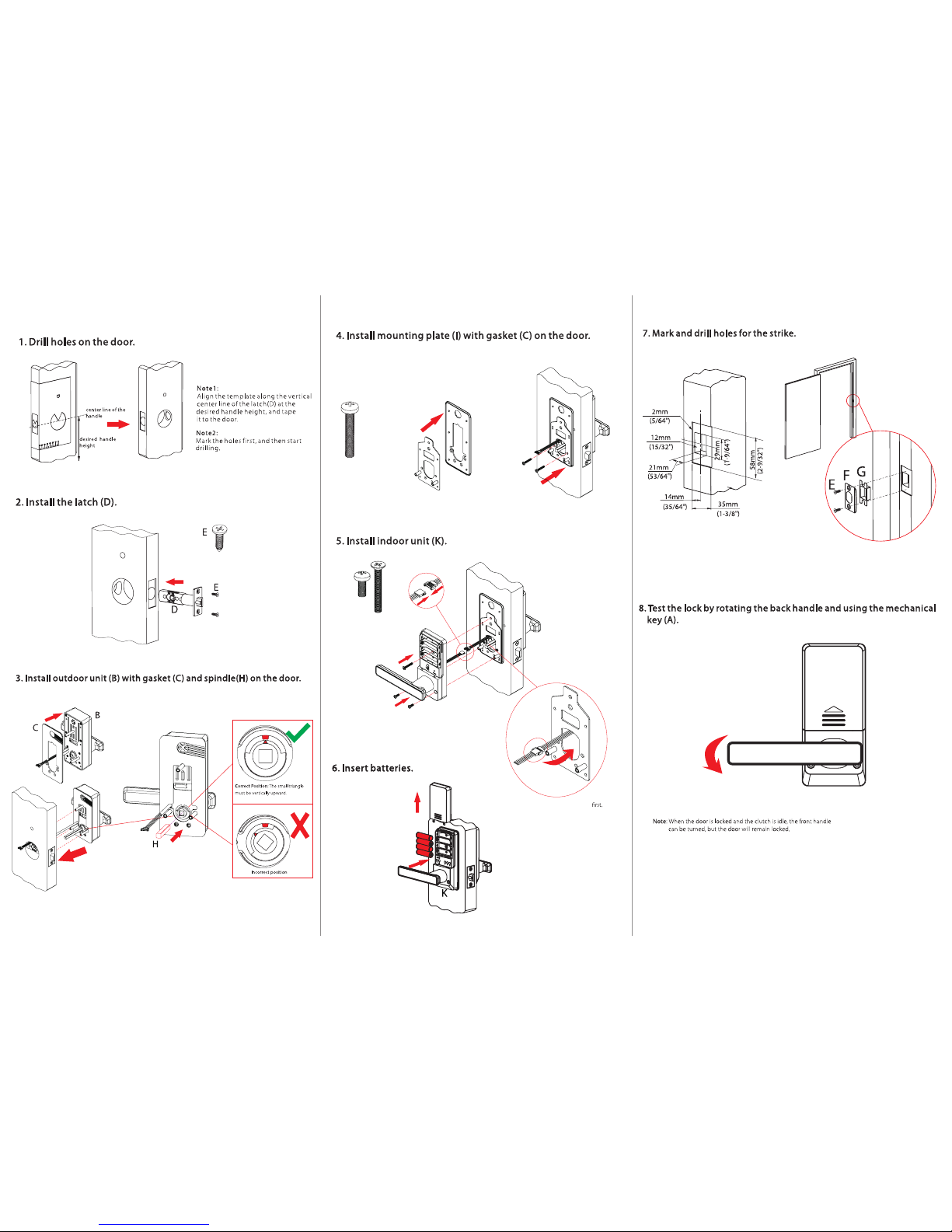

Installation Guide
DL-30B
Digital Lock with Voice Guide Feature
Before Installation (Diagram)
© 2017 Timetec Computing Sdn Bhd. All rights reserved.• 092017
Installation
JB
C
I
I
C
J
ML
Note: Push cable into the hole
