FingerTec TA700W Manual de usuario

........

Installation Guide

TA700W

Biometrics Time Attendance System

Step 1

Determine the Installation Location

• Avoid installing the terminals in locations that have contact with

strong light source (e.g direct sunlight, spotlight, fluorescent

light, etc)

• Avoid installing the terminals in locations prone to high moisture

or condensation levels in the air

• The recommended installation height of the terminals from the

ground is 1.2 meter.

Step 2

Mount on a Wall

It is recommended that the terminals be mounted to a wall in to

ease the process of enrolment and verification.

After measuring the height accordingly and make relevant marking on

the wall, drill the screws into the wall to secure the back plate.

Attach the terminal to the back plate and tighten the screws. Refer to

Appendix I (Installation Plate Type I), and Appendix II (Installation Plate

Type II), for dimensions and measurements of installation.

TA700W is the only FingerTec terminal provided with 2 different in-

stallation plates, choose your preference.

Step 3

Wiring for Power Supply

Please use the power adaptor provided in the package or alterna-

tively you can choose a linear power supply with specifications of

5VDC 2A.

Don’t exceed the recommended voltage or current to avoid dam-

aging the terminal.

Step 4

Finalizing the Installation

1. Check that all cable connections are done correctly.

2. Attach the terminal to the corresponding back plates and

tighten the screws to secure the terminal on the wall.

3. Switch on the power to the terminal.

4. Start using the terminal.

4 feet / 1.2 meter

(recommended)

POWER PORT

92 mm 72 mm

121 mm

164 mm

17 mm

37 mm

67 mm

Other Accessories

FingerTec offers complementing accessories which can be used with

your terminals. These optional accessories are available at

http://accessory.fingertec.com

AdapTec TA

The AdapTec TA is a 5VDC power supply inclusive of a 110~240VAC

switching linear power. The AdapTec provides 5VDC power to the

FingerTec terminal and charges a 12VDC 7.0Ah backup battery si-

multaneously. During an event of a power failure, the backup battery

will automatically provide power to the terminal.

Mini UPS

Mini UPS 5VDC is a mini portable backup power supply with 5VDC

output, for FingerTec Time Attendance terminals.

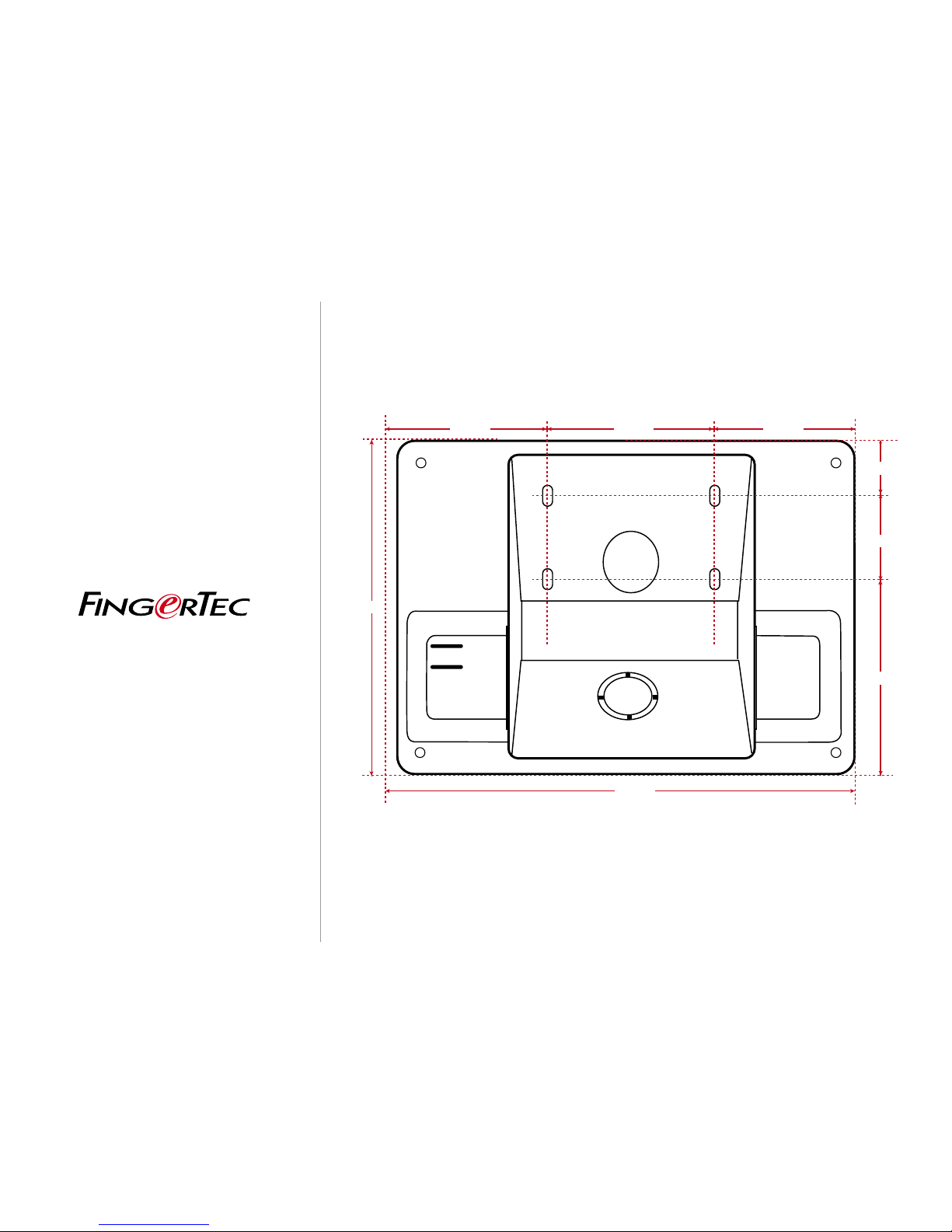

Appendix I

Terminal Dimensions and Measurements

Front View of a Back Plate

53mm 53 mm58 mm

121 mm

164 mm

19 mm

27 mm

75 mm

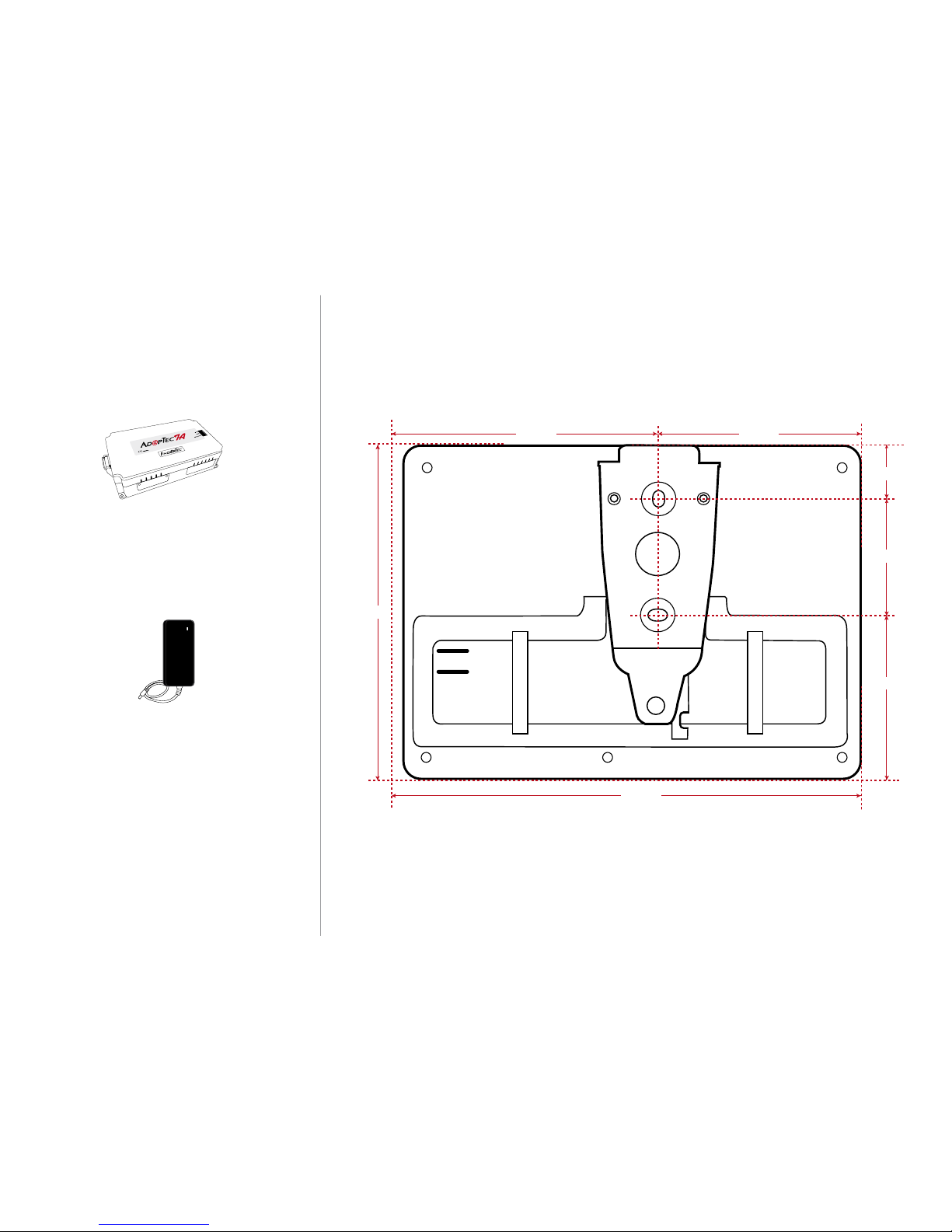

Appendix II

Terminal Dimensions and Measurements

Front View of a Back Plate
