BATTERY METER
Your TNC-506 is equipped with a 3-way meter.
It automatically monitors (a) battery condition, (b) incoming
signal levels in 0-10 range, and (c) power output.
To use as a battery meter simply abvance the "ON-OFF
VOLUME CONTROL“ to the “ ON" position.
If the meter remains in black area, the batteries are in
good condition.
To monitor incoming signal levels simply advance the “ VOLUME
CONTROL" to the desired level.
The meter wili now indicate from 0-10 depending on the
strength of the incoming signal.
To read power output, simply depress the “PUSH-TO-TALK
SWITCH"

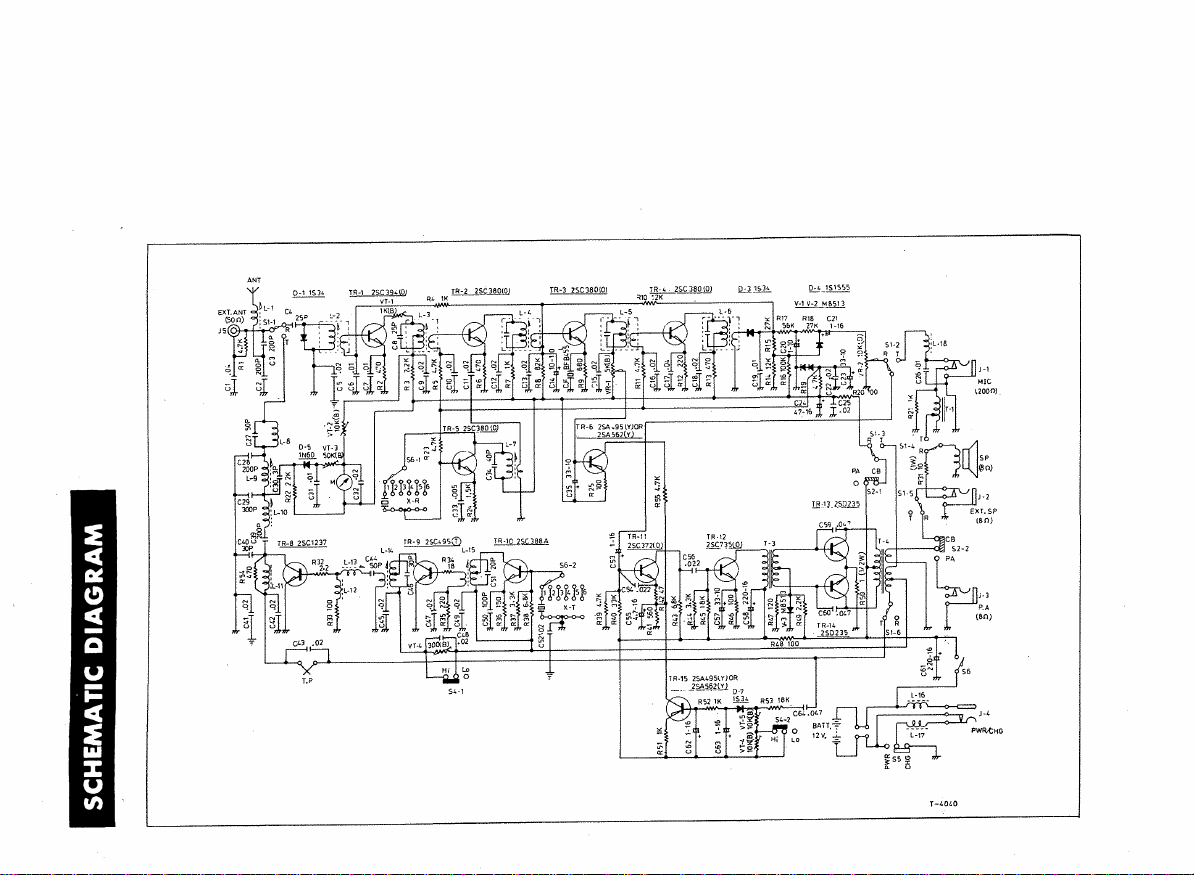

SPECIFICAT IONS
A. Semiconductor
Complément
8. Frequency
14 Transistors, 6 Diocfes,
3 Varistors.
6 Channels. 2.7 MHz Citizen's
Band.
C. Input power
D. Output Power
E. Transmitter
F. Frequency Tolérance
G. Receiver
High power position-5.0 Wattes.
Low power position-2.0 Wattes.
High power position-2.8 Wattes
Low power position-1.0 Wattes
3 stage with crystal controlled
oscillator high efficiency modu
lation, RF power metering.
± 0. 005 % .
Crystal. controlled , superhete-
rodyne type with tuned RF,
3 IFT's, ANL, AGC, variable
squelch, push pull audio, signal
level metering.
H. Intermediate Frequency ■ 455 KHz.
I. Receiver Sensitivity : 1 uV for 10 dB S/jN.
